2015 TOYOTA AVENSIS warning

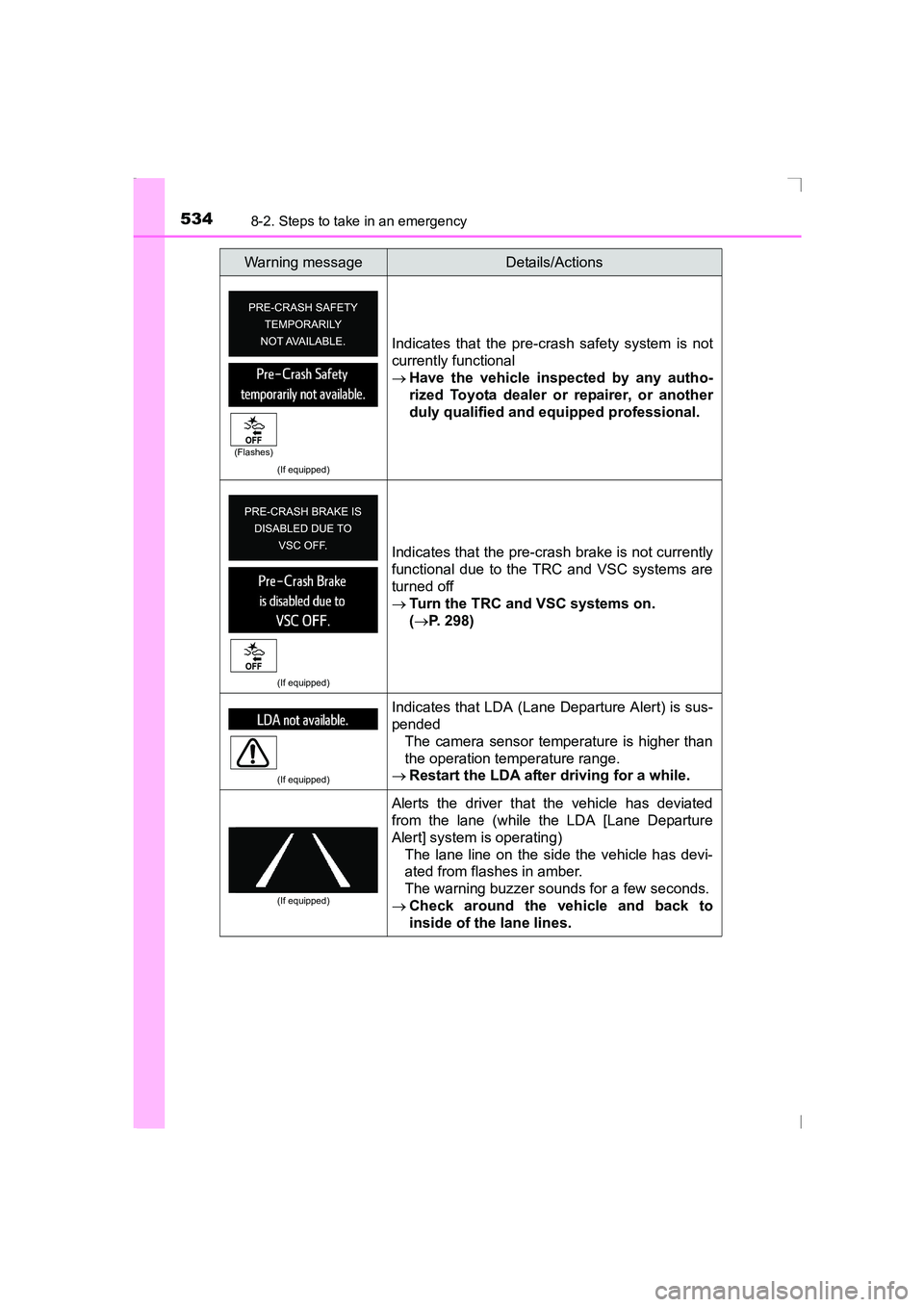

5348-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
(If equipped)
Indicates that the pre-crash safety system is not
currently functional
→Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
(If equipped)
Indicates that the pre-crash brake is not currently
functional due to the TRC and VSC systems are
turned off
→Turn the TRC and VSC systems on.
(→ P. 298)
(If equipped)
Indicates that LDA (Lane Departure Alert) is sus-
pended
The camera sensor temperature is higher than
the operation temperature range.
→ Restart the LDA after driving for a while.
(If equipped)
Alerts the driver that the vehicle has deviated
from the lane (while the LDA [Lane Departure
Alert] system is operating)
The lane line on the side the vehicle has devi-
ated from flashes in amber.
The warning buzzer sounds for a few seconds.
→ Check around the vehicle and back to
inside of the lane lines.
Warning messageDetails/Actions
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 534 Thursday, January 29, 2015 1:47 PM

5358-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Indicates a malfunction in:
• The automatic headlight leveling system;
• The Automatic High Beam system (ifequipped); or
• The LED headlight system (if equipped);
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
(If equipped)
Indicates that there is a high possibility of a fron-
tal collision, or that the pre-crash braking function
is operating
→Slow the vehicle by applying the brakes.
Indicates that the headlight have been left on A buzzer also sounds.
→ Turn off the headlights.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system cannot be used because the vehicle
speed is lower than approximately 50 km/h
(32 mph)
→Drive the vehicle at approximately 50 km/h
(32 mph) or higher.
Warning messageDetails/Actions
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 535 Thursday, January 29, 2015 1:47 PM

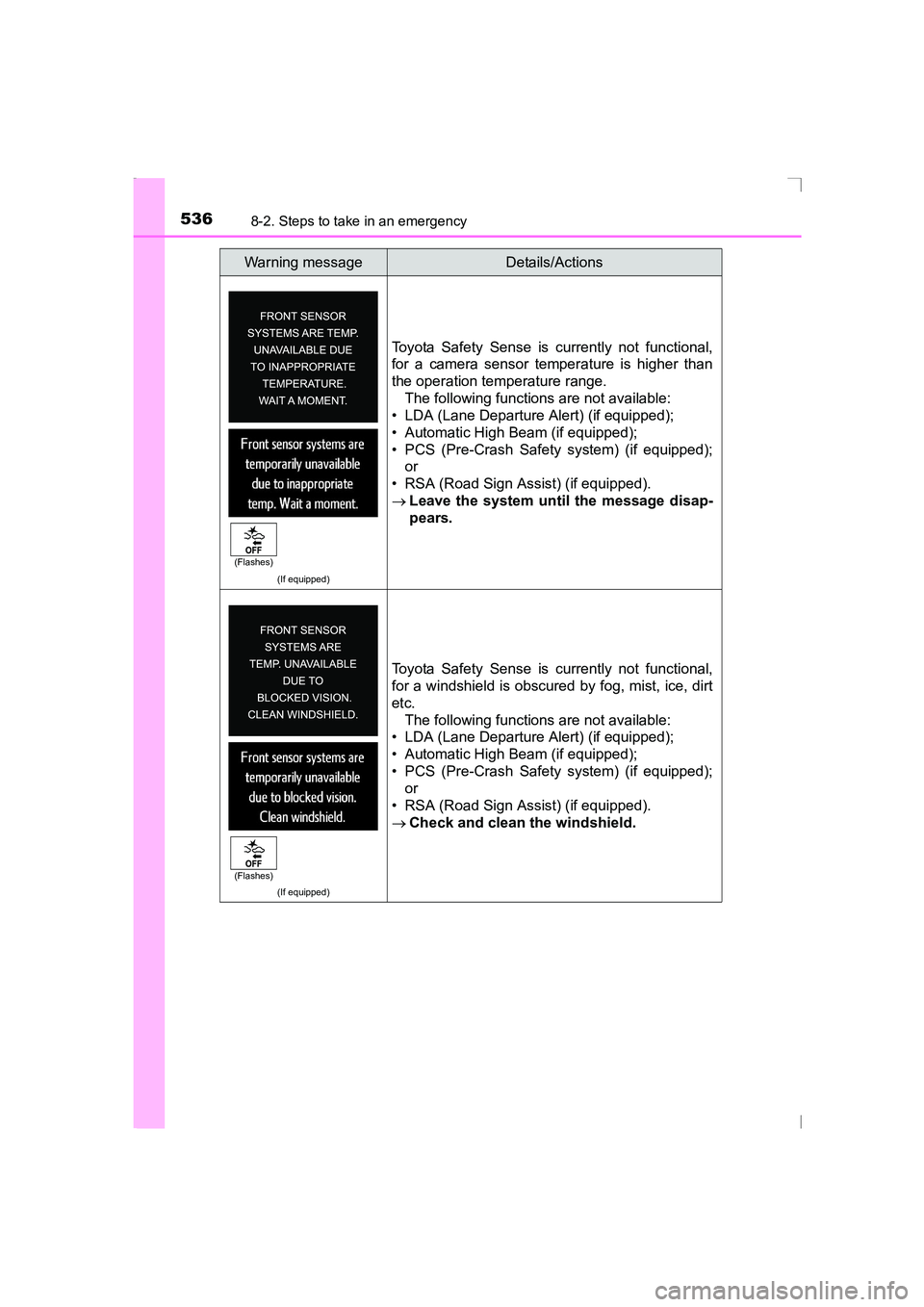

5368-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
(If equipped)
Toyota Safety Sense is currently not functional,
for a camera sensor temperature is higher than
the operation temperature range.The following functions are not available:
• LDA (Lane Departure Alert) (if equipped);
• Automatic High Beam (if equipped);
• PCS (Pre-Crash Safety system) (if equipped); or
• RSA (Road Sign Assist) (if equipped).
→ Leave the system until the message disap-
pears.
(If equipped)
Toyota Safety Sense is currently not functional,
for a windshield is obscured by fog, mist, ice, dirt
etc. The following functions are not available:
• LDA (Lane Departure Alert) (if equipped);
• Automatic High Beam (if equipped);
• PCS (Pre-Crash Safety system) (if equipped); or
• RSA (Road Sign Assist) (if equipped).
→ Check and clean the windshield.
Warning messageDetails/Actions
(Flashes)
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 536 Thursday, January 29, 2015 1:47 PM

5378-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
■After changing the engine oil (diesel engine)
Make sure to reset the oil maintenance data. ( →P. 449)
■ If the message “DPF FULL SEE OWNER’S MANUAL” appears on the dis-
play (diesel engine)
The deposit collected in the filter needs to be regenerated.
To regenerate the filter, the following driving methods are recommended
*:
● By driving continuously (for example, at around 65 km/h [40 mph] for 20 to
30 minutes).
● By avoiding short trips, or by driv ing continuously (leaving the engine run-
ning for long periods of time).
The warning message will disappear w hen regeneration is complete. How-
ever, if this driving cannot be carried out, or if the message does not disap-
pear even after driving, have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional imme-
diately.
*: When driving, pay sufficient attention to weather, road conditions, terrain and traffic conditions, and drive according to traffic laws.
■ The LDA (Lane Departure Alert) system (if equipped)
In the following cases, the warning message will not be displayed even if the
vehicle deviates from the lane markers.
●When the vehicle speed deviates from the operating range of the LDA sys-
tem functions
● When the lane markers cannot be recognized
NOTICE
■Engine oil maintenance message (diesel engine)
The warning message is based on the projected driving range after engine
oil maintenance message is reset.
The system does not monitor the purity of the engine oil.
AVENSIS_OM_OM20C20E_(EE).book Page 537 Thursday, January 29, 2015 1:47 PM

5388-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
Interior buzzerExterior buzzerWarning messageDetails/Actions
Once  The electronic key is not
detected when an attempt is
made to start the engine.
→
Confirm the location of the
electronic key.
Once
3 times
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
engine switch was in a mode
other than off.
→ Bring the electronic key
back into the vehicle.
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was in P (Multidrive)
or N (manual transmission) and
the engine switch was not
turned off.
→ Turn the engine switch off
or bring the electronic key
back into the vehicle.
Once
Once
for 10
seconds
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off.
→ Turn the engine switch off
and lock the doors again.
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 538 Thursday, January 29, 2015 1:47 PM

5398-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Once An attempt was made to start
the engine without the elec-
tronic key being present, or the
electronic key was not function-
ing normally.
An attempt was made to drive
when the regular key was not
inside the vehicle.
→
Confirm that the elec-
tronic key is inside the
vehicle.
Contin-
uous
(Multidrive)
The driver’s door was opened
when the shift lever was not in
P and the engine switch was
not turned off.
→Shift the shift lever to P.
Contin-
uous Contin-
uous
(Multidrive)
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was not in P and the
engine switch was not turned
off.
→
Shift the shift lever to P.
→ Bring the electronic key
back into the vehicle.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 539 Thursday, January 29, 2015 1:47 PM

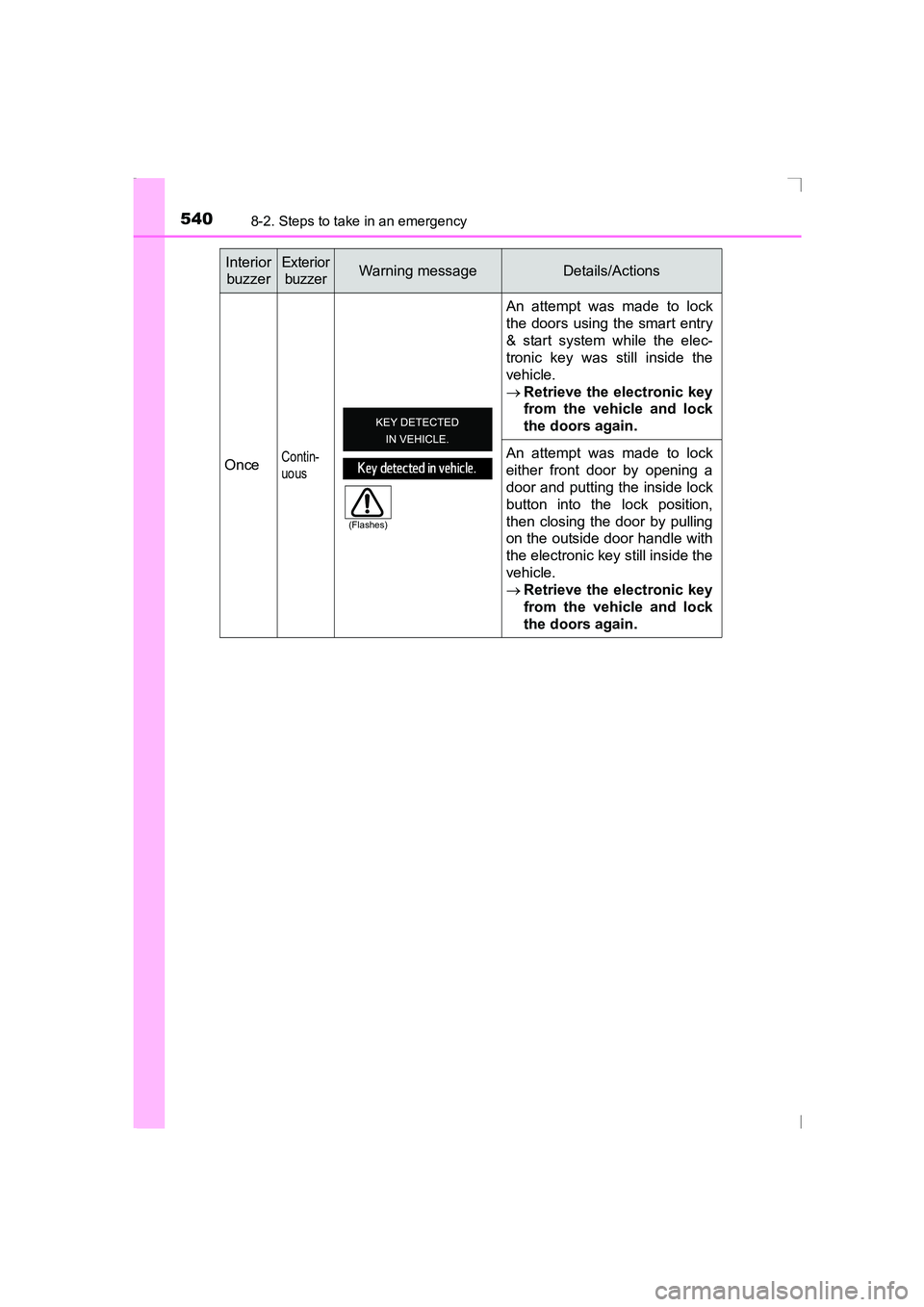

5408-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)Once
Contin-
uous
An attempt was made to lock
the doors using the smart entry
& start system while the elec-
tronic key was still inside the
vehicle.
→
Retrieve the electronic key
from the vehicle and lock
the doors again.
An attempt was made to lock
either front door by opening a
door and putting the inside lock
button into the lock position,
then closing the door by pulling
on the outside door handle with
the electronic key still inside the
vehicle.
→ Retrieve the electronic key
from the vehicle and lock
the doors again.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 540 Thursday, January 29, 2015 1:47 PM

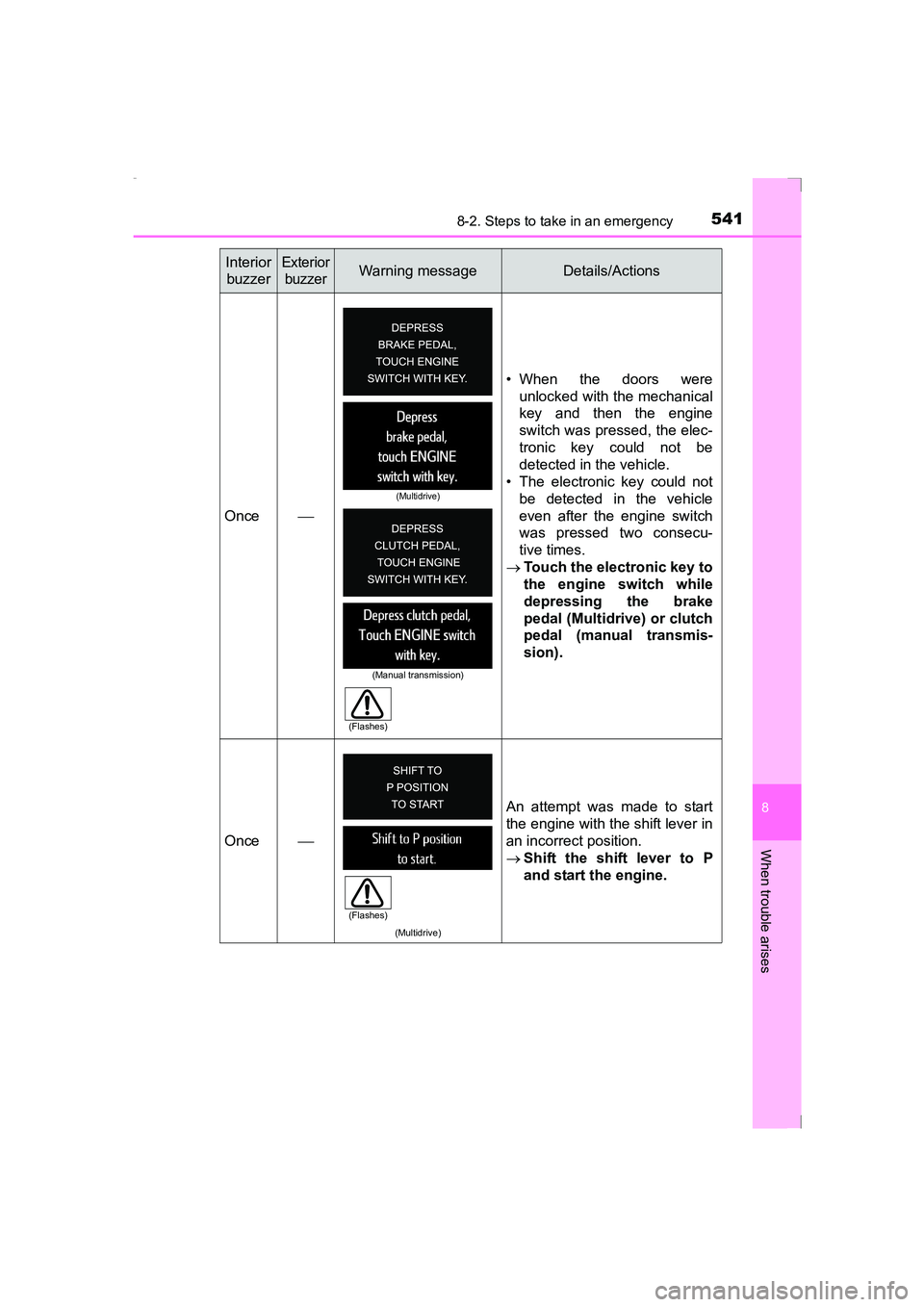

5418-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Once • When the doors were
unlocked with the mechanical
key and then the engine
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the engine switch
was pressed two consecu-
tive times.
→ Touch the electronic key to
the engine switch while
depressing the brake
pedal (Multidrive) or clutch
pedal (manual transmis-
sion).
Once 
(Multidrive)
An attempt was made to start
the engine with the shift lever in
an incorrect position.
→Shift the shift lever to P
and start the engine.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Multidrive)
(Manual transmission)
(Flashes)
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 541 Thursday, January 29, 2015 1:47 PM
