2015 TOYOTA AVENSIS warning

5268-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, firmly
hold and operate it using more force than usual.
■ If the tire pressure warning light comes on (vehicles with tire pressure
warning system)
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire infla-
tion pressure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire
is flat, change it with the spare tire and have the flat tire repaired by the
nearest authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur (vehicles with tire
pressure warning system)
The tire pressure warning system may not activate immediately.
NOTICE
■To ensure the tire pressure warn ing system operates properly (vehi-
cles with tire pressure warning system)
Do not install tires with different specifications or makers, as the tire pres-
sure warning system may not operate properly.
AVENSIS_OM_OM20C20E_(EE).book Page 526 Thursday, January 29, 2015 1:47 PM

5278-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
If a war ning message is displayed
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning light comes on again after the following actions
have been performed, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2
Warning message and warning buzzer list
Warning messageDetails/Actions
Indicates abnormal engine oil pressure The warning light may come on if the engine oil
pressure is too low.
A buzzer also sounds.
→ Immediately stop the vehicle in a safe place
and contact any authorized Toyota dealer
or repairer, or another duly qualified and
equipped professional.
Continuing to drive the vehicle may be dan-
gerous.
AVENSIS_OM_OM20C20E_(EE).book Page 527 Thursday, January 29, 2015 1:47 PM

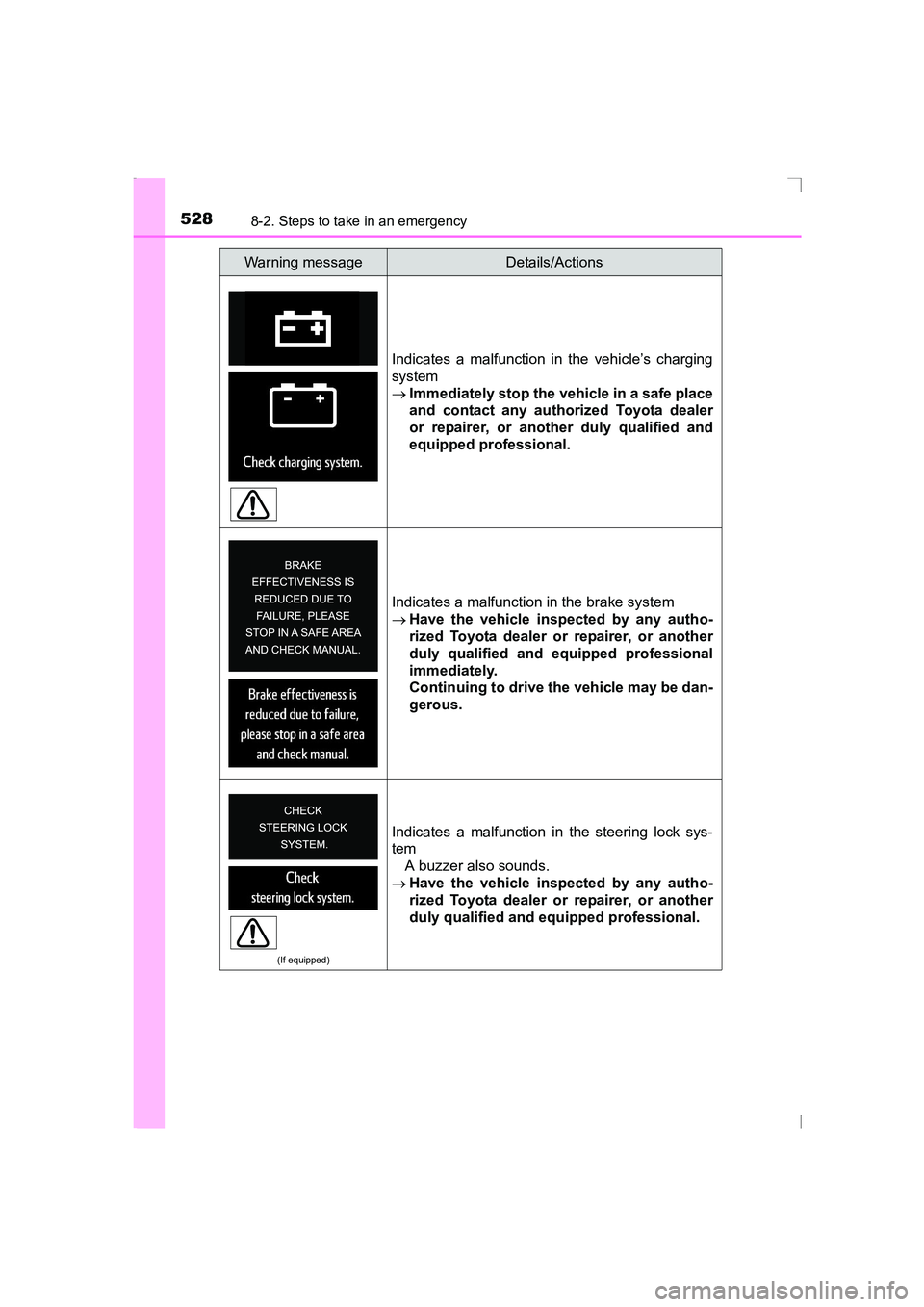

5288-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)Indicates a malfunction in the vehicle’s charging
system
→
Immediately stop the vehicle in a safe place
and contact any authorized Toyota dealer
or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in the brake system
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional
immediately.
Continuing to drive the vehicle may be dan-
gerous.
(If equipped)
Indicates a malfunction in the steering lock sys-
tem
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Warning messageDetails/Actions
AVENSIS_OM_OM20C20E_(EE).book Page 528 Thursday, January 29, 2015 1:47 PM

5298-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
(If equipped)
Indicates a malfunction in the PCS (Pre-Crash
Safety system)A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
(If equipped)
Indicates a malfunction in the Stop & Start system
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional
immediately.
Continuing to drive the vehicle may be dan-
gerous.
(If equipped)
Indicates a malfunction in the cruise control sys-
tem
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
(If equipped)
Indicates a malfunction in the speed limiter sys-
tem
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Warning messageDetails/Actions
(Flashes)
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 529 Thursday, January 29, 2015 1:47 PM

5308-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
(If equipped)
Indicates a malfunction in the LDA (Lane Depar-
ture Alert)A buzzer also sounds.
→ Stop the vehicle in a safe place. Turn the
engine switch off and then turn it to the
“ON” position (vehicles without smart
entry & start system) or IGNITION ON mode
(vehicles with smart entry & start system)
again to reset the LDA system. Or restart
the LDA system by pressing LDA switch. If
the LDA system becomes normal, the sys-
tem can be activated.
(If equipped)
Indicates a malfunction in the RSA (Road Sign
Assist)
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
(Manual transmission)
Indicates a malfunction in the clutch switch
A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Indicates that the electric parking brake system
cannot perform a request A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Vehicles with Stop & Start system: indicates that
the electric parking brake system cannot perform
a release request when the Stop & Start system
is operating (engine stopped or starting). A buzzer also sounds.
→ If the parking brake is not released once
the engine has restarted and the warning
message has disappeared, pull the parking
brake switch again to release the parking
brake.
Warning messageDetails/Actions
(Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 530 Thursday, January 29, 2015 1:47 PM

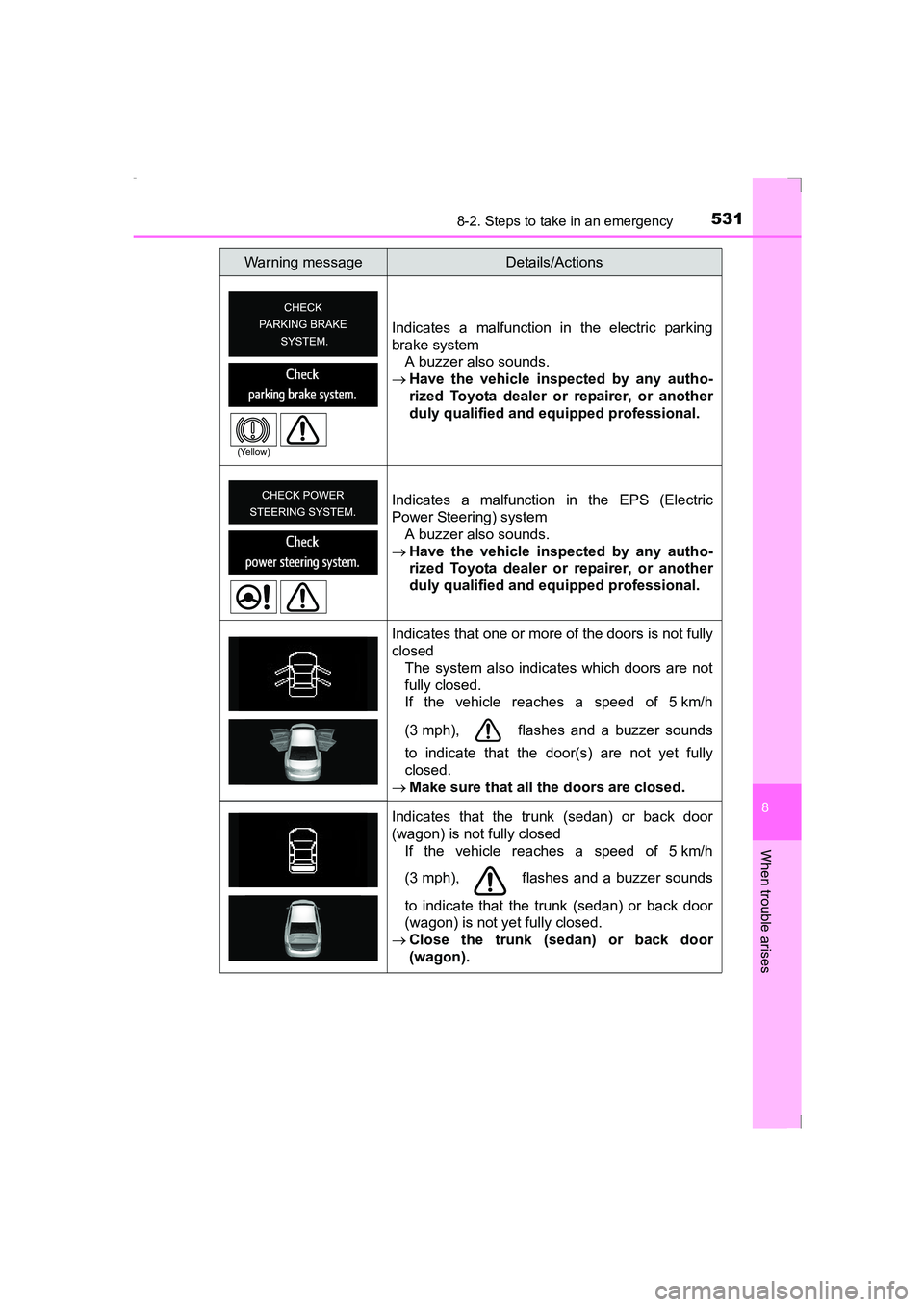

5318-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
Indicates a malfunction in the electric parking
brake systemA buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Indicates a malfunction in the EPS (Electric
Power Steering) system A buzzer also sounds.
→ Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Indicates that one or more of the doors is not fully
closed The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 5 km/h
(3 mph), flashes and a buzzer sounds
to indicate that the door(s) are not yet fully
closed.
→ Make sure that all the doors are closed.
Indicates that the trunk (sedan) or back door
(wagon) is not fully closed If the vehicle reaches a speed of 5 km/h
(3 mph), flashes and a buzzer sounds
to indicate that the trunk (sedan) or back door
(wagon) is not yet fully closed.
→ Close the trunk (sedan) or back door
(wagon).
Warning messageDetails/Actions
(Yellow)
AVENSIS_OM_OM20C20E_(EE).book Page 531 Thursday, January 29, 2015 1:47 PM

5328-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)Indicates that the parking brake is not engaged
When the engine switch is turned off while the
vehicle is not at standstill, a message is dis-
played and a buzzer sounds twice to indicate
that the parking brake is not engaged.
If the driver’s door is opened without parking
brake applied, a continuous buzzer sounds.
→ Apply the parking brake.
Indicates that the parking brake is still engaged If the vehicle reaches a speed of 5 km/h
(3 mph), message is displayed and a buzzer
sounds to indicate that the parking brake is still
engaged.
→ Release the parking brake.
Indicate that the parking brake is in undefined
state When the parking brake system is unable to
detect its current state (set or released), mes-
sage is displayed and a buzzer sounds.
→ Wait until the message disappears. If the
message does not disappear, release the
parking brake.
Indicates that the parking brake system is not
currently functional A buzzer also sounds.
→ Leave the system for a while.
In case of overheating, the system will
become functional once the system cools
down.
Warning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes) (Flashes)
AVENSIS_OM_OM20C20E_(EE).book Page 532 Thursday, January 29, 2015 1:47 PM

5338-2. Steps to take in an emergency
AVENSIS_OM_OM20C20E_(EE)
8
When trouble arises
(Diesel engine)
Indicates that the engine oil is scheduled to be
changed
→Check the engine oil and change if neces-
sary. After changing the engine oil, the oil
change system should be reset. ( →P. 449)
(The indicator will not work properly unless
the oil maintenance data has been reset.)
(Diesel engine)
Indicates that the engine oil and oil filter should
be changed
→ Have the engine oil and oil filter checked
and/or changed by any authorized Toyota
dealer or repairer, or another duly qualified
and equipped professional. After changing
the engine oil, the oil change system
should be reset. ( →P. 449)
(Diesel engine)
Indicates that the amount of accumulated deposit
in the DPF system has reached the specified
level. Regenerate the filter
→ P. 537
(Diesel engine)
Indicates a malfunction in the DPF system
→Have the vehicle inspected by any autho-
rized Toyota dealer or repairer, or another
duly qualified and equipped professional
immediately.
Warning messageDetails/Actions
