Important information Important The information in the vehicle documentation
always takes precedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain. The vehicle data card inclu-
ded in the Maintenance Programme or the
vehicle registration documents shows which
engine is installed in the vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models, for special vehicles and for
other countries.
Abbreviations used in the Technical
Specifications sectionAbbrevi-
ationMeaning
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly used
to denote engine power.
rpmRevolutions per minute - engine speed.
NmNewton metres, unit of engine torque.
litres per100 kmFuel consumption in litres per 100 km (70
miles).
g/kmCarbon dioxide emissions in grams per km
(mile) travelled.
CO 2Carbon dioxide
CNCetane number, indication of the diesel
combustion power.
RONResearch octane number, indication of the
knock resistance of petrol. Vehicle code
Fig. 223
Vehicle identification number. Vehicle identification number
The vehicle identification number (chassis
number) can be read from outside the vehicle
through a viewer in the windscreen
››› Fig. 223 . This viewer is located in the lower
p ar

t of the windscreen. The vehicle identifica-
tion number (chassis number) is also stam-
ped on the right water drain channel. The wa-
ter drain channel is located between the sus-
pension tower and the wing. Open the bon-
net to read the vehicle identification number
 ››› page 214.
Vehic

le data plate
The vehicle data plate is attached to the lug-
gage compartment, and contains the follow-
ing information:
274

Technical specifications
Vehicle identification number (chassis
number).
Vehicle type, engine power, gearbox type.
Engine and gearbox code, paint number,
interior equipment.
Optional extras, PR numbers.
These data are also provided in the Mainte-
nance Programme.
Type plate
The type plate is visible when the driver door
is opened, on the lower part of the strut. Ve-
hicles for certain export countries do not
have a type plate.
The manufacturer's type plate contains the
following data: Gross vehicle weight
Maximum authorised weight of vehicle
and trailer
Maximum gross front axle weight
Maximum rear axle weight
Information on fuel consumption The consumption and emission details
shown on the vehicle data sticker differ from
one vehicle to another.1 2
3
4
5
6
7
8 The fuel consumption, CO
2 emissions and ac-
tual kerb weight of the vehicle are noted on
the vehicle data sticker.
The fuel consumption and emissions figures
given are based on the vehicle weight cate-
gory, which is determined according to the
engine/gearbox combination and the equip-
ment fitted.
The consumption and emission figures are
calculated in accordance with the EC test re-
quirements 1999/100/EC. These test re-
quirements specify a realistic test method
based on normal everyday driving.
The following test conditions are applied:Urban
cycleThe urban cycle starts with an engine cold
start. City driving is then simulated.
Extra
urban
cycleIn the extra urban cycle simulation the vehi-
cle frequently accelerates and brakes in all
gears, as in normal everyday driving. The
road speed ranges from 0 to 120 km/h (0 to
75 mph).
Total
con-
sump-
tionThe average total consumption is calculated
with a weighting of around 37% for the ur-
ban cycle and 63% for the extra urban cycle.
CO 2
emis-
sionsThe exhaust gases are collected during both
driving cycles to calculate carbon dioxide
emissions. The gas composition is then ana-
lysed to evaluate the CO 2 content and other
emissions. Note
Actual consumption may vary from quoted
test values, depending on personal driving
style, road and traffic conditions, the weather
and the vehicle condition. Weights
Kerb weight refers to the basic model with a
fuel tank filled to 90% capacity and without
optional extras. The figure quoted includes
75 kg to allow for the weight of the driver.
Special versions, optional equipment fittings
or retro-fitting accessories will increase the
weight of the vehicle
››› .
WARNING
● Please note that the centre of gravity may
shift when transporting heavy objects; this
may affect vehicle handling and lead to an ac-
cident. Always adjust your speed and driving
style to suit road conditions and require-
ments.
● Never exceed the gross axle weight rating
or the gross vehicle weight rating. If the per-
missible axle load or the permissible total
weight is exceeded, the driving characteris-
tics of the vehicle may change, leading to ac-
cidents, injuries and damage to the vehicle. 275
Technical specifications
Advice
Operation
Safety

Technical specifications
Engine specifications Petrol engine 1.4 110 kW (150 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
110 (150)/5,800240/5,8004/1,390Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceManualAutomatic
5 seats7 seats5 seats7 seats
Top speed (km/h)197197
Acceleration from 0-80 km/h (seconds)6.96.6
Acceleration from 0-100 km/h (seconds)10.79.9
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle9.2/2149.4/218
Extra-urban cycle6.1/1436.6/154
Combined7.2/1677.6/178
Weights (in kg)
Gross vehicle weight2,2902,4802,3102,500
Weight in running order (with driver)1,7231,7711,7421,790
Gross front axle weight1,170/1,2201,170/1,2201,190/1,2401,190/1,240
Gross rear axle weight1,070/1,1201,260/1,3101,070/1,1201,260/1,310
Permitted roof load100100100100» 277
Technical specifications
Advice
Operation
Safety

Technical specificationsPerformanceManualAutomatic
5 seats7 seats5 seats7 seats
Maximum trailer weights (in kg)
Trailer without brakes750750
Trailer with brakes, gradients up to 8%2,0001,800
Trailer with brakes, gradients up to 12%1,8001,800
Petrol engine 2.0 147 kW (200 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
147 (200)/5,100280/1,700-5,0004/1,984Super 95 RON a)
a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceAutomatic
5 seats7 seats
Top speed (km/h)218
Acceleration from 0-80 km/h (seconds)5.8
Acceleration from 0-100 km/h (seconds)8.3
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle11.5/26811.6/270
Extra-urban cycle6.6/1556.7/156
Combined8.4/1968.5/198 278

Technical specificationsPerformanceAutomatic
5 seats7 seats
Weights (in kg)
Gross vehicle weight2,3602,530
Weight in running order (with driver)1,7901,838
Gross front axle weight1,210/1,2601,220/1,270
Gross rear axle weight1,100/1,1501,260/1,310
Permitted roof load100100
Maximum trailer weights (in kg)
Trailer without brakes750
Trailer with brakes, gradients up to 8%2,200
Trailer with brakes, gradients up to 12%2,000
Diesel engine 2.0 TDI CR 85 kW (115 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
85 (115)/1,750-2,500280/4,2004/1,968Diesel according to standard EN 590, min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance5 seats7 seats
Top speed (km/h)184
Acceleration from 0-80 km/h (seconds)8.4» 279
Technical specifications
Advice
Operation
Safety

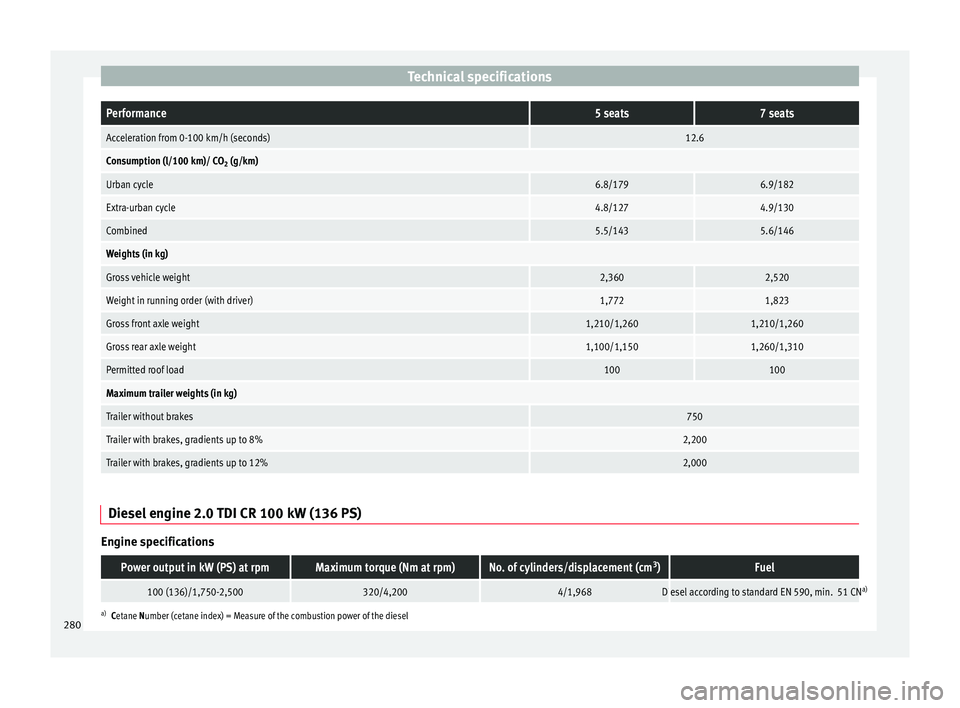

Technical specificationsPerformance5 seats7 seats
Acceleration from 0-100 km/h (seconds)12.6
Consumption (l/100 km)/ CO
2 (g/km)
Urban cycle6.8/1796.9/182
Extra-urban cycle4.8/1274.9/130
Combined5.5/1435.6/146
Weights (in kg)
Gross vehicle weight2,3602,520
Weight in running order (with driver)1,7721,823
Gross front axle weight1,210/1,2601,210/1,260
Gross rear axle weight1,100/1,1501,260/1,310
Permitted roof load100100
Maximum trailer weights (in kg)
Trailer without brakes750
Trailer with brakes, gradients up to 8%2,200
Trailer with brakes, gradients up to 12%2,000 Diesel engine 2.0 TDI CR 100 kW (136 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
100 (136)/1,750-2,500320/4,2004/1,968Diesel according to standard EN 590, min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel280

Technical specifications
Diesel engine 2.0 TDI CR 103 kW (140 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
103 (140)/4,200320/1,750-2,5004/1,968Diesel according to standard EN 590, min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
PerformanceManualAutomaticAll-wheel drive
5 seats7 seats5 seats7 seats5 seats7 seats
Top speed (km/h)194191191
Acceleration from 0-80 km/h (seconds)7.77.77.5
Acceleration from 0-100 km/h (seconds)10.910.911.4
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle6.8/1796.9/1826.9/1827.4/1957.5/197
Extra-urban cycle4.8/1274.9/1305/1325.2/1375.4/143
Combined5.5/1435.6/1465.7/1496.0/1586.2/162
Weights (in kg)
Gross vehicle weight2,3402,5102,3702,5402,5302,580
Weight in running order (with driver)1,7741,8221,8031,8511,8911,942
Gross front axle weight1,190/1,2401,200/1,2501,220/1,2701,230/1,2801,250/1,3001,240/1,290
Gross rear axle weight1,100/1,1501,260/1,3101,100/1,1501,260/1,3101,230/1,2801,290/1,340
Permitted roof load100100100100100100
Maximum trailer weights (in kg) 282

Technical specificationsPerformanceManualAutomaticAll-wheel drive
5 seats7 seats5 seats7 seats5 seats7 seats
Trailer without brakes750750750
Trailer with brakes, gradients up to 8%2,3002,4002,3002,4002,400
Trailer with brakes, gradients up to 12%2,2002,2002,400
Diesel engine 2.0 TDI CR 130 kW (177 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
130 (177)/4,200380/1,750-2,5004/1,968Diesel according to standard EN 590, min. 51 CN a)
a)
Cetane Number (cetane index) = Measure of the combustion power of the diesel
PerformanceManualAutomatic
5 seats7 seats5 seats7 seats
Top speed (km/h)208205
Acceleration from 0-80 km/h (seconds)6.76.6
Acceleration from 0-100 km/h (seconds)9.39.6
Consumption (l/100 km)/ CO 2 (g/km)
Urban cycle7.3/1926.7/177
Extra-urban cycle5.0/1325.4/143
Combined5.8/1525.9/154
Weights (in kg)» 283
