Access to the spare wheel
The spare wheel is supported by a cable-driven
carrier underneath the vehicle.F
Ra ise the concertina board.
F

R
aise the cut-out in the boot carpet for
access to the spare wheel carrier drive nut.
Take care, the bottle of fluid contains
ethylene-glycol. This product is harmful
if swallowed and causes irritation to the
eyes. Keep it out of reach of children.
The expiry date of the fluid is indicated
on the base of the bottle.
The bottle is designed for a single use;
even if only partly used, it must be
replaced.
After use, do not discard the bottle into
the environment, take it to a PEUGEOT
dealer or an authorised waste disposal
site.
Do not forget to obtain a new bottle
of sealant product, available from
a PEUGEOT dealer or a qualified
workshop.
If the vehicle is fitted with tyre under-
inflation detection, the tyre under-
inflation warning lamp will remain on
after the wheel has been repaired
until the system is reinitialised by
a PEUGEOT dealer or a qualified
workshop.
Changing a wheel
Procedure for removing a wheel with a damaged or punctured tyre and fitting the spare wheel,
using the tools supplied wih the vehicle.
See the "Tool kit" section.
The jack must only be used to replace
a wheel with a damaged or punctured
tyre.
The jack does not require any
maintenance.
Taking out the wheel
10
Practical information

224
F Detach the wheel/box assembly from the rear of the vehicle.
F

S
traighten the wheel for acces to the tool
box.
F

R
emove the link piece from the lid of the
tool box, as shown in the illustration.
F

P
ass the link piece through the hub of the
wheel.
F
P
lace the extension 7 onto the spare wheel
carrier drive nut.
F

F

it the wheelbrace 6 to the end of the
extension 7 .
F

T

urn the assembly fully clockwise to
unwind the carrier cable, until the spare
wheel is resting flat on the ground. When the spare wheel is fitted in place
of a wheel with a punctured tyre, it is
essential to return the carrier and tool
box to their position under the vehicle,
before moving off.
Refer to the "Putting the carrier and
spare wheel back in place" section.
Practical information

225
This procedure is to be carried out with or
without the spare wheel. Without the spare
wheel, skip steps a and d.
Only a "space-saver" type can be secured
under the vehicle in the carrier.
F

S
tore the tools used in the box and close
the cover.
F

P
osition the box on the ground close to the
back of the vehicle.
F

S
traighten the wheel and pass the link
piece through the hub of the wheel.
F

I
nsert the link piece through the aperture in
the tool box lid, as shown in the illustration.
F

C
entre the spare wheel on the tool box. F

T
ighten fully and check that the wheel is
horizontally flush against the floor.
F
P
lace the assembly of wheel and tool box
under the rear of the vehicle.
F R aise the wheel and tool box by turning the
carrier drive nut anticlockwise using the
wheelbrace 6 and the extension 7 .

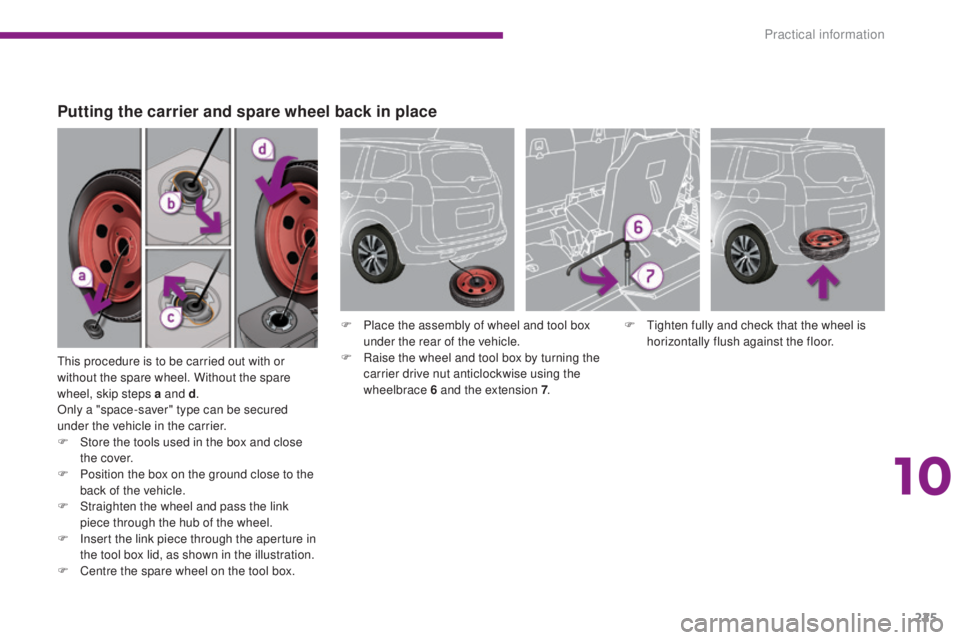

Putting the carrier and spare wheel back in place
10
Practical information

226
Removing a wheel
F Depending on equipment, clip the tool 4 to the finisher cap on each wheel bolt with
alloy wheels to remove them.
F

D
epending on equipment, slacken the
security bolt using the socket 3 fitted to the
wheelbrace 6 .
F

S
lacken the other bolts using the
wheelbrace 6 .
Parking the vehicle
Immobilise the vehicle where it does not
block traffic: the ground must be level,
stable and non-slippery ground.
Apply the parking brake unless it has
been programmed to automatic mode.
Switch off the ignition.
With a manual gearbox, engage first
gear to block the wheels.
With an electronic gearbox, place the
lever in position R to block the wheels.
With an automatic gearbox, place the
lever in position P to block the wheels.
Check that the braking warning lamp
and the P warning lamp in the parking
brake control come on.
If necessary, place a chock under the
wheel diagonally opposite the wheel to
be changed.
The occupants must get out of the
vehicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand. F

P
osition the foot of the jack 8 on the
ground and ensure that it is directly below
one of the front A or rear B jacking points
provided on the underbody, whichever is
closest to the wheel to be changed.
Wheel with wheel trim
When removing the wheel , first
remove the wheel trim using the
wheelbrace 6 by pulling at the valve
cut-out.
When refitting the wheel , refit the
wheel trim by placing its cut-out at the
valve, and press round its edge with the
palm of your hand.
Practical information

227
Do not use:
- t he jack for any purpose other than
lifting the vehicle,
-

a j
ack other than the one supplied
by the manufacturer.

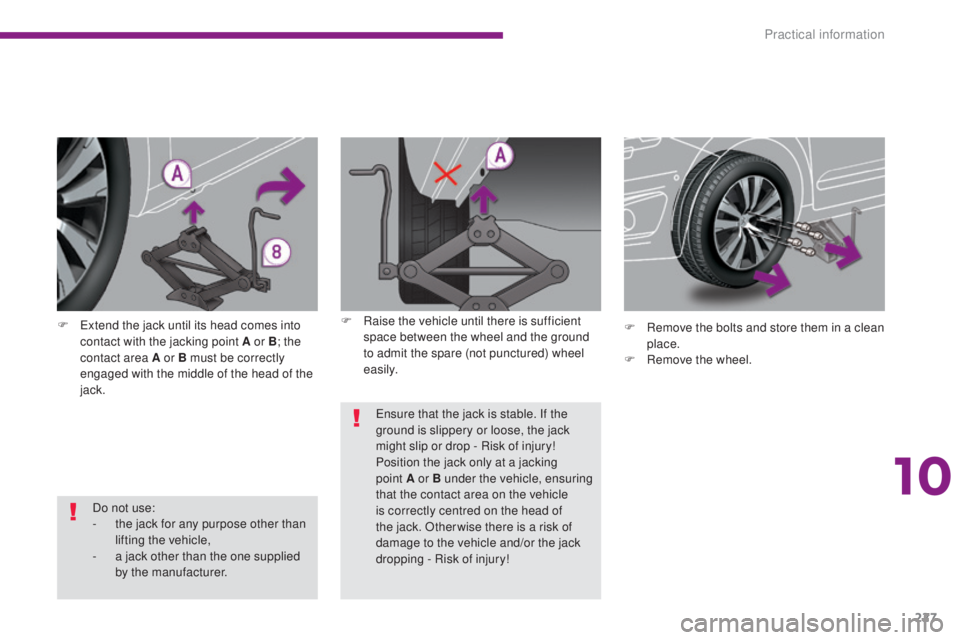

F

E

xtend the jack until its head comes into
contact with the jacking point A or B ; the
contact area A or B must be correctly
engaged with the middle of the head of the
jack. F
R
emove the bolts and store them in a clean
place.
F
R
emove the wheel.
Ensure that the jack is stable. If the
ground is slippery or loose, the jack
might slip or drop - Risk of injury!
Position the jack only at a jacking
point A or B under the vehicle, ensuring
that the contact area on the vehicle
is correctly centred on the head of
the jack. Otherwise there is a risk of
damage to the vehicle and/or the jack
dropping - Risk of injury!
F

Ra
ise the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
10
Practical information

228
Fitting a wheel
F Put the wheel in place on the hub.
F S crew in the bolts fully by hand.
F

U
sing the wheelbrace 6 fitted with the
security socket 3 , pre-tighten the security
bolt (if your vehicle has them).
F

P
re-tighten the other bolts using the
wheelbrace 6 o n l y. F
L ower the vehicle fully.
F F old the jack 8 and detach it.F
U sing the wheelbrace 6 fitted with the
security socket 3 , tighten the security bolt
(if your vehicle has them).
F

T
ighten the other bolts using the
wheelbrace 6 .
F

R
efit the bolt covers to each of the bolts
(according to equipment).
F

S
tore the tools in the box.
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. The wheel
is secured by the conical contact of
each bolt.
Practical information

229
Following a puncture
The punctured wheel cannot be stowed
under the vehicle. It must be stowed
in the boot. Use a cover to protect the
inside of the boot.
When driving with the "space-saver"
type spare wheel fitted, do not exceed
50 mph (80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer or a qualified
workshop without delay.
Have the punctured wheel repaired and
replace it on the vehicle as soon as
possible.
Tyre under-inflation detection
The space-saver type or steel spare
wheel does not have a sensor.
The punctured wheel must be repaired
by a PEUGEOT dealer or a qualified
workshop.
Snow chains must only be fitted to the
front wheels. Further, they must never
be fitted to a "space-saver" spare
wheel.
Before fitting the snow chains,
interchange the "space-saver" spare
wheel fitted at the front with the wheel
at the rear on the same side.
10
Practical information

230

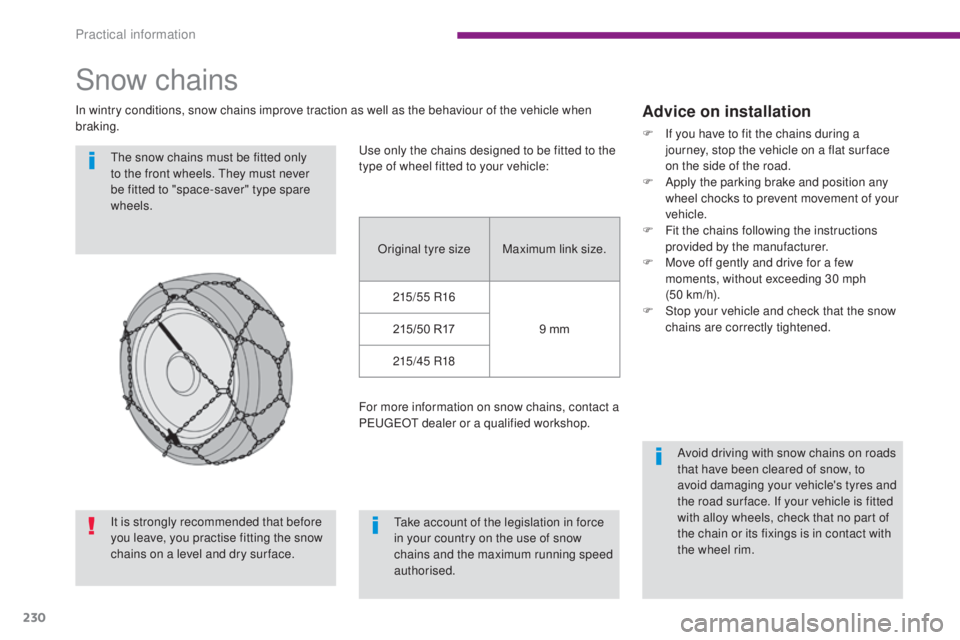

Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when
braking.The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size.
215/55 R16 9 mm
215/50 R17
215/45 R18
For more information on snow chains, contact a
PEUGEOT dealer or a qualified workshop.
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
