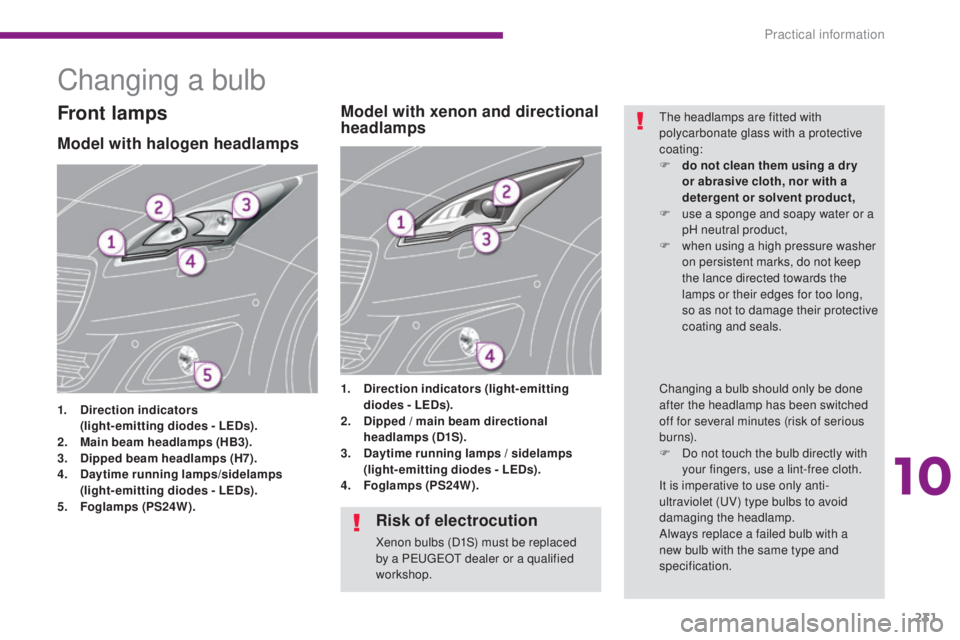

Changing a bulb
Model with halogen headlamps
1. Direction indicators (
light-emitting diodes - LEDs).
2.
M

ain beam headlamps (HB3).
3.
D

ipped beam headlamps (H7).
4.
D

aytime running lamps/sidelamps
(

light-emitting diodes - LEDs).
5.
F

oglamps (PS24W). 1.
D

irection indicators (light-emitting
diodes - LEDs).
2. D ipped / main beam directional
headlamps (D1S).
3.
D

aytime running lamps / sidelamps
(light-emitting diodes - LEDs).
4.
F

oglamps (PS24W).
Model with xenon and directional
headlampsFront lampsThe headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Risk of electrocution
Xenon bulbs (D1S) must be replaced
by a PEUGEOT dealer or a qualified
workshop.
10
Practical information

232
Changing main beam headlamp bulbs
(model with halogen headlamps)Changing dipped beam headlamp bulbs
(models with halogen headlamps)
F Remove the protective plastic cover by pulling the tab.
F

D
isconnect the bulb connector.
F

E
xtract the bulb by pulling and change it.
To refit, carry out these operations in reverse
o r d e r. F
R emove the protective plastic cover by
pulling the tab.
F

W
ithout disconnecting the connector, turn
the body of the bulb a quarter of a turn to
the left to disengage the assembly.
F

D
isconnect the connector to release
the bulb.
To refit, carry out these operations in reverse
o r d e r.
Changing direction indicators
and daytime running lamps /
sidelamps
For the replacement of these LED (light-
emitting diode) lamps, contact a PEUGEOT
dealer or a qualified workshop.
Practical information

233
Changing foglamp
bulbs
Contact a PEUGEOT dealer or a qualified
workshop.
F
I
nsert a screwdriver towards the centre of
the repeater between the repeater and the
base of the mirror.
F

T

ilt the screwdriver to extract the repeater
and remove it.
F

D

isconnect the repeater connector.

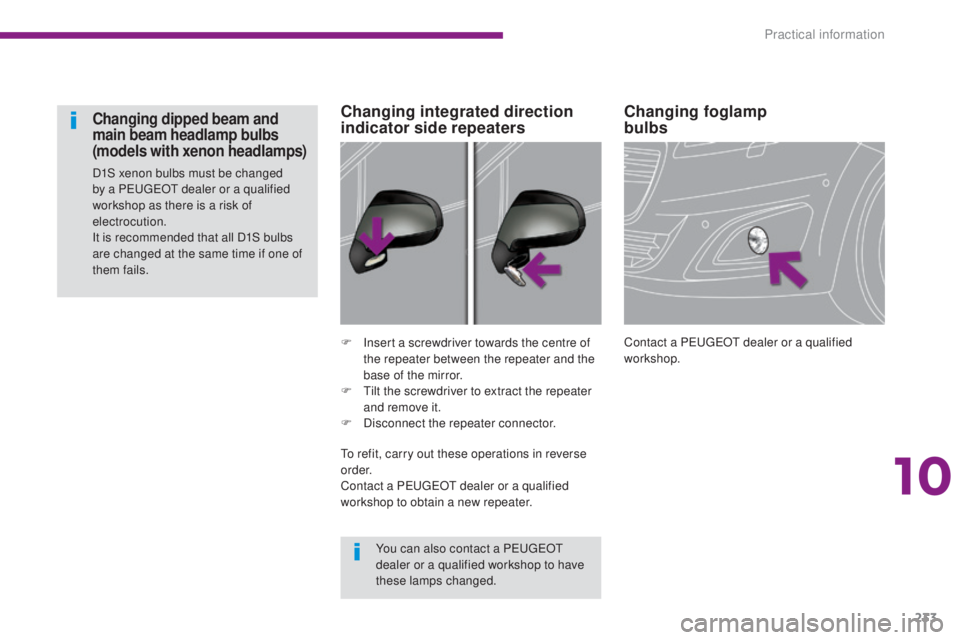

Changing integrated direction
indicator side repeatersChanging dipped beam and
main beam headlamp bulbs
(models with xenon headlamps)
D1S xenon bulbs must be changed
by a PEUGEOT dealer or a qualified
workshop as there is a risk of
electrocution.
It is recommended that all D1S bulbs
are changed at the same time if one of
them fails.
You can also contact a PEUGEOT
dealer or a qualified workshop to have
these lamps changed.
To refit, carry out these operations in reverse
o r d e r.
Contact a PEUGEOT dealer or a qualified
workshop to obtain a new repeater.
10
Practical information

234

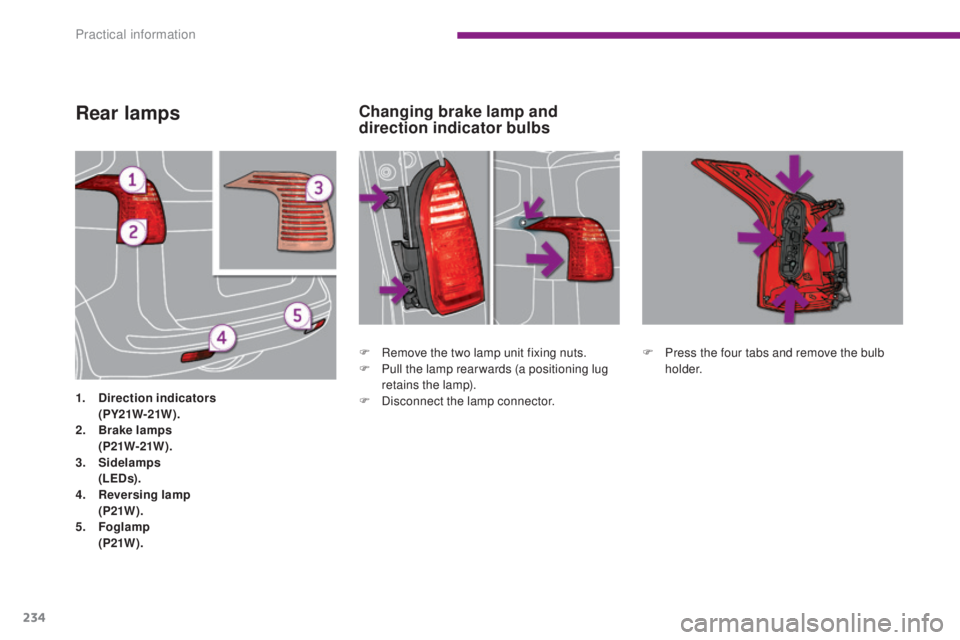

Rear lamps
1. Direction indicators (
PY21W-21W ).
2.
Br

ake lamps
(

P21W-21W ).
3.
Si

delamps
(

LEDs).
4.
R

eversing lamp
(

P21W ).
5.
Fo

glamp
(

P21W ). F

R
emove the two lamp unit fixing nuts.
F
P
ull the lamp rear wards (a positioning lug
retains the lamp).
F D isconnect the lamp connector.F

P
ress the four tabs and remove the bulb
h o l d e r.
Changing brake lamp and
direction indicator bulbs
Practical information

235
F Turn the bulb a quarter of a turn and change it.
To refit, carry out these operations in reverse
o r d e r. For the replacement of this type of LED lamp,
contact a PEUGEOT dealer or a qualified
workshop.
F
R each under the bumper.
F T urn the bulb a quarter of a turn and
change it.
Changing sidelamps (LEDs) Changing foglamp or reversing lamp bulbs
10
Practical information

236
F Press the pairs of clips A then B then C to detach the bulb holders.
F
O
pen the boot and remove the upper
tailgate seal.
F

R

emove the centre tailgate trim.
F

U

nscrew the two nuts using a 10

mm
spanner.
F

P

ress the threaded pins while supporting
the lamp from the outside.
F

C

lose the tailgate.
F

D

isconnect the lamp connector then the
screenwash pipe to remove the lens.

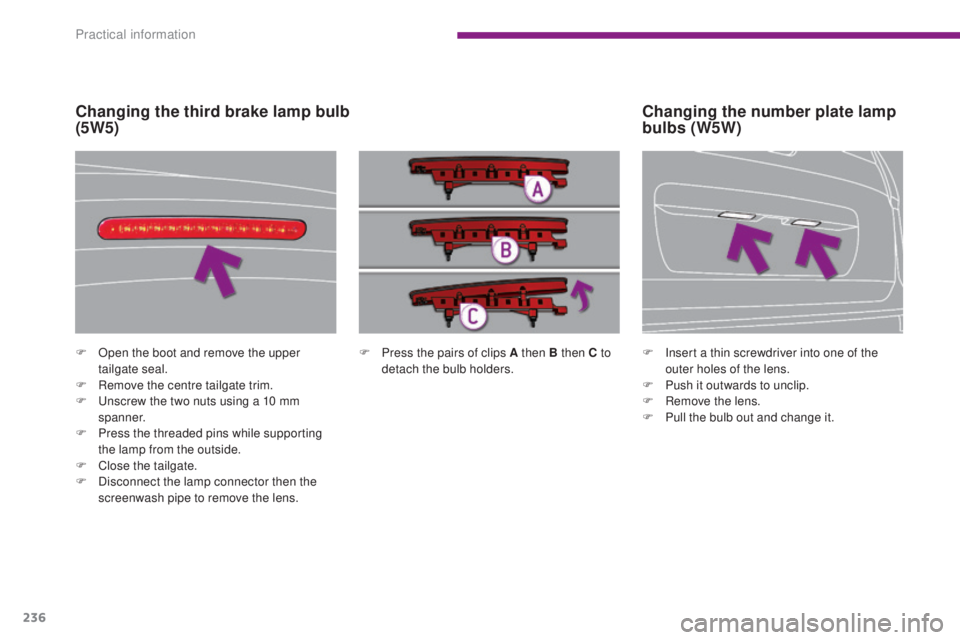

Changing the third brake lamp bulb
(5W5)
F Insert a thin screwdriver into one of the outer holes of the lens.
F

P
ush it outwards to unclip.
F

R
emove the lens.
F

P
ull the bulb out and change it.
Changing the number plate lamp
bulbs (W5W)
Practical information

237
Changing a fuse
Access to the toolsChanging a fuse
F Use the special tweezer to extract the fuse
from its housing.
F

A
lways replace the faulty fuse with a fuse
of the same rating.
F

C
heck that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree. Good
Failed
Before changing a fuse, the cause of the failure
must be identified and rectified.
F
I
dentify the failed fuse by checking the
condition of its filament.
Procedure for replacing a faulty fuse with a new fuse to rectify a failure of the corresponding
function.
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer or
a qualified workshop.
The extraction tweezer is fitted to the back of
the dashboard fusebox cover.
To gain access to it:
F

R

emove the cover completely.
F

R

emove the tweezer. The replacement of a fuse not
mentioned in the tables below may
cause a serious malfunction on your
vehicle.
Contact a PEUGEOT dealer or a
qualified workshop.
10
Practical information

238
Dashboard fuses
The fusebox is placed in the lower dashboard.Fuse tables
Fuse N° Rating
(A) Functions
F1 15Rear wiper.
F2 -Not used.
F3 5Airbag control unit.
F4 10Electrochrome rear view mirror, air conditioning, switching and
protection unit, rear multimedia.
F5 30Front one-touch electric windows.
F6 30Rear one-touch electric windows.
F7 5Front and rear courtesy lamps, map reading lamps, rear
reading lamps, sun visor lighting, glove box lighting, centre
armrest lighting, boot 12 V relay control.
