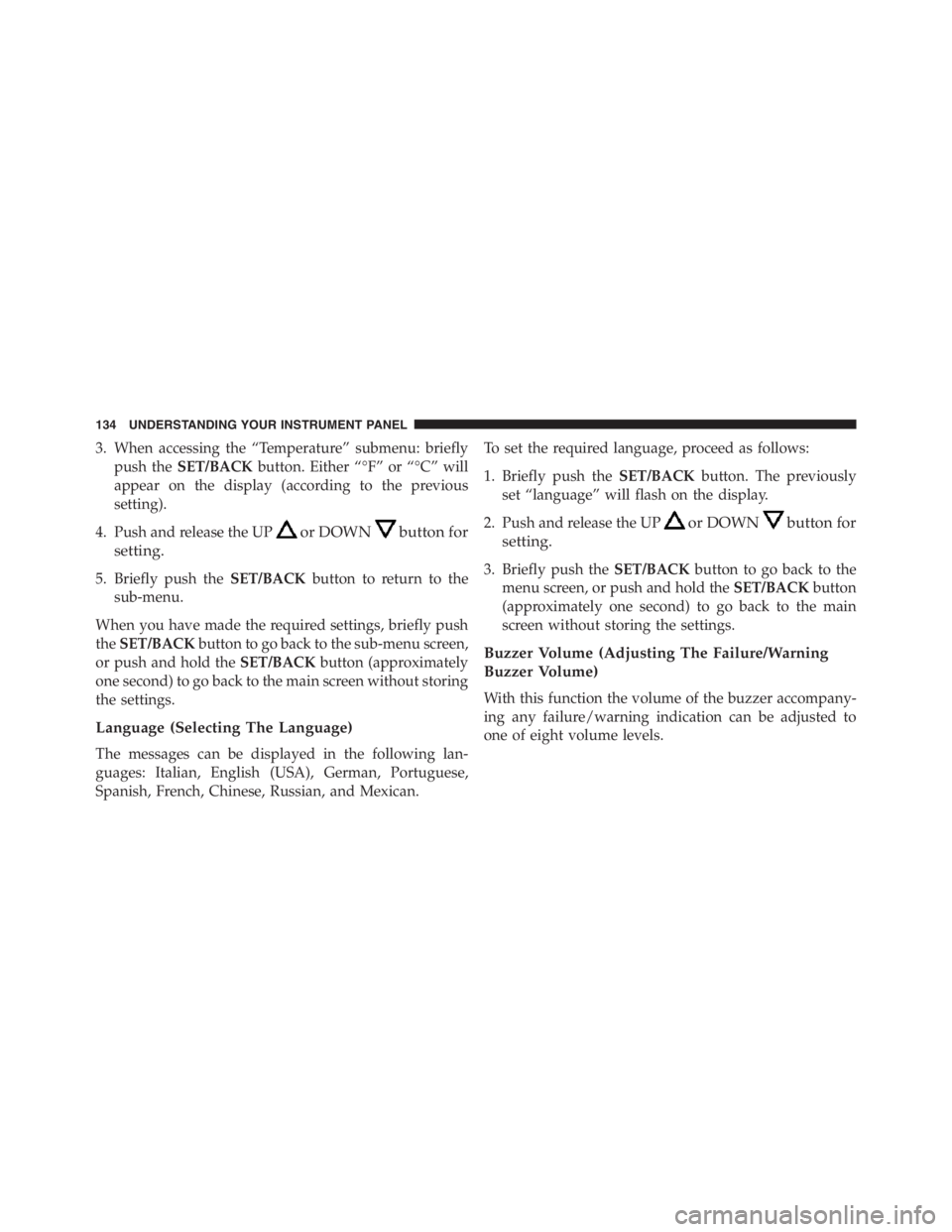

3. When accessing the “Temperature” submenu: briefly
push theSET/BACKbutton. Either “°F” or “°C” will
appear on the display (according to the previous
setting).
4. Push and release the UP
or DOWNbutton for
setting.
5. Briefly push theSET/BACKbutton to return to the
sub-menu.
When you have made the required settings, briefly push
theSET/BACKbutton to go back to the sub-menu screen,
or push and hold theSET/BACKbutton (approximately
one second) to go back to the main screen without storing
the settings.
Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English (USA), German, Portuguese,
Spanish, French, Chinese, Russian, and Mexican.To set the required language, proceed as follows:
1. Briefly push theSET/BACKbutton. The previously
set “language” will flash on the display.
2. Push and release the UP
or DOWNbutton for
setting.
3. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold theSET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function the volume of the buzzer accompany-
ing any failure/warning indication can be adjusted to
one of eight volume levels.
134 UNDERSTANDING YOUR INSTRUMENT PANEL

To adjust the volume proceed as follows:
1. Briefly push theSET/BACKbutton. The previously
set volume “level” will flash on the display.
2. Push and release the UP
or DOWNbutton for
setting.
3. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold theSET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Service (Scheduled Servicing) — If Equipped
With this function it is possible to view information on
mileage intervals for servicing.To obtain this information, proceed as follows:
Push theSET/BACKbutton briefly. The display shows
the service interval in miles (mi) or kilometers (km)
according to the previous setting (see theUnit Of
Measurementparagraph).
Briefly push theSET/BACKbutton to go back to the
menu screen or hold the button down to go back to the
standard screen.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 135

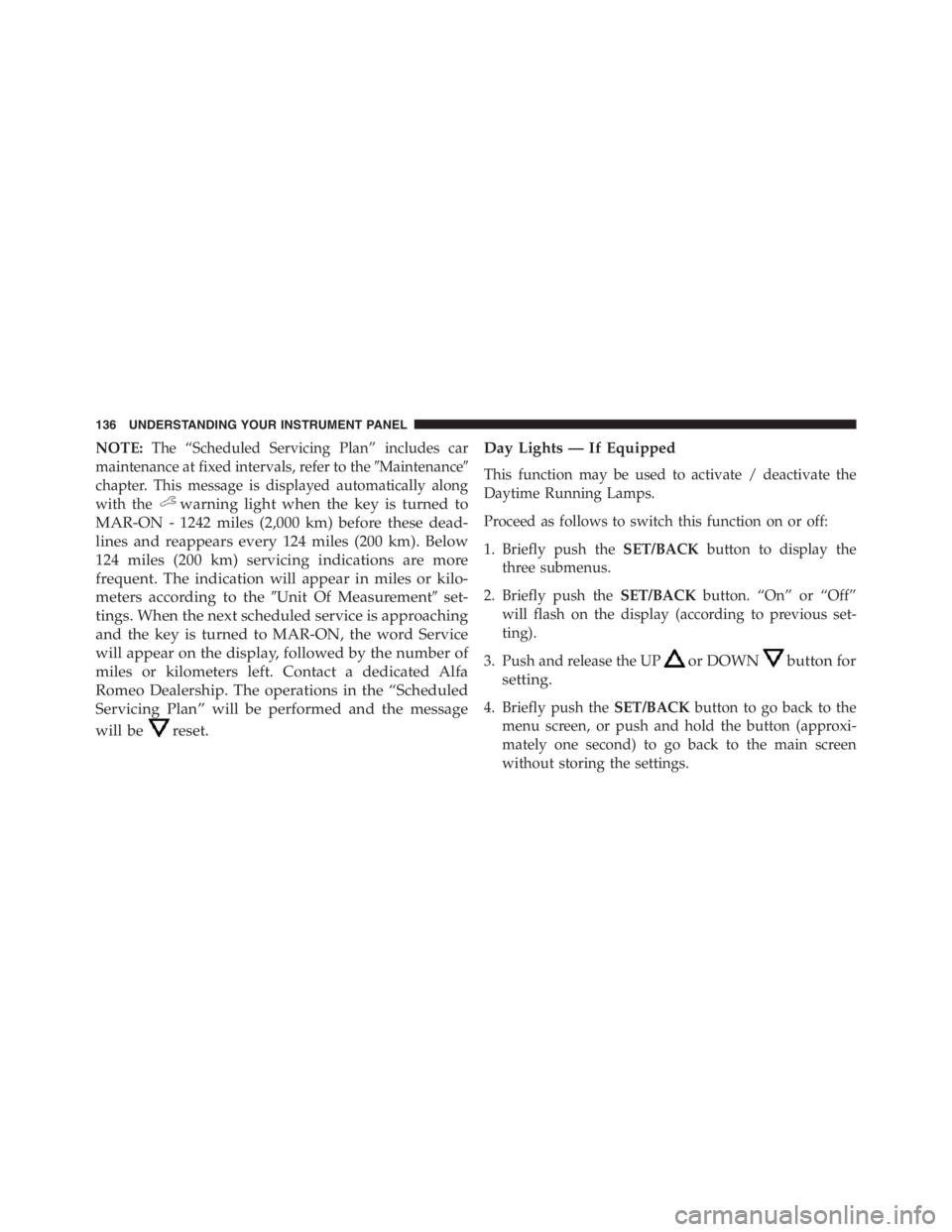

NOTE:The “Scheduled Servicing Plan” includes car
maintenance at fixed intervals, refer to theMaintenance
chapter. This message is displayed automatically along
with the
warning light when the key is turned to
MAR-ON - 1242 miles (2,000 km) before these dead-
lines and reappears every 124 miles (200 km). Below
124 miles (200 km) servicing indications are more
frequent. The indication will appear in miles or kilo-
meters according to theUnit Of Measurementset-
tings. When the next scheduled service is approaching
and the key is turned to MAR-ON, the word Service
will appear on the display, followed by the number of
miles or kilometers left. Contact a dedicated Alfa
Romeo Dealership. The operations in the “Scheduled
Servicing Plan” will be performed and the message
will be
reset.Day Lights — If Equipped
This function may be used to activate / deactivate the
Daytime Running Lamps.
Proceed as follows to switch this function on or off:
1. Briefly push theSET/BACKbutton to display the
three submenus.
2. Briefly push theSET/BACKbutton. “On” or “Off”
will flash on the display (according to previous set-
ting).
3. Push and release the UP
or DOWNbutton for
setting.
4. Briefly push theSET/BACKbutton to go back to the
menu screen, or push and hold the button (approxi-
mately one second) to go back to the main screen
without storing the settings.
136 UNDERSTANDING YOUR INSTRUMENT PANEL

Exit Menu
This function closes the initial menu screen.
Briefly push theSET/BACKbutton to go back to the
main screen.
Push and release the
button to return to the first
menu option (Speed Buzzer).
Push and releasethebutton to return to the last
menu option (Daylights).
Change Engine Oil Indicator System
Your vehicle is equipped with an engine oil
change indicator system. The “Change Engine Oil” mes-
sage will flash in the EVIC display for approximately 10
seconds and the Oil Pressure Warning Light will illumi-
nate. The “Change Engine Oil” message in the EVIC and
the Oil Pressure Warning Light will turn off after ap-
proximately 10 seconds.NOTE:The reset of the Oil Change message must be
performed by an authorized dealer.
Trip Computer
The Trip Computer is located in the instrument cluster. It
features a driver-interactive display (displays informa-
tion such as trip information, range, fuel consumption,
average speed, and travel time).
Trip Button
TheTRIPbutton, located on the right steering column
stalk, can be used to display and to reset the trip values.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 137

•A short button push displays the different values.
•A long button push resets the system and then starts a
new trip.
Trip Functions
Both trip functions are resettable (reset — start of new
trip).
“Trip A” can be used to display the figures relating to:
•Range
•Average Fuel Consumption
•Travel Distance
•Current Fuel Consumption
•Average speed
•Travel time
“Trip B” can be used to display the figures relating to:
•Average Fuel Consumption
•Travel Distance
Trip Button
138 UNDERSTANDING YOUR INSTRUMENT PANEL

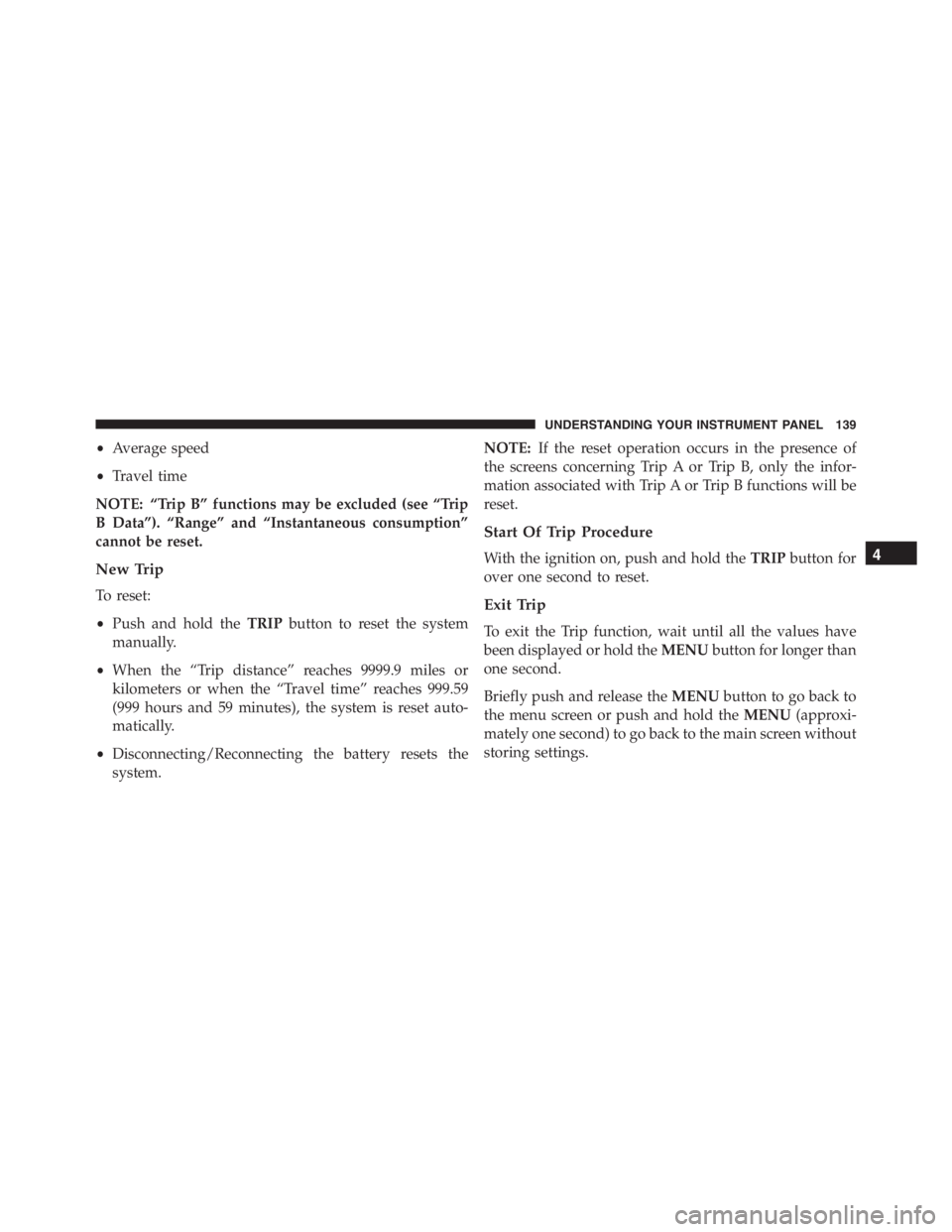

•Average speed
•Travel time
NOTE: “Trip B” functions may be excluded (see “Trip
B Data”). “Range” and “Instantaneous consumption”
cannot be reset.
New Trip
To reset:
•Push and hold theTRIPbutton to reset the system
manually.
•When the “Trip distance” reaches 9999.9 miles or
kilometers or when the “Travel time” reaches 999.59
(999 hours and 59 minutes), the system is reset auto-
matically.
•Disconnecting/Reconnecting the battery resets the
system.NOTE:If the reset operation occurs in the presence of
the screens concerning Trip A or Trip B, only the infor-
mation associated with Trip A or Trip B functions will be
reset.
Start Of Trip Procedure
With the ignition on, push and hold theTRIPbutton for
over one second to reset.
Exit Trip
To exit the Trip function, wait until all the values have
been displayed or hold theMENUbutton for longer than
one second.
Briefly push and release theMENUbutton to go back to
the menu screen or push and hold theMENU(approxi-
mately one second) to go back to the main screen without
storing settings.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 139

Values Displayed
Indications On Display
Each time a value is selected, the following information is
shown in the EVIC:
•“Trip A” or “Trip B” location(s)
•Name, value and unit of measure of the selected value
(e.g.Range 520 mi).
After a few seconds, the name of the selected value is
replaced by the corresponding icon.
Range
This indicates the distance which may be traveled with
the fuel remaining in the tank, assuming that driving
conditions will not change. The message “----” will
appear on the display in the following cases:
140 UNDERSTANDING YOUR INSTRUMENT PANEL

•Distance less than 30 miles (or 50 km).
•The vehicle is parked for a long time with the engine
running.
NOTE:The range depends on several factors: driving
style, type of route (freeway, residential, mountain roads,
etc.), conditions of use of the car (load, tire pressure, etc.).
Trip planning must take into account the above notes.
Average Fuel Consumption
This value shows the approximate average consumption
since the last reset.
Travel Distance
This value shows the distance covered since the last reset.
Current Fuel Consumption
This indicates the fuel consumption. The value is con-
stantly updated. The message “----” will appear on the
display if the car is parked with the engine running.
Average Speed
This value shows the vehicle’s average speed as a func-
tion of the overall time elapsed since the last reset.
Travel Time
This value shows the time elapsed since the last reset.
Tire Pressure Values
This screen will display OK at each Tire Pressure Moni-
toring sensor. Refer to “Tire Pressure Monitoring System”
in “Starting And Operating.”
RADIO SYSTEM
The radio system consists of:
•Supply cables for radio, speakers and aerial;
•Radio;
•Aerial on front bumper;
4
