3. Move the Recirculation Control to.
4. Turn the Mode Control to.
5. Press the A/C button.
Cooling Adjustment
Proceed as follows:
1. Move the Recirculation Control to
.
2. Rotate the Temperature Control towards the red sec-
tion to increase the temperature.
3. Turn the Blower Control counterclockwise to reduce
the fan speed.
Door Mirror Demisting
•Press thebutton to activate this function.
•Press thebutton again to deactivate the function.
Activation is indicated by the digital warning light on the
display.
Demist/Defrost Button
148 UNDERSTANDING YOUR INSTRUMENT PANEL

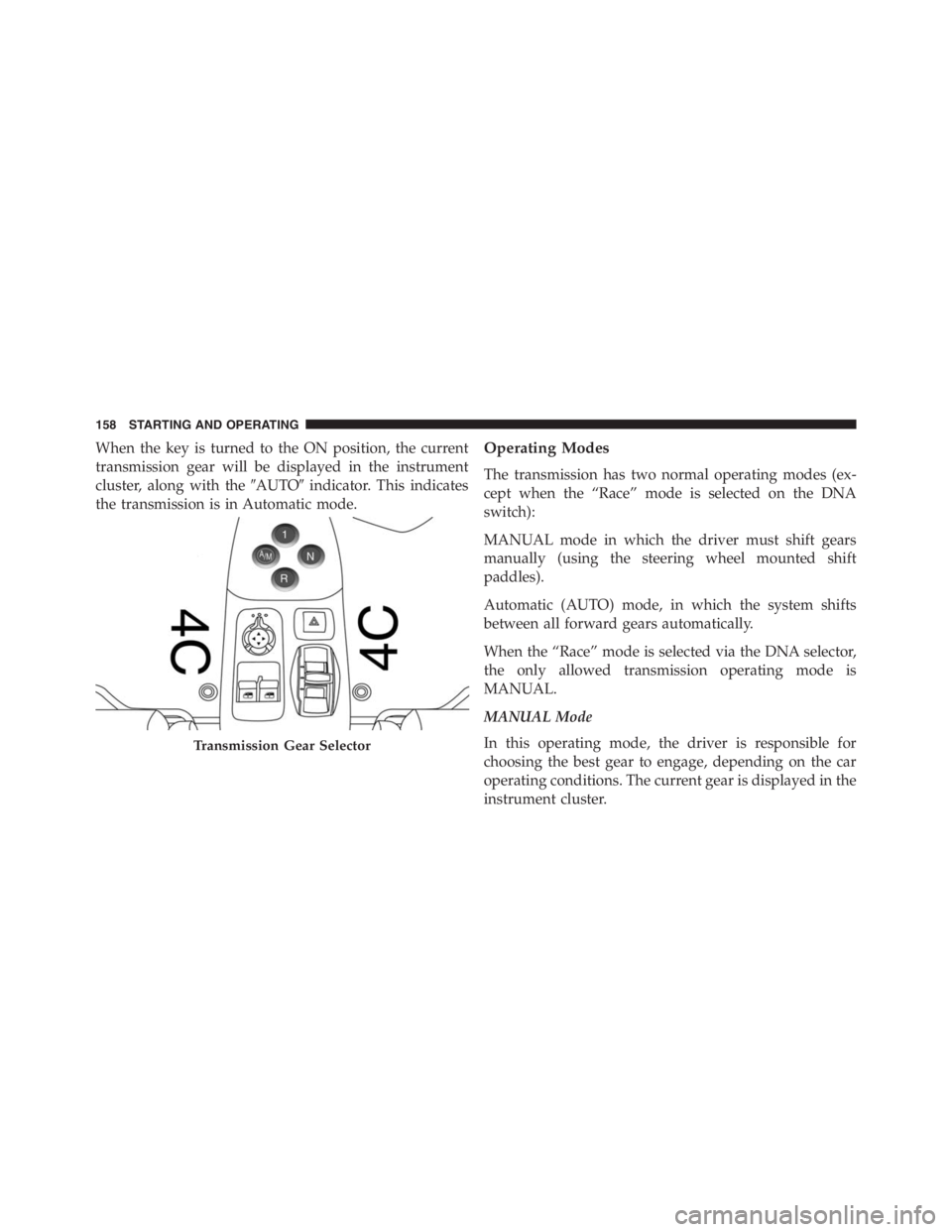

When the key is turned to the ON position, the current
transmission gear will be displayed in the instrument
cluster, along with theAUTOindicator. This indicates
the transmission is in Automatic mode.Operating Modes
The transmission has two normal operating modes (ex-
cept when the “Race” mode is selected on the DNA
switch):
MANUAL mode in which the driver must shift gears
manually (using the steering wheel mounted shift
paddles).
Automatic (AUTO) mode, in which the system shifts
between all forward gears automatically.
When the “Race” mode is selected via the DNA selector,
the only allowed transmission operating mode is
MANUAL.
MANUAL Mode
In this operating mode, the driver is responsible for
choosing the best gear to engage, depending on the car
operating conditions. The current gear is displayed in the
instrument cluster.
Transmission Gear Selector
158 STARTING AND OPERATING

To activate/deactivate MANUAL mode, press the A/M
button on the center console when the transmission is in
any forward gear.
Use the “+” shift paddle to engage a higher gear, or the
“–” paddle to engage a lower gear.
If a requested gear shift is not allowed (typically, because
it would cause engine overspeed or lugging), an audible
signal will sound and the transmission will remain in the
existing gear.
The transmission will automatically downshift during
closed-throttle decelerations, to prevent engine lugging.
When coming to a stop, the transmission will automati-
cally select FIRST (1st) gear. The driver must manually
upshift the transmission (by tapping the + shift paddle)
as the vehicle accelerates.NOTE:To provide better comfort, the transmission will
up-shift to the next available gear if the engine speed
limit is reached. This feature is only available in NATU-
RAL and ALL WEATHER Modes.
AUTO Mode
In AUTO mode the transmission shifts gears automati-
cally depending on vehicle speed, engine RPM, and
accelerator pedal position.
AUTO is the default operating mode at startup. When in
AUTO mode,AUTOappears in the instrument cluster,
adjacent to the current gear display.
To toggle between AUTO and MANUAL modes, press
the A/M button on the center console.
5
STARTING AND OPERATING 159

Accelerating From A Stop
FIRST (1st) and REVERSE (R) can only be engaged (at a
stop) by pressing “1” or “R” when the brake pedal is
pressed.
To drive, press the brake pedal, and select 1 (One) or R
(Reverse) by pressing “1” or “R” using the transmission
gear selector buttons on the center console. Then release
the brake pedal and smoothly press the accelerator pedal.
NOTE:When starting on a fairly steep incline, it may be
advisable to engage the parking brake.
The vehicle can only be launched (from a stop) in FIRST
(1st) or REVERSE (R). SECOND (2nd) gear (or higher)
cannot be engaged when the vehicle is stationary.
FIRST (1st) and REVERSE (R) gears can only be engaged
at vehicle speeds below 2 mph (3 km/h). At speeds
below 6 mph (10 km/h), attempts to shift from 1st to R
(or R to 1st) will only be allowed if the vehicle speeddrops below the 2 mph (3 km/h) threshold within three
seconds of the request; otherwise, the transmission will
shift to NEUTRAL (N). The driver should then repeat the
request for 1st or R once the vehicle has come to a stop.
Shift Paddles
In MANUAL mode, the steering wheel mounted shift
paddles (labeled + and -) control the transmission shift-
ing.
Tapping the (+) paddle will upshift the transmission to
the next higher gear, while tapping the (-) paddle will
downshift to the next lower gear. The current gear is
displayed in the instrument cluster. If a requested shift
would cause engine lugging or overspeed, that request
will be ignored.
In AUTO mode, tapping a shift paddle will temporarily
place the transmission in MANUAL mode, and execute
the requested upshift or downshift (if allowable). The
160 STARTING AND OPERATING

Race (sports driving mode [D]).
This also acts on the dynamic car control systems (engine,
gearbox/transmission, ESC system).Driving Modes
The Alfa DNA system lever will always return to the
center position after use.
The selected driving mode is indicated by the corre-
sponding LED switching in the panel and by an indica-
tion on the display.
Dynamic Mode
Activation
Move the Alfa DNA system lever upwards (to the letter
“D”) and hold in this position for half a second, until the
corresponding LED lights up and the Dynamic mode
activation indicator appears on the display.
When Dynamic mode is activated, the turbocharger
pressure and engine oil temperature screen is displayed
automatically. When released, the Alfa DNA system lever
will return to the central position.
Alfa DNA Mode Selector
164 STARTING AND OPERATING

NOTE:Dynamic Mode will be inhibited until the vehicle
has accumulated 155 miles (250 km).
Electronic Stability Control (ESC) and Anti-Slip Regu-
lation (ASR) systems:
The ESC and ASR system ensures more enjoyable,
sportier driving while guaranteeing the stability of the
car.
Electronic Q2 system:
The system increases vehicle stability while accelerating
on bends, improving the agility of the car.
Engine And Gearbox/Transmission:
The system adjusts the transmission shift calibration for
sportier shifting.
NOTE:In Dynamic mode, the engine response to the
accelerator pedal position increases considerably. Conse-
quently, driving is less fluid and comfortable.Deactivation
To deactivate Dynamic mode and return to Natural,
move lever downwards (to letter “A”) and keep it in this
position for half a second.
The LED corresponding to Natural mode will light up
and the Natural mode activation indication will appear
on the display.
Race Mode
Activation
Move the Alfa DNA system lever upwards (to the letter
“D”) and hold in this position for five seconds, until the
Race mode activation indicator appears on the display.
When Race mode is activated, the longitudinal/lateral
accelerometer indicator screen (G-meter information) is
displayed automatically. This considers gravitational ac-
celeration (G).
5
STARTING AND OPERATING 165

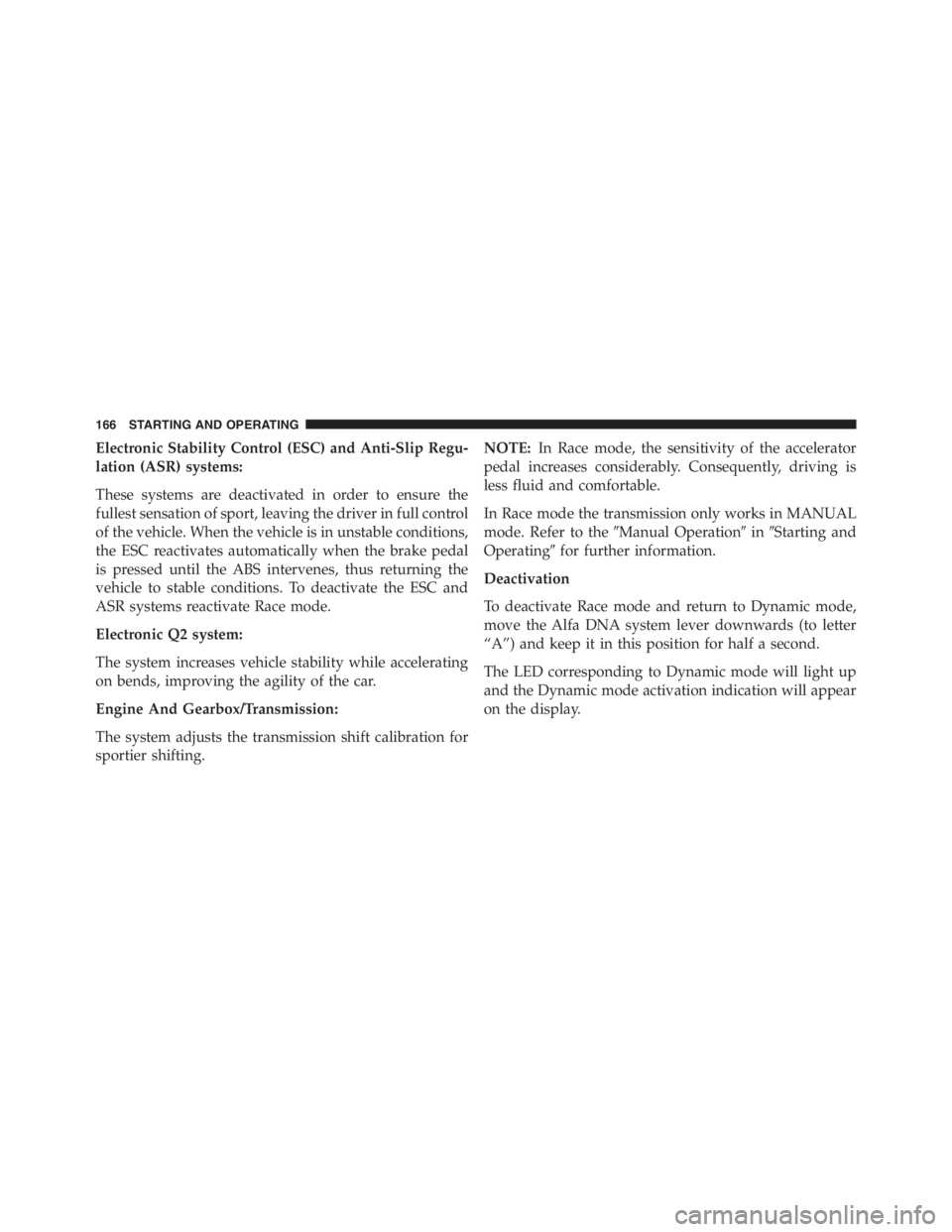

Electronic Stability Control (ESC) and Anti-Slip Regu-
lation (ASR) systems:
These systems are deactivated in order to ensure the
fullest sensation of sport, leaving the driver in full control
of the vehicle. When the vehicle is in unstable conditions,
the ESC reactivates automatically when the brake pedal
is pressed until the ABS intervenes, thus returning the
vehicle to stable conditions. To deactivate the ESC and
ASR systems reactivate Race mode.
Electronic Q2 system:
The system increases vehicle stability while accelerating
on bends, improving the agility of the car.
Engine And Gearbox/Transmission:
The system adjusts the transmission shift calibration for
sportier shifting.NOTE:In Race mode, the sensitivity of the accelerator
pedal increases considerably. Consequently, driving is
less fluid and comfortable.
In Race mode the transmission only works in MANUAL
mode. Refer to theManual OperationinStarting and
Operatingfor further information.
Deactivation
To deactivate Race mode and return to Dynamic mode,
move the Alfa DNA system lever downwards (to letter
“A”) and keep it in this position for half a second.
The LED corresponding to Dynamic mode will light up
and the Dynamic mode activation indication will appear
on the display.
166 STARTING AND OPERATING

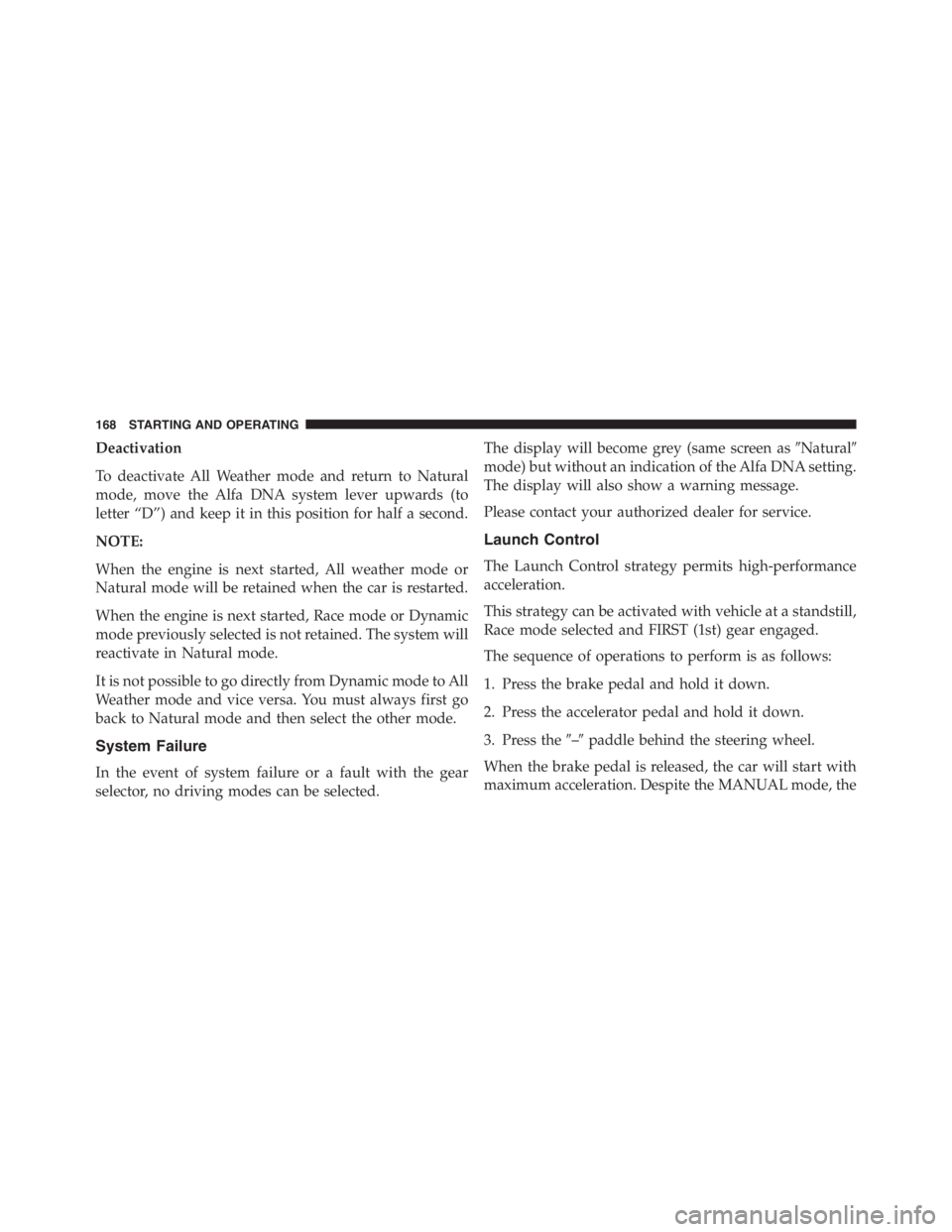

Deactivation
To deactivate All Weather mode and return to Natural
mode, move the Alfa DNA system lever upwards (to
letter “D”) and keep it in this position for half a second.
NOTE:
When the engine is next started, All weather mode or
Natural mode will be retained when the car is restarted.
When the engine is next started, Race mode or Dynamic
mode previously selected is not retained. The system will
reactivate in Natural mode.
It is not possible to go directly from Dynamic mode to All
Weather mode and vice versa. You must always first go
back to Natural mode and then select the other mode.
System Failure
In the event of system failure or a fault with the gear
selector, no driving modes can be selected.The display will become grey (same screen asNatural
mode) but without an indication of the Alfa DNA setting.
The display will also show a warning message.
Please contact your authorized dealer for service.
Launch Control
The Launch Control strategy permits high-performance
acceleration.
This strategy can be activated with vehicle at a standstill,
Race mode selected and FIRST (1st) gear engaged.
The sequence of operations to perform is as follows:
1. Press the brake pedal and hold it down.
2. Press the accelerator pedal and hold it down.
3. Press the–paddle behind the steering wheel.
When the brake pedal is released, the car will start with
maximum acceleration. Despite the MANUAL mode, the
