2015 Peugeot 308 display

141
308_en_Chap04_conduite_ed01-2015
Switching on / Pause
F turn wheel 1 to the "LIMIT" position: the
speed limiter mode is selected but is not
switched on (Pause).
F

S
witch the speed limiter back on by
pressing button 4 , if the speed displayed
is suitable (by default, the last speed
programmed).
F

Y
ou can temporarily stop the the speed
limiter by pressing button 4 again: the
display confirms that it has been stopped
(Pause). You do not have to switch the speed limiter on
in order to set the speed.
Once the function is selected, you can modify
the speed setting by:
-

p
ressing button 5:
F

t
he six speeds memorised are displayed
in the touch screen,
F

p
ress the button corresponding to the
speed limit chosen


t
h
e value is displayed in the instrument
panel.


t
h
e selection screen closes after a
few
moments.-

u
sing buttons 2 and 3, increasing or
decreasing the speed displayed:
F

b
y successive short presses, to modify
by + or - ½ mph (1 km/h),
F

b
y a maintained press, to modify in steps
of + or - 3 mph (5 km/h).
Adjusting the speed limit
setting
4
Driving

142
308_en_Chap04_conduite_ed01-2015
On sharp acceleration, as when
descending a steep hill, the speed
limiter will not be able to prevent
the vehicle from exceeding the
programmed speed.
the
limiter is temporarily deactivated
and the displayed programmed speed
flashes.
An audible signal accompanies the
flashing of the programmed speed
when exceeding the speed is not due to
an action by the driver.
th

e use of mats not approved by
P
e

uge
Ot
may inter fere with the
operation of the speed limiter.
to a

void any risk of jamming of the
pedals:
-

e
nsure that the mat is secured
c o r r e c t l y,
-

d
o not fit one mat on top of another.
Flashing of the dashes indicates a fault with the
speed limiter.
Have it checked by a P
e

uge
Ot

dealer or a
qualified workshop.
Operating fault
Temporarily exceeding the
programmed speed
Switching off
F Press f irmly on the accelerator pedal,
going beyond the point of resistance, to
exceed the programmed speed limit.
th

e speed limiter is deactivated temporarily
and the displayed programmed speed flashes.
An audible signal accompanies the flashing
of the programmed speed when exceeding
the speed is not due to an action by the driver
(steep hill...).
As soon as the vehicle's speed returns to the
programmed value, the limiter operates again:
the display of the programmed speed becomes
steady again.
F
t
u
rn wheel 1 to the "0" position.


t
h
e display of information related to the
speed limiter disappears.
Driving

143
308_en_Chap04_conduite_ed01-2015
Steering mounted controls
6. Cruise control pause / resume indication.
7. Cruise control mode selection indication.
8.
Spe

ed value setting.
Cruise control
System which automatically maintains the speed of the vehicle at the value programmed by the driver, without any action on the accelerator pedal.
the cruise control system cannot, in any circumstances,
replace the need to observe speed limits, nor can it
replace the need for vigilance on the part of the driver.
You are advised to keep your feet near the pedals at
all times.
the cruise control is switched on manually: it
requires a minimum vehicle speed of 25 mph
(40 km/h).
1.
C

ruise control mode selection wheel.
2.
D

ecrease value or speed setting on the fly
button.
3.
I

ncrease value or speed setting on the fly
button.
4.
C

ruise control pause / resume button.
5.
M

emorised speeds display button.Displays in the instrument panel
Switching off the ignition cancels any
programmed speed value.
th

e cruise control is paused
manually or
by pressing the brake or clutch pedal or
on triggering of the e SC system for safety
reasons.
It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
to r

eturn to the programmed speed, simply
release the accelerator pedal until the
programmed cruise speed is reached again. As well as the engagement of at least third or
fourth gear (depending on engine) on a manual
gearbox.
For more information on the list of
memorised speeds, refer to the
"Memorising speeds" section.
As well as the engagement of at least second
gear (depending on engine) on an automatic
gearbox.
4
Driving

144
308_en_Chap04_conduite_ed01-2015
Switching on
If the cruise control is switched on, you can
then modify the initial speed in one of the
following ways:
-
p
ressing button 5 :
F

t
he six memorised speeds are displayed
in the the touch screen,
F

c
hoose a value: it is displayed in the
instrument panel.


t
h
e selection screen closes after a few
moments.


t
he
modification is then accepted.
Pause
F turn wheel 1 to the "CRUISE" position:
the cruise control mode is selected but is
not switched on (Pause).
F

P
ress button 2 or 3 : your vehicle's current
speed becomes the cruise speed (selected
on the fly).
th

e cruise control is activated (ON).
Modification of the initial
speed setting
- using buttons 2 or 3 :
F b y successive short presses, to modify
the speed by + or - 1 mph (km/h),
F

b
y a long press, to modify the speed in
steps of + or - 5 mph (km/h),
Once switched on, you can pause the cruise
control at any time by pressing button 4: the
screen confirms the pause.
Driving

145
308_en_Chap04_conduite_ed01-2015
Flashing of the dashes indicates a fault with the
cruise control.
Have it checked by a P
e
uge
Ot
dealer or a
qualified workshop.
Operating fault
Exceeding the programmed
speed
Switching off
When the cruise control is switched on,
be careful if you maintain the pressure
on one of the programmed speed
changing buttons: this may result in a
very rapid change in the speed of your
vehicle.
Do not use the cruise control on
slippery roads or in heavy traffic.
On a steep descent, the cruise control
will not be able to prevent the vehicle
from exceeding the programmed speed.
On steep climbs or when towing, the
programmed speed may not be reached
or maintained.
th

e use of mats not approved by
P
e

uge
Ot
may inter fere with the
operation of the cruise control.
to a

void any risk of jamming of the
pedals:
-

e
nsure that the mat is secured
c o r r e c t l y,
-

n
ever fit one mat on top of another.
If the programmed speed is exceeded, the
displayed speed flashes.
Once the vehicle returns to the programmed
speed, the display becomes steady again.
F
t
u

rn wheel 1 to the "0" position.


t
h

e display of information related to the
cruise control disappears.
4
Driving

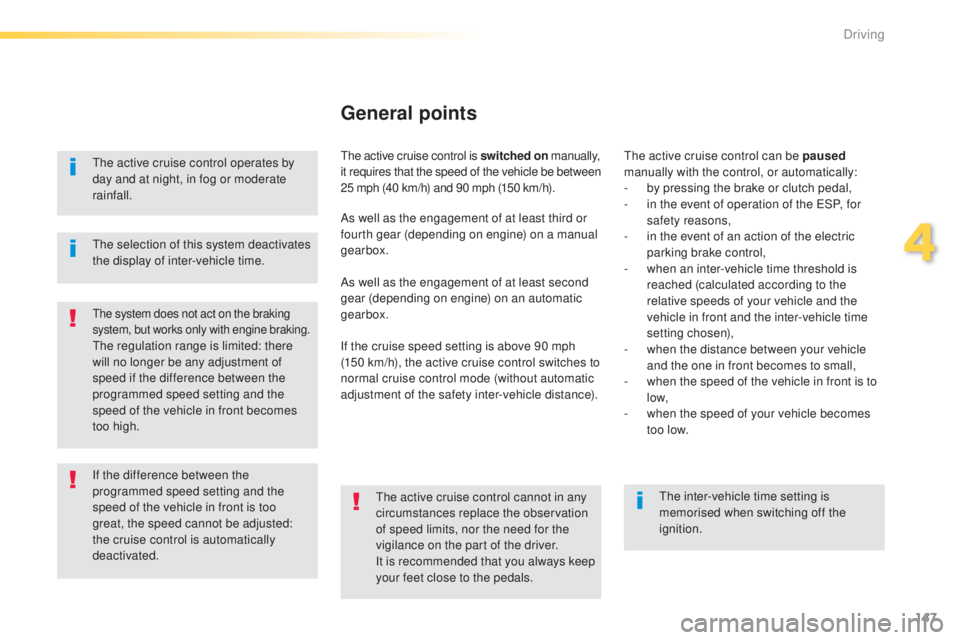

147
308_en_Chap04_conduite_ed01-2015
the active cruise control operates by
day and at night, in fog or moderate
rainfall.
the system does not act on the braking
system, but works only with engine braking.
the regulation range is limited: there
will no longer be any adjustment of
speed if the difference between the
programmed speed setting and the
speed of the vehicle in front becomes
too high.
th
e selection of this system deactivates
the display of inter-vehicle time.
If the difference between the
programmed speed setting and the
speed of the vehicle in front is too
great, the speed cannot be adjusted:
the cruise control is automatically
deactivated.
th
e active cruise control is switched on
manually,
it requires that the speed of the vehicle be between
25 mph (40 km/h) and 90 mph (150 km/h).
General points
the active cruise control can be paused
manually with the control, or automatically:
-

b
y pressing the brake or clutch pedal,
-

i
n the event of operation of the e SP, for
safety reasons,
-

i
n the event of an action of the electric
parking brake control,
-

w
hen an inter-vehicle time threshold is
reached (calculated according to the
relative speeds of your vehicle and the
vehicle in front and the inter-vehicle time
setting chosen),
-

w
hen the distance between your vehicle
and the one in front becomes to small,
-

w
hen the speed of the vehicle in front is to
low,
-

w
hen the speed of your vehicle becomes
too low.
th

e active cruise control cannot in any
circumstances replace the observation
of speed limits, nor the need for the
vigilance on the part of the driver.
It is recommended that you always keep
your feet close to the pedals.
the

inter-vehicle time setting is
memorised when switching off the
ignition.
As well as the engagement of at least third or
fourth gear (depending on engine) on a manual
gearbox.
As well as the engagement of at least second
gear (depending on engine) on an automatic
gearbox.
If the cruise speed setting is above 90 mph
(150 km/h), the active cruise control switches to
normal cruise control mode (without automatic
adjustment of the safety inter-vehicle distance).
4
Driving

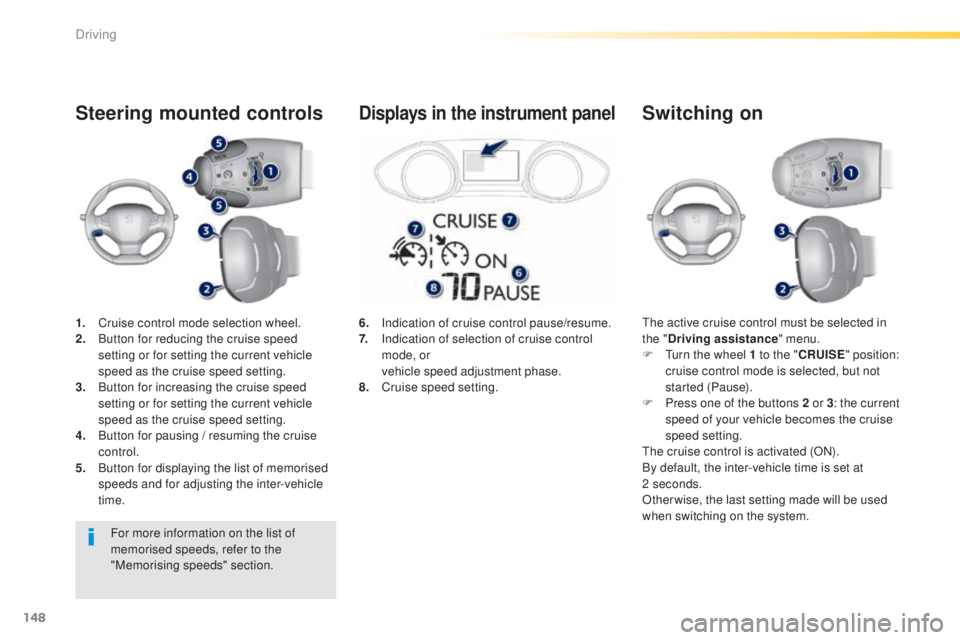

148
308_en_Chap04_conduite_ed01-2015
1. Cruise control mode selection wheel.
2. Button for reducing the cruise speed
setting or for setting the current vehicle
speed as the cruise speed setting.
3.
B

utton for increasing the cruise speed
setting or for setting the current vehicle
speed as the cruise speed setting.
4.
B

utton for pausing / resuming the cruise
control.
5.
B

utton for displaying the list of memorised
speeds and for adjusting the inter-vehicle
time.
Steering mounted controls
the active cruise control must be selected in
the " Driving assistance " menu.
F
t
u
rn the wheel 1 to the " CRUISE" position:
cruise control mode is selected, but not
started (Pause).
F

P
ress one of the buttons 2 or 3 : the current
speed of your vehicle becomes the cruise
speed setting.
th

e cruise control is activated (ON).
By default, the inter-vehicle time is set at
2


seconds.
Otherwise, the last setting made will be used
when switching on the system.
Switching on
6. Indication of cruise control pause/resume.
7. I ndication of selection of cruise control
mode, or
v

ehicle speed adjustment phase.
8.
C

ruise speed setting.
Displays in the instrument panel
For more information on the list of
memorised speeds, refer to the
"Memorising speeds" section.
Driving

149
308_en_Chap04_conduite_ed01-2015
Modification of the cruise
control speed and/or
the inter-vehicle time
Modification of the cruise
control speed only
Buttons 2 (SET+) and 3 (SET-)
If the cruise control is on, you can modify the
speed:
F

b
y successive short presses, to modify by
steps of + or -
1 mph (km/h),
F

b
y a maintained press, to modify in steps
of
+ or - 5 mph (km/h).
Press button 5, the six memorised speeds and
the inter-vehicle time setting are displayed in
the touch screen.
F

C
hoose a speed setting: it is displayed in
the instrument panel,
F

p
ress or the "+" or " -" button to choose
a new inter-vehicle time setting between
2.5


seconds and 1 second.
th

is setting remains memorised, whatever the
state of the system.
th

e selection screen closes after a
few
moments. t
h
e modifications are then
accepted. In the event of the presence of a
vehicle detected by the radar, if the
speed selected is much higher than
the speed of that vehicle, the system
is not activated and the alert message
"Activation not possible, conditions
unsuitable" is displayed until driving
conditions are safe to allow activation of
the system.
Exceeding the programmed
speed
As a precaution, it is recommended that you
select a cruise speed setting close to the
current speed of your vehicle.
It is possible to exceed the programmed speed
temporarily by depressing the accelerator
pedal.
Simply release the accelerator pedal to return
to the programmed speed.
If the programmed setting is unintentionally
exceeded, descending a steep hill for example,
the speed setting in the instrument panel
flashes as a warning.
Button 5 (MEM)
4
Driving
