Changing a bulb
Front lamps
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F

d

o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u

se a sponge and soapy water or a
pH neutral product,
F

w

hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. 1. D
aytime running lamps / sidelamps
(light emitting diodes - LEDs).
2.
D

ipped beam headlamps (H7-55W).
3.
D

irection indicators (PWY-24W).
4.
M

ain beam headlamps (H7-55W).
5.
F

ront foglamps (with "cornering
lighting" function according to version)
(PSX-24W).
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D

o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
9
Practical information

186
2008_en_Chap09_info-pratiques_ed01-2015
Changing dipped beam headlamp
bulbs
F Remove the protective cover by pulling on the tab.
F

D
isconnect the bulb connector.
F

S
pread the spring to release the bulb.
F

E
xtract the bulb and change it.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Changing direction indicator
bulbs
To reassemble, carry out these operations in
reverse order, positioning the alignment lug at
the bottom.
F

T

urn the bulb holder an eighth of a turn
anti-clockwise and extract it.
F

R

emove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Practical information

187
2008_en_Chap09_info-pratiques_ed01-2015
Changing main beam headlamp bulbsDaytime running lamps /
sidelamps (light-emitting
diodes - LEDs)
For the replacement of this type of LED lamp,
contact a PEUGEOT dealer or a qualified
workshop.
To reassemble, carry out these operations in
reverse order, positioning the alignment lug at
the bottom.
F

R

emove the protective cover by pulling on
the tab.
F
D
isconnect the bulb connector.
F

P

ull out the bulb and replace it.
9
Practical information

188
2008_en_Chap09_info-pratiques_ed01-2015

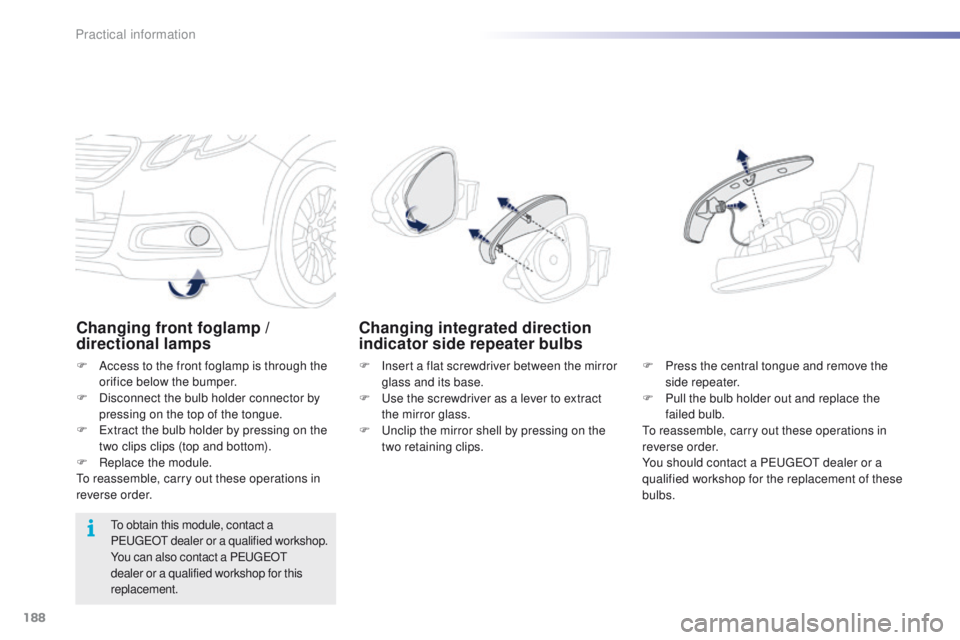

Changing front foglamp /
directional lamps
F Access to the front foglamp is through the orifice below the bumper.
F

D
isconnect the bulb holder connector by
pressing on the top of the tongue.
F

E
xtract the bulb holder by pressing on the
two clips clips (top and bottom).
F

R
eplace the module.
To reassemble, carry out these operations in
reverse order.
Changing integrated direction
indicator side repeater bulbs
F Press the central tongue and remove the side repeater.
F

P
ull the bulb holder out and replace the
failed bulb.
To reassemble, carry out these operations in
reverse order.
You should contact a PEUGEOT dealer or a
qualified workshop for the replacement of these
bulbs.
F
I
nsert a flat screwdriver between the mirror
glass and its base.
F

U

se the screwdriver as a lever to extract
the mirror glass.
F

U

nclip the mirror shell by pressing on the
two retaining clips.
To obtain this module, contact a
PEUGEOT dealer or a qualified workshop.
You can also contact a PEUGEOT
dealer or a qualified workshop for this
replacement.
Practical information

190
2008_en_Chap09_info-pratiques_ed01-2015
Changing brake lamp and
direction indicator bulbs
These bulbs are changed from inside the boot:
F o pen the boot,
F

r
emove the access grille from the
corresponding side trim panel,
F

s
lacken and remove the nut,
F

d
isconnect the lamp unit connector,
F

r
emove the lamp unit carefully by it pulling
in line towards the outside, F
p ress the retaining tabs and remove the
bulb holder,
F

t
urn the bulb a quarter of a turn and
change


it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp.
