2015 NISSAN TITAN Owners Manual

Page 417 of 457

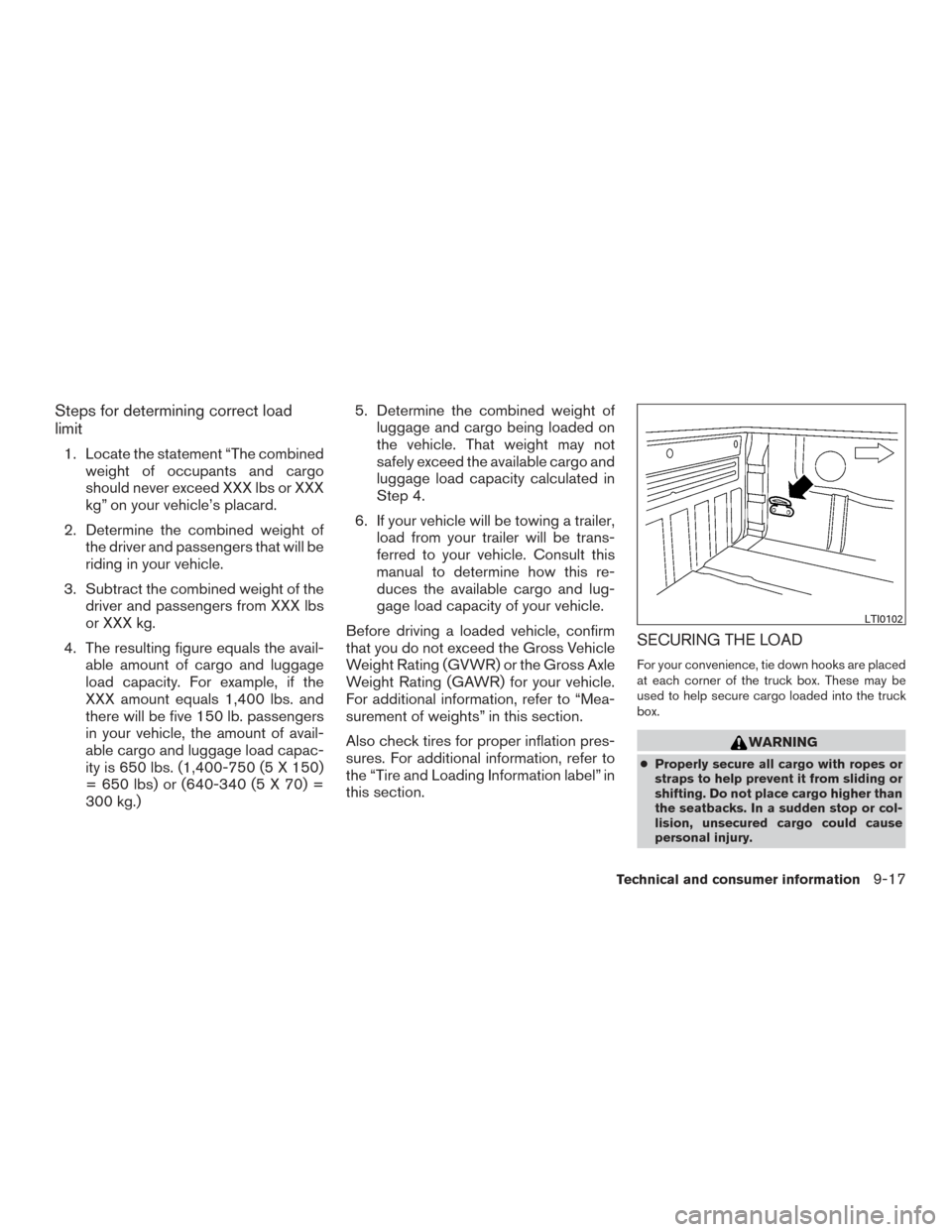

NISSAN TITAN 2015 1.G Owners Manual Steps for determining correct load
limit
1. Locate the statement “The combinedweight of occupants and cargo
should never exceed XXX lbs or XXX
kg” on your vehicle’s placard.
2. Determine the com

Page 418 of 457

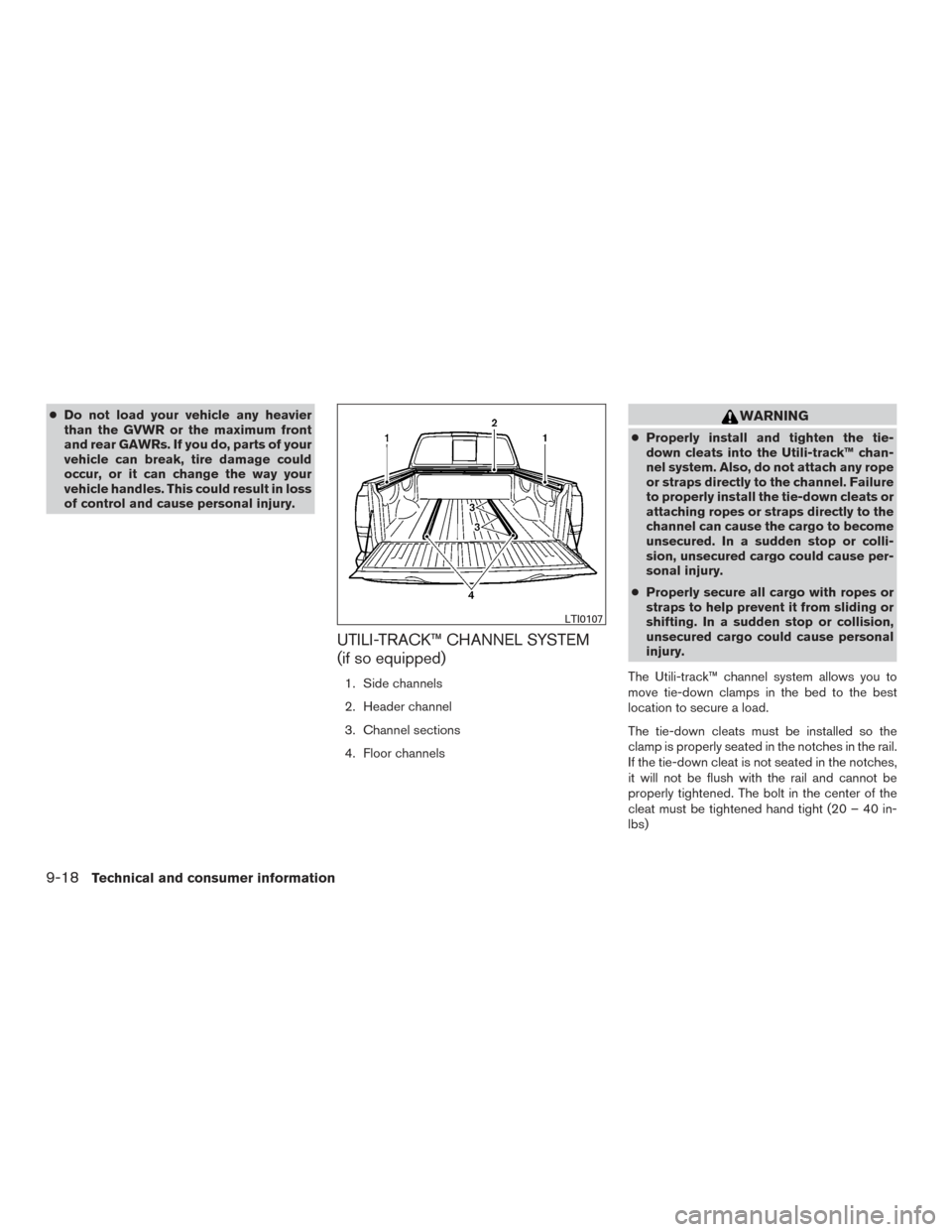

NISSAN TITAN 2015 1.G Owners Manual ●Do not load your vehicle any heavier
than the GVWR or the maximum front
and rear GAWRs. If you do, parts of your
vehicle can break, tire damage could
occur, or it can change the way your
vehicle ha

Page 419 of 457

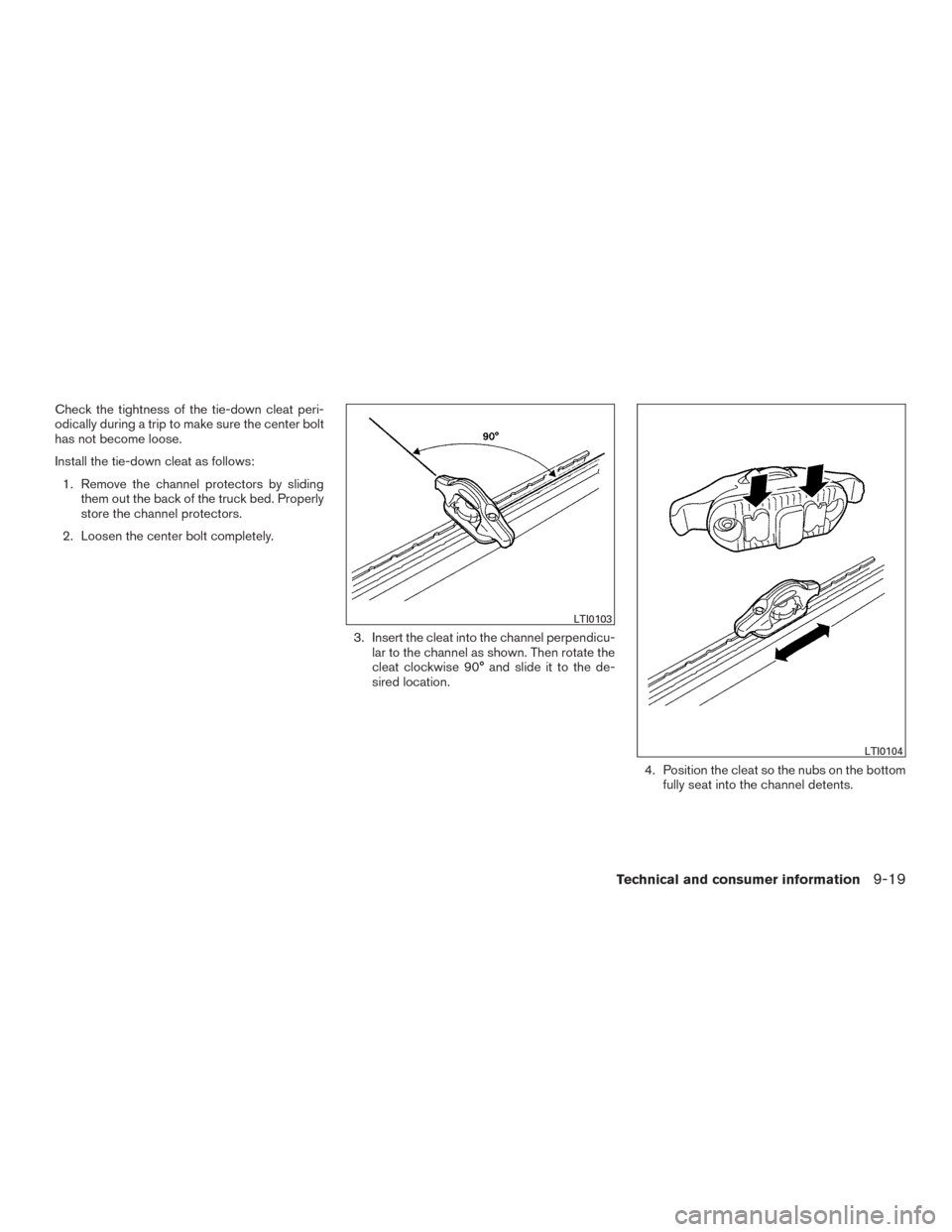

NISSAN TITAN 2015 1.G Owners Manual Check the tightness of the tie-down cleat peri-
odically during a trip to make sure the center bolt
has not become loose.
Install the tie-down cleat as follows:1. Remove the channel protectors by slid

Page 420 of 457

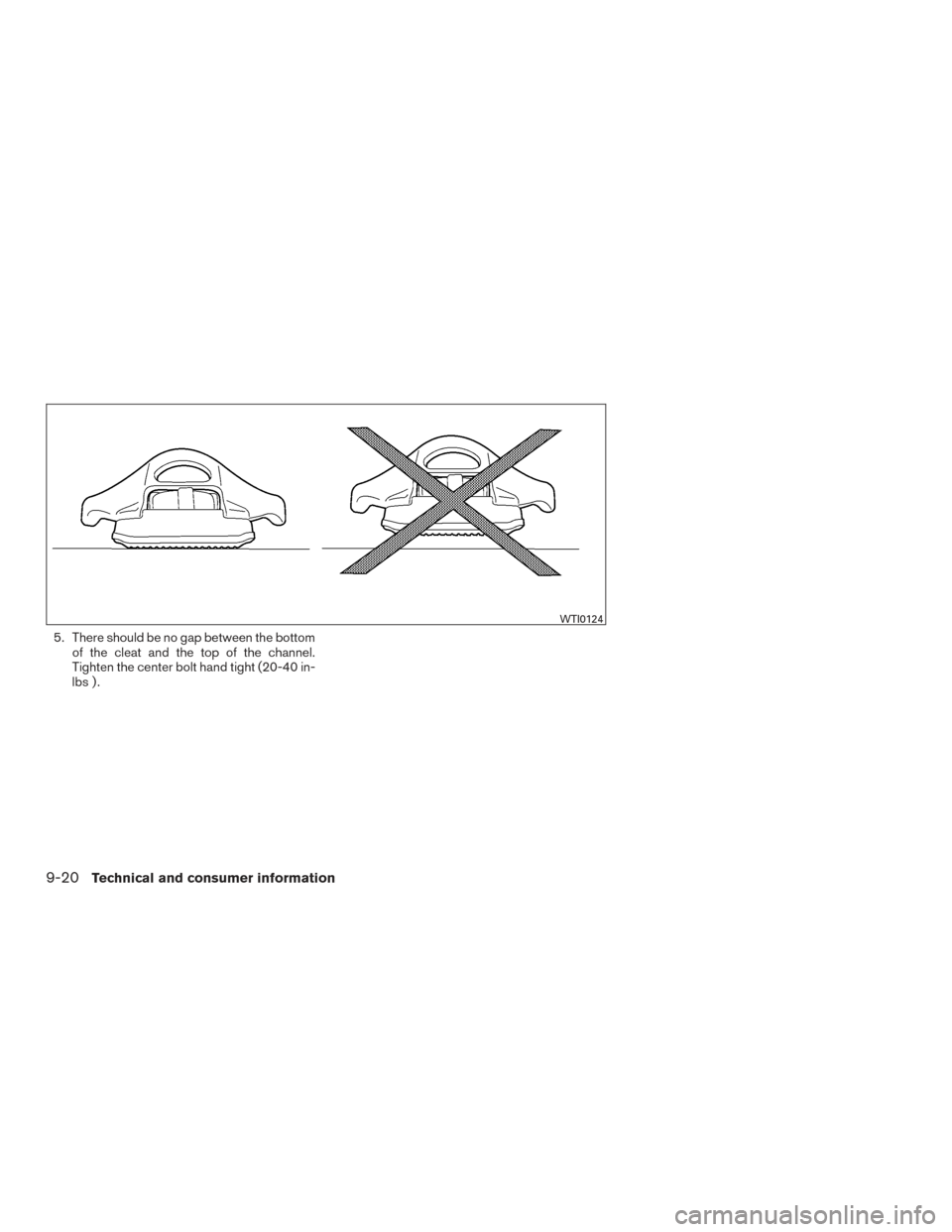

NISSAN TITAN 2015 1.G Owners Manual 5. There should be no gap between the bottomof the cleat and the top of the channel.
Tighten the center bolt hand tight (20-40 in-
lbs ) .
WTI0124
9-20Technical and consumer information

Page 421 of 457

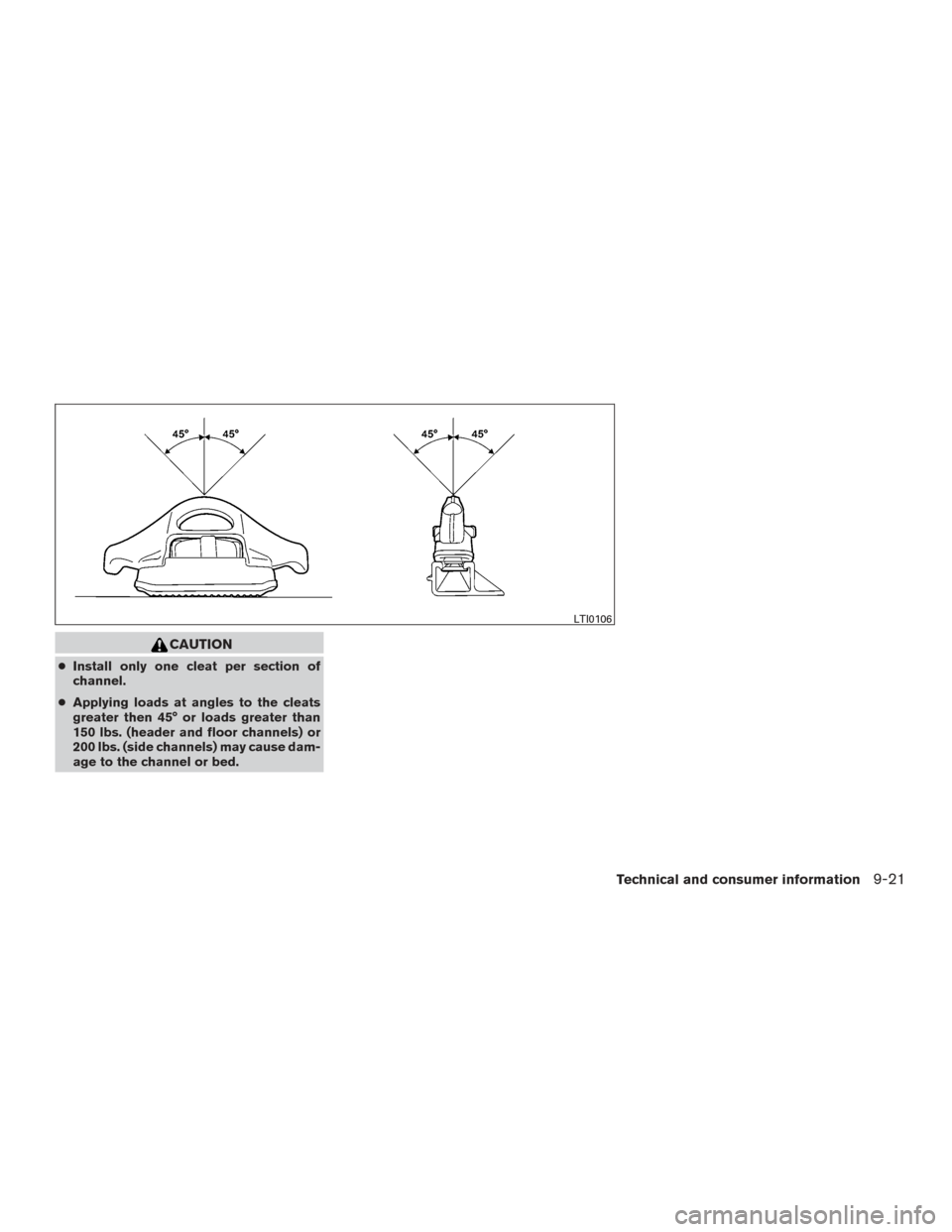

NISSAN TITAN 2015 1.G Owners Manual CAUTION
●Install only one cleat per section of
channel.
● Applying loads at angles to the cleats
greater then 45° or loads greater than
150 lbs. (header and floor channels) or
200 lbs. (side chan

Page 422 of 457

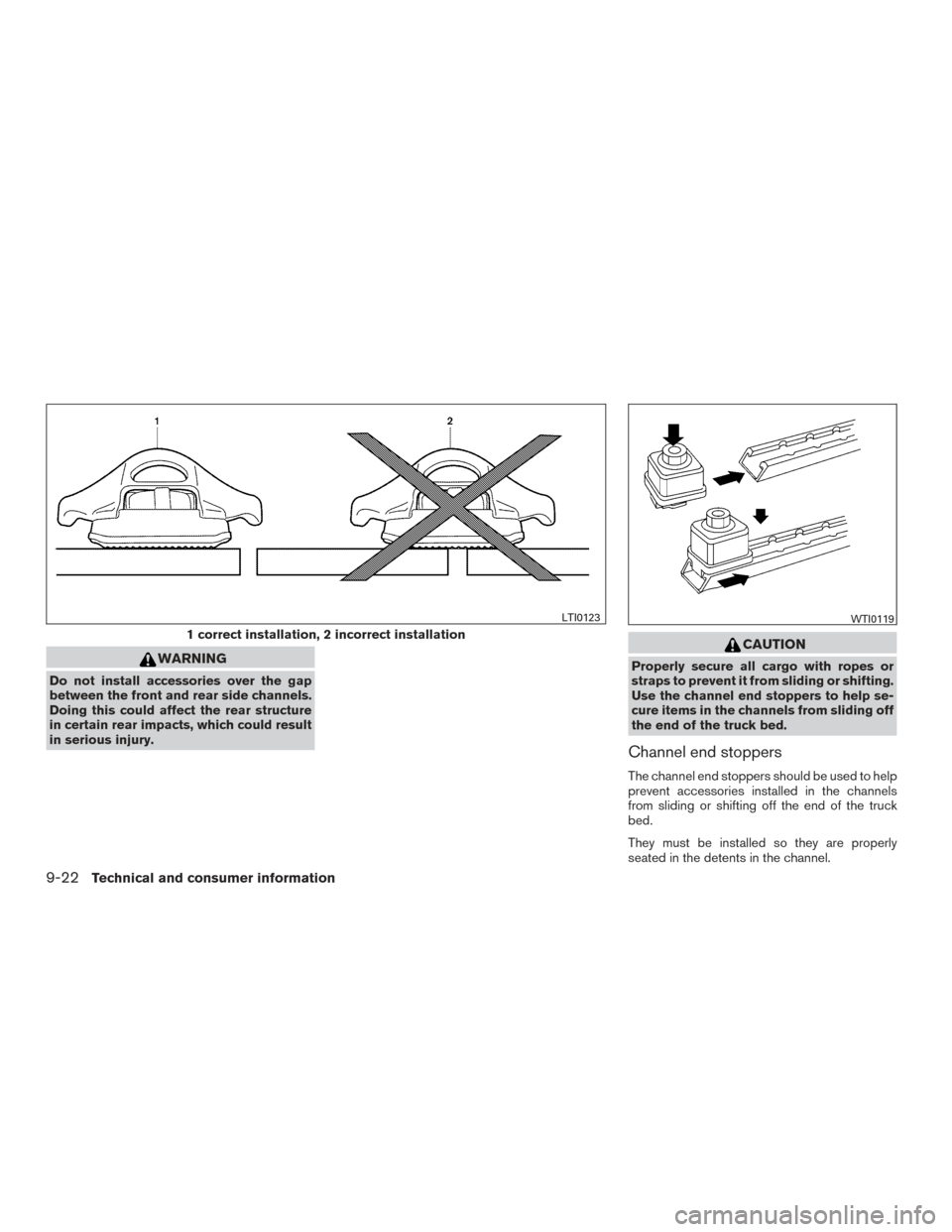

NISSAN TITAN 2015 1.G Owners Manual WARNING
Do not install accessories over the gap
between the front and rear side channels.
Doing this could affect the rear structure
in certain rear impacts, which could result
in serious injury.
CAUT

Page 423 of 457

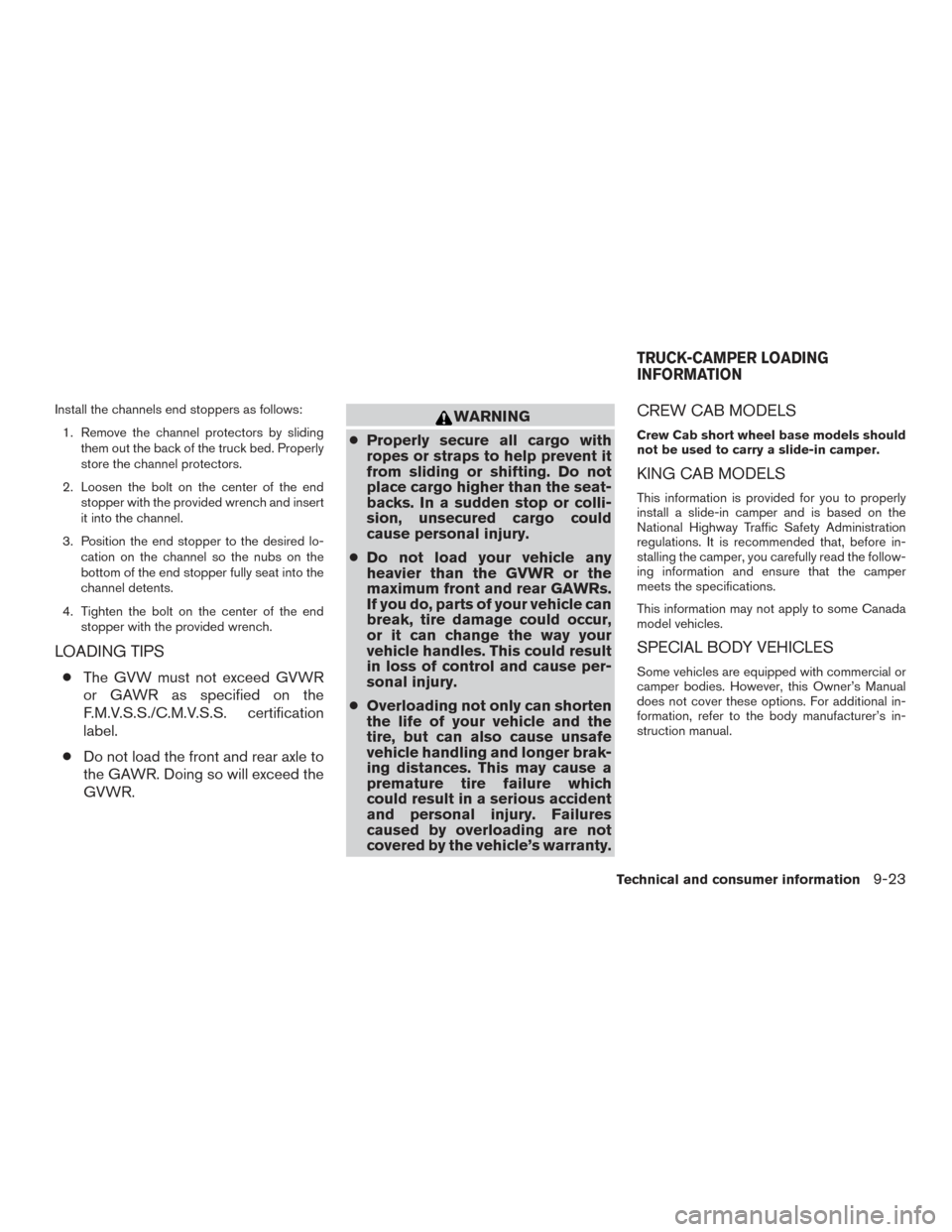

NISSAN TITAN 2015 1.G Owners Manual Install the channels end stoppers as follows:1. Remove the channel protectors by sliding them out the back of the truck bed. Properly
store the channel protectors.
2. Loosen the bolt on the center of

Page 424 of 457

NISSAN TITAN 2015 1.G Owners Manual LOCATION FOR CENTER OF
GRAVITY
The illustration indicates the recommended
cargo center of gravity location.
King Cab short wheel base:
L1 = 43.9 in (1,115.7 mm)
Crew Cab long wheel base:
L1 = 47.9 in
