2015 NISSAN TITAN Owners Manual

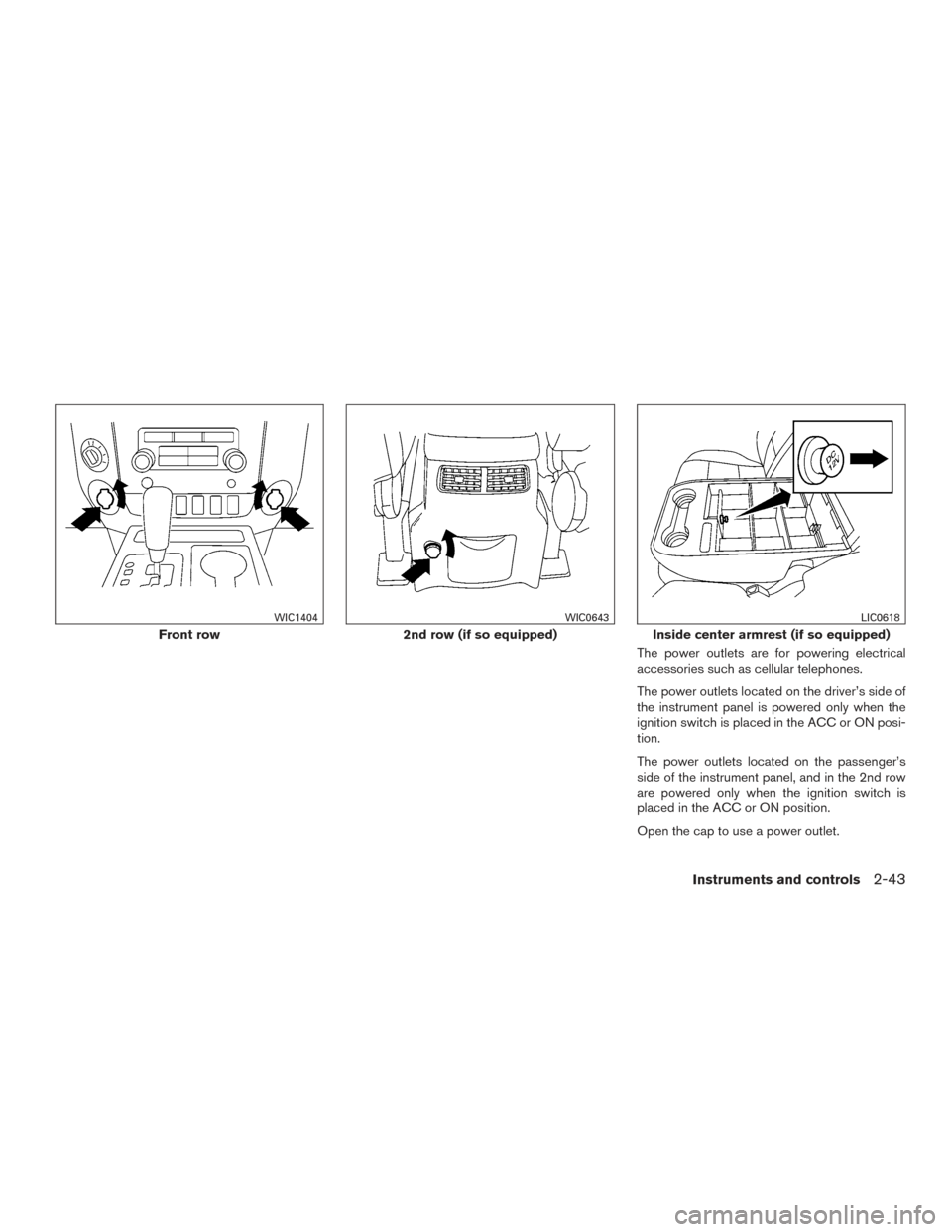

The power outlets are for powering electrical
accessories such as cellular telephones.
The power outlets located on the driver’s side of
the instrument panel is powered only when the
ignition switch is placed in the ACC or ON posi-
tion.
The power outlets located on the passenger’s
side of the instrument panel, and in the 2nd row
are powered only when the ignition switch is
placed in the ACC or ON position.
Open the cap to use a power outlet.
Front row
WIC1404
2nd row (if so equipped)
WIC0643
Inside center armrest (if so equipped)
LIC0618
Instruments and controls2-43

CAUTION
●The outlet and plug may be hot during
or immediately after use.
● Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. See your NISSAN
dealer for additional information.
● Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
120V OUTLET (if so equipped)
In truck box (if so equipped)
LIC0617
Center console (if so equipped)
LIC2433
2-44Instruments and controls

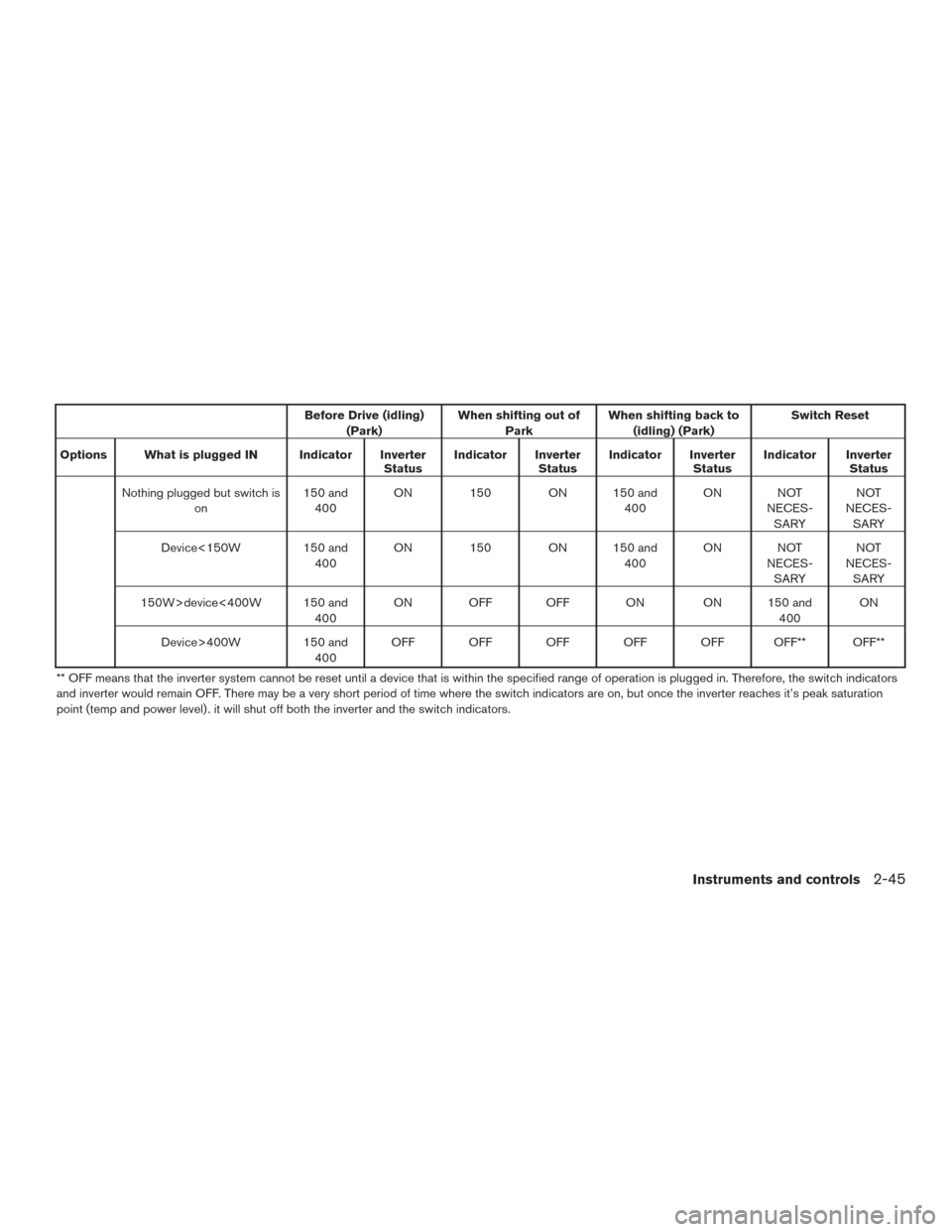

Before Drive (idling)(Park) When shifting out of
Park When shifting back to
(idling) (Park) Switch Reset
Options What is plugged IN Indicator Inverter StatusIndicator Inverter
StatusIndicator Inverter
StatusIndicator Inverter
Status
Nothing plugged but switch is on 150 and
400 ON 150 ON 150 and
400ON NOT
NECES-SARY NOT
NECES- SARY
Device<150W 150 and
400 ON 150 ON 150 and
400ON NOT
NECES-SARY NOT
NECES- SARY
150W>device<400W 150 and 400ON OFF OFF ON ON 150 and
400ON
Device>400W 150 and
400 OFF OFF OFF OFF OFF OFF** OFF**
** OFF means that the inverter system cannot be reset until a device that is within the specified range of operation is plugged in. Therefore, the switch indicators
and inverter would remain OFF. There may be a very short period of time where the switch indicators are on, but once the inverter reaches it’s peak saturation
point (temp and power level) . it will shut off both the inverter and the switch indicators.
Instruments and controls2-45

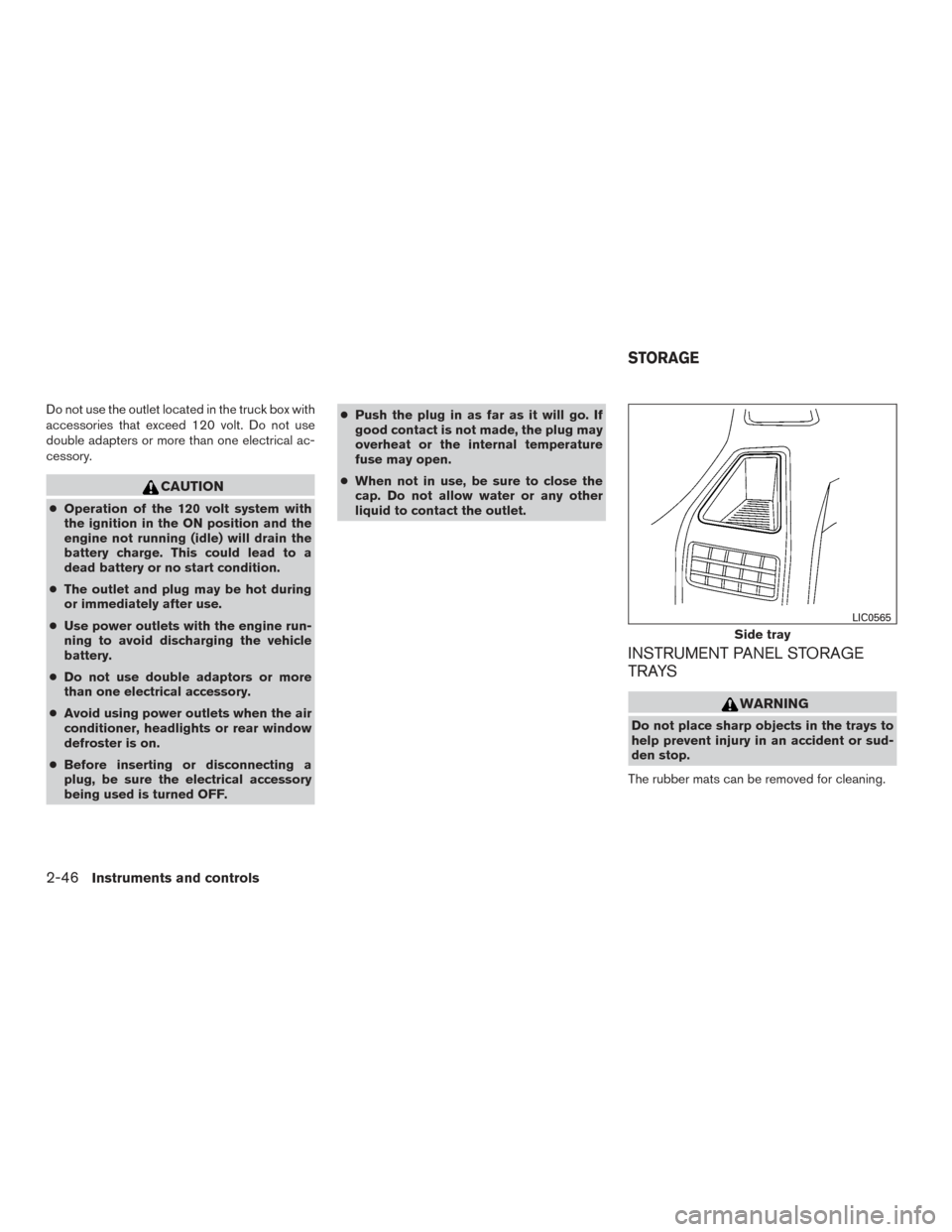

Do not use the outlet located in the truck box with
accessories that exceed 120 volt. Do not use
double adapters or more than one electrical ac-
cessory.
CAUTION
●Operation of the 120 volt system with
the ignition in the ON position and the
engine not running (idle) will drain the
battery charge. This could lead to a
dead battery or no start condition.
● The outlet and plug may be hot during
or immediately after use.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Do not use double adaptors or more
than one electrical accessory.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on.
● Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF. ●
Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
INSTRUMENT PANEL STORAGE
TRAYS
WARNING
Do not place sharp objects in the trays to
help prevent injury in an accident or sud-
den stop.
The rubber mats can be removed for cleaning.
Side tray
LIC0565
STORAGE
2-46Instruments and controls

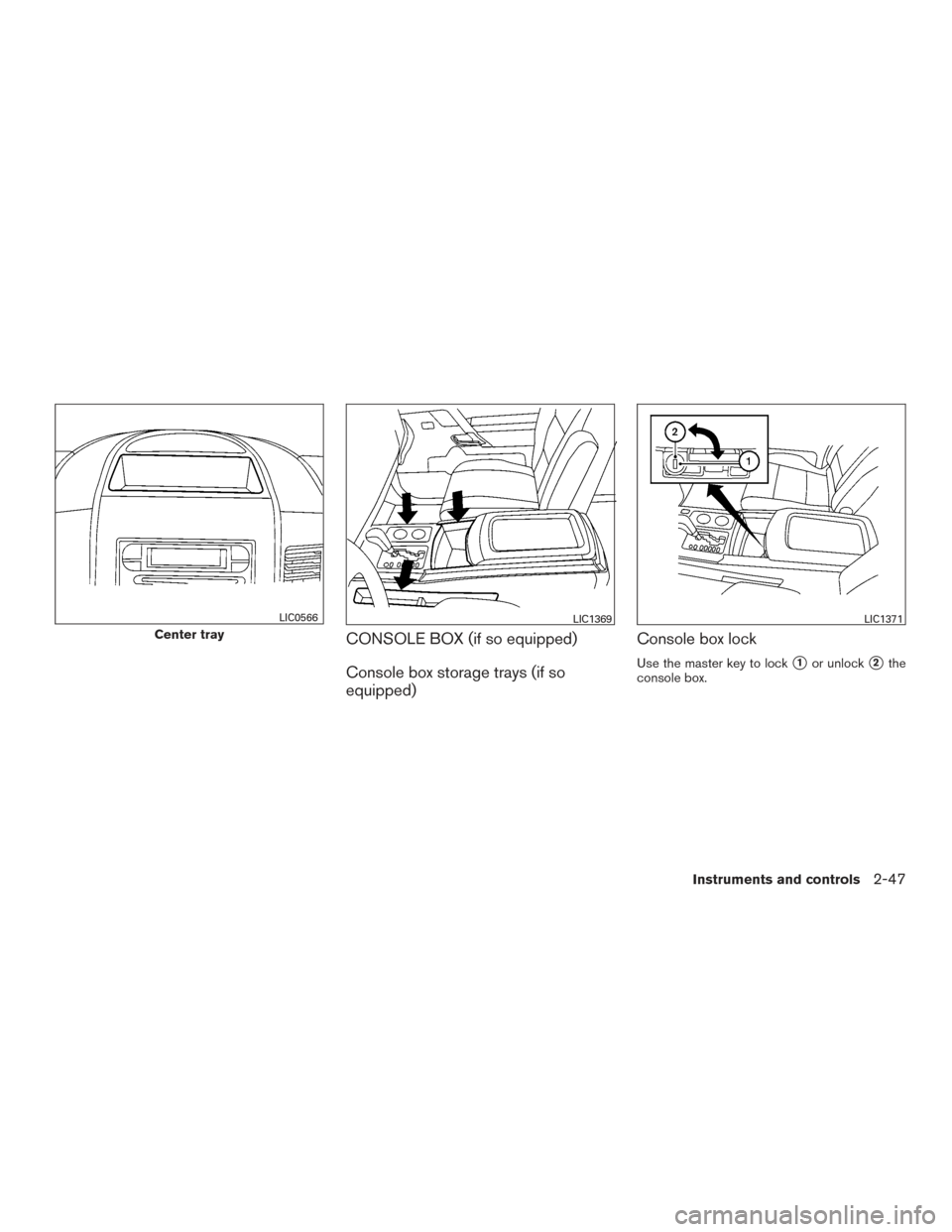

CONSOLE BOX (if so equipped)
Console box storage trays (if so
equipped)Console box lock
Use the master key to lock1or unlock2the
console box.
Center tray
LIC0566LIC1369LIC1371
Instruments and controls2-47

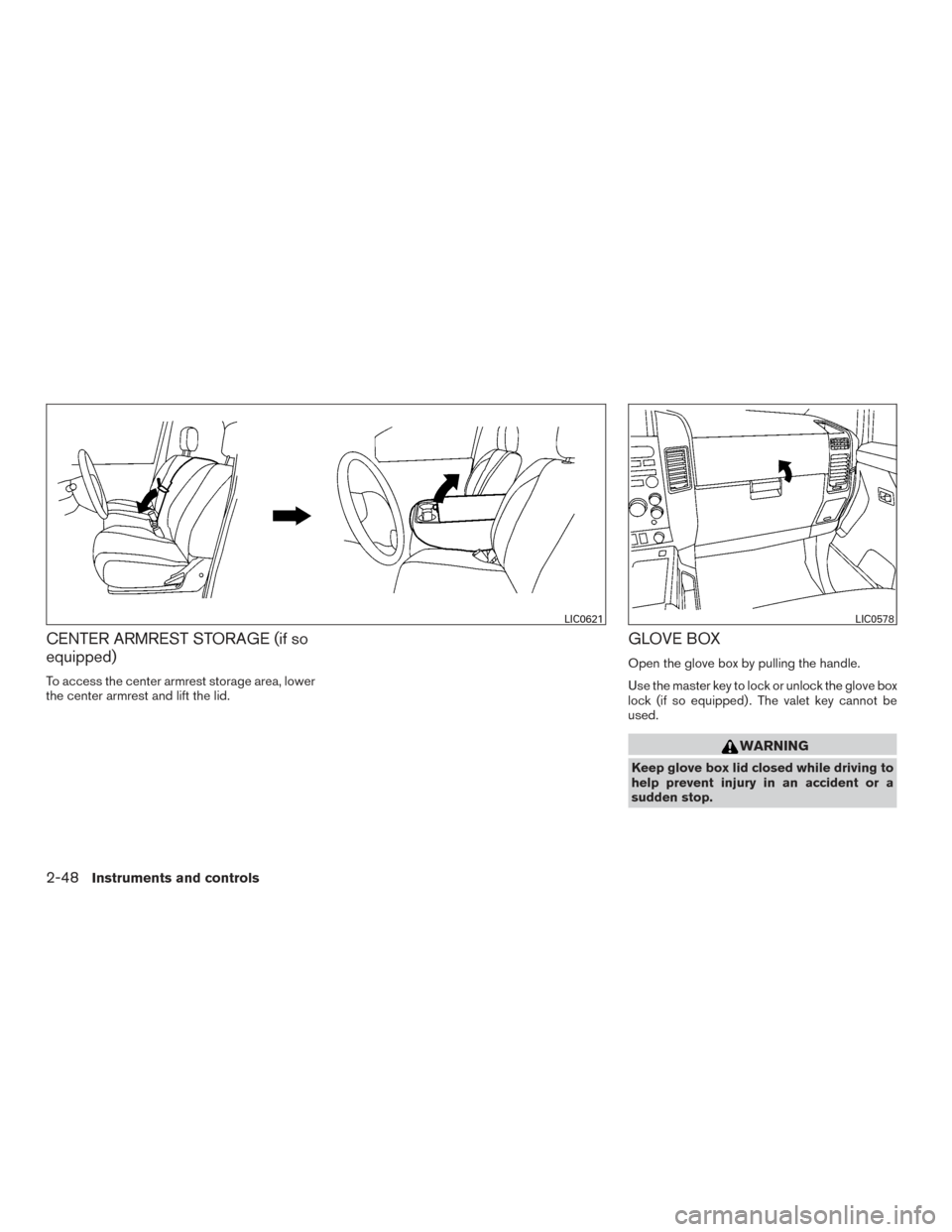

CENTER ARMREST STORAGE (if so
equipped)
To access the center armrest storage area, lower
the center armrest and lift the lid.
GLOVE BOX
Open the glove box by pulling the handle.
Use the master key to lock or unlock the glove box
lock (if so equipped) . The valet key cannot be
used.
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
LIC0621LIC0578
2-48Instruments and controls

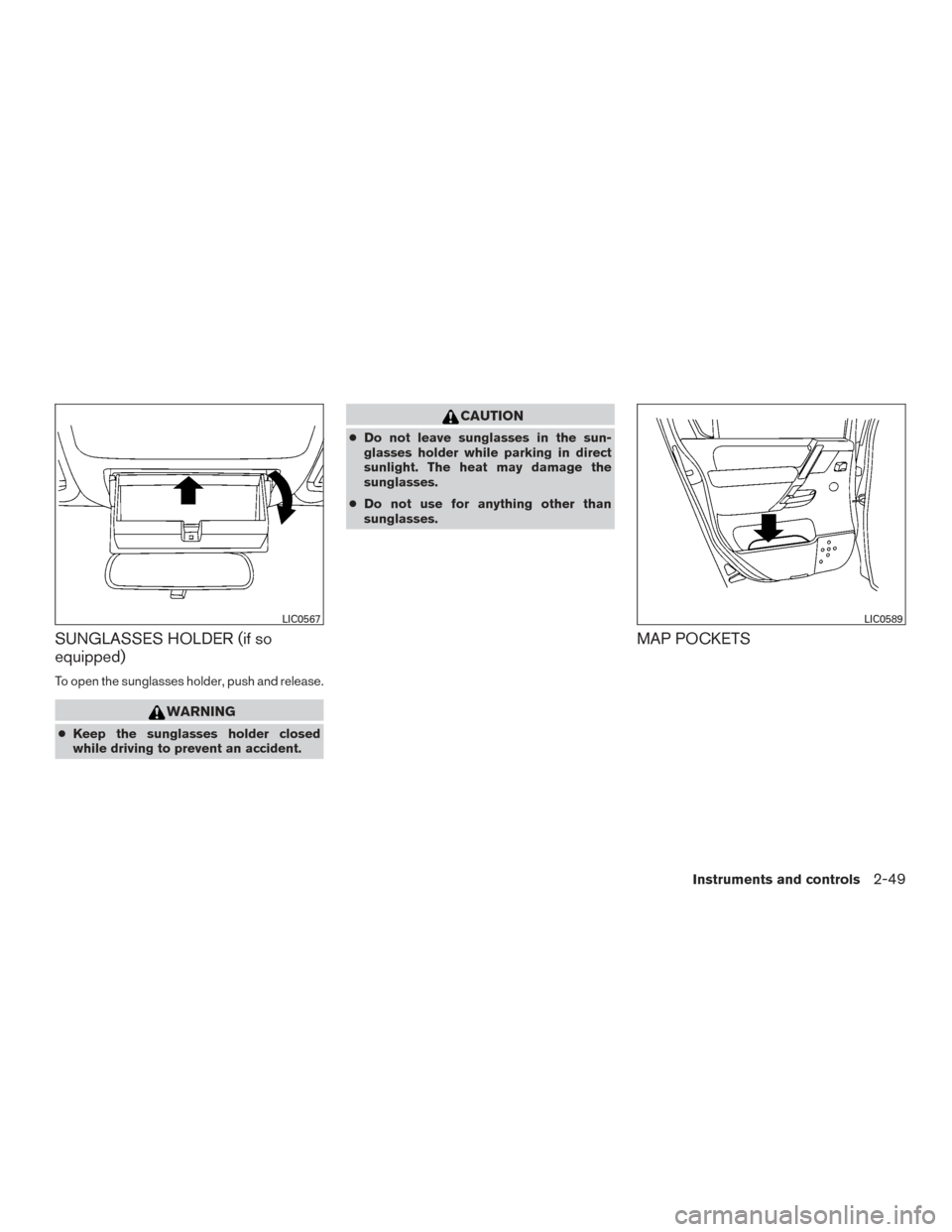

SUNGLASSES HOLDER (if so
equipped)
To open the sunglasses holder, push and release.
WARNING
●Keep the sunglasses holder closed
while driving to prevent an accident.
CAUTION
● Do not leave sunglasses in the sun-
glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.
● Do not use for anything other than
sunglasses.
MAP POCKETS
LIC0567LIC0589
Instruments and controls2-49

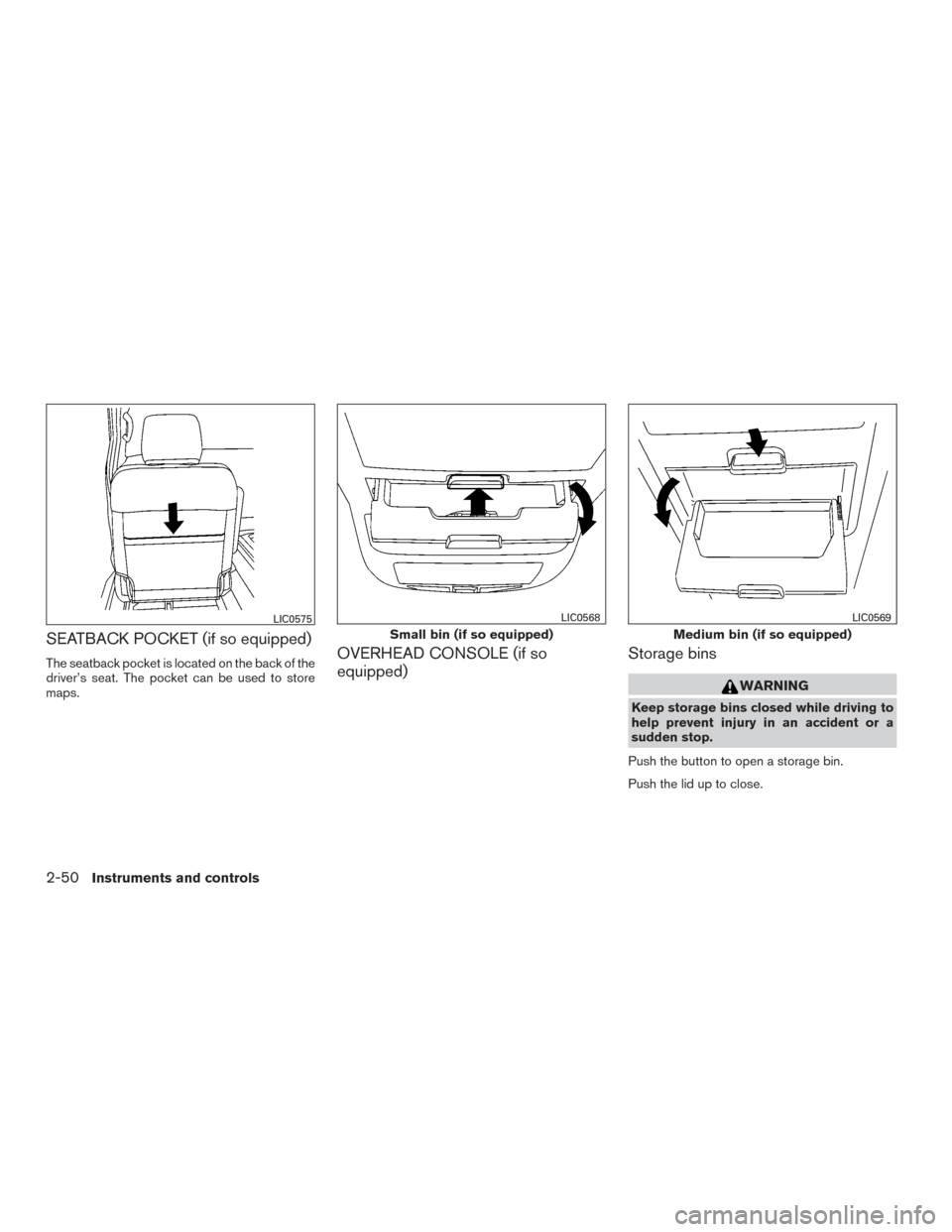

SEATBACK POCKET (if so equipped)
The seatback pocket is located on the back of the
driver’s seat. The pocket can be used to store
maps.OVERHEAD CONSOLE (if so
equipped)Storage bins
WARNING
Keep storage bins closed while driving to
help prevent injury in an accident or a
sudden stop.
Push the button to open a storage bin.
Push the lid up to close.
LIC0575
Small bin (if so equipped)
LIC0568
Medium bin (if so equipped)
LIC0569
2-50Instruments and controls
