4-36Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH0168X
DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-523096F1-0F36-43D7-BA0A-1C4191B4C267
Backing up on a steep uphillGUID-EAD39342-4AD0-4A64-BF28-9F7778BECE82When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it
appears.
JVH1030X
Backing up on a steep downhillGUID-483DCB2B-8F6F-459F-A166-BB7BB62C9813When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
&RQGLWLRQ


> (GLW    0RGHO (' @
the hill is viewed in the monitor closer than it
appears.
SAA2021

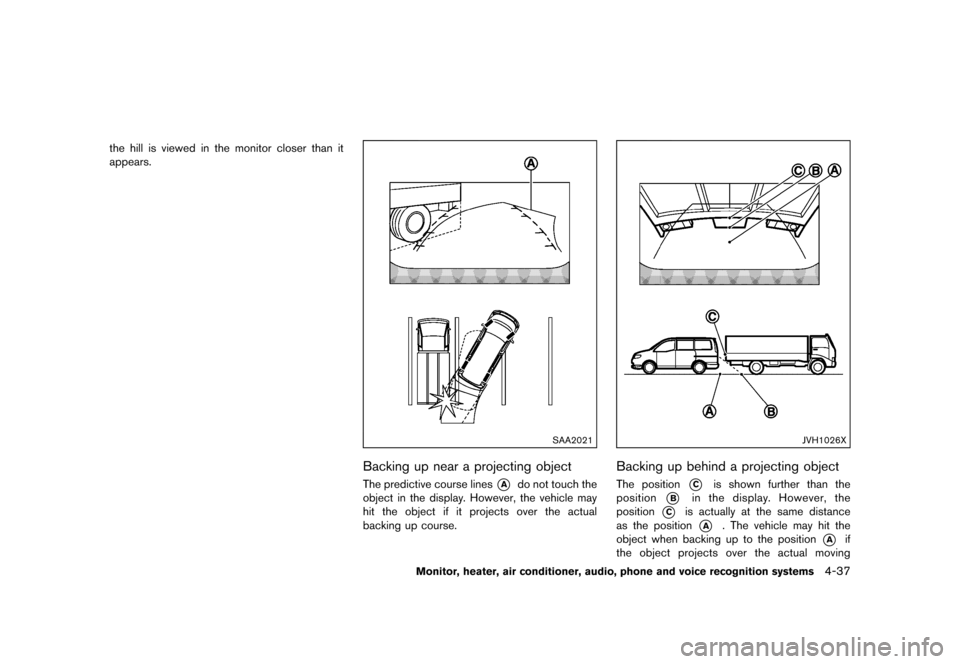

Backing up near a projecting objectGUID-3E24EFC9-F31F-4620-AB7B-DD9615F34056The predictive course lines*Ado not touch the
object in the display. However, the vehicle may
hit the object if it projects over the actual
backing up course.
JVH1026X
Backing up behind a projecting objectGUID-0257F1CE-FB10-4F0C-B9AF-05951940B700The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual moving
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-37
&RQGLWLRQ


> (GLW    0RGHO (' @
4-38Monitor, heater, air conditioner, audio, phone and voice recognition systems
course.

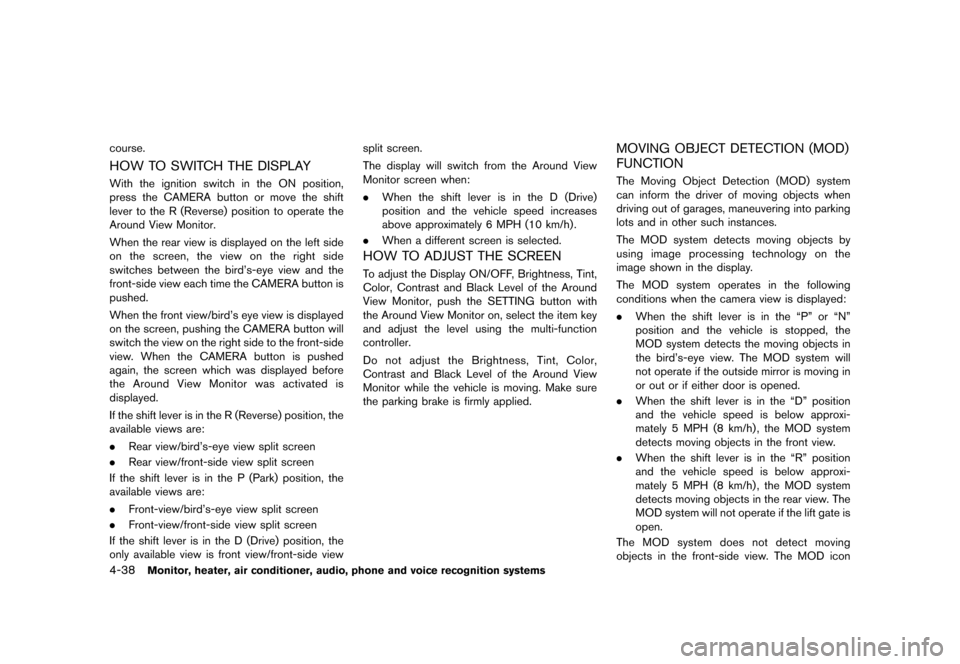

HOW TO SWITCH THE DISPLAYGUID-666130BA-C2F3-463E-A7FE-5BBA4EC5786DWith the ignition switch in the ON position,
press the CAMERA button or move the shift
lever to the R (Reverse) position to operate the
Around View Monitor.
When the rear view is displayed on the left side
on the screen, the view on the right side
switches between the bird's-eye view and the
front-side view each time the CAMERA button is
pushed.
When the front view/bird's eye view is displayed
on the screen, pushing the CAMERA button will
switch the view on the right side to the front-side
view. When the CAMERA button is pushed
again, the screen which was displayed before
the Around View Monitor was activated is
displayed.
If the shift lever is in the R (Reverse) position, the
available views are:
.Rear view/bird's-eye view split screen
. Rear view/front-side view split screen
If the shift lever is in the P (Park) position, the
available views are:
. Front-view/bird's-eye view split screen
. Front-view/front-side view split screen
If the shift lever is in the D (Drive) position, the
only available view is front view/front-side view split screen.
The display will switch from the Around View
Monitor screen when:
.
When the shift lever is in the D (Drive)
position and the vehicle speed increases
above approximately 6 MPH (10 km/h) .
. When a different screen is selected.
HOW TO ADJUST THE SCREENGUID-D7D0605F-B226-4C3F-ACCC-199024F184E8To adjust the Display ON/OFF, Brightness, Tint,
Color, Contrast and Black Level of the Around
View Monitor, push the SETTING button with
the Around View Monitor on, select the item key
and adjust the level using the multi-function
controller.
Do not adjust the Brightness, Tint, Color,
Contrast and Black Level of the Around View
Monitor while the vehicle is moving. Make sure
the parking brake is firmly applied.
MOVING OBJECT DETECTION (MOD)
FUNCTION
GUID-07B1BAB2-9273-4950-8DE2-2CDABED123ECThe Moving Object Detection (MOD) system
can inform the driver of moving objects when
driving out of garages, maneuvering into parking
lots and in other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown in the display.
The MOD system operates in the following
conditions when the camera view is displayed:
.When the shift lever is in the ªPº or ªNº
position and the vehicle is stopped, the
MOD system detects the moving objects in
the bird's-eye view. The MOD system will
not operate if the outside mirror is moving in
or out or if either door is opened.
. When the shift lever is in the ªDº position
and the vehicle speed is below approxi-
mately 5 MPH (8 km/h) , the MOD system
detects moving objects in the front view.
. When the shift lever is in the ªRº position
and the vehicle speed is below approxi-
mately 5 MPH (8 km/h) , the MOD system
detects moving objects in the rear view. The
MOD system will not operate if the lift gate is
open.
The MOD system does not detect moving
objects in the front-side view. The MOD icon
&RQGLWLRQ


> (GLW    0RGHO (' @

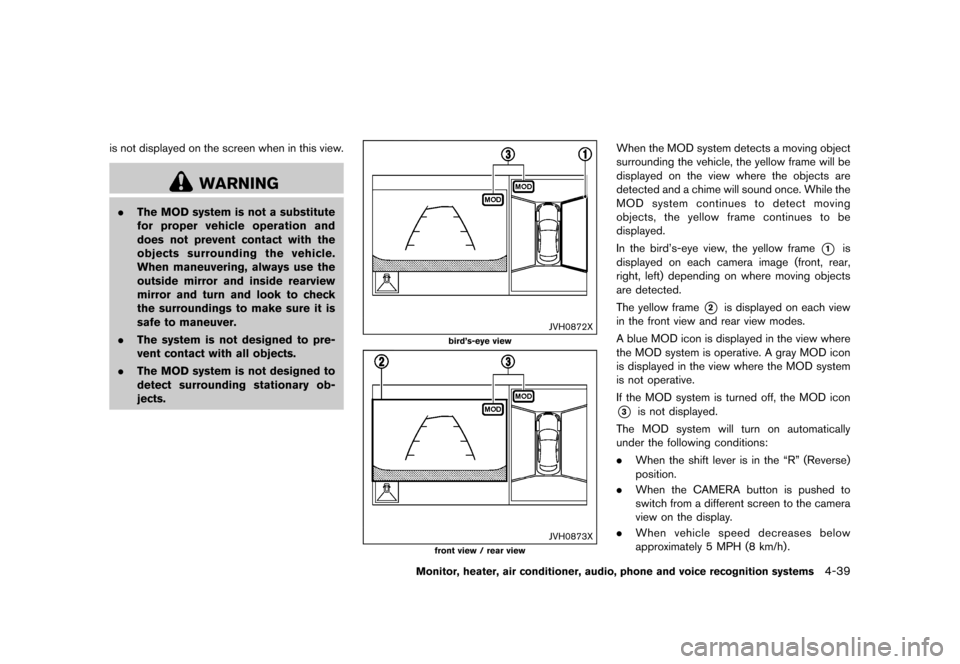

is not displayed on the screen when in this view.
WARNING
.The MOD system is not a substitute
for proper vehicle operation and
does not prevent contact with the
objects surrounding the vehicle.
When maneuvering, always use the
outside mirror and inside rearview
mirror and turn and look to check
the surroundings to make sure it is
safe to maneuver.
. The system is not designed to pre-
vent contact with all objects.
. The MOD system is not designed to
detect surrounding stationary ob-
jects.
JVH0872X
bird's-eye view
JVH0873X
front view / rear view
When the MOD system detects a moving object
surrounding the vehicle, the yellow frame will be
displayed on the view where the objects are
detected and a chime will sound once. While the
MOD system continues to detect moving
objects, the yellow frame continues to be
displayed.
In the bird's-eye view, the yellow frame
*1is
displayed on each camera image (front, rear,
right, left) depending on where moving objects
are detected.
The yellow frame
*2is displayed on each view
in the front view and rear view modes.
A blue MOD icon is displayed in the view where
the MOD system is operative. A gray MOD icon
is displayed in the view where the MOD system
is not operative.
If the MOD system is turned off, the MOD icon
*3is not displayed.
The MOD system will turn on automatically
under the following conditions:
. When the shift lever is in the ªRº (Reverse)
position.
. When the CAMERA button is pushed to
switch from a different screen to the camera
view on the display.
. When vehicle speed decreases below
approximately 5 MPH (8 km/h) .
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-39
&RQGLWLRQ


> (GLW    0RGHO (' @
4-40Monitor, heater, air conditioner, audio, phone and voice recognition systems

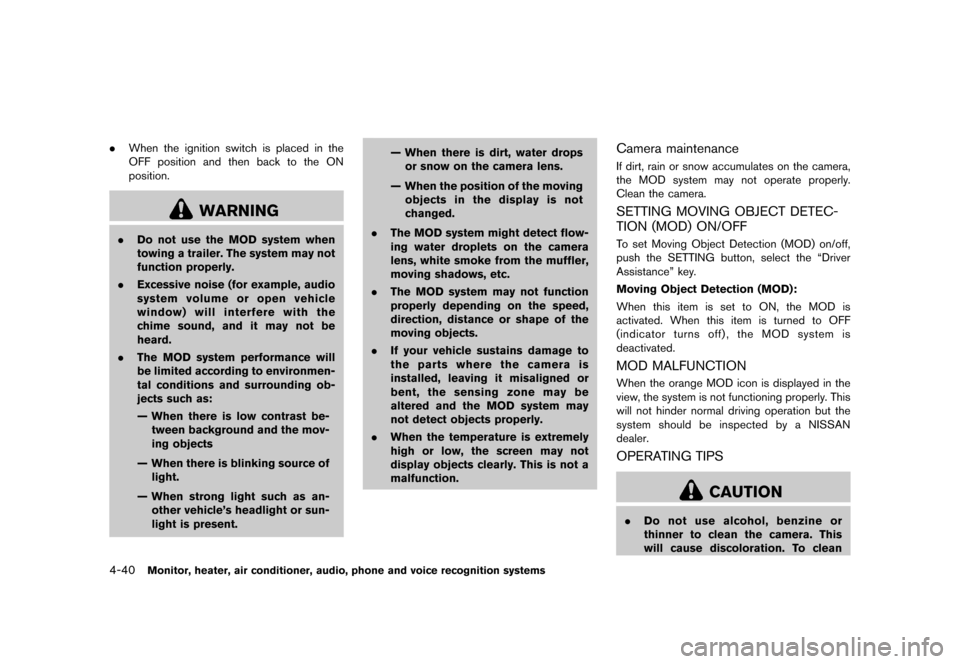

.When the ignition switch is placed in the
OFF position and then back to the ON
position.
WARNING
.Do not use the MOD system when
towing a trailer. The system may not
function properly.
. Excessive noise (for example, audio
system volume or open vehicle
window) will interfere with the
chime sound, and it may not be
heard.
. The MOD system performance will
be limited according to environmen-
tal conditions and surrounding ob-
jects such as:
Ð When there is low contrast be-
tween background and the mov-
ing objects
Ð When there is blinking source of light.
Ð When strong light such as an- other vehicle's headlight or sun-
light is present. Ð When there is dirt, water drops
or snow on the camera lens.
Ð When the position of the moving objects in the display is not
changed.
. The MOD system might detect flow-
ing water droplets on the camera
lens, white smoke from the muffler,
moving shadows, etc.
. The MOD system may not function
properly depending on the speed,
direction, distance or shape of the
moving objects.
. If your vehicle sustains damage to
the parts where the camera is
installed, leaving it misaligned or
bent, the sensing zone may be
altered and the MOD system may
not detect objects properly.
. When the temperature is extremely
high or low, the screen may not
display objects clearly. This is not a
malfunction.
Camera maintenanceGUID-D1409542-36A1-4821-8E31-4CED639435BBIf dirt, rain or snow accumulates on the camera,
the MOD system may not operate properly.
Clean the camera.
SETTING MOVING OBJECT DETEC-
TION (MOD) ON/OFF
GUID-65416446-6E6C-49C2-9CD2-11B396017077To set Moving Object Detection (MOD) on/off,
push the SETTING button, select the ªDriver
Assistanceº key.
Moving Object Detection (MOD):
When this item is set to ON, the MOD is
activated. When this item is turned to OFF
(indicator turns off) , the MOD system is
deactivated.
MOD MALFUNCTIONGUID-6FE0810E-C774-474A-845D-D5D5936481DBWhen the orange MOD icon is displayed in the
view, the system is not functioning properly. This
will not hinder normal driving operation but the
system should be inspected by a NISSAN
dealer.

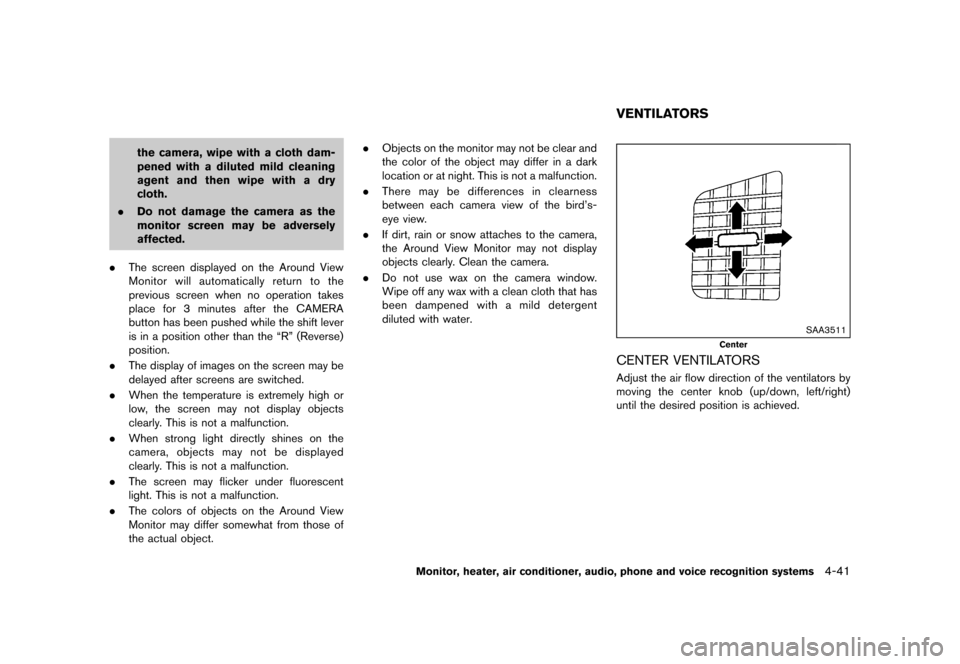

OPERATING TIPSGUID-E53B80D8-F195-4E4C-96AB-FF30E6EF3CE3
CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
&RQGLWLRQ


> (GLW    0RGHO (' @
the camera, wipe with a cloth dam-
pened with a diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected.
. The screen displayed on the Around View
Monitor will automatically return to the
previous screen when no operation takes
place for 3 minutes after the CAMERA
button has been pushed while the shift lever
is in a position other than the ªRº (Reverse)
position.
. The display of images on the screen may be
delayed after screens are switched.
. When the temperature is extremely high or
low, the screen may not display objects
clearly. This is not a malfunction.
. When strong light directly shines on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the Around View
Monitor may differ somewhat from those of
the actual object. .
Objects on the monitor may not be clear and
the color of the object may differ in a dark
location or at night. This is not a malfunction.
. There may be differences in clearness
between each camera view of the bird's-
eye view.
. If dirt, rain or snow attaches to the camera,
the Around View Monitor may not display
objects clearly. Clean the camera.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth that has
been dampened with a mild detergent
diluted with water.
GUID-ADBCDC3B-14A7-4BB0-AB93-C7F6F05F9243
SAA3511
Center
CENTER VENTILATORSGUID-DE68D695-F57B-4B4B-B293-5172E4A17860Adjust the air flow direction of the ventilators by
moving the center knob (up/down, left/right)
until the desired position is achieved.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-41
VENTILATORS
&RQGLWLRQ


> (GLW    0RGHO (' @
4-44Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3596
1. Temperature control buttons
2. ª
º air recirculation button
3. ª
º outside air circulation button
4. ª
FRONTº front defroster button
5. Display
6. ª
REARº rear window defroster button (See
ªRear window and outside mirror defroster
switchº (P.2-32) .) 7. ª
º and ªº fan speed control
buttons
8. ªON´OFFº button for air conditioning system
9. ªMODEº air flow control button
10. ªA/Cº air conditioner ON/OFF button
11. ªREARº control button
MANUAL AIR CONDITIONERGUID-CD7203EA-9307-4995-82E3-BD3B0296D19F
ControlsGUID-A04F8617-DF9F-4F48-BC23-EDEDEDFFC3B1To turn off the heater and air conditioner, push
the ªON´OFFº button.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the fan speed control button ªº to
increase the fan speed.
Push the fan speed control button ª
º to
decrease the fan speed.
A/C (Air Conditioner) operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the A/C button to turn on or off the air
conditioner. When the air conditioner is on, the
A/C indicator light on the button illuminates.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ªMODEº button to change the air flow
mode.
: Air flows from the center and side ventila- tors.
: Air flows from the center and side ventila-tors, and foot outlets.
: Air flows mainly from the foot outlets.
: Air flows from the defroster and foot outlets.
Temperature control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the temperature control buttons (ªº
and ª
º) to set the desired temperature.
&RQGLWLRQ


> (GLW    0RGHO (' @
4-46Monitor, heater, air conditioner, audio, phone and voice recognition systems
3. Push the fan speed control buttons to setthe desired fan speed.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Push the temperature control buttons to set the desired temperature between the middle
and the cool position.
. For quick cooling when the outside tem-
perature is high, push the air recirculation
button to switch to the air recirculation
mode. (The indicator light turns on.) Be sure
to turn off the air recirculation mode for
normal cooling.
. A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to heat and dehumidify the
air.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
position.
3. Push the fan speed control buttons to the desired fan speed. 4. Push the A/C button on. (The A/C indicator
light will illuminate.)
5. Push the temperature control buttons to set the desired temperature between the middle
and the hot position.
Dehumidified or defrosting/defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to defog the windows and
dehumidify the air.
1. Push the front defroster button
on. (The
indicator light turns on.)
2. Push the fan speed control buttons to set the desired fan speed.
3. Push the temperature control buttons to set the desired temperature.
When the
mode is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows.
To remove frost from the outside surface of the
windshield quickly, set the temperature to the
maximum hot position and the fan speed to
maximum position.
Rear air conditioning systemGUID-3B39B36B-520E-49C6-9C2A-A84AF85A5776
Operating from front control buttons:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To control the rear air conditioning system
independently with the front air conditioner
control panel, push the ªREARº button. When
the rear air conditioning system control is on, the
indicator light on the ªREARº button will
illuminate and ªREARº will appear on the display.
In this state, the rear air conditioning system can
be adjusted with the front air conditioner control
panel. However, if no operation is conducted for
approximately 10 seconds after the ªREARº
button is pushed, the front air conditioner
control panel will automatically switch to the
front air conditioning mode.
To cancel the rear air conditioning mode and
switch back to the front air conditioning mode,
push ªREARº button one more time.
. Temperature control
Push the temperature control buttons
(ª
º and ªº) to set the desired
temperature.
. Fan speed control
Push the fan speed control ª
º
button or ª
º button to control the
fan speed.
. Air flow control
Push the ªMODEº button to change the air
&RQGLWLRQ
