2015 NISSAN QUEST display


> (GLW    0RGHO (' @
4-12Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2481
Models with navigation system
JVH0183M
Models without navigation system
Maintenance informationGUID-C15B4C1B-A112-4105-96D5-B5198616B004The maintenance intervals can be displayed for
the engine oil, oil filter, tire and other reminders.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance
information.
SAA2482
Models with navigation system
JVH0184M
Models without navigation system
&RQGLWLRQ


> (GLW    0RGHO (' @
1. Set the interval (mileage) of the maintenanceschedule. To determine the recommended
maintenance interval, refer to your ªNISSAN
Service and Maintenance Guideº.
2. To display the reminder automatically when the desired distance is reached, select the
ªReminderº key.
3. Reset the driving distance to the new
maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between ªUSº and
ªMetricº. (See ªHow to use SETTING buttonº
(P.4-14) .)
SAA3003
Example
The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the ªOKº key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
. Select the ªReset Distanceº.
. Deactivate the ªReminderº.
. Increase the ªIntervalº distance to be more
than the current distance being tracked.
SAA3145
Others information (models with naviga-
tion system)
GUID-133D173C-FA21-4513-B33D-818F60204D05The Others information display will appear when
pushing the INFO button and selecting the
ªOthersº key.
Navigation Version:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see the separate
Navigation System Owner's Manual.
When the ignition switch is in the ignition
position, the ªNavigation Versionº key is dis-
played after pushing the INFO button.
GPS Position:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see the separate
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-13
&RQGLWLRQ


> (GLW    0RGHO (' @
4-14Monitor, heater, air conditioner, audio, phone and voice recognition systems
Navigation System Owner's Manual.
Voice Recognition:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of this item, see ªNISSAN voice
recognition system (models with navigation
system)º (P.4-148) .
JVH0156M
Models with navigation system
JVH0175M
Models without navigation system
HOW TO USE SETTING BUTTONGUID-3FEA9B1A-0D14-4EAB-BC46-1D2E853AEC6EThe display as illustrated will appear when the
SETTING button is pushed.
For navigation settings, refer to the separate
Navigation System Owner's Manual.
&RQGLWLRQ


> (GLW    0RGHO (' @
SAA2485
Models with navigation system
SAA2740
Models without navigation system
Audio settingsGUID-53F882F8-82F8-43EE-A19F-864C4A00E327The display as illustrated will appear when
pushing the SETTING button and selecting the
ªAudioº key.
Bass/Treble/Balance/Fade:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the speaker tone quality and sound
balance, select the ªBassº, ªTrebleº, ªBalanceº
or ªFadeº key and adjust it with the multi-
function controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Speed Sensitive Vol.:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The audio system's volume is increased with the
vehicle speed. Select the ªSpeed Sensitive Vol.º
and adjust the effect level with the multi-function
controller. The Speed Sensitive Volume function
is turned off when the level is set to ªOFFº.
Increasing the value will cause the volume to
increase faster with vehicle speed.
DivX Registration Code (models with na-
vigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The registration code for a device that is used to
download DivX


> (GLW    0RGHO (' @
4-16Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2554
Example
Volume & Beeps settings (models with
navigation system)
GUID-FF8E399D-CE7B-4107-8D49-6253F81687DEThe display as illustrated will appear when
pushing the SETTING button, selecting the
ªVolume & Beepsº key.
Audio Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To increase or decrease the audio volume,
select the ªAudio Volumeº and adjust it with
the multi-function controller. You can also adjust
the audio volume by turning the VOLUME
control knob.
Guidance Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the guidance voice volume, select theªGuidance Volumeº and adjust it with the multi-
function controller.
Ringtone/Incoming Call/Outgoing Call:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For the details of these items, see ªBluetooth


> (GLW    0RGHO (' @
SAA2917
Models with navigation system
SAA2079
Models without navigation system
REAR DISPLAY settings (if so equipped)GUID-FB4482FC-D48E-48C7-BA91-1C8CCEB50D2CThe ªRear Displayº screen will appear when
pushing the SETTING button, selecting the
ªRear Displayº key.
Rear Display (models with navigation sys-
tem)/Rear Display Open (models without
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned to ON, the rear display
opens. When the ignition switch is pushed to
the ACC or ON position, the rear display is
flipped down automatically.
When the ignition switch is pushed to the OFF
position, the rear display is closed automatically
if ON is selected.
The rear display can also be opened or closed
using the remote controller. (See ªNISSAN
mobile entertainment system (MES)º (P.4-104) .)
SAA2115
Display settings (models without navi-
gation system)
GUID-F0C405AE-BCB7-4276-88F5-85173E8D555CThe ªDisplayº screen will appear when pushing
the SETTING button on the control panel.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn off the screen, push the ENTER button
and turn the ªONº indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ªONº
position or push the ª
OFFº button.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-17
&RQGLWLRQ


> (GLW    0RGHO (' @
4-18Monitor, heater, air conditioner, audio, phone and voice recognition systems
Brightness/Contrast/Background Color:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the brightness, contrast and back-
ground color of the screen, select the appro-
priate ªBrightnessº, ªContrastº or ªBackground
Colorº key and push the ENTER button.
You can then adjust the brightness and contrast
using the multi-function controller. Switch the
background color to the daytime mode or the
nighttime mode by pushing the ENTER button.
Driver Assistance settings (if so
equipped)
GUID-D1D43B30-F946-474F-BC9D-1B358220F5FFFor the details of the ªDriver Assistanceº
settings, see ªSetting Moving Object Detection
(MOD) on/offº (P.4-40).SAA3008
Others settings (models with navigation
system)
GUID-5D053739-4550-4C85-9AF7-7E809E143435The Others settings display will appear when
pushing the SETTING button and selecting the
ªOthersº key.
The following items are available:
.Display
. Comfort
. Clock
. Language & Units
. Voice Recognition
. Image Viewer
SAA2486
Display settings (models with navigation
system)
GUID-DED0FB77-D2FB-44D1-926E-A6B2E9D6B2ABThe display as illustrated will appear when
pushing the SETTING button and selecting the
ªDisplayº key.
Display Adjustment:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display settings, select the ªDis-
play Adjustmentº key. The following settings are
available.
.Display
To turn off the screen, push the ENTER button
and turn the ªDisplayº indicator off. The other
method is to push and hold the ª
OFFº
button for more than 2 seconds.
&RQGLWLRQ


> (GLW    0RGHO (' @

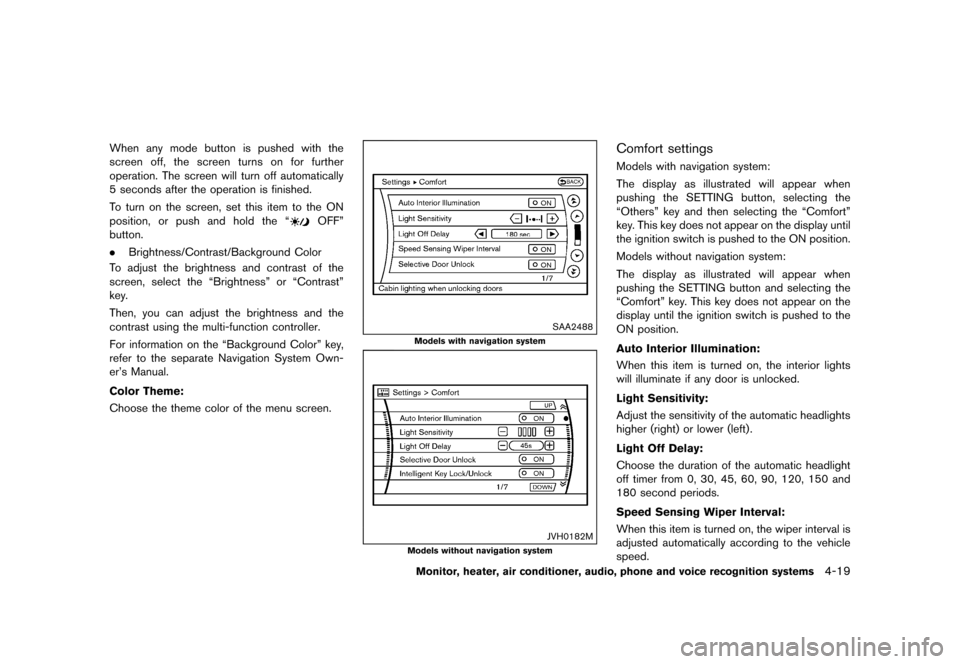

When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the ª
OFFº
button.
. Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the ªBrightnessº or ªContrastº
key.
Then, you can adjust the brightness and the
contrast using the multi-function controller.
For information on the ªBackground Colorº key,
refer to the separate Navigation System Own-
er's Manual.
Color Theme:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the theme color of the menu screen.
SAA2488
Models with navigation system
JVH0182M
Models without navigation system
Comfort settingsGUID-C72587AB-096C-45D1-88C8-E7D0332A4B34Models with navigation system:
The display as illustrated will appear when
pushing the SETTING button, selecting the
ªOthersº key and then selecting the ªComfortº
key. This key does not appear on the display until
the ignition switch is pushed to the ON position.
Models without navigation system:
The display as illustrated will appear when
pushing the SETTING button and selecting the
ªComfortº key. This key does not appear on the
display until the ignition switch is pushed to the
ON position.
Auto Interior Illumination:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, the interior lights
will illuminate if any door is unlocked.
Light Sensitivity:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the sensitivity of the automatic headlights
higher (right) or lower (left) .
Light Off Delay:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the duration of the automatic headlight
off timer from 0, 30, 45, 60, 90, 120, 150 and
180 second periods.
Speed Sensing Wiper Interval:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, the wiper interval is
adjusted automatically according to the vehicle
speed.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-19
