4-20Monitor, heater, air conditioner, audio, phone and voice recognition systems
Slide Driver Seat Back on Exit (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, the driver's seat
moves backward for easy exit if the ignition
switch is in the OFF position and the driver's
door is opened. After getting into the vehicle and
pushing the ignition switch to the ACC position,
the driver's seat moves to the previous position.
Selective Door Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, only the driver's
door is unlocked first after the door unlock
operation. When the door handle request switch
on the driver's or front passenger's side door is
pushed to be unlocked, only the corresponding
door is unlocked first. All the doors can be
unlocked if the door unlock operation is per-
formed again within 60 seconds.
When this item is turned off, all the doors will be
unlocked after the door unlock operation is
performed once.
Intelligent Key Lock/Unlock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, door lock/unlock
function by pushing the door handle request
switch will be activated.
Return All Settings to Default:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select this item and then select ªYESº to return
all settings to the default.
SAA2487
Models with navigation system
SAA3675
Models without navigation system
Clock settingsGUID-BFC31A8A-F213-4E83-BCA8-3CEC943F2C79Models with navigation system:
The display as illustrated will appear when
pushing the SETTING button and selecting the
ªOthersº key, and then selecting the ªClockº key.
Models without navigation system:
The display as illustrated will appear when
pushing the SETTING button and selecting the
ªClockº key.
The clock settings display cannot be operated
while driving. Stop the vehicle in a safe place
and apply the parking brake before setting the
clock.
On-screen Clock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, a clock is always
displayed in the upper right corner of the screen.
This clock will indicate the time almost exactly
because it is always adjusted by the GPS
system (models with navigation system) .
Clock Format (24h):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When this item is turned on, the 24-hour clock is
displayed. When this item is not turned on, the
12-hour clock is displayed.
Offset (hour)/(min) (models with naviga-
tion system)/Clock Adjust (models without
navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the time by increasing or decreasing per
&RQGLWLRQ


> (GLW    0RGHO (' @
hour or per minute.

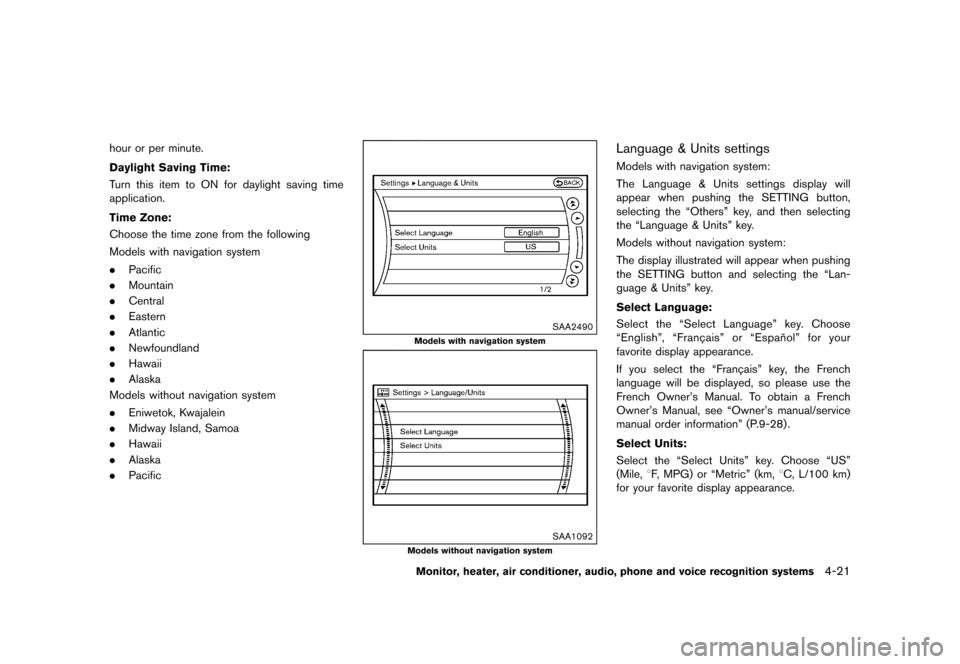

Daylight Saving Time:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn this item to ON for daylight saving time
application.
Time Zone:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the time zone from the following
Models with navigation system
.Pacific
. Mountain
. Central
. Eastern
. Atlantic
. Newfoundland
. Hawaii
. Alaska
Models without navigation system
. Eniwetok, Kwajalein
. Midway Island, Samoa
. Hawaii
. Alaska
. Pacific
SAA2490
Models with navigation system
SAA1092
Models without navigation system
Language & Units settingsGUID-BCFE3358-E33E-4D91-B48E-D6294EA4F597Models with navigation system:
The Language & Units settings display will
appear when pushing the SETTING button,
selecting the ªOthersº key, and then selecting
the ªLanguage & Unitsº key.
Models without navigation system:
The display illustrated will appear when pushing
the SETTING button and selecting the ªLan-
guage & Unitsº key.
Select Language:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªSelect Languageº key. Choose
ªEnglishº, ªFranc Ëaisº or ªEspan Ä
olº for your
favorite display appearance.
If you select the ªFrancË aisº key, the French
language will be displayed, so please use the
French Owner's Manual. To obtain a French
Owner's Manual, see ªOwner's manual/service
manual order informationº (P.9-28) .
Select Units:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªSelect Unitsº key. Choose ªUSº
(Mile, 8F, MPG) or ªMetricº (km, 8C, L/100 km)
for your favorite display appearance.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-21
&RQGLWLRQ


> (GLW    0RGHO (' @
4-22Monitor, heater, air conditioner, audio, phone and voice recognition systems

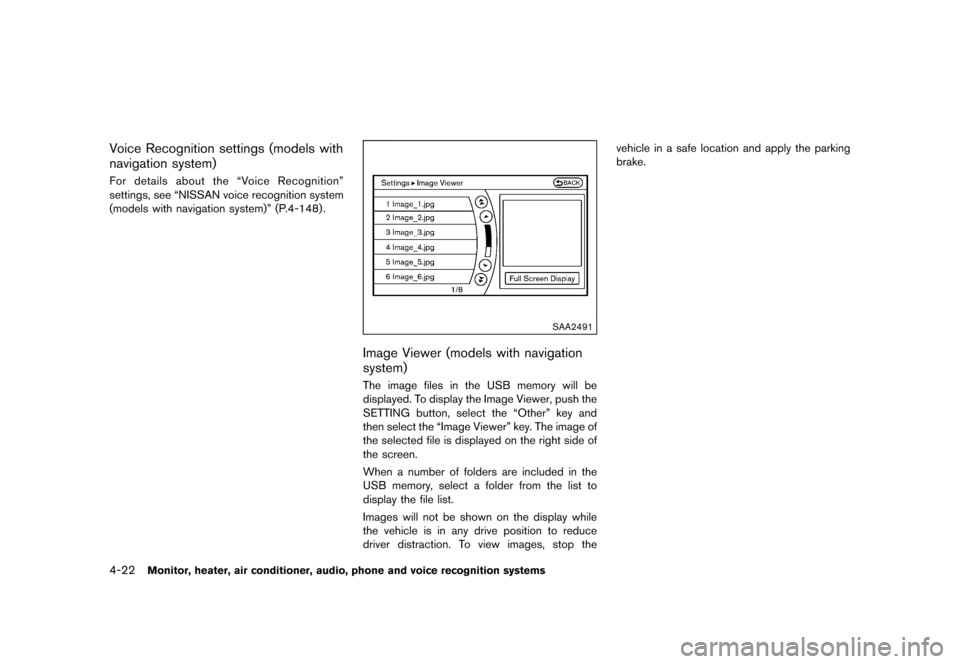

Voice Recognition settings (models with
navigation system)
GUID-D612C1DB-E4E2-4A94-9CAE-92F3B26FA167For details about the ªVoice Recognitionº
settings, see ªNISSAN voice recognition system
(models with navigation system)º (P.4-148).
SAA2491
Image Viewer (models with navigation
system)
GUID-1AA66F1E-12F5-4858-8ECA-BF334BD19D70The image files in the USB memory will be
displayed. To display the Image Viewer, push the
SETTING button, select the ªOtherº key and
then select the ªImage Viewerº key. The image of
the selected file is displayed on the right side of
the screen.
When a number of folders are included in the
USB memory, select a folder from the list to
display the file list.
Images will not be shown on the display while
the vehicle is in any drive position to reduce
driver distraction. To view images, stop thevehicle in a safe location and apply the parking
brake.
&RQGLWLRQ


> (GLW    0RGHO (' @
SAA2492
Full Screen Display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The full screen display will appear when select-
ing the ªFull Screen Displayº key.
To operate the Image Viewer or to change the
settings, select the desired key using the multi-
function controller.
.
(Start)
Select the ª
º key to start playing the
slideshow.
.
(Stop)
Select the ª
º key to stop the slideshow.
.
(Next)
Select the ª
º key to display the next file. .
(Previous)
Select the ª
º key to display the previous
file.
Setting the Image Viewer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The Image Viewer setting display will appear
when selecting the ªSettingsº key on the full
screen display. The following settings are
available for the full screen display.
. Slideshow Speed
Select the ªSlideshow Speedº key. From the
following display, select the changing time
from 5, 10, 30, 60 seconds or ªNo Auto
Changeº.
. Slideshow Order
Select the ªSlideshow Orderº key. From the
following display, select ªRandomº or ªOrder
Listº. For ªOrder Listº, the image order is the
order of the files as stored on the USB
memory.
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Only files that meet the following conditions
will be displayed.
Ð Image type: JPEG
Ð File Extensions: *.jpg, *jpeg
Ð Maximum Resolution: 2048 61536
pixels Ð Maximum Size: 2-MB
Ð Colors: 32768 (15-bit)
Ð Maximum File Name lengths: 253-Bytes
Ð Maximum Folders: 500
Ð Maximum Images per Folder: 1024
. If an electronic device (such as a digital
camera) is directly connected to the vehicle
using a USB cable, no image will be
displayed on the screen.
. If the file name is too long, some file names
may not be entirely displayed.
. When the total number of characters in the
file name exceeds 100 or if 1 file name in a
directory exceeds 100 characters, all files
will show a shortened 8-character version.
The image will still be displayed when
selected.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-23
&RQGLWLRQ


> (GLW    0RGHO (' @
4-24Monitor, heater, air conditioner, audio, phone and voice recognition systems

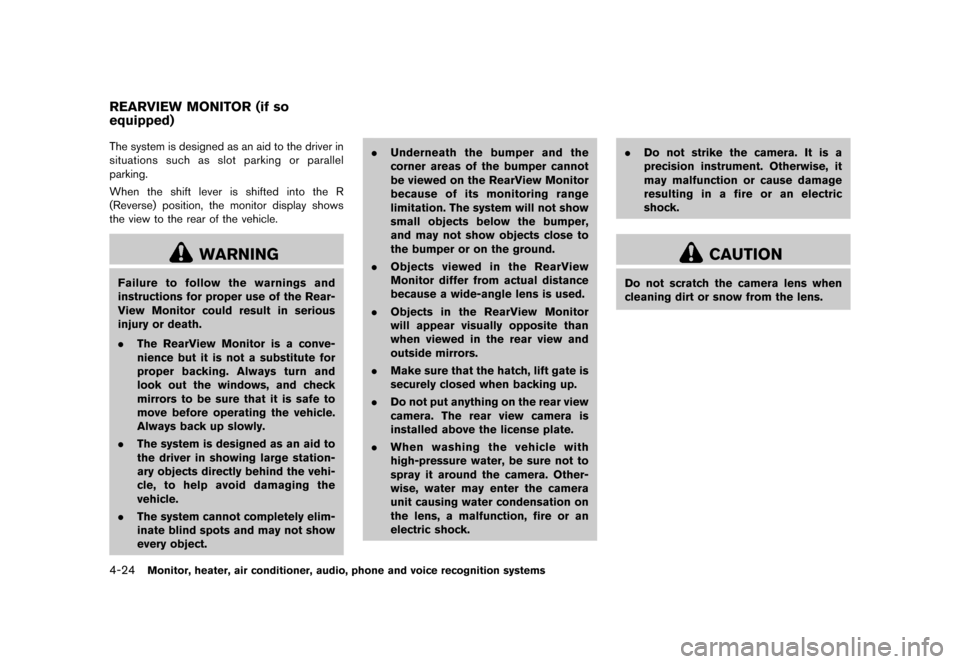

GUID-F0606F86-5EEC-4AE2-8DC9-7A3D16A225CEThe system is designed as an aid to the driver in
situations such as slot parking or parallel
parking.
When the shift lever is shifted into the R
(Reverse) position, the monitor display shows
the view to the rear of the vehicle.
WARNING
Failure to follow the warnings and
instructions for proper use of the Rear-
View Monitor could result in serious
injury or death.
.The RearView Monitor is a conve-
nience but it is not a substitute for
proper backing. Always turn and
look out the windows, and check
mirrors to be sure that it is safe to
move before operating the vehicle.
Always back up slowly.
. The system is designed as an aid to
the driver in showing large station-
ary objects directly behind the vehi-
cle, to help avoid damaging the
vehicle.
. The system cannot completely elim-
inate blind spots and may not show
every object. .
Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite than
when viewed in the rear view and
outside mirrors.
. Make sure that the hatch, lift gate is
securely closed when backing up.
. Do not put anything on the rear view
camera. The rear view camera is
installed above the license plate.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock. .
Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the lens.
REARVIEW MONITOR (if so
equipped)
&RQGLWLRQ


> (GLW    0RGHO (' @
SAA1896
HOW TO READ THE DISPLAYED
LINES
GUID-5B92472D-5CFA-4B1F-AD61-E8D78F33D1EAGuiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
*Aare displayed on the
monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up. Predictive course lines
*6(models with
center multi-function control panel):
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the R
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
The vehicle width and predictive course lines are
wider than the actual width and course.
WARNING
. Always turn and check that it is safe
to do so before backing up. Always
back up slowly.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may be displayed incorrectly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The displayed lines will appear
slightly off to the right because the
rear view camera is not installed in the rear center of the vehicle.
. The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a level paved surface. The
distance viewed on the monitor is
for reference only and may be
different from the actual distance
between the vehicle and displayed
objects.
. When backing-up the vehicle up a
hill objects viewed in the monitor
are further than they appear. When
backing-up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-25
&RQGLWLRQ


> (GLW    0RGHO (' @
4-26Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1897
HOW TO PARK WITH PREDICTIVE
COURSE LINES (models with center
multi-function control panel)
GUID-A11644FC-AE35-466F-963F-0AD03B978A201. Visually check that the parking space is safebefore parking your vehicle. 2. The rear view of the vehicle is displayed on
the screen
*Awhen the shift lever is moved
to the R (Reverse) position.
SAA1898
3. Slowly back up the vehicle adjusting the steering wheel so that the predictive course
lines
*Benter the parking space*C.
4. When the rear of the vehicle enter the parking space
*C, maneuver the steering
wheel to make the vehicle width guide lines
*Dparallel to the parking space*C.
&RQGLWLRQ


> (GLW    0RGHO (' @
5. When the vehicle is parked in the spacecompletely, move the shift lever to the P
(Park) position and apply the parking brake.
JVH0168X
DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES (if so
equipped)
GUID-BF4CBB31-807A-4A41-9906-5B67A45C6D61
Backing up on a steep uphillGUID-07BEF518-919E-4856-AACC-C320D74CB77CWhen backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it
appears.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-27
&RQGLWLRQ
