2015 NISSAN QUEST width


> (GLW    0RGHO (' @
SAA1896

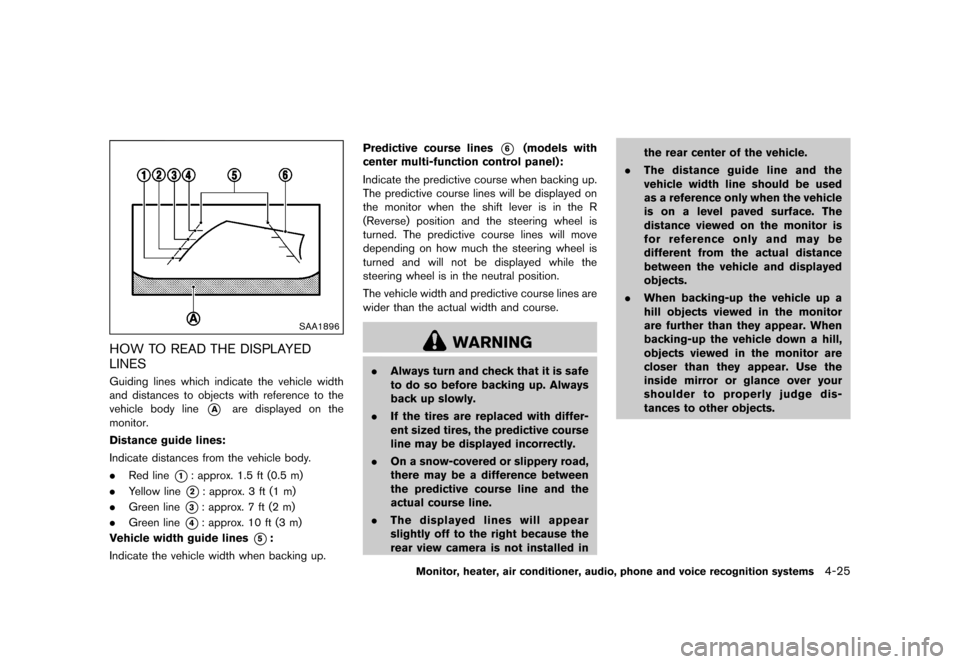

HOW TO READ THE DISPLAYED
LINES
GUID-5B92472D-5CFA-4B1F-AD61-E8D78F33D1EAGuiding lines which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
*Aare displayed on the
monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up. Predictive course lines
*6(models with
center multi-function control panel):
Indicate the predictive course when backing up.
The predictive course lines will be displayed on
the monitor when the shift lever is in the R
(Reverse) position and the steering wheel is
turned. The predictive course lines will move
depending on how much the steering wheel is
turned and will not be displayed while the
steering wheel is in the neutral position.
The vehicle width and predictive course lines are
wider than the actual width and course.
WARNING
. Always turn and check that it is safe
to do so before backing up. Always
back up slowly.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line may be displayed incorrectly.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The displayed lines will appear
slightly off to the right because the
rear view camera is not installed in the rear center of the vehicle.
. The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a level paved surface. The
distance viewed on the monitor is
for reference only and may be
different from the actual distance
between the vehicle and displayed
objects.
. When backing-up the vehicle up a
hill objects viewed in the monitor
are further than they appear. When
backing-up the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the
inside mirror or glance over your
shoulder to properly judge dis-
tances to other objects.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-25
&RQGLWLRQ


> (GLW    0RGHO (' @
4-26Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA1897

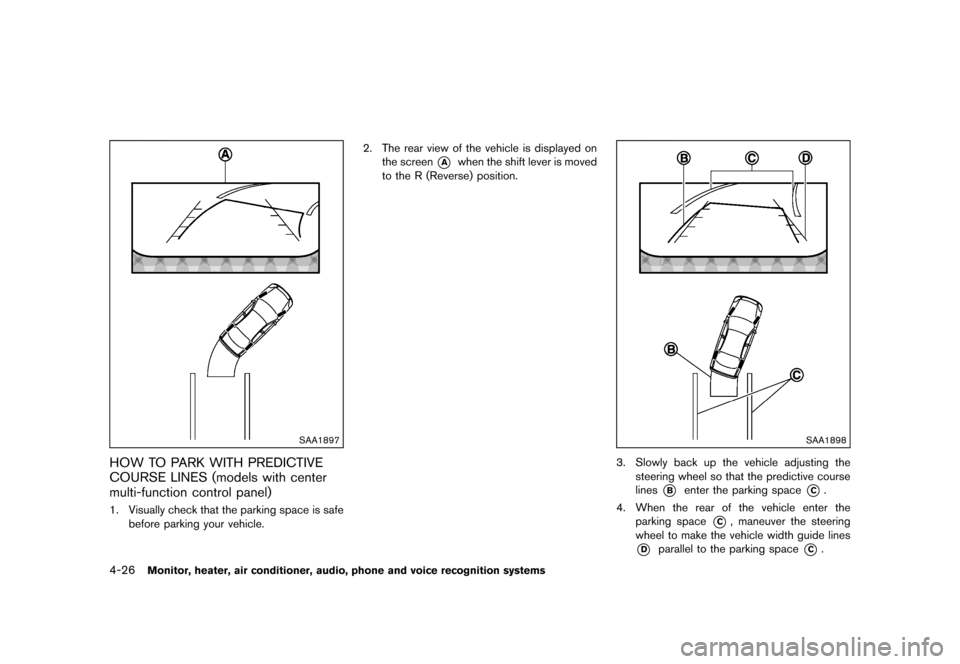

HOW TO PARK WITH PREDICTIVE
COURSE LINES (models with center
multi-function control panel)
GUID-A11644FC-AE35-466F-963F-0AD03B978A201. Visually check that the parking space is safebefore parking your vehicle. 2. The rear view of the vehicle is displayed on
the screen
*Awhen the shift lever is moved
to the R (Reverse) position.
SAA1898
3. Slowly back up the vehicle adjusting the steering wheel so that the predictive course
lines
*Benter the parking space*C.
4. When the rear of the vehicle enter the parking space
*C, maneuver the steering
wheel to make the vehicle width guide lines
*Dparallel to the parking space*C.
&RQGLWLRQ


> (GLW    0RGHO (' @
5. When the vehicle is parked in the spacecompletely, move the shift lever to the P
(Park) position and apply the parking brake.
JVH0168X
DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES (if so
equipped)
GUID-BF4CBB31-807A-4A41-9906-5B67A45C6D61
Backing up on a steep uphillGUID-07BEF518-919E-4856-AACC-C320D74CB77CWhen backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it
appears.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-27
&RQGLWLRQ


> (GLW    0RGHO (' @
4-28Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH1030X
Backing up on a steep downhillGUID-6FE29F8A-E556-4CE1-8AB7-218619AD2F2BWhen backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on the hill is viewed in the monitor closer than it
appears.
JVH1008X
Backing up near a projecting objectGUID-048AD395-96D9-4337-9BEC-6DFD1A548AA9The vehicle may seem to nearly clear the object
in the display. However, the vehicle may hit the
object if it projects over the actual backing up
course.
&RQGLWLRQ


> (GLW    0RGHO (' @
4-32Monitor, heater, air conditioner, audio, phone and voice recognition systems
.The cameras are installed above the
front grille, the outside mirrors and
above the rear license plate. Do not
put anything on the cameras.
. When washing the vehicle with
highpressure water, be sure not to
spray it around the cameras. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the cameras. They are
precision instruments. Doing so
could cause a malfunction or cause
damage resulting in a fire or an
electric shock.
CAUTION
Do not scratch the lens when cleaning
dirt or snow from the front of the
camera.
AVAILABLE VIEWSGUID-A755420B-3BAC-487D-8567-08E9E03FB89E
WARNING
.The distance guide line and the
vehicle width line should be used
as a reference only when the vehicle
is on a paved, level surface. The
distance viewed on the monitor is
for reference only and may be
different than the actual distance
between the vehicle and displayed
objects.
. Use the displayed lines and the
bird's-eye view as a reference. The
lines and the bird's-eye view are
greatly affected by the number of
occupants, fuel level, vehicle posi-
tion, road condition and road grade.
. If the tires are replaced with differ-
ent sized tires, the predictive course
line and the bird's-eye view may be
displayed incorrectly.
. When driving the vehicle up a hill,
objects viewed in the monitor are
further than they appear. When
driving the vehicle down a hill,
objects viewed in the monitor are
closer than they appear. Use the mirrors or actually look to properly
judge distances to other objects.
The vehicle width and predictive course lines are
wider than the actual width and course.
&RQGLWLRQ


> (GLW    0RGHO (' @
SAA1840
Front view
SAA1896
Rear view
Front and rear viewGUID-103CD20A-12A3-40E3-972B-1447ED621797Guiding lines, which indicate the vehicle width
and distances to objects with reference to the
vehicle body line
*A, are displayed on the
monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
Predictive course lines
*6:
Indicate the predictive course when operating
the vehicle. The predictive course lines will be
displayed on the monitor when the steering
wheel is turned. The predictive course lines will
move depending on how much the steering
wheel is turned and will not be displayed while
the steering wheel is in the straight ahead
position.
The front view will not be displayed when the
vehicle speed is above 6 MPH (10 km/h) .
WARNING
. The distance between objects
viewed in the rear view may differ
from the actual distance. Objects in
the rear view will appear visually
opposite from those viewed in the
inside and outside mirrors.
. On a snow-covered or slippery road,
there may be a difference between
the predictive course line and the
actual course line.
. The displayed lines on the rear view
will appear slightly off to the right
because the rear view camera is not
installed in the rear center of the
vehicle.
. The vehicle width and predictive
course lines are wider than the
actual width and course.
NOTE:
. When the monitor displays the front
view and the steering wheel turns
about 90 degrees or less from the
neutral position, both the right and left
predictive course lines
*6are dis-
played. When the steering wheel turns
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-33
&RQGLWLRQ


> (GLW    0RGHO (' @
.Use the displayed lines and the bird's-eye
view as a reference. The lines and the bird's-
eye view are greatly affected by the number
of occupants, fuel level, vehicle position,
road condition and road grade.
SAA3571

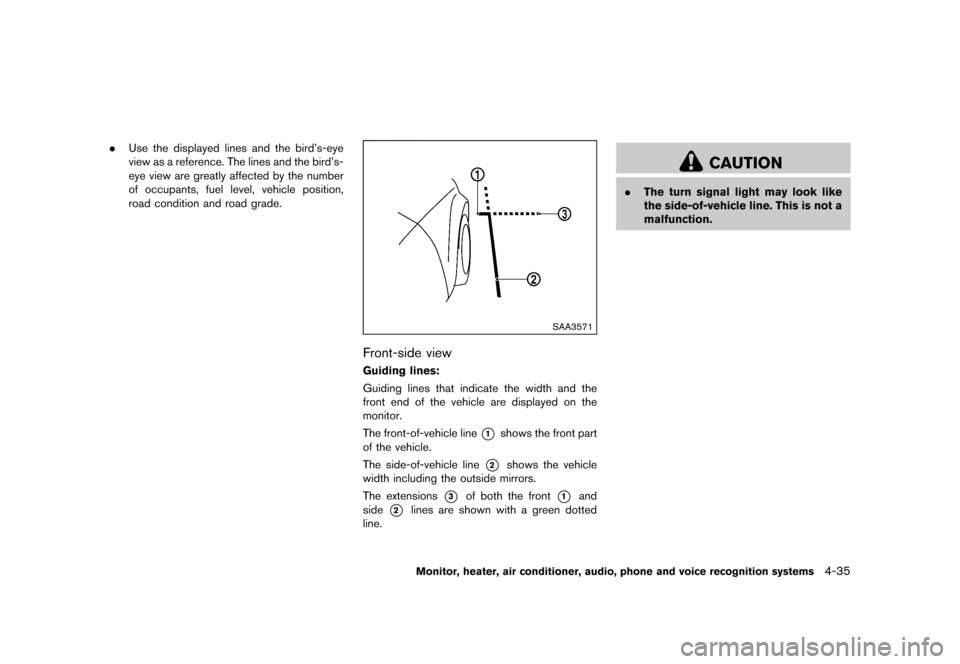

Front-side viewGUID-04849896-C828-42DE-B9D2-225B3EFD328EGuiding lines:
Guiding lines that indicate the width and the
front end of the vehicle are displayed on the
monitor.
The front-of-vehicle line
*1shows the front part
of the vehicle.
The side-of-vehicle line
*2shows the vehicle
width including the outside mirrors.
The extensions
*3of both the front*1and
side
*2lines are shown with a green dotted
line.
CAUTION
. The turn signal light may look like
the side-of-vehicle line. This is not a
malfunction.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-35
&RQGLWLRQ


> (GLW    0RGHO (' @
4-36Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH0168X

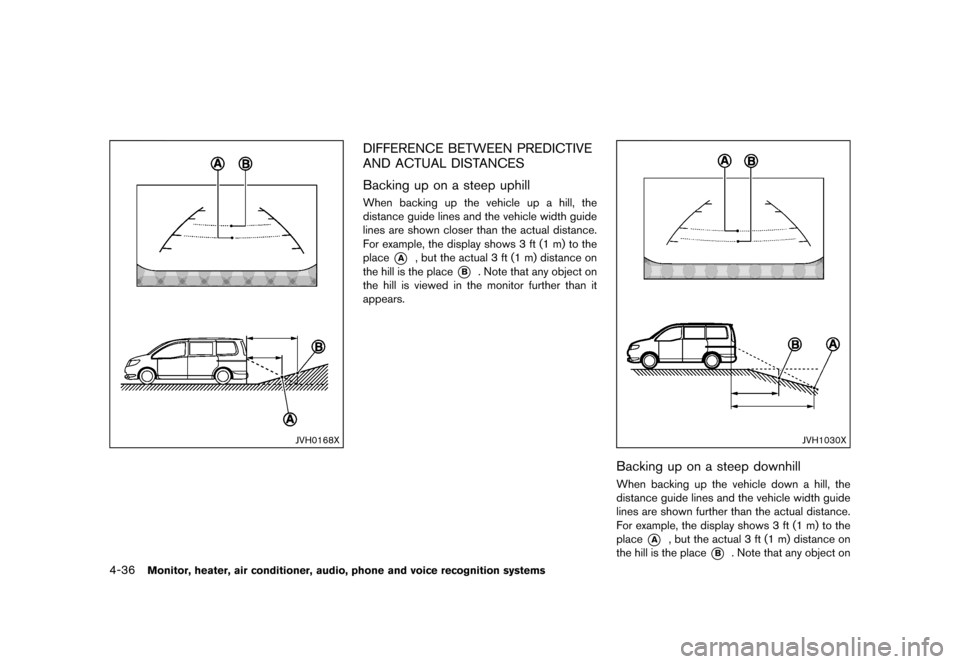

DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
GUID-523096F1-0F36-43D7-BA0A-1C4191B4C267
Backing up on a steep uphillGUID-EAD39342-4AD0-4A64-BF28-9F7778BECE82When backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
the hill is viewed in the monitor further than it
appears.
JVH1030X
Backing up on a steep downhillGUID-483DCB2B-8F6F-459F-A166-BB7BB62C9813When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
