Page 269 of 491
> ( G L W 0 R G H O ( ' @
PAUSE:
Select the ª
º key to pause the DVD. To
resume playing the DVD, use the ªPLAYº key.
PLAY:
Select the ª
º key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the ª
º key to stop playing the DVD.
/Next/Previous Chapter:
Select the ª
º or ªº key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip (Type A):
This function is only for DVD-VIDEO, DVD-VR.
Select the ª
º or ªº key to skip forward or
backwards by the set amount as defined in the
DVD Settings menu.
Top Menu (Type A)/Menu (Type B):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªTop Menuº key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.
SAA2498
Type A (example)
SAA3087
Type B (example)
DVD settingsGUID-9C0F8952-DBBE-47C8-931C-858632203DCDSelect the ªSettingsº key to adjust the following
settings.
Key (DVD-VIDEO) (Type A):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving
the operation key.
Back: Return to the previous screen.
Hide: Hide the operation key.
Title Menu (DVD-VIDEO) :
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Some menus specific to each disc will be
shown. For details, see the instructions on the
disc.
Title Search (DVD-VIDEO, DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The scene with the specified title will be
displayed each time the ª+º side or ª
Page 272 of 491
> ( G L W 0 R G H O ( ' @

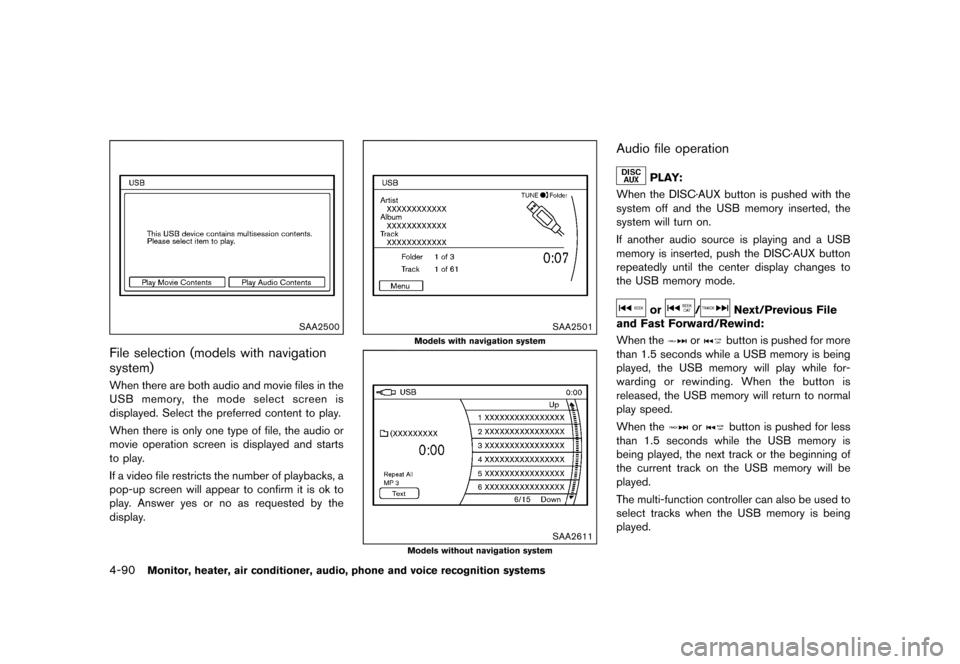

4-90Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2500
File selection (models with navigation
system)
GUID-FF76DC31-BF7F-4693-BB1A-51956EC49808When there are both audio and movie files in the
USB memory, the mode select screen is
displayed. Select the preferred content to play.
When there is only one type of file, the audio or
movie operation screen is displayed and starts
to play.
If a video file restricts the number of playbacks, a
pop-up screen will appear to confirm it is ok to
play. Answer yes or no as requested by the
display.
SAA2501
Models with navigation system
SAA2611
Models without navigation system
Audio file operationGUID-2A9A36BA-CEC7-4FF7-89F6-8C170CE6D9DE
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC´AUX button
repeatedly until the center display changes to
the USB memory mode.
or/Next/Previous File
and Fast Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When theorbutton is pushed for more
than 1.5 seconds while a USB memory is being
played, the USB memory will play while for-
warding or rewinding. When the button is
released, the USB memory will return to normal
play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
The multi-function controller can also be used to
select tracks when the USB memory is being
played.
& R Q G L W L R Q
Page 273 of 491
> ( G L W 0 R G H O ( ' @
Folder selection:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change to another folder on the USB
memory, turn the FOLDER selector or choose
a folder displayed on the screen using the multi-
function controller.
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT/RDM button is pushed while the
USB memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows.
Normal?1 Folder Repeat ?1 Track Repeat ?
All Random ?1 Folder Random ?Normal
SAA2502
Menu (models with navigation system):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407There are some options available during play-
back. Select one of the following options that
are displayed on the screen if necessary. Refer
to the following information for each item.
. Movie Playback
Switch to the movie playback mode. This
item is displayed only when a USB memory
contains movie files.
. Folder List/Track List
Displays the folder or track list. The ªMovie
Playbackº key is also displayed in this list
screen, and enables switching to the movie
playback mode. .
Play Mode
Select the preferred play mode.
Text (models without navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªTextº key is selected on the screen
using the multi-function controller and then the
ENTER button is pushed while a USB memory is
being played, the music information listed below
will be displayed on the screen.
. Folder title
. File title
. Song title
. Album Title
. Artist
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-91
& R Q G L W L R Q
Page 274 of 491
> ( G L W 0 R G H O ( ' @
4-92Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2503
Movie file operation (models with navi-
gation system)
GUID-F07B95C9-71B5-480D-9C83-AF29300659FBPark the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC´AUX button
repeatedly until the center display changes to
the USB memory mode.Operation keys:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To operate the USB memory, select the desired
key displayed on the operation screen using the
multi-function controller.
Pause
Select the ª
º key to pause the movie file. To
resume playing the movie file, select the ª
º
key.
Play
Select the ª
º key to start playing a movie file,
for example, after pausing a movie file.
STOP
Select the ª
º key to stop playing a movie file.
Skip (Next chapter)
Select the ª
º key to skip the chapter(s) of
the file forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip (Previous chapter)
Select the ª
º key to skip the chapter(s) of
the file backward. The chapters will go back the
number of times the ª
º key is selected. List:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªListº key on the movie file operation
screen to display the file list.
& R Q G L W L R Q
Page 275 of 491
> ( G L W 0 R G H O ( ' @
SAA2504
Example
Settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªSettingsº key to adjust the following
settings.
.Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains audio files.
. Play Mode
Select the ªNormalº or ª1 Track Repeatº play
mode.
. 10 Key Search
Select the ª10 Key Searchº key to open the
number entry screen.
Input the number to be searched and select the ªOKº key.
The specified folder/file will be played.
. Display
To adjust the image quality of the screen,
select the preferred adjustment items.
. DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
. Audio
Select the preferred language for audio.
. Subtitle
Select the preferred language for subtitle.
. Display Mode
Select the ªNormalº, ªWideº, ªCinemaº or
ªFullº mode.
SAA3600
iPod
Page 279 of 491
> ( G L W 0 R G H O ( ' @
SAA2506
2. Select the ªConnect Bluetoothº key.
SAA2507
3. A confirmation screen will be displayed.Select ªNoº.
Note: Selecting ªYesº will only connect the
hands free phone portion of a Bluetooth
Page 283 of 491
> ( G L W 0 R G H O ( ' @

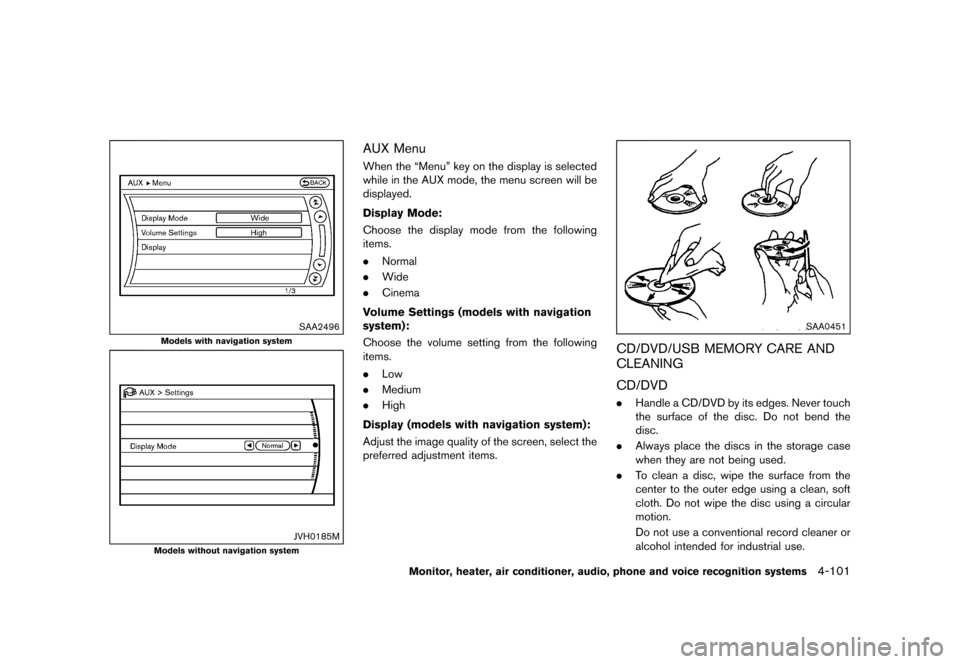

SAA2496
Models with navigation system
JVH0185M
Models without navigation system
AUX MenuGUID-274E05F6-29D4-4ECA-8B6B-8FE4D6B88B40When the ªMenuº key on the display is selected
while in the AUX mode, the menu screen will be
displayed.
Display Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the display mode from the following
items.
.Normal
. Wide
. Cinema
Volume Settings (models with navigation
system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the volume setting from the following
items.
. Low
. Medium
. High
Display (models with navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the image quality of the screen, select the
preferred adjustment items.
SAA0451
CD/DVD/USB MEMORY CARE AND
CLEANING
GUID-6D5C9300-F67A-4A8C-B1DF-ABB942A49266
CD/DVDGUID-FBF4F030-8080-496A-BC07-79B1E7F73057. Handle a CD/DVD by its edges. Never touch
the surface of the disc. Do not bend the
disc.
. Always place the discs in the storage case
when they are not being used.
. To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-101
& R Q G L W L R Q
Page 285 of 491
> ( G L W 0 R G H O ( ' @
STEERING-WHEEL-MOUNTED CON-
TROLS FOR AUDIO (if so equipped)
GUID-318C205C-ABED-4E18-84B5-C08D0B94B8BA
Menu control switch (models with navi-
gation system) or audio tuning switch
(models without navigation system)
GUID-5335E3A1-1B20-4E7C-81BF-2F67FAB5C480While the display is showing a MAP (navigation
systems only) , STATUS or Audio screen, tilt the
switch upward or downward to select a station,
track, CD or folder. For most audio sources,
tilting the switch up/down for more than 1.5
seconds provides a different function than tilting
up/down for less than 1.5 seconds.
AM and FM radio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Tilting up/down for less than 1.5 seconds
will skip up/down to the next or previous
preset station.
. Tilting up/down for more than 1.5 seconds
will seek up or down to the next station.
. Pushing the menu control switch will show
the list of preset stations.
SiriusXM Satellite Radio (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will skip up/down to the next or previous
preset channel.
. Tilting up/down for more than 1.5 seconds
will go to the next or previous category. .
Pushing the menu control switch will show
the XM Menu.
