2015 NISSAN QUEST display


> (GLW    0RGHO (' @
4-114Monitor, heater, air conditioner, audio, phone and voice recognition systems
CM Skip (DVD-VIDEO) (models with navi-
gation system) :
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The number of seconds for CM Skip can be set
to 15, 30 or 60 seconds.
DRC (DVD-VIDEO) :
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407DRC (Dynamic Range Compression) allows
tuning of the dynamic range of sound recorded
in the Dolby Digital format.
DVD Language (DVD-VIDEO, VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªDVD Languageº key and push the
ENTER button to open the number entry screen.
Input the number corresponding to the preferred
language and select the ªOKº key with the multi-
function controller. Then push the ENTER
button. The DVD top menu language will be
changed to the one selected.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the image quality of the screen, select the
preferred adjustment items and push the ENTER
button.
Audio:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred language using the multi-
function controller and push the ENTER button.
Subtitle (DVD-VIDEO) :
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred language using the multi-
function controller and push the ENTER button.To turn off the subtitles, push and hold the
ENTER button until a beep sounds.
Display Mode (DVD-VIDEO, VIDEO-CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose from the ªFullº, ªWideº, ªNormalº or
ªCinemaº mode using the multi-function con-
troller and push the ENTER button again.
Play Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Choose the preferred play mode using the multi-
function controller and push the ENTER button.
Remote controller operationGUID-816E5A31-1B94-4815-A03C-0AB03B00B3A9Use the remote controller to adjust the following
items.
Rear display open/close:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To open or close the flip-down rear display, push
the ª
º button.
Joystick:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Use the joystick ªº to select the items
displayed on the rear screen.
ENTER button:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ENTER ªº button to make the
selected item complete on the rear screen.
BACK button:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push to go back to the previous screen or
cancel the selection. Display tilt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Adjust the display angle by pushing the DIS-
PLAY TILT button ª
º.
DVD mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the DVD mode, push the DVD button.
USB mode (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the USB mode, push the USB button.
AUX mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To select the AUX (auxiliary input jacks) , mode,
push the AUX button.
Volume:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To control the speaker volume level, push the
VOL button ª
º.
Display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the rear display screen (aspect, color
system, 3D Y/C filter and picture mode etc.) ,
push the DISP button.
Sound:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change the language, push the SOUND
button. Each time the button is pushed, the
language will change to each language stored in
the DVD.
Track/Channel:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To skip to the previous or next DVD scene
selection, push the TRACK CH button ª
º.
&RQGLWLRQ


> (GLW    0RGHO (' @
Keypad:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407: PLAY/PAUSE button
: STOP button
: FORWARD button
: REWIND button
: FORWARD button for commercial skip (for
DVD-VIDEO and DVD-VR)
: REWIND button for commercial skip (for
DVD-VIDEO and DVD-VR)
Rear display settingsGUID-00567E6D-1555-4281-8A99-57190FBFC391To adjust rear display setting, select the
preferred key and push the ENTER
button.
The following settings are available:
Aspect:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the display size from ªCINEMAº, ªWIDEº,
ªFULLº or ªNORMALº using the joystick on the
remote controller.
Picture Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display brightness automatically,
select the ªBrightnessº key and then select from
ªDARKERº, ªNORMALº or ªBRIGHTERº. When
adjusting manually, select ªOFFº and adjust
using the joystick on the remote controller and
tilt the joystick to the right or left.
To adjust tint, color, contrast or black level,
select a key using the joystick on the remote controller and tilt the joystick to the right or left.
Push the BACK button on the remote controller
to apply the settings and return to the previous
display.
To return the adjustment levels to the default
value, select ªExecuteº next to ªInitializationº
using the joystick on the remote controller and
push the ENTER
button. The ªExecuteº key
is deactivated when the picture mode settings
are already in the default value.
Color System:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To choose the color system, select from
ªNTSCº, ªPALº, ªPAL-60º, ªPAL-Mº, ªPAL-Nº or
ªAUTOº using the joystick on the remote
controller and tilt the joystick to the right or left.
3D Y/C filter:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Set to ON/OFF using the joystick on the remote
controller. When turned on, small characters
and an outline of the shapes will be displayed
more clearly than when turned off.
CARE AND MAINTENANCEGUID-A7F955DE-E9EA-46F4-9DFB-E580911AB596Use a lightly dampened, lint free cloth to clean
the surfaces of your Mobile Entertainment
System (DVD player face, screen, remote
controller, etc.) .
CAUTION
. Do not use any solvents or cleaning
solutions when cleaning the video
system.
. Do not use excessive force on the
monitor screen.
. Avoid touching or scratching the
monitor screen as it may become
dirty or damaged.
. Do not attempt to operate the
system in extreme temperature con-
ditions [below


> (GLW    0RGHO (' @
4-120Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH0474X
1. Push thebutton and select the ªQuick
Dialº key.
2. Select the ªAdd Newº key at the top of the screen.
JVH0475X
3. Choose the method for entering the phone-
book entry. For this example, select ªEnter
Number by Keypadº.
4. Input the name and phone number manually using the keypad displayed on the screen.
(See ªHow to use touch screen (models
with navigation system)º (P.4-6) .)
JVH0476X
5. Select the ªVoicetagº key to record a name
to speak when using the NISSAN Voice
Recognition system.
6. Select the ªStoreº key and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select the ªOKº key to save the Quick Dial
entry.
8. After the Quick Dial entry is saved, it will show a screen that is ready to call the
number. Press the BACK button to return to
the Quick Dial.
There are different methods to input a phone
number. Select one of the following options
&RQGLWLRQ


> (GLW    0RGHO (' @
instead of ªEnter Number by Keypadº in step 3.
.Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
. Copy from the Handset
The system will show the connected cellular
phone's phonebook that was downloaded
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
JVH0477X
Editing the Quick DialGUID-DCA53C75-BAF5-473E-9820-3B6F07F337A61. Push thebutton and select the ªQuick
Dialº key.
2. Select the desired entry from the displayed list.
3. Select the ªEditº key.
4. Select the desired item to change.
JVH0478X
The following editing items are available:
. Entry #
Changes the displayed number of the
selected entry.
. Name
Edit the name of the entry using the keypad
displayed on the screen.
. Number
Edit the phone number using the keypad
displayed on the screen.
. Type
Select an icon from the icon list.
. Voicetag
Confirm and store the voicetag. Voicetags
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-121
&RQGLWLRQ


> (GLW    0RGHO (' @
4-122Monitor, heater, air conditioner, audio, phone and voice recognition systems
allow easy dialing using the NISSAN Voice
Recognition system. (See ªNISSAN voice
recognition system (models with navigation
system)º (P.4-148) .)
To delete an entry, select the ªDeleteº key at
step 3.
JVH0479X
MAKING A CALLGUID-5F54DB75-9326-47BC-A871-B23ED8640ECDTo make a call, follow this procedure.
1. Push the
button on the steering wheel.
The ªPHONEº screen will appear on the
display.
2. Select the ªPhonebookº key on the
ªPHONEº menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for the correct number from the list.
There are different methods to make a call.
Select one of the following options instead of
ªPhonebookº in step 2 above. .
Quick Dial
Select an entry stored in the Quick Dial.
. Call History
Select an outgoing, incoming or missed call
downloaded from your cell phone (depend-
ing on your phone's compatibility) .
. Dial Number
Input the phone number manually using the
keypad displayed on the screen. (See ªHow
to use touch screen (models with navigation
system)º (P.4-6) .)
&RQGLWLRQ


> (GLW    0RGHO (' @

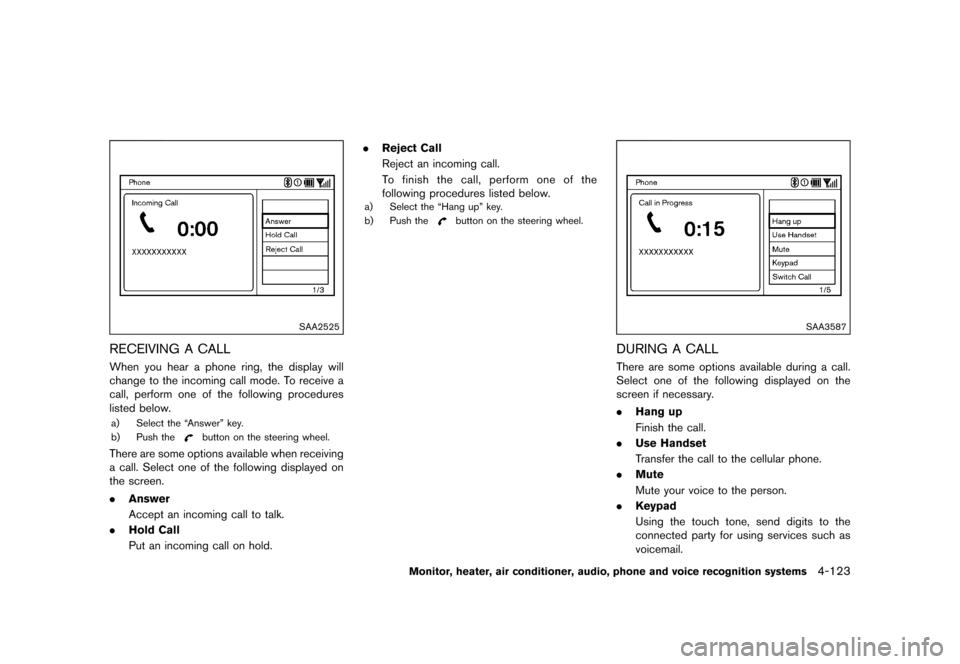

SAA2525
RECEIVING A CALLGUID-F40E182B-7233-40B7-BF81-7AF4F052ECBBWhen you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
a) Select the ªAnswerº key.
b) Push the
button on the steering wheel.
There are some options available when receiving
a call. Select one of the following displayed on
the screen.
.Answer
Accept an incoming call to talk.
. Hold Call
Put an incoming call on hold. .
Reject Call
Reject an incoming call.
To finish the call, perform one of the
following procedures listed below.
a) Select the ªHang upº key.
b) Push the
button on the steering wheel.
SAA3587
DURING A CALLGUID-CD16AE29-C092-4D4C-B4F8-BE1BCA13F8E5There are some options available during a call.
Select one of the following displayed on the
screen if necessary.
.Hang up
Finish the call.
. Use Handset
Transfer the call to the cellular phone.
. Mute
Mute your voice to the person.
. Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-123
&RQGLWLRQ


> (GLW    0RGHO (' @

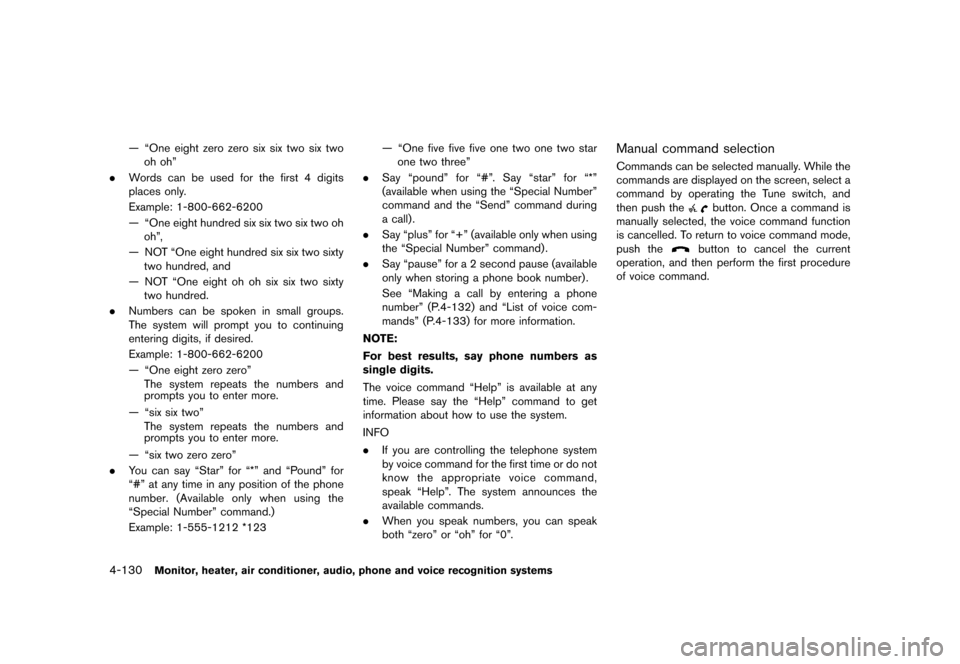

4-130Monitor, heater, air conditioner, audio, phone and voice recognition systems
Ð ªOne eight zero zero six six two six twooh ohº
. Words can be used for the first 4 digits
places only.
Example: 1-800-662-6200
Ð ªOne eight hundred six six two six two oh
ohº,
Ð NOT ªOne eight hundred six six two sixty two hundred, and
Ð NOT ªOne eight oh oh six six two sixty two hundred.
. Numbers can be spoken in small groups.
The system will prompt you to continuing
entering digits, if desired.
Example: 1-800-662-6200
Ð ªOne eight zero zeroº
The system repeats the numbers and
prompts you to enter more.
Ð ªsix six twoº The system repeats the numbers and
prompts you to enter more.
Ð ªsix two zero zeroº
. You can say ªStarº for ª*º and ªPoundº for
ª#º at any time in any position of the phone
number. (Available only when using the
ªSpecial Numberº command.)
Example: 1-555-1212 *123 Ð ªOne five five five one two one two star
one two threeº
. Say ªpoundº for ª#º. Say ªstarº for ª*º
(available when using the ªSpecial Numberº
command and the ªSendº command during
a call) .
. Say ªplusº for ª+º (available only when using
the ªSpecial Numberº command) .
. Say ªpauseº for a 2 second pause (available
only when storing a phone book number) .
See ªMaking a call by entering a phone
numberº (P.4-132) and ªList of voice com-
mandsº (P.4-133) for more information.
NOTE:
For best results, say phone numbers as
single digits.
The voice command ªHelpº is available at any
time. Please say the ªHelpº command to get
information about how to use the system.
INFO
. If you are controlling the telephone system
by voice command for the first time or do not
know the appropriate voice command,
speak ªHelpº. The system announces the
available commands.
. When you speak numbers, you can speak
both ªzeroº or ªohº for ª0º.Manual command selectionGUID-AEB01510-6F8C-44AC-B23E-16356BBFEA8ACommands can be selected manually. While the
commands are displayed on the screen, select a
command by operating the Tune switch, and
then push the
button. Once a command is
manually selected, the voice command function
is cancelled. To return to voice command mode,
push the
button to cancel the current
operation, and then perform the first procedure
of voice command.
&RQGLWLRQ


> (GLW    0RGHO (' @

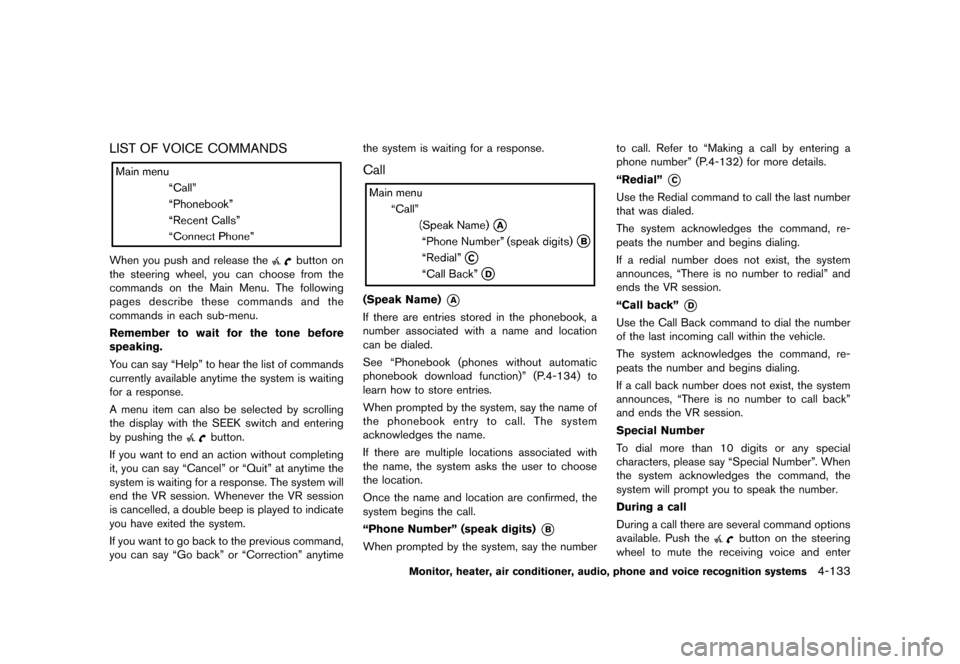

LIST OF VOICE COMMANDSGUID-E95D665D-547C-4F45-91E0-D4A28A820E92
NOS2625
When you push and release thebutton on
the steering wheel, you can choose from the
commands on the Main Menu. The following
pages describe these commands and the
commands in each sub-menu.
Remember to wait for the tone before
speaking.
You can say ªHelpº to hear the list of commands
currently available anytime the system is waiting
for a response.
A menu item can also be selected by scrolling
the display with the SEEK switch and entering
by pushing the
button.
If you want to end an action without completing
it, you can say ªCancelº or ªQuitº at anytime the
system is waiting for a response. The system will
end the VR session. Whenever the VR session
is cancelled, a double beep is played to indicate
you have exited the system.
If you want to go back to the previous command,
you can say ªGo backº or ªCorrectionº anytime the system is waiting for a response.
CallGUID-76E7E70A-365D-47AC-B16E-FAB7BE3A3423
JI0189
(Speak Name)*A
If there are entries stored in the phonebook, a
number associated with a name and location
can be dialed.
See ªPhonebook (phones without automatic
phonebook download function)º (P.4-134) to
learn how to store entries.
When prompted by the system, say the name of
the phonebook entry to call. The system
acknowledges the name.
If there are multiple locations associated with
the name, the system asks the user to choose
the location.
Once the name and location are confirmed, the
system begins the call.
ªPhone Numberº (speak digits)
*B
When prompted by the system, say the number
to call. Refer to ªMaking a call by entering a
phone numberº (P.4-132) for more details.
ªRedialº
*C
Use the Redial command to call the last number
that was dialed.
The system acknowledges the command, re-
peats the number and begins dialing.
If a redial number does not exist, the system
announces, ªThere is no number to redialº and
ends the VR session.
ªCall backº
*D
Use the Call Back command to dial the number
of the last incoming call within the vehicle.
The system acknowledges the command, re-
peats the number and begins dialing.
If a call back number does not exist, the system
announces, ªThere is no number to call backº
and ends the VR session.
Special Number
To dial more than 10 digits or any special
characters, please say ªSpecial Numberº. When
the system acknowledges the command, the
system will prompt you to speak the number.
During a call
During a call there are several command options
available. Push the
button on the steering
wheel to mute the receiving voice and enter
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-133
&RQGLWLRQ
