NISSAN VOICE RECOGNITION AL-
TERNATE COMMAND MODE
GUID-C0783FFA-2148-4F40-89BA-4760CFB6827EThe following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated,
an expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker
Adaptation Function available in that mode.
(See ªSpeaker adaptation function (for Alternate
Command Mode)º (P.4-167) .) Otherwise it is
recommended that Alternate Command Mode
be turned OFF and Standard Mode be used for
the best recognition performance.
SAA2529
Activating Alternate Command ModeGUID-3709AE75-DB05-4D93-852F-D0EB23A4CF74When the Standard Mode is active, perform the
following steps to switch to the Alternate
Command Mode.
1. Push the SETTING button on the instrument
panel.
2. Highlight the ªOthersº key.
3. Highlight the ªVoice Recognitionº key.
SAA2543
4. Highlight the ªAlternate Command Modeº key.
5. The confirmation message is displayed on the screen. Push the ªOKº key to activate
the Alternate Command Mode.
Displaying command listGUID-AA2FC707-DA5F-4CF6-AD45-727CEFF93C7AIf you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the follow-
ing procedure for displaying the voice command
list (available only in Alternate Command Mode) .
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-159
&RQGLWLRQ


> (GLW    0RGHO (' @

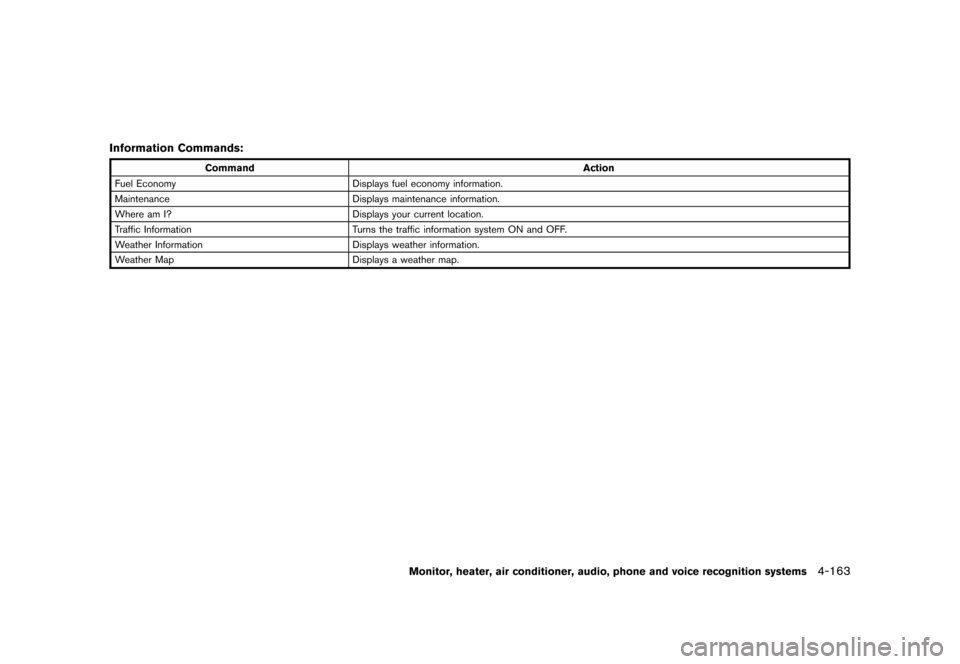

Information Commands:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
CommandAction
Fuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Where am I? Displays your current location.
Traffic Information Turns the traffic information system ON and OFF.
Weather Information Displays weather information.
Weather Map Displays a weather map.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-163
&RQGLWLRQ


> (GLW    0RGHO (' @

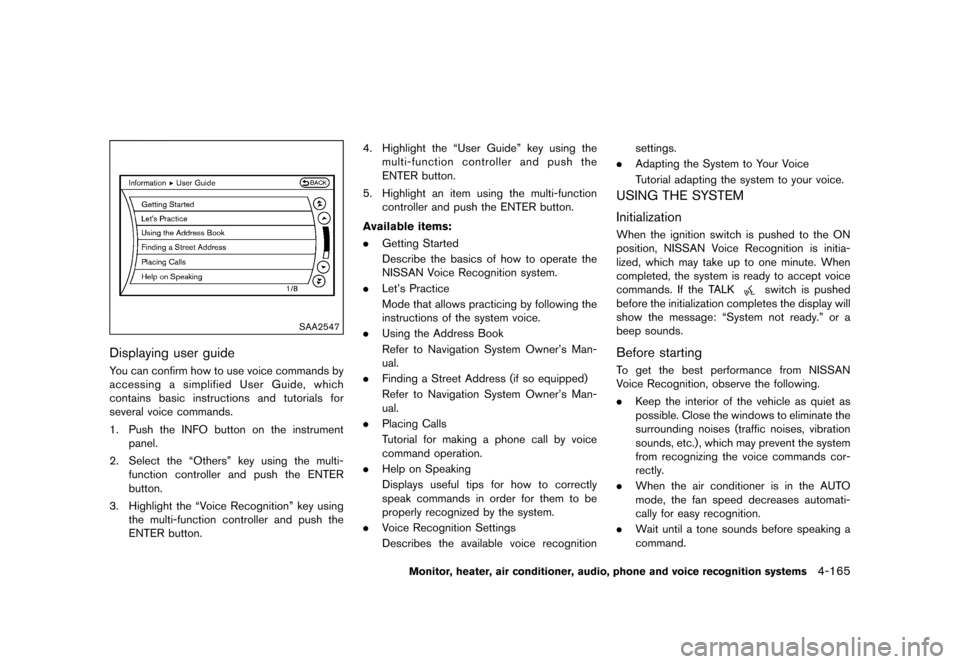

SAA2547
Displaying user guideGUID-1B8F98E7-F816-4321-B42C-6C1242316227You can confirm how to use voice commands by
accessing a simplified User Guide, which
contains basic instructions and tutorials for
several voice commands.
1. Push the INFO button on the instrumentpanel.
2. Select the ªOthersº key using the multi- function controller and push the ENTER
button.
3. Highlight the ªVoice Recognitionº key using the multi-function controller and push the
ENTER button. 4. Highlight the ªUser Guideº key using the
multi-function controller and push the
ENTER button.
5. Highlight an item using the multi-function controller and push the ENTER button.
Available items:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Getting Started
Describe the basics of how to operate the
NISSAN Voice Recognition system.
. Let's Practice
Mode that allows practicing by following the
instructions of the system voice.
. Using the Address Book
Refer to Navigation System Owner's Man-
ual.
. Finding a Street Address (if so equipped)
Refer to Navigation System Owner's Man-
ual.
. Placing Calls
Tutorial for making a phone call by voice
command operation.
. Help on Speaking
Displays useful tips for how to correctly
speak commands in order for them to be
properly recognized by the system.
. Voice Recognition Settings
Describes the available voice recognition settings.
. Adapting the System to Your Voice
Tutorial adapting the system to your voice.
USING THE SYSTEMGUID-3750B524-0BCA-461F-9F86-0949BF721548
InitializationGUID-F7010FA5-4CDC-4753-9624-725295CCDD41When the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If the TALK
switch is pushed
before the initialization completes the display will
show the message: ªSystem not ready.º or a
beep sounds.
Before startingGUID-B815C529-8FDA-4A5B-8A64-C8A2D13057A9To get the best performance from NISSAN
Voice Recognition, observe the following.
. Keep the interior of the vehicle as quiet as
possible. Close the windows to eliminate the
surrounding noises (traffic noises, vibration
sounds, etc.) , which may prevent the system
from recognizing the voice commands cor-
rectly.
. When the air conditioner is in the AUTO
mode, the fan speed decreases automati-
cally for easy recognition.
. Wait until a tone sounds before speaking a
command.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-165
&RQGLWLRQ


> (GLW    0RGHO (' @
4-166Monitor, heater, air conditioner, audio, phone and voice recognition systems

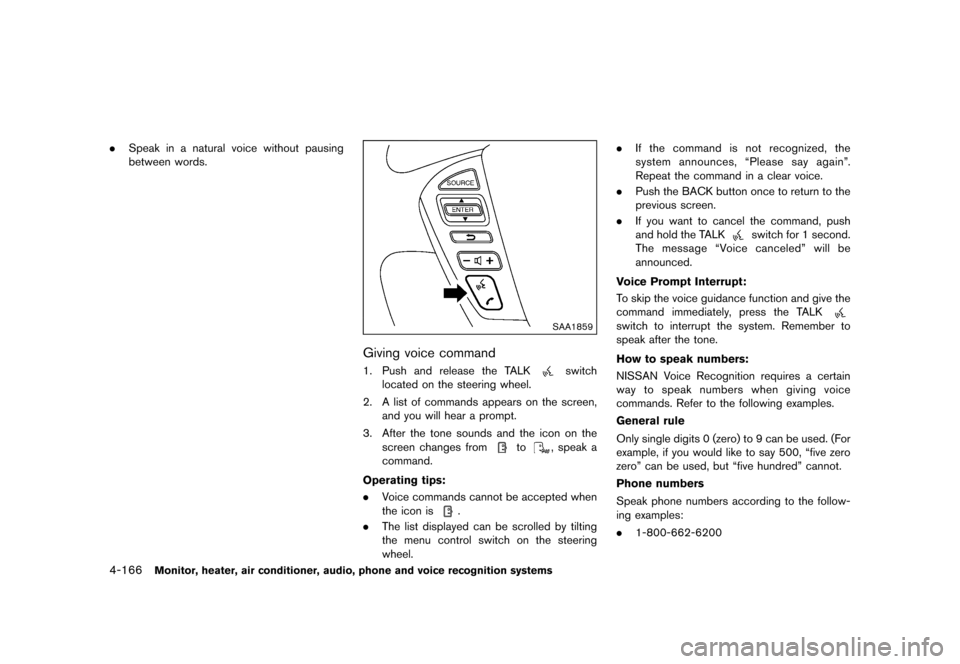

.Speak in a natural voice without pausing
between words.
SAA1859
Giving voice commandGUID-763D0C59-C008-4650-B74E-5BCF978225C41. Push and release the TALKswitch
located on the steering wheel.
2. A list of commands appears on the screen, and you will hear a prompt.
3. After the tone sounds and the icon on the screen changes from
to, speak a
command.
Operating tips:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Voice commands cannot be accepted when
the icon is
.
. The list displayed can be scrolled by tilting
the menu control switch on the steering
wheel. .
If the command is not recognized, the
system announces, ªPlease say againº.
Repeat the command in a clear voice.
. Push the BACK button once to return to the
previous screen.
. If you want to cancel the command, push
and hold the TALK
switch for 1 second.
The message ªVoice canceledº will be
announced.
Voice Prompt Interrupt:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To skip the voice guidance function and give the
command immediately, press the TALK
switch to interrupt the system. Remember to
speak after the tone.
How to speak numbers:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407NISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples.
General rule
Only single digits 0 (zero) to 9 can be used. (For
example, if you would like to say 500, ªfive zero
zeroº can be used, but ªfive hundredº cannot.
Phone numbers
Speak phone numbers according to the follow-
ing examples:
. 1-800-662-6200
&RQGLWLRQ


> (GLW    0RGHO (' @
4-168Monitor, heater, air conditioner, audio, phone and voice recognition systems

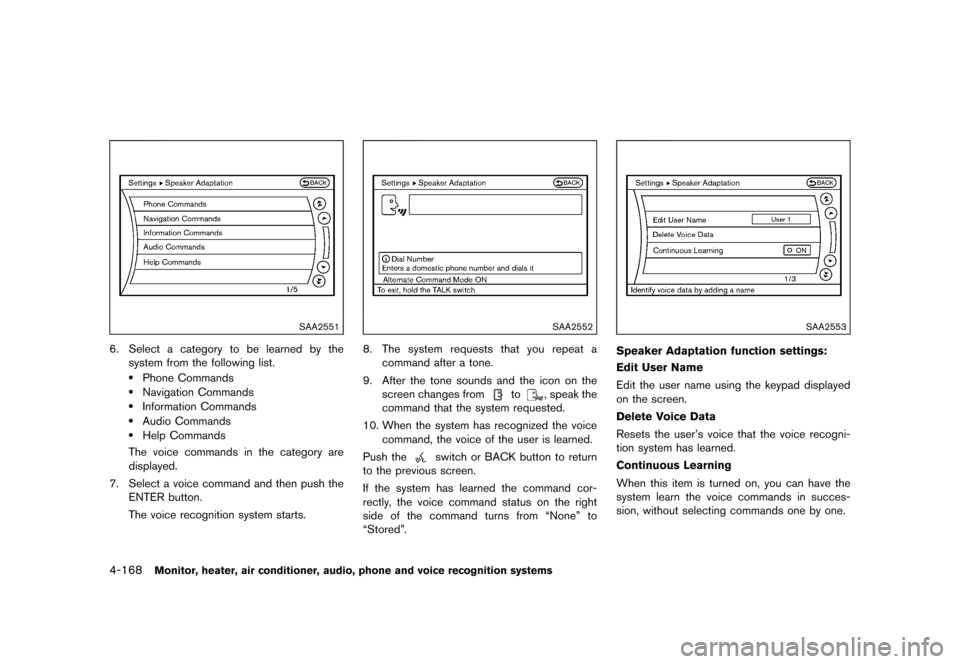

SAA2551
6. Select a category to be learned by thesystem from the following list.
.Phone Commands.Navigation Commands.Information Commands.Audio Commands.Help Commands
The voice commands in the category are
displayed.
7. Select a voice command and then push the ENTER button.
The voice recognition system starts.
SAA2552
8.The system requests that you repeat a
command after a tone.
9. After the tone sounds and the icon on the screen changes from
to, speak the
command that the system requested.
10. When the system has recognized the voice command, the voice of the user is learned.
Push the
switch or BACK button to return
to the previous screen.
If the system has learned the command cor-
rectly, the voice command status on the right
side of the command turns from ªNoneº to
ªStoredº.
SAA2553
Speaker Adaptation function settings:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Edit User Name
Edit the user name using the keypad displayed
on the screen.
Delete Voice Data
Resets the user's voice that the voice recogni-
tion system has learned.
Continuous Learning
When this item is turned on, you can have the
system learn the voice commands in succes-
sion, without selecting commands one by one.
&RQGLWLRQ


> (GLW    0RGHO (' @
5-4Starting and driving
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-
mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the
malfunction exists. When the malfunction indi-
cator is illuminated, the system may not be able
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replace-
ment or alternate tires or wheels on the vehicle
that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale
after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS to
continue to function properly.
Additional informationGUID-2F9146F8-387A-408F-8703-08C5F6B5C41C.The TPMS does not monitor the tire
pressure of the spare tire.
. The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h) . Also, this system may not detect
a sudden drop in tire pressure (for example a flat tire while driving) .
. The low tire pressure warning light does not
automatically turn off when the tire pressure
is adjusted. After the tire is inflated to the
recommended pressure, the vehicle must be
driven at speeds above 16 MPH (25 km/h)
to activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.
. The CHECK TIRE PRESSURE warning also
appears on the vehicle information display
when the low tire pressure warning light is
illuminated and low tire pressure is detected.
The CHECK TIRE PRESSURE warning
turns off when the low tire pressure warning
light turns off.
The CHECK TIRE PRESSURE warning
appears each time the ignition switch is
placed in the ON position as long as the low
tire pressure warning light remains illumi-
nated.
The CHECK TIRE PRESSURE warning
does not appear if the low tire pressure
warning light illuminates to indicate a TPMS
malfunction.
. Tire pressure rises and falls depending on
the heat caused by the vehicle's operation
and the outside temperature. Low outside
temperature can lower the temperature of the air inside the tire which can cause a
lower tire inflation pressure. This may cause
the low tire pressure warning light to
illuminate. If the warning light illuminates in
low ambient temperature, check the tire
pressure for all four tires.
For additional information, see ªLow tire pres-
sure warning lightº (P.2-14) and ªTire Pressure
Monitoring System (TPMS)º (P.6-3) .
WARNING
. If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire
failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
&RQGLWLRQ


> (GLW    0RGHO (' @
5-10Starting and driving
until the shift lever is moved to the P (Park)
position.
When the ignition switch cannot be pushed
toward the LOCK position, proceed as follows:
1.Move the shift lever into the P (Park)
position.
2. Push the ignition switch to the OFF position. (The ignition switch position indicator will
not illuminate.)
3. Open the door. The ignition switch will
change to the LOCK position.
The shift lever can be moved from the P
(Park) position if the ignition switch is in
the ON position and the brake pedal is
depressed.
If the battery of the vehicle is discharged,
the push-button ignition switch cannot be
turned from the LOCK position.
Some indicators and warnings for operation are
displayed on the vehicle information display
between the speedometer and tachometer.
(See ªVehicle information displayº (P.2-18) .)PUSH-BUTTON IGNITION SWITCH
POSITIONS
GUID-6803358F-D42F-43DF-94B5-AFC80E3D0E31
LOCK (Normal parking position)GUID-0A3C7798-6B74-4DA9-8166-713D0C9D9C9EThe ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key.
ACC (Accessories)GUID-E711D442-764F-4C23-BDD2-9E37670D5BBEThis position activates electrical accessories
such as the radio, when the engine is not
running.
ON (Normal operating position)GUID-3055DA1F-169E-411C-BBDD-53E32D6A8E42This position turns on the ignition system and
electrical accessories.
OFFGUID-030EF35F-9F68-41E8-89EB-FE7338A3C6B6The engine can be turned off in this position.
The ignition lock is designed so that the ignition
switch cannot be switched to the LOCK position
until the shift lever is moved to the P (Park)
position.
CAUTION
Do not leave the vehicle with the push-
button ignition switch in ACC or ON
positions when the engine is not run-
ning for an extended period. This can
discharge the battery.
EMERGENCY ENGINE SHUT OFFGUID-6928B622-694A-468E-AF53-8ED99FBD5EA9To shut off the engine in an emergency situation
while driving perform the following procedure:
. Rapidly push the push-button ignition switch
3 consecutive times in less that 1.5 sec-
onds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.
&RQGLWLRQ


> (GLW    0RGHO (' @
SSD0944
INTELLIGENT KEY BATTERY DIS-
CHARGE
GUID-32EAE25A-244A-4FE6-B7B9-0A44E3665695If the battery of the Intelligent Key is discharged,
or environmental conditions interfere with the
Intelligent Key operation, start the engine
according to the following procedure:
1. Move the shift lever to the P (Park) position.
2. Firmly apply the foot brake.
3. Touch the ignition switch with the IntelligentKey as illustrated. (A chime will sound.)
4. Push the ignition switch while depressing the brake pedal within 10 seconds after the
chime sounds. The engine will start.
After step 3 is performed, when the ignition switch is pushed without depressing the brake
pedal, the ignition switch position will change to
ACC.
NOTE:
.
When the ignition switch is pushed to
the ACC or ON position or the engine is
started by the above procedures, the
Intelligent Key battery discharge indi-
cator appears on the vehicle informa-
tion display even if the Intelligent Key
is inside the vehicle. This is not a
malfunction. To turn off the Intelligent
Key battery discharge indicator, touch
the ignition switch with the Intelligent
Key again.
. If the Intelligent Key battery discharge
indicator appears, replace the battery
as soon as possible. (See ªIntelligent
Key battery replacementº (P.8-23) .)
GUID-D80103F1-BD55-4C4A-B18B-FCA59EEB6917.Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seats and adjust head restraints/
headrests.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See ªWarning/indicator lights and
audible remindersº (P.2-11) .)
Starting and driving5-11
BEFORE STARTING THE ENGINE
&RQGLWLRQ
