2015 NISSAN PATHFINDER Owners Manual

Each time the engine is started, or when the shift
lever is shifted to any position other than D
(Drive) , the Overdrive off mode will be automati-
cally turned off.
Accelerator downshift
— in D (Drive) position —
For passing or hill climbing, depress the accel-
erator pedal to the floor. This shifts the transmis-
sion down into a lower gear, depending on the
vehicle speed.
High fluid temperature protection
mode
This transmission has a high fluid temperature
protection mode. If the fluid temperature be-
comes too high (for example, when climbing
steep grades in high temperatures with heavy
loads, such as when towing a trailer) , engine
power and, under some conditions, vehicle
speed will be decreased automatically to reduce
the chance of transmission damage. Vehicle
speed can be controlled with the accelerator
pedal, but the engine and vehicle speed may be
limited.
Fail-safe
If the vehicle is driven under extreme con-
ditions, such as excessive wheel spinning
and subsequent hard braking, the fail-safesystem may be activated. The MIL may
come on to indicate the fail-safe mode is
activated. For additional information, refer
to “Malfunction Indicator Light (MIL)” in the
“Instrument and controls” section of this
manual. This will occur even if all electrical
circuits are functioning properly. In this
case, place the ignition switch in the OFF
position and wait for 10 seconds. Then
push the switch back to the ON position.
The vehicle should return to its normal op-
erating condition. If it does not return to its
normal operating condition, have a
NISSAN dealer check the transmission and
repair if necessary.
WARNING
When the high fluid temperature protec-
tion mode or fail-safe operation occurs,
vehicle speed may be gradually reduced.
The reduced speed may be lower than
other traffic, which could increase the
chance of a collision. Be especially careful
when driving. If necessary, pull to the side
of the road at a safe place and allow the
transmission to return to normal opera-
tion, or have it repaired if necessary.
WARNING
●
Be sure the parking brake is fully re-
leased before driving. Failure to do so
can cause brake failure and lead to an
accident.
● Do not release the parking brake from
outside the vehicle.
● Do not use the shift lever in place of the
parking brake. When parking, be sure
the parking brake is fully engaged.
● Do not leave children unattended in a
vehicle. They could release the parking
brake and cause an accident.
PARKING BRAKE
5-18Starting and driving

To engage:Firmly depress the parking brake.
To release: 1. Firmly apply the foot brake.
2. Move the shift lever to the P (Park) position.
3. Firmly depress the parking brake pedal and it will release.
4. Before driving, be sure the brake warning light goes out. ●
Blind Spot Warning (BSW) system
WARNING
●The BSW system is not a replacement
for proper driving procedure and is not
designed to prevent contact with ve-
hicles or objects. When changing lanes,
always use the side and rear mirrors
and turn and look in the direction you
will move to ensure it is safe to change
lanes. Never rely solely on the BSW
system.
● The BSW system operates above ap-
proximately 20 mph (32 km/h).
BLIND SPOT WARNING (BSW)
SYSTEM
The Blind Spot Warning (BSW) system helps
alert the driver of other vehicles in adjacent lanes
when changing lanes. The BSW system uses radar sensors
1in-
stalled near the rear bumper to detect other ve-
hicles in an adjacent lane.
LSD0158LSD2221
BLIND SPOT WARNING (BSW)
SYSTEM (if so equipped)
Starting and driving5-19

The radar sensors can detect vehicles on either
side of your vehicle within the detection zone
shown as illustrated. This detection zone starts
from the outside mirror of your vehicle and ex-
tends approximately 10 ft (3.0 m) behind the rear
bumper, and approximately 10 ft (3.0 m) side-
ways.
The BSW system operates above approximately
20 MPH (32 km/h). If the radar sensors detect
vehicles in the detection zone, the Blind Spot
Warning indicator light illuminates. If the driver
then activates the turn signal, a chime will sound
twice and the Blind Spot Warning indicator light
will flash.BSW SYSTEM OPERATION
If the radar sensors detect a vehicle in the detec-
tion zone, the Blind Spot Warning (BSW) indica-
tor light located by the outside mirrors illumi-
nates. If the turn signal is then activated, the
system chimes (twice) and the BSW indicator
light flashes. The BSW indicator light continues
to flash until the detected vehicles leave the
detection zone.
The BSW indicator light illuminates for a few
seconds when the ignition switch is placed in the
ON position.The brightness of the BSW indicator light is
adjusted automatically depending on the bright-
ness of the ambient light.
A chime sounds if the radar sensors have already
detected vehicles when the driver activates the
turn signal. If a vehicle comes into the detection
zone after the driver activates the turn signal, then
only the BSW indicator light flashes and no
chime sounds. For additional information, refer to
“BSW driving situations” in this section.
The BSW system automatically turns on every
time the engine is started, as long as it is acti-
vated using the settings menu on the vehicle
information display.
Detection zone
SSD1030
BSW indicator light
LSD2053
5-20Starting and driving

When the BSW and Rear Cross Traffic Alert
(RCTA) system switch is turned off, the indicator
1on the switch is off. The indicator will also be
off if the BSW/RCTA is deactivated.
How to enable/disable the BSW
system
Perform the following steps to enable or disable
the BSW system.
1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance”. Then press the ENTER button. 2. Select “Driver Aids”, and press the ENTER
button.
3. To set the BSW/RCTA system to on or off, use the
buttons to navigate in the
menu and use the ENTER button to select or
change an item:
● Select “Blind Spot” and press the ENTER
button.
– To turn on the warning, use the ENTER button to check box for “BSW/RCTA sys-
tem”
Temporarily not available
When radar blockage is detected, the system will
be deactivated automatically. The “Side Radar
Obstruction” warning message will appear and
the Blind spot indicator (in the meter display) will
blink
Ain the vehicle information display. The
Blind Spot Warning and Rear Cross Traffic Alert
switch indicator will also blink.
The systems are not available until the conditions
no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog. The blocked condition may also be caused
by objects such as ice, frost or dirt obstructing
the radar sensors.
LSD2208LSD2247
Starting and driving5-21

Action to take:
When the above conditions no longer exist, the
system will resume automatically.
Malfunction
When the system malfunctions, it will turn off
automatically. The system malfunction warning
message with the blind spot indicator (orange)
will appear in the vehicle information display. If
the BSW system fails, the RCTA system will also
fail.
Action to take:
Stop the vehicle in a safe location, place the
vehicle in the P (Park) position, turn the engine off
and restart the engine. If the message continues
to appear, have the system checked by a
NISSAN dealer.
BSW SYSTEM PRECAUTIONS
WARNING
●The radar sensors may not be able to
detect and activate BSW when certain
objects are present such as:
– Pedestrians, bicycles, or animals.
– Vehicles such as motorcycles, low height vehicles, or high ground clear-
ance vehicles. – Oncoming vehicles.
– Vehicles remaining in the detection
zone when you accelerate from a
stop. For additional information, re-
fer to “BSW driving situations” in this
section.
– A vehicle merging into an adjacent lane at a speed approximately the
same as your vehicle. For additional
information, refer to “BSW driving
situations” in this section.
– A vehicle approaching rapidly from behind. For additional information,
refer to “BSW driving situations” in
this section.
– A vehicle which your vehicle over- takes rapidly. For additional informa-
tion, refer to “BSW driving situa-
tions” in this section.
– A vehicle that passes through the de- tection zone quickly. ●
The radar sensors detection zone is de-
signed based on a standard lane width.
When driving in a wider lane, the radar
sensors may not detect vehicles in an
adjacent lane. When driving in a narrow
lane, the radar sensors may detect ve-
hicles driving two lanes away.
● The radar sensors are designed to ig-
nore most stationary objects, however
objects such as guardrails, walls, foli-
age and parked vehicles may occasion-
ally be detected. The system malfunc-
tion warning message with the blind
spot indicator (orange) will appear in
the vehicle information display. This is a
normal driving condition.
● Severe weather or road spray condi-
tions may reduce the ability of the radar
to detect other vehicles.
● Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.
5-22Starting and driving

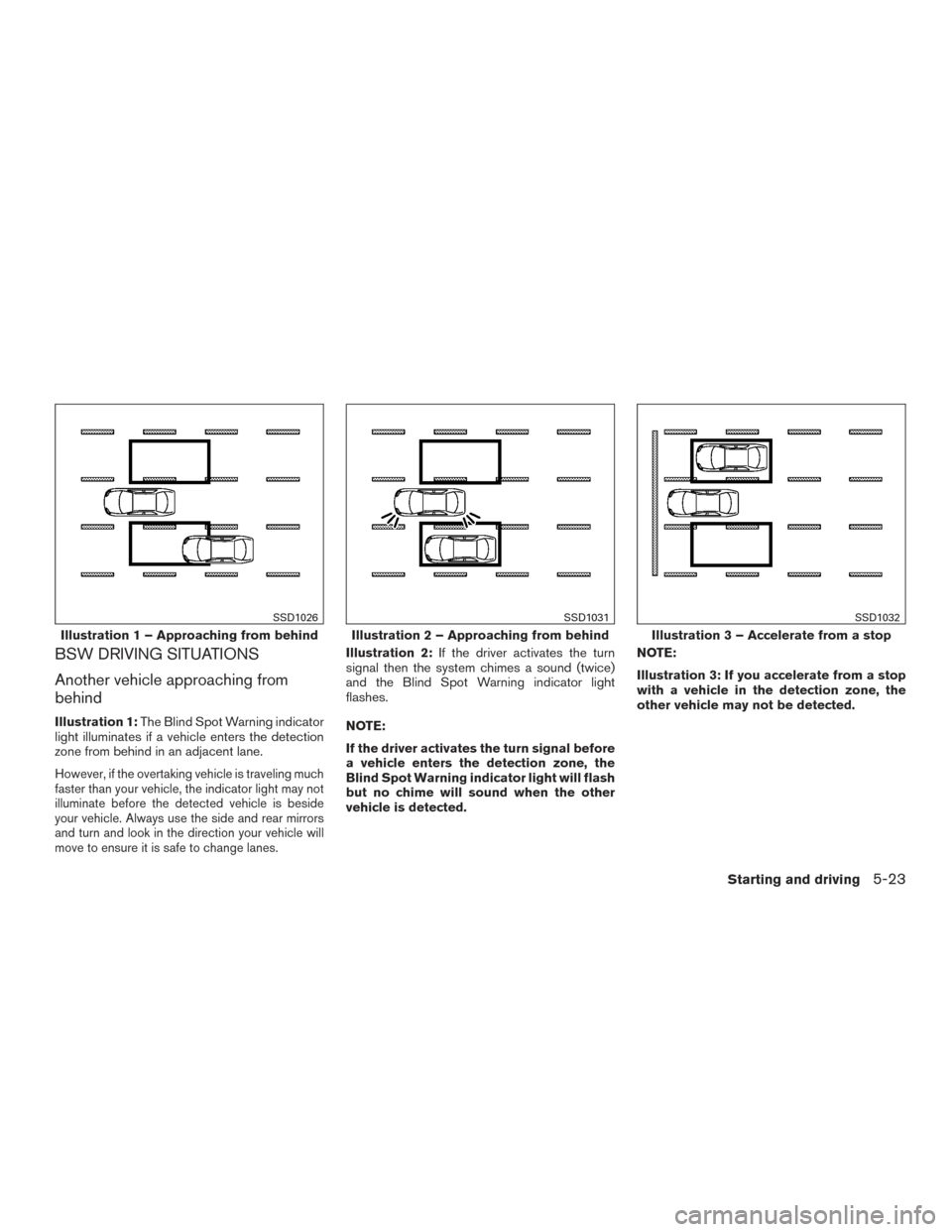

BSW DRIVING SITUATIONS
Another vehicle approaching from
behind
Illustration 1:The Blind Spot Warning indicator
light illuminates if a vehicle enters the detection
zone from behind in an adjacent lane.
However, if the overtaking vehicle is traveling much
faster than your vehicle, the indicator light may not
illuminate before the detected vehicle is beside
your vehicle. Always use the side and rear mirrors
and turn and look in the direction your vehicle will
move to ensure it is safe to change lanes.
Illustration 2: If the driver activates the turn
signal then the system chimes a sound (twice)
and the Blind Spot Warning indicator light
flashes.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
Blind Spot Warning indicator light will flash
but no chime will sound when the other
vehicle is detected. NOTE:
Illustration 3: If you accelerate from a stop
with a vehicle in the detection zone, the
other vehicle may not be detected.
Illustration 1 – Approaching from behind
SSD1026
Illustration 2 – Approaching from behind
SSD1031
Illustration 3 – Accelerate from a stop
SSD1032
Starting and driving5-23

Overtaking another vehicle
Illustration 4:The Blind Spot Warning indicator
light illuminates if you overtake a vehicle and that
vehicle stays in the detection zone for approxi-
mately 2 seconds.
The radar sensors may not detect slower moving
vehicles if they are passed quickly. Illustration 5:
If the driver activates the turn
signal while another vehicle is in the detection
zone, then the system chimes a sound (twice)
and the Blind Spot Warning indicator light
flashes.
Illustration 4 – Overtaking another vehicle
SSD1033
Illustration 5 – Overtaking another vehicle
SSD1034
5-24Starting and driving

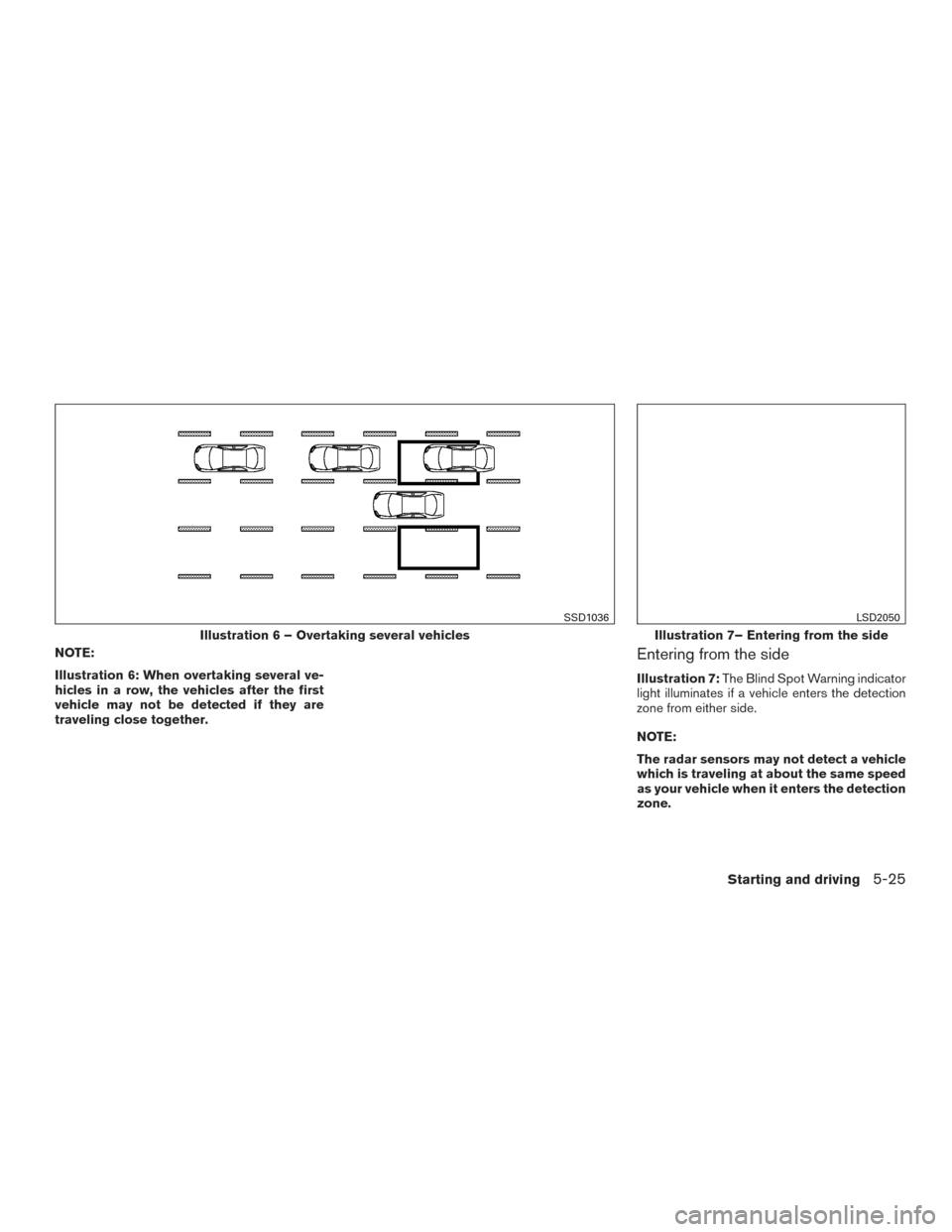

NOTE:
Illustration 6: When overtaking several ve-
hicles in a row, the vehicles after the first
vehicle may not be detected if they are
traveling close together.Entering from the side
Illustration 7:The Blind Spot Warning indicator
light illuminates if a vehicle enters the detection
zone from either side.
NOTE:
The radar sensors may not detect a vehicle
which is traveling at about the same speed
as your vehicle when it enters the detection
zone.
Illustration 6 – Overtaking several vehicles
SSD1036
Illustration 7– Entering from the side
LSD2050
Starting and driving5-25
