NOTE:
To open, close or reverse the power liftgate,
the shift lever must be in P (Park) . Also, the
power liftgate will not operate if battery
voltage is low.
Power Open:
The power liftgate automatically moves from the fully
closed position to the fully open position in approxi-
mately5–8seconds. The power open feature can
be activated by the switch on the key fob, the instru-
ment panel switch and the liftgate open switch. The
hazard lights flash and a chime sounds to indicate
the power open sequence has been started.
● When the vehicle is locked, the liftgate can
be opened by the instrument panel switch,
key fob and liftgate opener switch
A(with
key fob in liftgate range) . The liftgate will
individually unlock and open. Once the lift-
gate is closed, the vehicle will remain in the
unlock status.
● The key fob button must be held for 0.5 sec-
onds before the liftgate opens.
● The liftgate must be unlocked to open it with
the liftgate opener switch
Aand without
key fob in liftgate range. ●
The switch on the liftgate
Acan only be
used to open the liftgate if the MAIN switch
(located in the Instrument panel) is in the ON
position.
A warning chime will sound if the shift lever is
moved out of P (Park) during a power open
operation.
Instrument panel switch
LPD2212
Liftgate opener switch
LPD2109
3-24Pre-driving checks and adjustments

Power Close:
The power liftgate automatically moves from the
fully open position to the secondary position.
When the liftgate reaches the secondary posi-
tion, the cinching motor engages and pulls the
liftgate to its primary latch position. Power close
takes approximately7–10seconds. The power
close feature can be activated by the switch on
the key fob, the instrument panel and the liftgate
switch
B. The hazard lights flash and a chime
sounds to indicate the power close sequence
has been started. ●
If the liftgate opener switch
Ais activated
while the cinching motor is engaged, the
cinching motor will disengage and release
the latch.
● The key fob button must be held for 0.5 sec-
onds before the liftgate closes.
● The switch on the liftgate
Bcan only be
used to close the liftgate if the power liftgate
main switch is in the ON position.
Reverse:
The power liftgate will reverse direction immedi-
ately during power open or power close if the key
fob, instrument panel or liftgate switch
Bis
pushed. A chime will sound to announce the
reversal.
Auto Reverse:
If an obstacle is detected during power open or
power close, a warning chime will sound and the
liftgate will reverse direction and return to the full
open or full close position. If a second obstacle is
detected, the liftgate motion will stop and the
liftgate will enter manual mode.
A pinch strip is mounted on each side of the
liftgate. If an obstacle is detected by a pinch strip
during power close, the liftgate will reverse direc-
tion and return to the full open position. NOTE:
If the pinch strip is damaged or removed,
the power close function will not operate.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the liftgate.
LPD2275
Pre-driving checks and adjustments3-25

Manual Mode:
If power operation is not available, the liftgate
may be operated manually. Power operation may
not be available if the power liftgate main switch
is in the ON position, if multiple obstacles have
been detected in a single power cycle, or if
battery voltage is low.
If the power liftgate opener switch
Ais pushed
during power open or close, the power operation
will be canceled and the liftgate can be operated
manually. To open the liftgate manually, press the liftgate
opener switch
Aand lift the liftgate.
To close, lower and push the liftgate down se-
curely.
POWER LIFTGATE MAIN SWITCH
The power liftgate operation can be turned on or
off by the power liftgate main switch on the
instrument panel.
When the power liftgate main switch is pushed to
the OFF position, the power operation is not
available by the power liftgate switch on the
liftgate and liftgate opener switch
AorB.
Power operation is available when in the OFF
position by the instrument panel switch and the
key fob button.
LPD2108LPD2277
3-26Pre-driving checks and adjustments

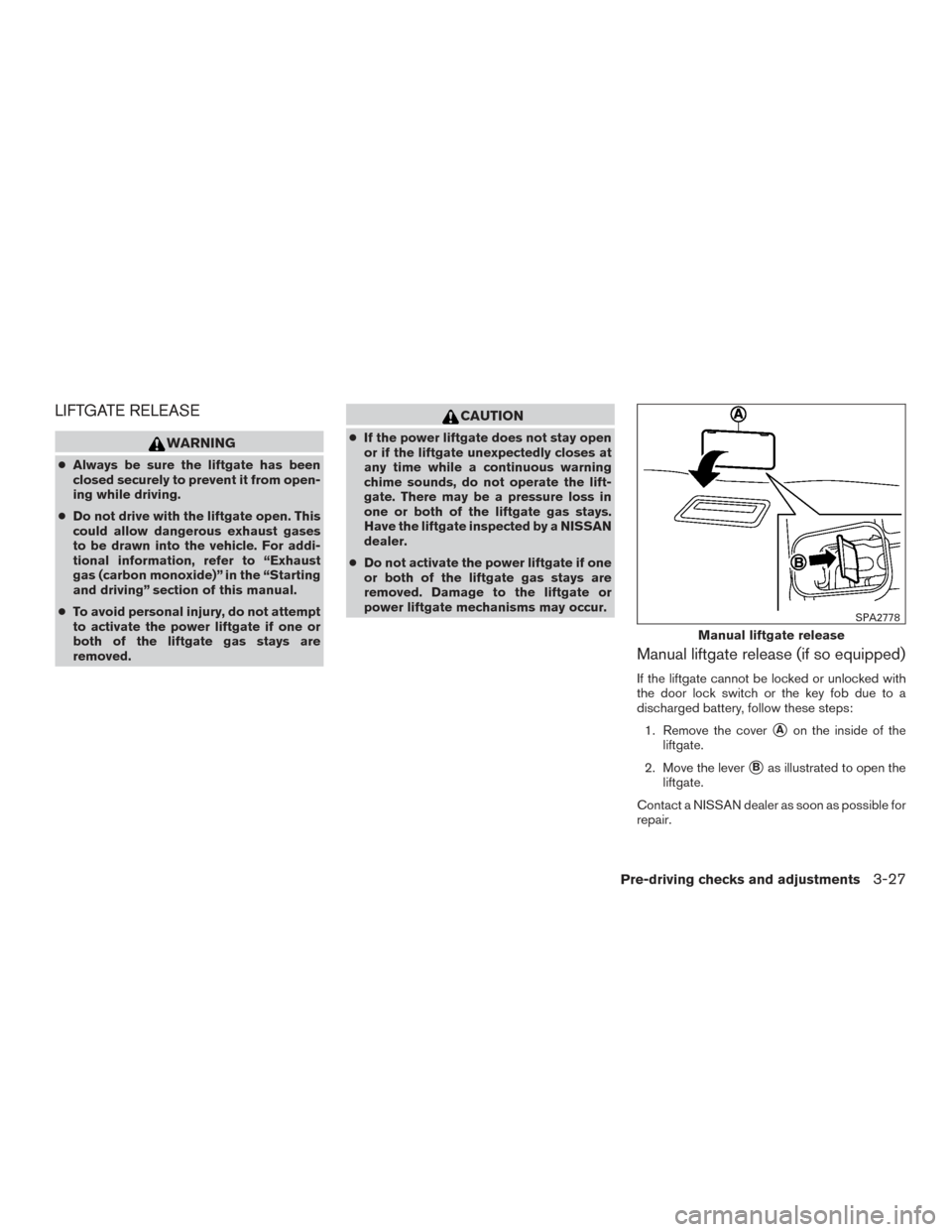

LIFTGATE RELEASE
WARNING
●Always be sure the liftgate has been
closed securely to prevent it from open-
ing while driving.
● Do not drive with the liftgate open. This
could allow dangerous exhaust gases
to be drawn into the vehicle. For addi-
tional information, refer to “Exhaust
gas (carbon monoxide)” in the “Starting
and driving” section of this manual.
● To avoid personal injury, do not attempt
to activate the power liftgate if one or
both of the liftgate gas stays are
removed.
CAUTION
● If the power liftgate does not stay open
or if the liftgate unexpectedly closes at
any time while a continuous warning
chime sounds, do not operate the lift-
gate. There may be a pressure loss in
one or both of the liftgate gas stays.
Have the liftgate inspected by a NISSAN
dealer.
● Do not activate the power liftgate if one
or both of the liftgate gas stays are
removed. Damage to the liftgate or
power liftgate mechanisms may occur.
Manual liftgate release (if so equipped)
If the liftgate cannot be locked or unlocked with
the door lock switch or the key fob due to a
discharged battery, follow these steps:
1. Remove the cover
Aon the inside of the
liftgate.
2. Move the lever
Bas illustrated to open the
liftgate.
Contact a NISSAN dealer as soon as possible for
repair.
Manual liftgate release
SPA2778
Pre-driving checks and adjustments3-27

Power liftgate release (if so equipped)
If the liftgate cannot be opened with the instru-
ment panel switch, liftgate opener switch or key
fob due to a discharged battery, follow these
steps:1. Remove the cover
Aon the inside of the
liftgate.
2. Move the lever
Bas illustrated to open the
liftgate.
Contact a NISSAN dealer as soon as possible for
repair.
LIFTGATE POSITION SETTING
The liftgate can be set to open to a specific height
by performing the following: 1. Open the liftgate using the request switch or the Intelligent Key.
2. Pull the liftgate down to the desired position and hold the liftgate (the liftgate will have
some resistance when being manually ad-
justed) .
3. While holding the liftgate in position, press and hold the liftgate switch
located
on the liftgate for approximately 5 seconds
or until three beeps are heard.
The liftgate will open to the selected position
setting. To change the position of the liftgate,
repeat Steps 1-3 for setting the position of the
liftgate.
OPENING THE FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when
the driver’s door is unlocked. 1. Unlock the fuel-filler door using one of the following operations:
● Unlock the driver’s door with the key fob.
● Unlock the driver’s door with the key.
● Push the power door lock switch to the
unlock position.
● Push the door handle request switch.
2. To open the fuel-filler door, push the right side of the fuel-filler door to release.
To lock, close the fuel-filler door securely and
lock the doors.
SPA2778LPD2110
FUEL-FILLER DOOR
3-28Pre-driving checks and adjustments

FUEL-FILLER CAP
WARNING
●Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seriously
injured if it is misused or mishandled.
Always stop the engine and do not
smoke or allow open flames or sparks
near the vehicle when refueling.
● Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off
automatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
● Use only an original equipment type
fuel-filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emis-
sion control system. An incorrect cap
can result in a serious malfunction and
possible injury. It could also cause
the
Malfunction Indicator Light
(MIL) to come on.
● Never pour fuel into the throttle body to
attempt to start your vehicle. ●
Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable fuel
containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are fill-
ing it.
– Use only approved portable fuel con- tainers for flammable liquid.
CAUTION
●Do not use E-15 or E-85 fuel in your
vehicle. For additional information, re-
fer to the “Fuel Recommendation” in
the “Technical and consumer informa-
tion” section of this manual. ●
The LOOSE FUEL CAP warning will ap-
pear if the fuel-filler cap is not properly
tightened. It may take a few driving trips
for the message to be displayed. Failure
to tighten the fuel-filler cap properly
after the LOOSE FUEL CAP warning ap-
pears may cause the
Malfunction
Indicator Light (MIL) to illuminate.
● Failure to tighten the fuel-filler cap
properly may cause the
Malfunc-
tion Indicator Light (MIL) to illuminate.
If the
light illuminates because
the fuel-filler cap is loose or missing,
tighten or install the cap and continue
to drive the vehicle. The
light
should turn off after a few driving trips.
If the
light does not turn off after a
few driving trips, have the vehicle in-
spected by a NISSAN dealer.
● For additional information, refer to the
“Malfunction Indicator Light (MIL)” in
the “Instruments and Controls” section
in this manual.
● If fuel is spilled on the vehicle body,
flush it away with water to avoid paint
damage.
Pre-driving checks and adjustments3-29

To remove the fuel-filler cap:1. Turn the fuel-filler cap counterclockwise to remove.
2. Put the fuel-filler cap on the cap holder
1
while refueling.
To install the fuel-filler cap: 1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
Loose Fuel Cap warning
The LOOSE FUEL CAP warning appears in the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle has
been refueled. It may take a few driving trips for
the message to be displayed. To turn off the
warning, perform the following:
1. Remove and install the fuel-filler cap as soon as possible. For additional information, refer
to “Fuel-filler cap” in this section.
2. Tighten the fuel-filler cap until it clicks. 3. Press the
next buttonAon the steer-
ing wheel for about 1 second to turn off the
LOOSE FUEL CAP warning
Bafter tight-
ening the fuel-filler cap.
LPD2082LPD2066
3-30Pre-driving checks and adjustments

WARNING
●Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
● Do not adjust the steering wheel any
closer to you than is necessary for
proper steering operation and comfort.
The driver’s air bag inflates with great
force. If you are unrestrained, leaning
forward, sitting sideways or out of posi-
tion in any way, you are at greater risk of
injury or death in a crash. You may also
receive serious or fatal injuries from the
air bag if you are up against it when it
inflates. Always sit back against the
seatback and as far away as practical
from the steering wheel. Always use the
seat belts.
MANUAL OPERATION (if so
equipped)
Tilt and telescopic operation
Pull the lock lever1down:
● Adjust the steering wheel up or down in
direction
2to the desired position.
● Adjust the steering wheel forward or back-
ward in direction
3to the desired position.
Push the lock lever
1up firmly to lock the
steering wheel in place.
AUTOMATIC OPERATION (if so
equipped)
Tilt and telescopic operation
To adjust the steering wheel move the switch1
in the following directions:
● Adjust the steering wheel up or down in
direction
2to the desired tilt position.
● Adjust the steering wheel forward or back-
ward in direction
3to the desired tele-
scopic position.
LPD2111WPD0366
TILT/TELESCOPIC STEERING
Pre-driving checks and adjustments3-31
