2015 NISSAN PATHFINDER Owners Manual

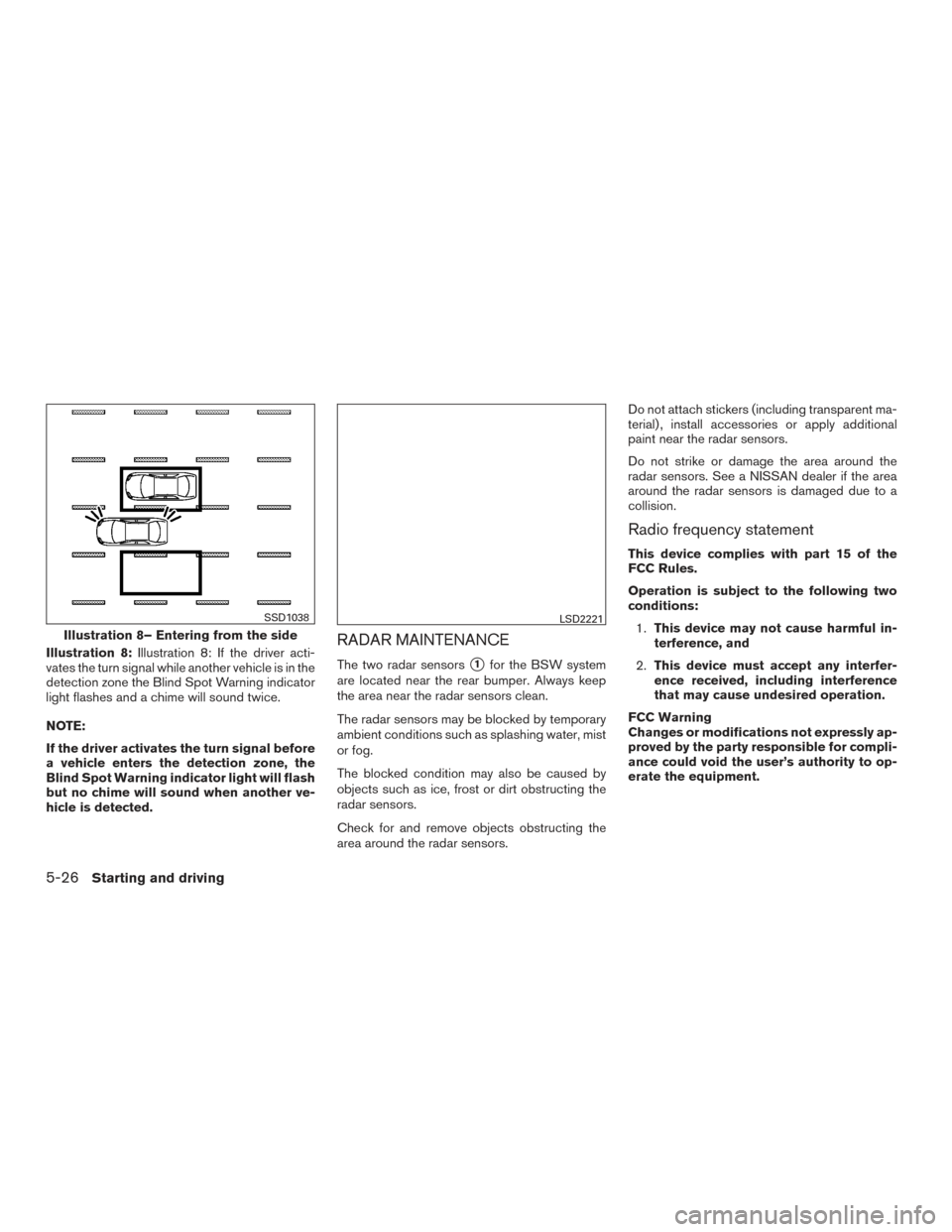

Illustration 8:Illustration 8: If the driver acti-
vates the turn signal while another vehicle is in the
detection zone the Blind Spot Warning indicator
light flashes and a chime will sound twice.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
Blind Spot Warning indicator light will flash
but no chime will sound when another ve-
hicle is detected.RADAR MAINTENANCE
The two radar sensors1for the BSW system
are located near the rear bumper. Always keep
the area near the radar sensors clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors. Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. See a NISSAN dealer if the area
around the radar sensors is damaged due to a
collision.
Radio frequency statement
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful in-
terference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
Illustration 8– Entering from the side
SSD1038LSD2221
5-26Starting and driving

Applicable law: Canada 310
This device complies with Industry Canada
license-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
Frequency of operation: 24.05GHz —
24.25GHz
Output power: less than 20 milliwatts
WARNING
●The RCTA system is not a replacement
for proper driving procedure and is not
designed to prevent contact with ve-
hicles or objects. When backing out of
parking space, always use the side and
rear mirrors and turn and look in the
direction you will move. Never rely
solely on the RCTA system.
RCTA SYSTEM OPERATION
The RCTA systems can help alert the driver of an
approaching vehicle when the driver is backing
out of a parking space.
When the shift position is R (Reverse) and the
vehicle speed is less than approximately 5 MPH
(8 km/h), the RCTA system operates.
The RCTA system uses radar sensors
1in-
stalled on both sides near the rear bumper to
detect an approaching vehicle.
The radar sensors
1detect an approaching
vehicle from up to approximately 66 ft. (20 m)
away.
LSD2217LSD2216
THE REAR CROSS TRAFFIC ALERT
(RCTA) SYSTEM (if so equipped)
Starting and driving5-27

If the radar detects a vehicle approaching from
the side, the system gives visual and audible
warnings
RCTA SYSTEM PRECAUTIONS
LSD2173
5-28Starting and driving

WARNING
●Always check surroundings and turn to
check what is behind you before back-
ing up. The radar sensors detect ap-
proaching (moving) vehicles. The radar
sensors cannot detect every object such
as:
– Pedestrians, bicycles, motorcycles, animals or child operated toy
vehicles
– A vehicle that is passing at speeds greater than approximately 19 MPH
(30 km/h)
– A vehicle that is passing at speeds lower than approximately 5 MPH
(8 km/h)
● The radar sensors may not detect ap-
proaching vehicles in certain situations:
– Illustration a: When a vehicle parked next to you obstructs the beam of the
radar sensor.
– Illustration b: When the vehicle is parked in an angled parking space.
– Illustration c: When the vehicle is parked on inclined ground. – Illustration d: When an approaching
vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration e: When the angle formed by your vehicle and approaching ve-
hicle is small
● The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice build up on the vehicle
– Build up on the vehicle
– Dirt build up on the vehicle
● Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles
● Do not use the RCTA systems when
towing a trailer. ●
Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.
If the radar detects an approaching vehicle from
the side, the system chimes a sound (single
beep) , the Blind Spot Warning indicator light on
the side of the approaching vehicle flashes.
Starting and driving5-29

NOTE:● In the case of several vehicles approaching
in a row (Illustration 1) or in the opposite
direction (Illustration 2) , a chime may not be
sounded by the RCTA system after the first
vehicle passes the sensors.
● The sonar system chime indicating there is a
object behind the vehicle has a higher prior-
ity than the RCTA chime (single beep) indi-
cating an approaching vehicle. If the RCTA
system detects an object behind the vehicle
and an approaching vehicle at the same time
the following indications are provided: – The sonar system chime sounds
– The Blind Spot Warning indicator light on
the side of the approaching vehicle
flashesRCTA SYSTEM OPERATION
The BSW/RCTA system can be turned off tem-
porarily by pushing the Blind Spot Warning and
Rear Cross Traffic Alert switch
1. The
BSW/RCTA system automatically turns on every
time the engine is started.
The RCTA system can be turned off permanently
by a setting in the vehicle information display.
1. Press the
button until “Settings” dis-
plays in the vehicle information display. Use
the
button to select “Driver Assis-
tance”. Then press the ENTER button.
Illustration 1
LSD2043
Illustration 2
LSD2044LSD2208
5-30Starting and driving

2. Select “Driver Aids”, and press the ENTERbutton.
3. To set the BSW/RCTA system to on or off, use the buttons to navigate in the menu and
use the ENTER button to select or change
an item.
● Select “Blind Spot” and press the ENTER
button.
– To turn on the warning, use the ENTER button to check box for “BSW/RCTA”
RCTA temporarily not available
When radar blockage is detected, the system will
be deactivated automatically. The “Side Radar
Obstruction” warning message will appear and
the Blind Spot indicator (white) will blink in the
vehicle information display. The Blind Spot Warn-
ing and Rear Cross Traffic Alert switch indicators
will also blink.
The systems are not available until the conditions
no longer exist.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog. The blocked condition may also be caused
by objects such as ice, frost or dirt obstructing
the radar sensors. Action to take:
When the above conditions no longer exist, the
system will resume automatically.
RCTA malfunction
If the RCTA system malfunctions, the system will
turn off automatically. The system malfunction
warning message with the Blind spot indicator
(orange) will appear in the vehicle information
display. If the BSW system fails, the RCTA sys-
tem will also fail.
Action to take:
Stop the vehicle in a safe location, turn the engine
off and restart the engine. If the message contin-
ues to appear, have the system checked by a
NISSAN dealer.
RADAR MAINTENANCE
The two radar sensors1for the BSW and
RCTA systems are located near the rear bumper.
Always keep the area near the radar sensors
clean.
The radar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog.
The blocked condition may also be caused by
objects such as ice, frost or dirt obstructing the
radar sensors.
Check for and remove objects obstructing the
area around the radar sensors.
LSD2217
Starting and driving5-31

Do not attach stickers (including transparent ma-
terial) , install accessories or apply additional
paint near the radar sensors.
Do not strike or damage the area around the
radar sensors. Consult a NISSAN dealer if the
area around the radar sensors is damaged due to
a collision.
Radio frequency statement
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:1. This device may not cause harmful in-
terference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
FCC Warning
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment. Applicable law: Canada 310
This device complies with Industry Canada
license-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
Frequency of operation: 24.05GHz —
24.25GHz
Output power: less than 20 milliwatts
PRECAUTIONS ON CRUISE
CONTROL
1. ACCEL/RES switch
2. COAST/SET switch
3. CANCEL switch
4. ON·OFF switch
LSD2218
CRUISE CONTROL
5-32Starting and driving

●If the cruise control system malfunctions, it
cancels automatically. The SET indicator
light illuminates in the vehicle information
display then blinks to warn the driver. For
additional information, refer to “Vehicle infor-
mation display” in the “Instruments and con-
trols” section of this manual.
● If the SET indicator light blinks, push the
cruise control ON·OFF switch off and have
the system checked by a NISSAN dealer.
● The SET indicator light may blink when the
cruise control ON·OFF switch is pushed ON
while pushing the ACCEL/RES,
COAST/SET, or CANCEL switch. To prop-
erly set the cruise control system, use the
following procedures.
WARNING
Do not use the cruise control when driving
under the following conditions:
● When it is not possible to keep the
vehicle at a set speed.
● In heavy traffic or in traffic that varies in
speed.
● On winding or hilly roads.
● On slippery roads (rain, snow, ice, etc.) .
● In very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.

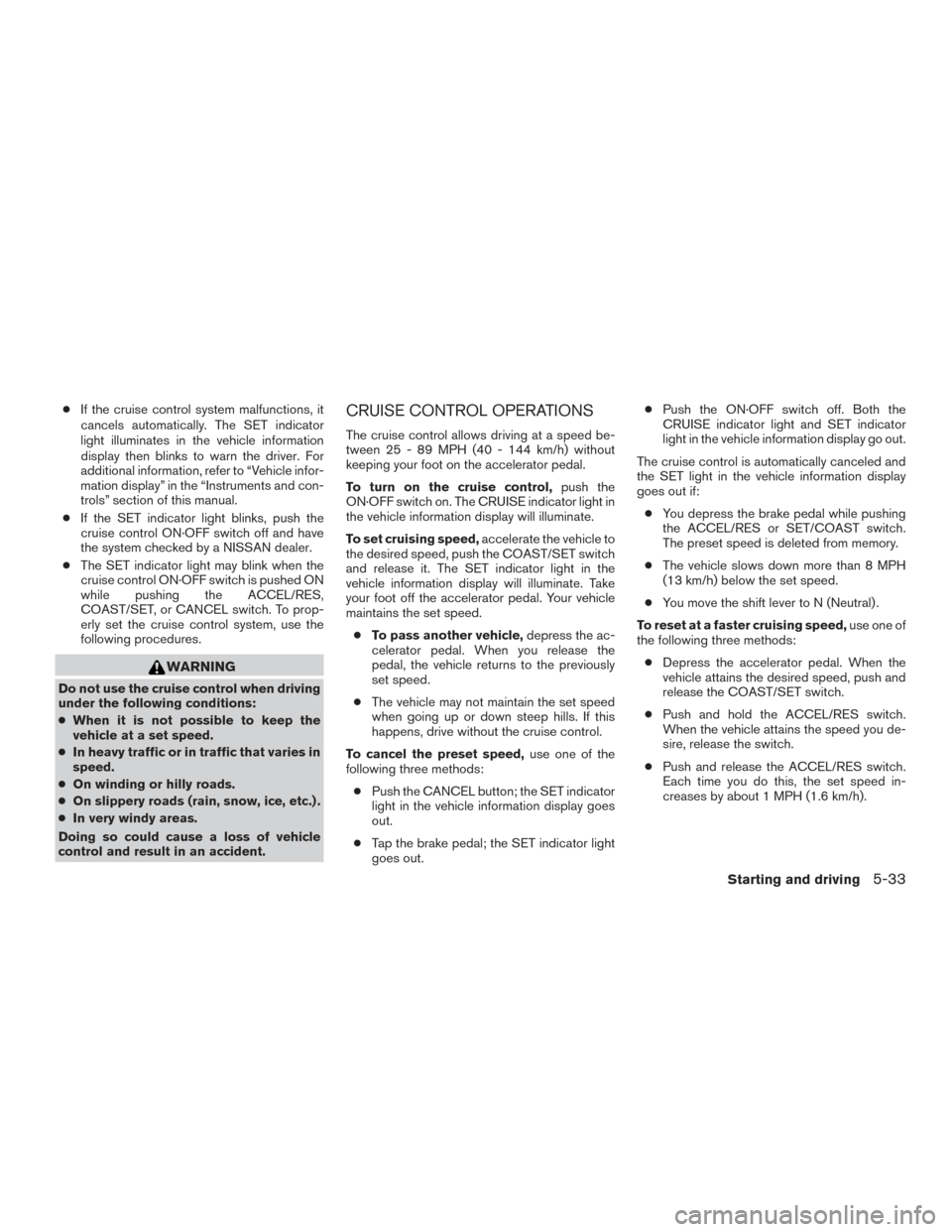

CRUISE CONTROL OPERATIONS
The cruise control allows driving at a speed be-
tween 25 - 89 MPH (40 - 144 km/h) without
keeping your foot on the accelerator pedal.
To turn on the cruise control, push the
ON·OFF switch on. The CRUISE indicator light in
the vehicle information display will illuminate.
To set cruising speed, accelerate the vehicle to
the desired speed, push the COAST/SET switch
and release it. The SET indicator light in the
vehicle information display will illuminate. Take
your foot off the accelerator pedal. Your vehicle
maintains the set speed.
● To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle returns to the previously
set speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, drive without the cruise control.
To cancel the preset speed, use one of the
following three methods:
● Push the CANCEL button; the SET indicator
light in the vehicle information display goes
out.
● Tap the brake pedal; the SET indicator light
goes out. ●
Push the ON·OFF switch off. Both the
CRUISE indicator light and SET indicator
light in the vehicle information display go out.
The cruise control is automatically canceled and
the SET light in the vehicle information display
goes out if: ● You depress the brake pedal while pushing
the ACCEL/RES or SET/COAST switch.
The preset speed is deleted from memory.
● The vehicle slows down more than 8 MPH
(13 km/h) below the set speed.
● You move the shift lever to N (Neutral) .
To reset at a faster cruising speed, use one of
the following three methods:
● Depress the accelerator pedal. When the
vehicle attains the desired speed, push and
release the COAST/SET switch.
● Push and hold the ACCEL/RES switch.
When the vehicle attains the speed you de-
sire, release the switch.
● Push and release the ACCEL/RES switch.
Each time you do this, the set speed in-
creases by about 1 MPH (1.6 km/h).
Starting and driving5-33
