2015 NISSAN MURANO Owners Manual

WARNING
●The Forward Emergency Braking sys-
tem is a supplemental aid to the driver.
It is not a replacement for the driver’s
attention to traffic conditions or re-
sponsibility to drive safely. It cannot
prevent accidents due to carelessness
or dangerous driving techniques.
● The Forward Emergency Braking sys-
tem does not function in all driving,
traffic, weather and road conditions.
SYSTEM OPERATION
The Forward Emergency Braking system will
function when your vehicle is driven at speeds
above approximately 3 MPH (5 km/h).
If a risk of a forward collision is detected, the
Forward Emergency Braking system will provide
the first warning to the driver by an audible warn-
ing.
If the driver applies the brakes quickly and force-
fully after the warning, and the Forward Emer-
gency Braking system detects that there is still
the possibility of a forward collision, the system
will automatically increase the braking force. If the
driver does not take action, the Forward Emer- gency Braking system issues the second visual
warning (red) and audible warning and also ap-
plies partial braking. If the risk of a collision be-
comes imminent, the Forward Emergency Brak-
ing system applies harder braking automatically.
NOTE:
The vehicle’s brake lights come on when
braking is performed by the Forward Emer-
gency Braking system.
Depending on vehicle speed and distance to the
vehicle ahead, as well as driving and roadway
conditions, the system may help the driver avoid a
forward collision or may help mitigate the conse-
quences if a collision should one be unavoidable.
LSD2284
5-56Starting and driving

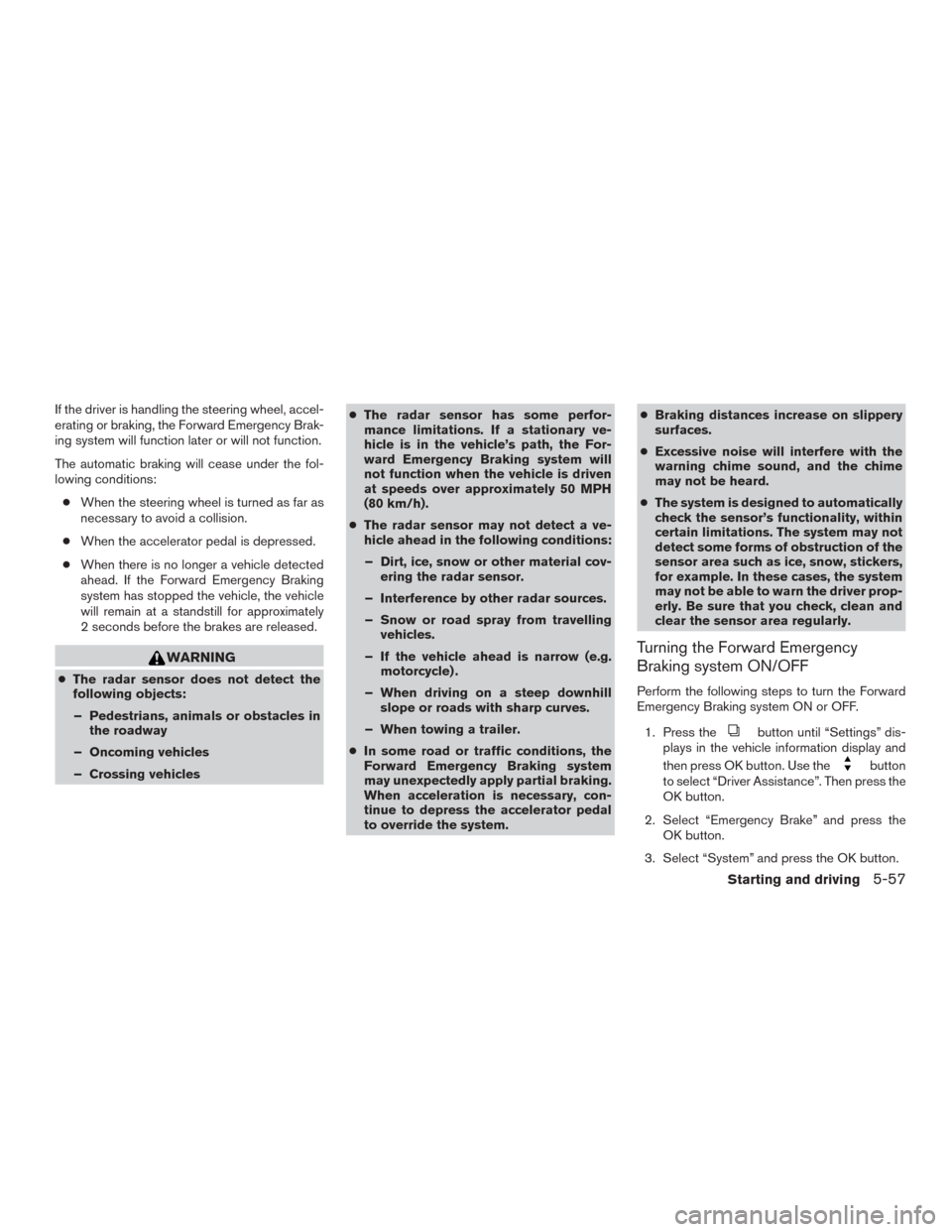

If the driver is handling the steering wheel, accel-
erating or braking, the Forward Emergency Brak-
ing system will function later or will not function.
The automatic braking will cease under the fol-
lowing conditions:● When the steering wheel is turned as far as
necessary to avoid a collision.
● When the accelerator pedal is depressed.
● When there is no longer a vehicle detected
ahead. If the Forward Emergency Braking
system has stopped the vehicle, the vehicle
will remain at a standstill for approximately
2 seconds before the brakes are released.
WARNING
● The radar sensor does not detect the
following objects:
– Pedestrians, animals or obstacles in the roadway
– Oncoming vehicles
– Crossing vehicles ●
The radar sensor has some perfor-
mance limitations. If a stationary ve-
hicle is in the vehicle’s path, the For-
ward Emergency Braking system will
not function when the vehicle is driven
at speeds over approximately 50 MPH
(80 km/h).
● The radar sensor may not detect a ve-
hicle ahead in the following conditions:
– Dirt, ice, snow or other material cov- ering the radar sensor.
– Interference by other radar sources.
– Snow or road spray from travelling vehicles.
– If the vehicle ahead is narrow (e.g. motorcycle) .
– When driving on a steep downhill slope or roads with sharp curves.
– When towing a trailer.
● In some road or traffic conditions, the
Forward Emergency Braking system
may unexpectedly apply partial braking.
When acceleration is necessary, con-
tinue to depress the accelerator pedal
to override the system. ●
Braking distances increase on slippery
surfaces.
● Excessive noise will interfere with the
warning chime sound, and the chime
may not be heard.
● The system is designed to automatically
check the sensor’s functionality, within
certain limitations. The system may not
detect some forms of obstruction of the
sensor area such as ice, snow, stickers,
for example. In these cases, the system
may not be able to warn the driver prop-
erly. Be sure that you check, clean and
clear the sensor area regularly.
Turning the Forward Emergency
Braking system ON/OFF
Perform the following steps to turn the Forward
Emergency Braking system ON or OFF.
1. Press the
button until “Settings” dis-
plays in the vehicle information display and
then press OK button. Use the
button
to select “Driver Assistance”. Then press the
OK button.
2. Select “Emergency Brake” and press the OK button.
3. Select “System” and press the OK button.
Starting and driving5-57

The Forward Emergency Braking system will be
automatically turned on when the engine is re-
started.
NOTE:
When the Forward Emergency Braking sys-
tem setting is turned on or off, the Predic-
tive Forward Collision Warning system is
also turned on or off simultaneously.
System temporarily unavailable
Condition A:
When the radar sensor picks up interference
from another radar source, making it impossible
to detect a vehicle ahead, the Forward Emer-
gency Braking system is automatically turned off.
The Forward Emergency Braking system warning
light (orange) will illuminate.
Action to take:
When the above conditions no longer exist, the
Forward Emergency Braking system will resume
automatically.Condition B:
When the sensor window is dirty, making it im-
possible to detect a vehicle ahead, the Forward
Emergency Braking system is automatically
turned off. The system warning light (orange) will
illuminate and the “front radar obstruction” warn-
ing message will appear in the vehicle information
display.
Action to take:
If the warning light (orange) comes on, park the
vehicle in a safe location and turn the engine off.
Check to see if the sensor window is blocked. If
the sensor window is blocked, remove the block-
ing material. Restart the engine. If the warning
light continues to illuminate, have the ICC system
checked by a NISSAN dealer.System malfunction
If the Forward Emergency Braking system mal-
functions, it will be turned off automatically, a
chime will sound, the Forward Emergency Brak-
ing system warning light (orange) will illuminate
and the warning message [Malfunction] will ap-
pear in the vehicle information display.
LSD2262
5-58Starting and driving

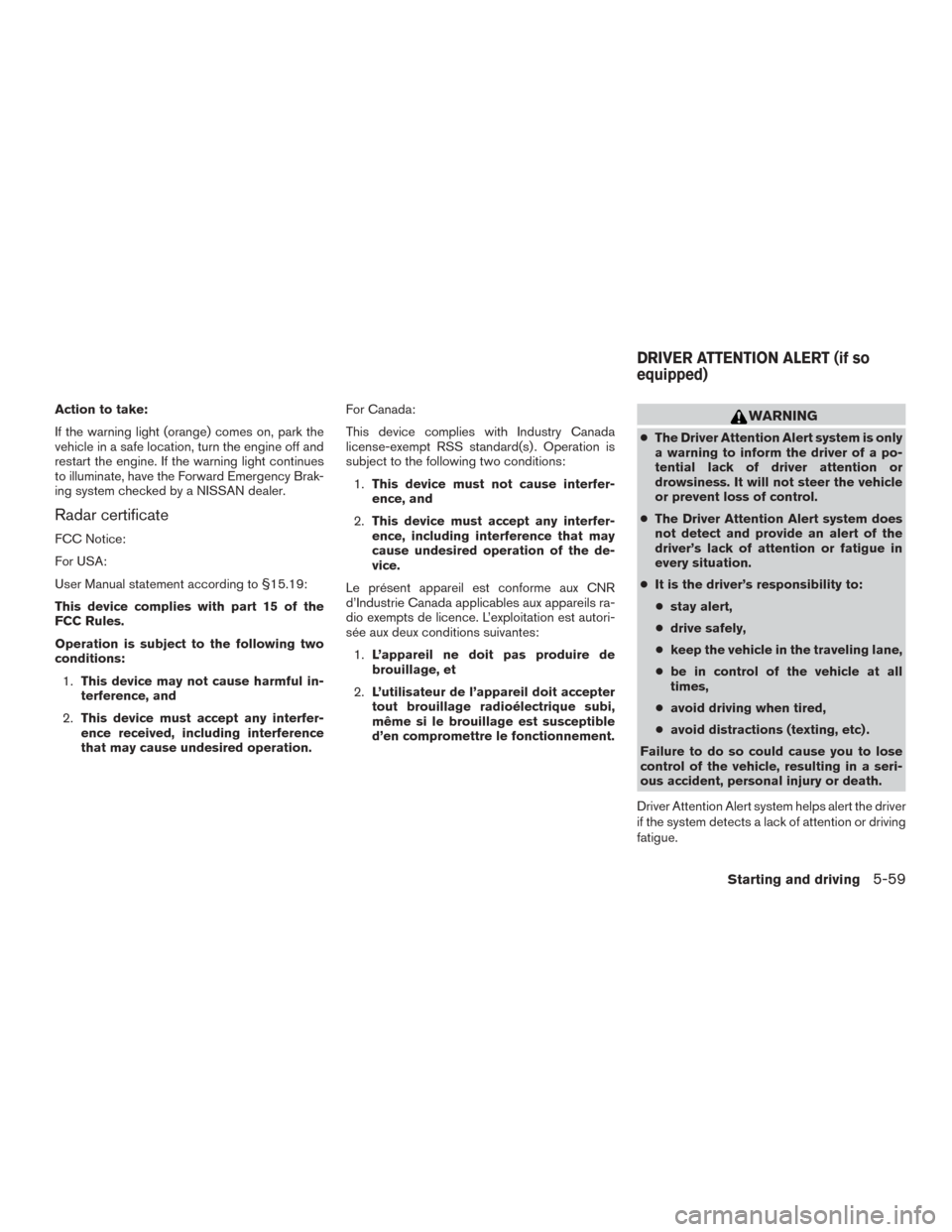

Action to take:
If the warning light (orange) comes on, park the
vehicle in a safe location, turn the engine off and
restart the engine. If the warning light continues
to illuminate, have the Forward Emergency Brak-
ing system checked by a NISSAN dealer.
Radar certificate
FCC Notice:
For USA:
User Manual statement according to §15.19:
This device complies with part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:1. This device may not cause harmful in-
terference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation. For Canada:
This device complies with Industry Canada
license-exempt RSS standard(s) . Operation is
subject to the following two conditions:
1. This device must not cause interfer-
ence, and
2. This device must accept any interfer-
ence, including interference that may
cause undesired operation of the de-
vice.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils ra-
dio exempts de licence. L’exploitation est autori-
sée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de
brouillage, et
2. L’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi,
même si le brouillage est susceptible
d’en compromettre le fonctionnement.
WARNING
● The Driver Attention Alert system is only
a warning to inform the driver of a po-
tential lack of driver attention or
drowsiness. It will not steer the vehicle
or prevent loss of control.
● The Driver Attention Alert system does
not detect and provide an alert of the
driver’s lack of attention or fatigue in
every situation.
● It is the driver’s responsibility to:
● stay alert,
● drive safely,
● keep the vehicle in the traveling lane,
● be in control of the vehicle at all
times,
● avoid driving when tired,
● avoid distractions (texting, etc) .
Failure to do so could cause you to lose
control of the vehicle, resulting in a seri-
ous accident, personal injury or death.
Driver Attention Alert system helps alert the driver
if the system detects a lack of attention or driving
fatigue.
DRIVER ATTENTION ALERT (if so
equipped)
Starting and driving5-59

The system monitors driving style and steering
behavior over a period of time, and it detects
changes from the normal pattern. If the system
detects that driver attention is decreasing over a
period of time, the system uses an audible and
visual warning to suggest that the driver take a
break.DRIVER ATTENTION ALERT
OPERATION
If the system detects that driver fatigue or that
driver attention is decreasing, the message “Take
a break?” appears in the vehicle information dis-
play and a chime sounds when the vehicle is
driven at speeds above 37 MPH (60 km/h).
The system continuously monitors driver atten-
tion and can provide multiple warnings per trip.
The system resets and starts reassessing driving
style and steering behavior when the ignition
switch is cycled from on to off and back on.
LSD2335
5-60Starting and driving

TURNING THE DRIVER ATTENTION
ALERT SYSTEM ON AND OFF
Perform the following steps to enable or disable
the Driver Attention Alert system.1. Press the
button until “Settings” dis-
plays in the vehicle information display and
press the OK button. Use the
button
to select “Driver Assistance”. Then press the
OK button.
2. Select “Driver Attention Alert” and press the OK button.
NOTE:
The setting will be retained even if the
engine is restarted.
DRIVER ATTENTION ALERT
LIMITATIONS
WARNING
● The Driver Attention Alert system may
not operate properly and may not pro-
vide an alert in the following conditions:
● Poor road conditions such as an un-
even road surface or pot holes.
● Strong side wind.
LSD2330
Starting and driving5-61

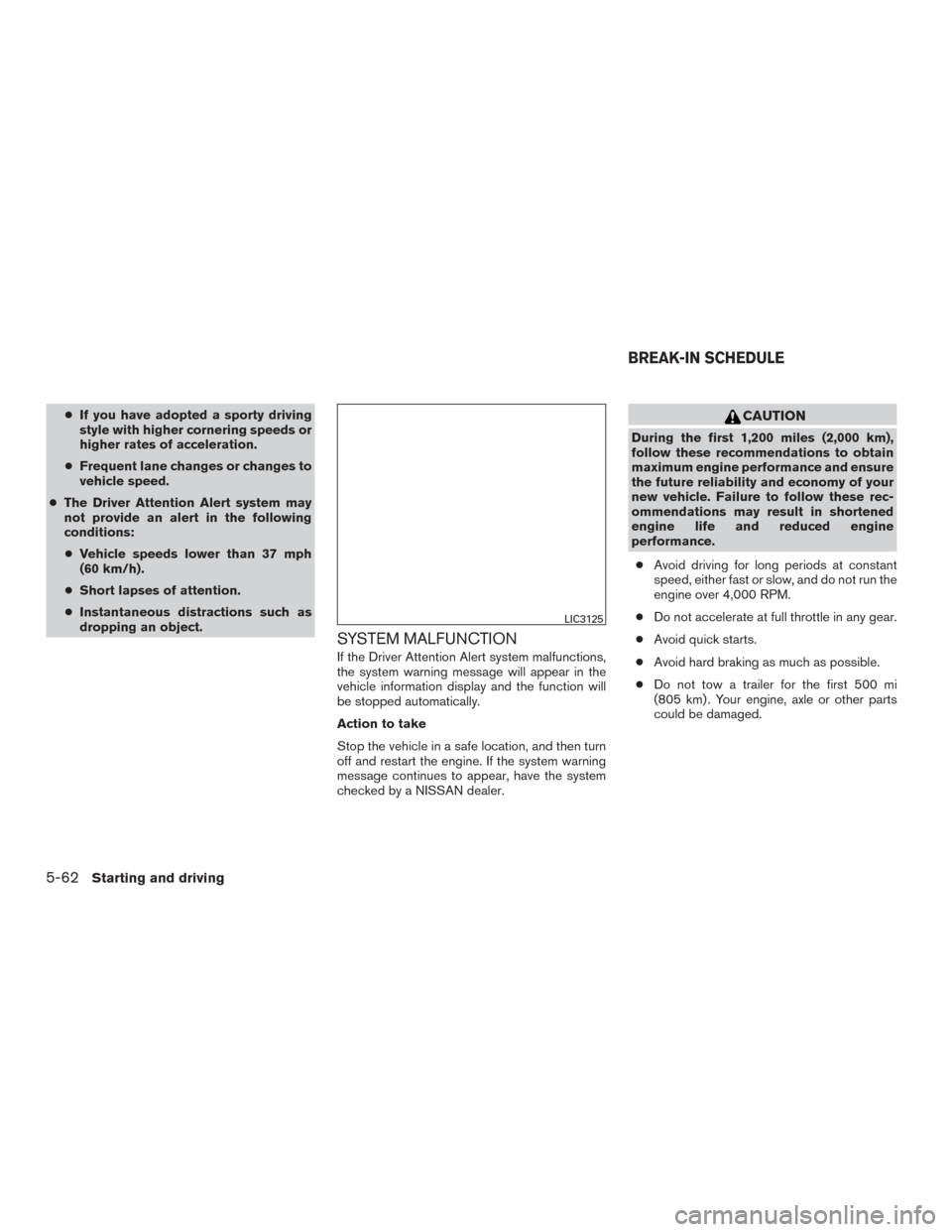

●If you have adopted a sporty driving
style with higher cornering speeds or
higher rates of acceleration.
● Frequent lane changes or changes to
vehicle speed.
● The Driver Attention Alert system may
not provide an alert in the following
conditions:
● Vehicle speeds lower than 37 mph
(60 km/h).
● Short lapses of attention.
● Instantaneous distractions such as
dropping an object.
SYSTEM MALFUNCTION
If the Driver Attention Alert system malfunctions,
the system warning message will appear in the
vehicle information display and the function will
be stopped automatically.
Action to take
Stop the vehicle in a safe location, and then turn
off and restart the engine. If the system warning
message continues to appear, have the system
checked by a NISSAN dealer.
CAUTION
During the first 1,200 miles (2,000 km),
follow these recommendations to obtain
maximum engine performance and ensure
the future reliability and economy of your
new vehicle. Failure to follow these rec-
ommendations may result in shortened
engine life and reduced engine
performance.
● Avoid driving for long periods at constant
speed, either fast or slow, and do not run the
engine over 4,000 RPM.
● Do not accelerate at full throttle in any gear.
● Avoid quick starts.
● Avoid hard braking as much as possible.
● Do not tow a trailer for the first 500 mi
(805 km) . Your engine, axle or other parts
could be damaged.
LIC3125
BREAK-IN SCHEDULE
5-62Starting and driving

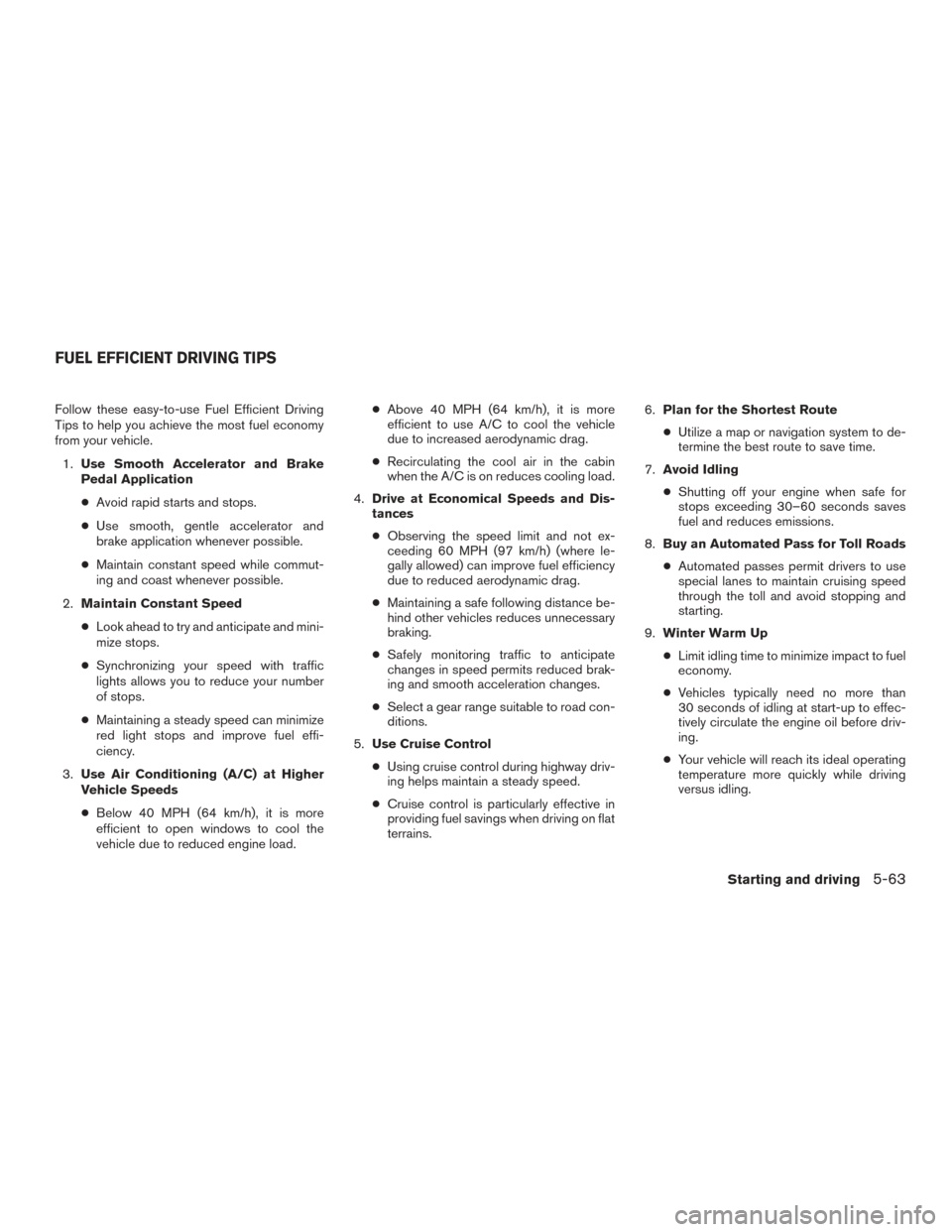

Follow these easy-to-use Fuel Efficient Driving
Tips to help you achieve the most fuel economy
from your vehicle.1. Use Smooth Accelerator and Brake
Pedal Application
● Avoid rapid starts and stops.
● Use smooth, gentle accelerator and
brake application whenever possible.
● Maintain constant speed while commut-
ing and coast whenever possible.
2. Maintain Constant Speed
● Look ahead to try and anticipate and mini-
mize stops.
● Synchronizing your speed with traffic
lights allows you to reduce your number
of stops.
● Maintaining a steady speed can minimize
red light stops and improve fuel effi-
ciency.
3. Use Air Conditioning (A/C) at Higher
Vehicle Speeds
● Below 40 MPH (64 km/h), it is more
efficient to open windows to cool the
vehicle due to reduced engine load. ●
Above 40 MPH (64 km/h), it is more
efficient to use A/C to cool the vehicle
due to increased aerodynamic drag.
● Recirculating the cool air in the cabin
when the A/C is on reduces cooling load.
4. Drive at Economical Speeds and Dis-
tances
● Observing the speed limit and not ex-
ceeding 60 MPH (97 km/h) (where le-
gally allowed) can improve fuel efficiency
due to reduced aerodynamic drag.
● Maintaining a safe following distance be-
hind other vehicles reduces unnecessary
braking.
● Safely monitoring traffic to anticipate
changes in speed permits reduced brak-
ing and smooth acceleration changes.
● Select a gear range suitable to road con-
ditions.
5. Use Cruise Control
● Using cruise control during highway driv-
ing helps maintain a steady speed.
● Cruise control is particularly effective in
providing fuel savings when driving on flat
terrains. 6.
Plan for the Shortest Route
● Utilize a map or navigation system to de-
termine the best route to save time.
7. Avoid Idling
● Shutting off your engine when safe for
stops exceeding 30–60 seconds saves
fuel and reduces emissions.
8. Buy an Automated Pass for Toll Roads
● Automated passes permit drivers to use
special lanes to maintain cruising speed
through the toll and avoid stopping and
starting.
9. Winter Warm Up
● Limit idling time to minimize impact to fuel
economy.
● Vehicles typically need no more than
30 seconds of idling at start-up to effec-
tively circulate the engine oil before driv-
ing.
● Your vehicle will reach its ideal operating
temperature more quickly while driving
versus idling.
FUEL EFFICIENT DRIVING TIPS
Starting and driving5-63
