Adjusting the headlight aim
Be sure that the vehicle is parked directly vertical
to the wall on which the headlights will be pro-
jected.1. Turn on the headlight low beam
2. Open the hood.
3. Turn the aiming adjustment screws
12,
located inside the engine compartment, until
the headlight projection, on the wall or
screen, does not move. NOTE:
The aim adjustment screws are located on
each side of the headlights. The lower
screw
1is used to adjust the horizontal
aim. The upper screw
2is used to adjust
the vertical aim.
The screws can be turned indefinitely in
each direction. Therefore be sure to ob-
serve the headlight projection movement
to determine the necessary turning
amount. 4. Turn the lower screws
1in the opposite
direction until the headlight projection be-
comes 70 mm (2.76 in) below the point P.
Once the left headlight has been adjusted,
perform right side adjustment as well.
”C” is the distance between point P and
point
3.
5. Turn the upper screws
2in the opposite
direction until the horizontal headlight pro-
jection’s turn point
3is directly below the
point P. Once the left headlight has been
adjusted, perform right side adjustment as
well.
SDI1665
8-28Maintenance and do-it-yourself

FOG LIGHTS (if so equipped)
Replacing the fog light bulb
If replacement is required, see your NISSAN
dealer.
CAUTION
●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● When handling the bulb, do not touch
the glass envelope.
● Use the same number and wattage as
originally installed as shown in the
chart.
● Do not leave the bulb out of the fog light
for a long period of time as dust, mois-
ture and smoke may enter the fog light
body and affect the performance of the
fog light.

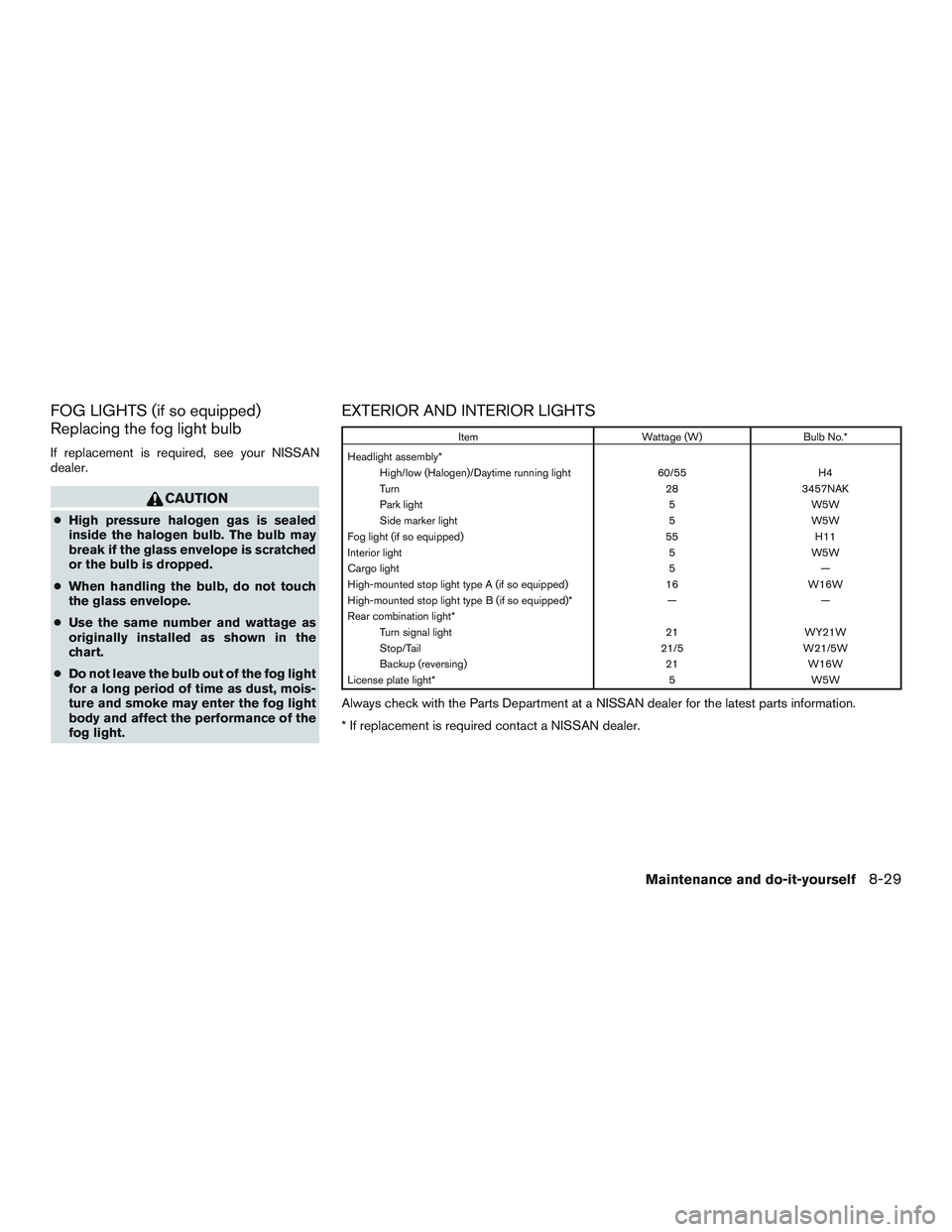

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.*
Headlight assembly* High/low (Halogen)/Daytime running light 60/55H4
Turn 283457NAK
Park light 5W5W
Side marker light 5W5W
Fog light (if so equipped) 55H11
Interior light 5W5W
Cargo light 5—
High-mounted stop light type A (if so equipped) 16W16W
High-mounted stop light type B (if so equipped)* ——
Rear combination light* Turn signal light 21WY21W
Stop/Tail 21/5W21/5W
Backup (reversing) 21W16W
License plate light* 5W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* If replacement is required contact a NISSAN dealer.
Maintenance and do-it-yourself8-29

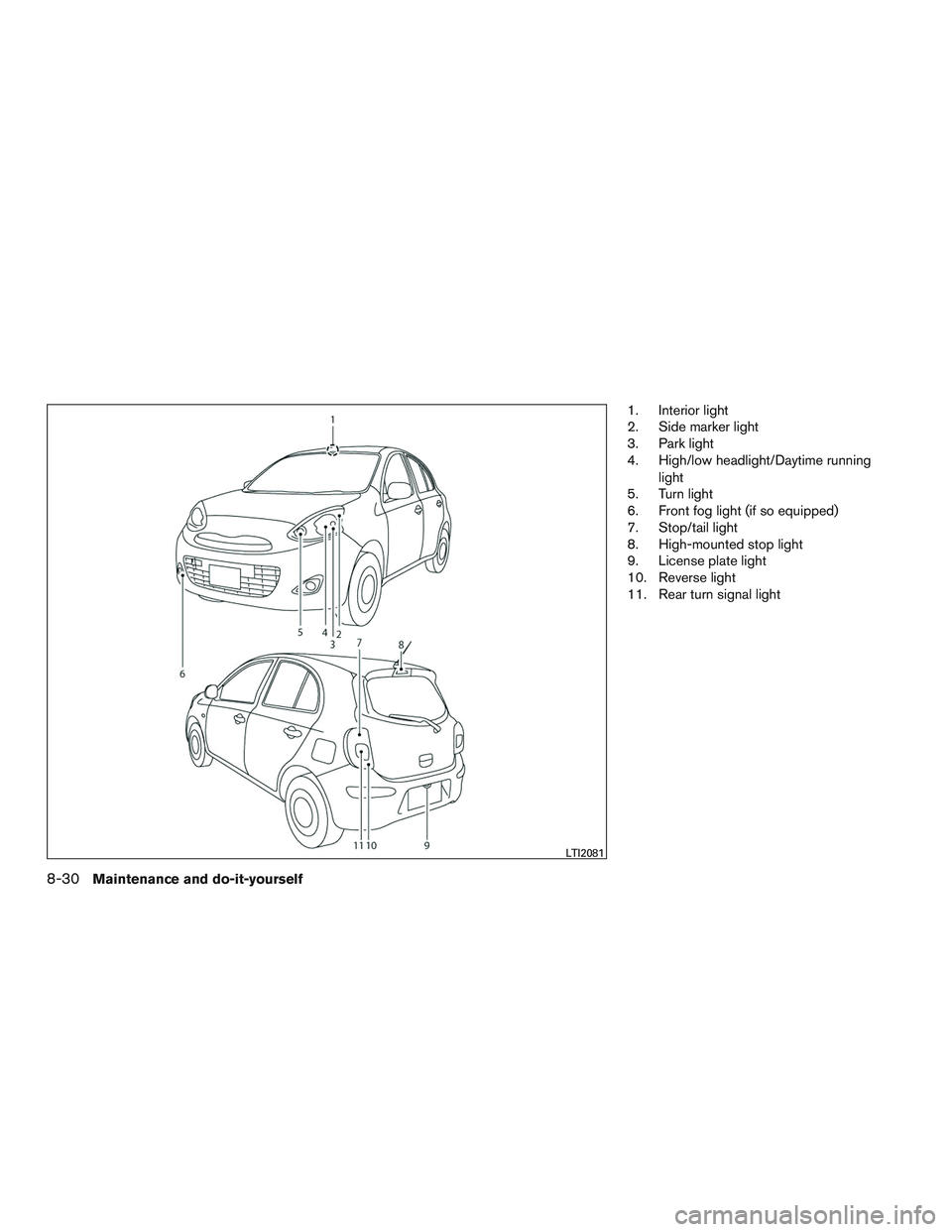

1. Interior light
2. Side marker light
3. Park light
4. High/low headlight/Daytime runninglight
5. Turn light
6. Front fog light (if so equipped)
7. Stop/tail light
8. High-mounted stop light
9. License plate light
10. Reverse light
11. Rear turn signal light
LTI2081
8-30Maintenance and do-it-yourself

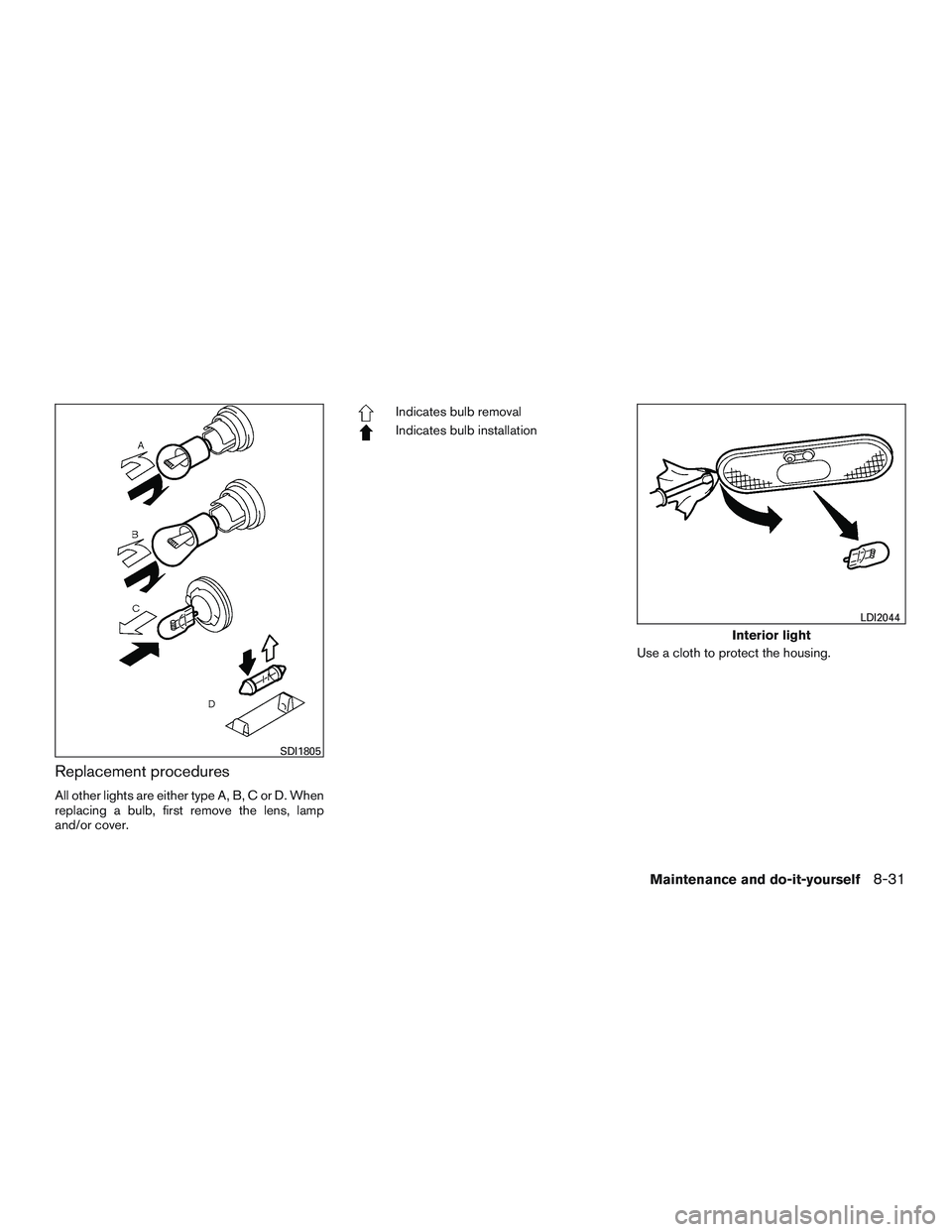

Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover.
Indicates bulb removal
Indicates bulb installationUse a cloth to protect the housing.
SDI1805
Interior light
LDI2044
Maintenance and do-it-yourself8-31

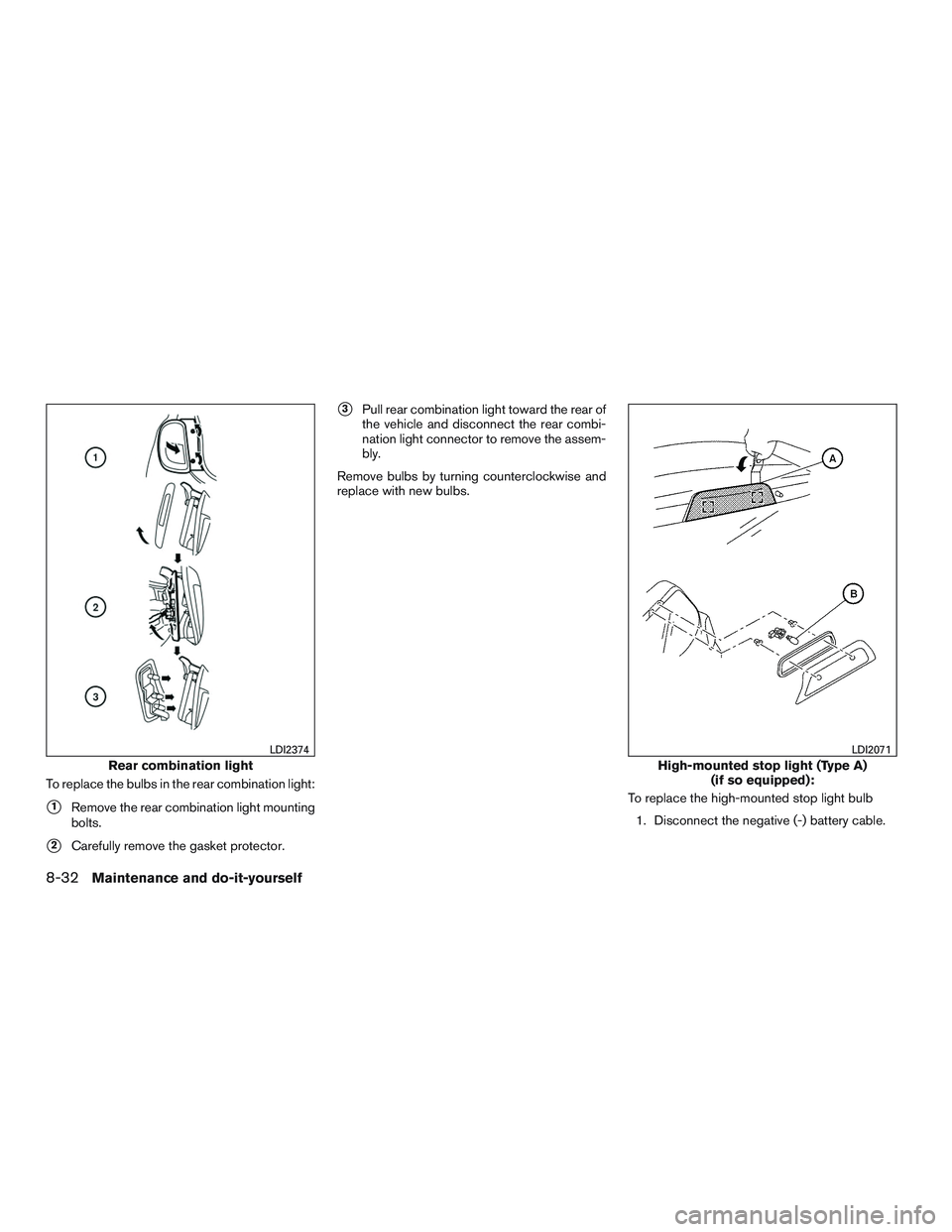

To replace the bulbs in the rear combination light:
1Remove the rear combination light mounting
bolts.
2Carefully remove the gasket protector.
3Pull rear combination light toward the rear of
the vehicle and disconnect the rear combi-
nation light connector to remove the assem-
bly.
Remove bulbs by turning counterclockwise and
replace with new bulbs.
To replace the high-mounted stop light bulb1. Disconnect the negative (-) battery cable.
Rear combination light
LDI2374
High-mounted stop light (Type A) (if so equipped):
LDI2071
8-32Maintenance and do-it-yourself

2. Remove the lens cover of the high-mountedstop light by inserting an appropriate re-
mover tool between the top of the lens cover
(the side not touching the glass of the rear
door) and the vehicle
A. Pull toward you.
3. After the cover is removed, disconnect the harness connector and remove the high-
mounted stop light bulb
Bby rotating it
counterclockwise.
4. Replace with new bulb and reinstall cover.
To replace the luggage compartment light bulb:1. Remove the light
Awith a suitable tool.
2. Remove the cover
B.
3. Replace the bulb.

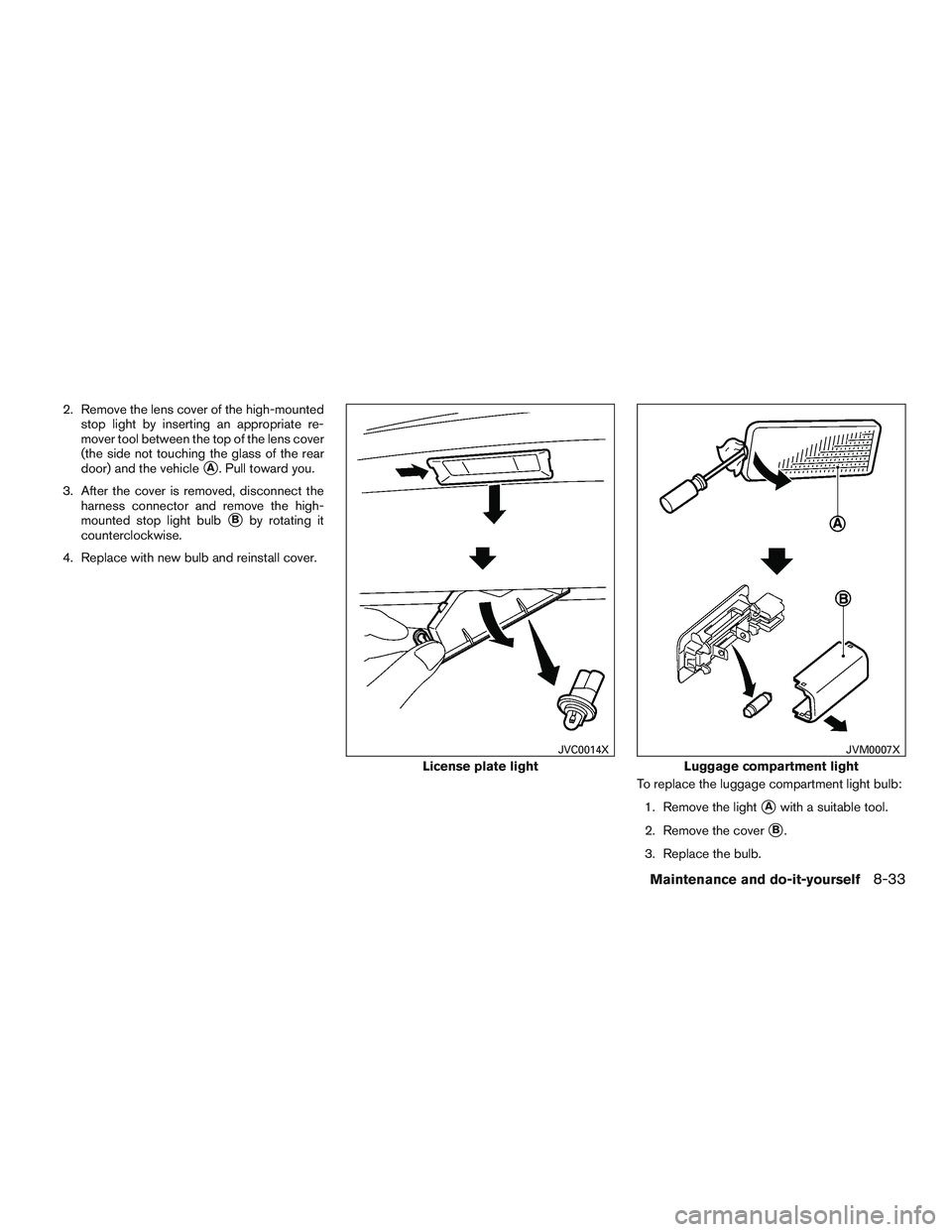

License plate light
JVC0014X
Luggage compartment light
JVM0007X
Maintenance and do-it-yourself8-33

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of this
manual for additional information.

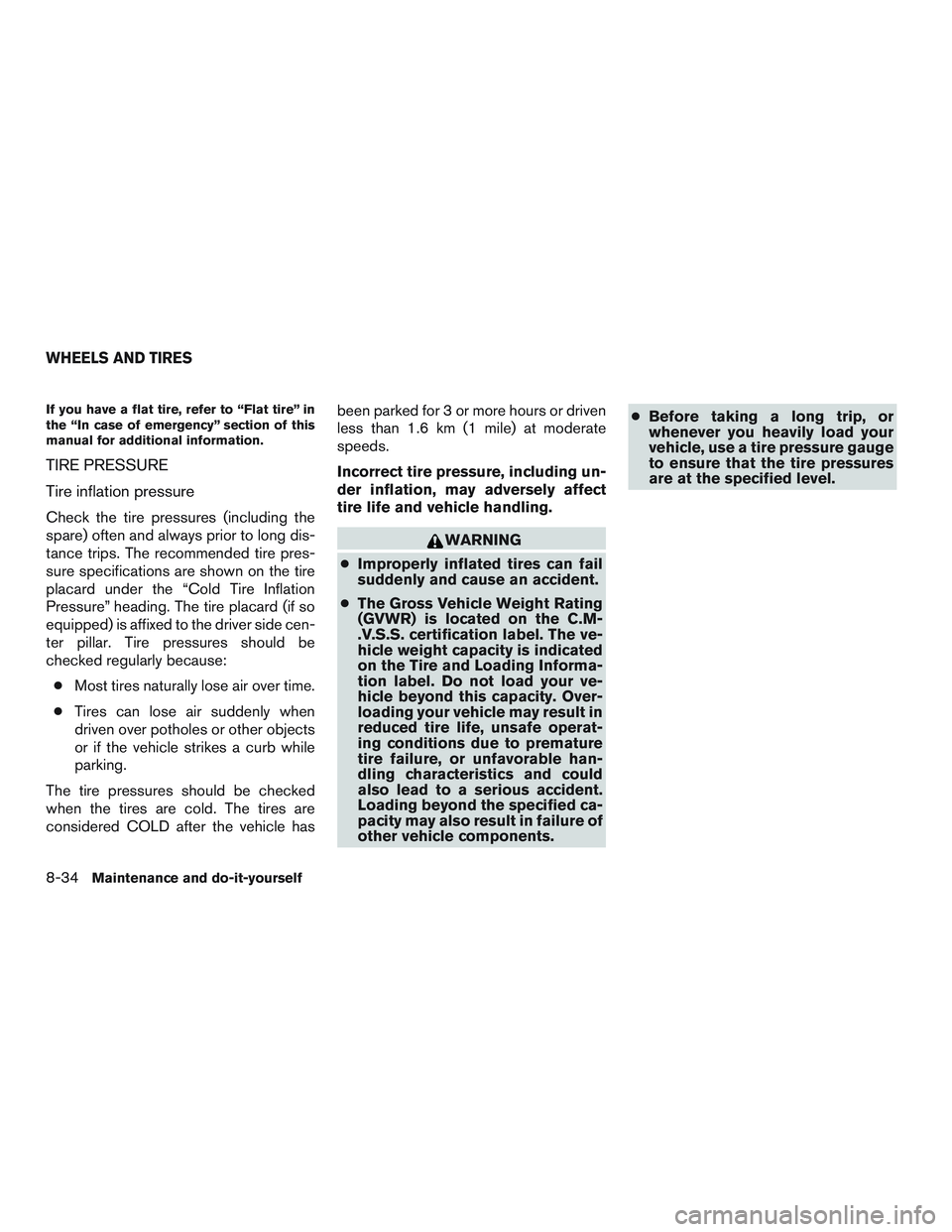

TIRE PRESSURE
Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long dis-
tance trips. The recommended tire pres-
sure specifications are shown on the tire
placard under the “Cold Tire Inflation
Pressure” heading. The tire placard (if so
equipped) is affixed to the driver side cen-
ter pillar. Tire pressures should be
checked regularly because:● Most tires naturally lose air over time.
● Tires can lose air suddenly when
driven over potholes or other objects
or if the vehicle strikes a curb while
parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has been parked for 3 or more hours or driven
less than 1.6 km (1 mile) at moderate
speeds.
Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.
WARNING
● Improperly inflated tires can fail
suddenly and cause an accident.
● The Gross Vehicle Weight Rating
(GVWR) is located on the C.M-
.V.S.S. certification label. The ve-
hicle weight capacity is indicated
on the Tire and Loading Informa-
tion label. Do not load your ve-
hicle beyond this capacity. Over-
loading your vehicle may result in
reduced tire life, unsafe operat-
ing conditions due to premature
tire failure, or unfavorable han-
dling characteristics and could
also lead to a serious accident.
Loading beyond the specified ca-
pacity may also result in failure of
other vehicle components. ●
Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure gauge
to ensure that the tire pressures
are at the specified level.
WHEELS AND TIRES
8-34Maintenance and do-it-yourself

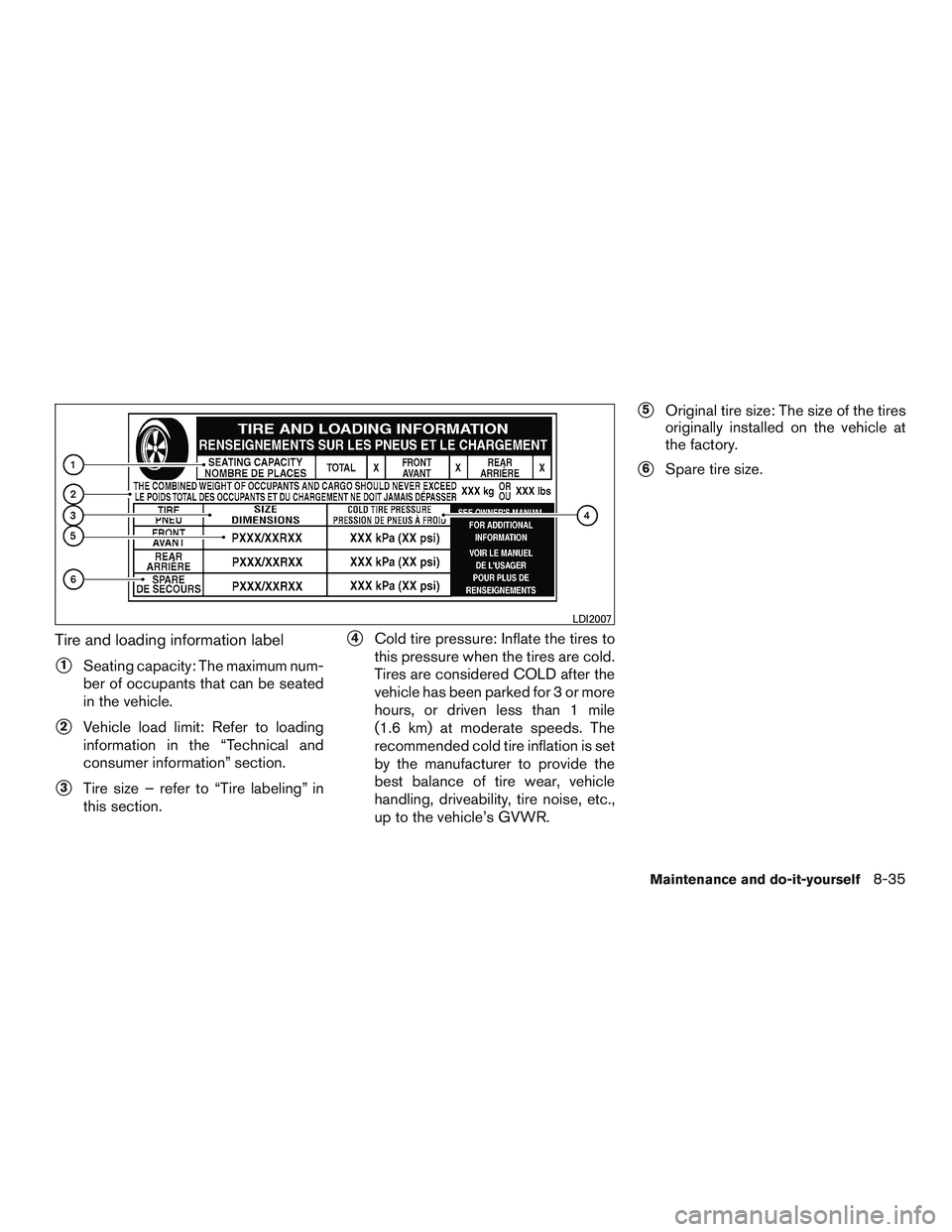

Tire and loading information label
1Seating capacity: The maximum num-
ber of occupants that can be seated
in the vehicle.
2Vehicle load limit: Refer to loading
information in the “Technical and
consumer information” section.
3Tire size – refer to “Tire labeling” in
this section.
4Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or more
hours, or driven less than 1 mile
(1.6 km) at moderate speeds. The
recommended cold tire inflation is set
by the manufacturer to provide the
best balance of tire wear, vehicle
handling, driveability, tire noise, etc.,
up to the vehicle’s GVWR.
5Original tire size: The size of the tires
originally installed on the vehicle at
the factory.
6Spare tire size.
LDI2007
Maintenance and do-it-yourself8-35
