2015 NISSAN MICRA Owner´s Manual

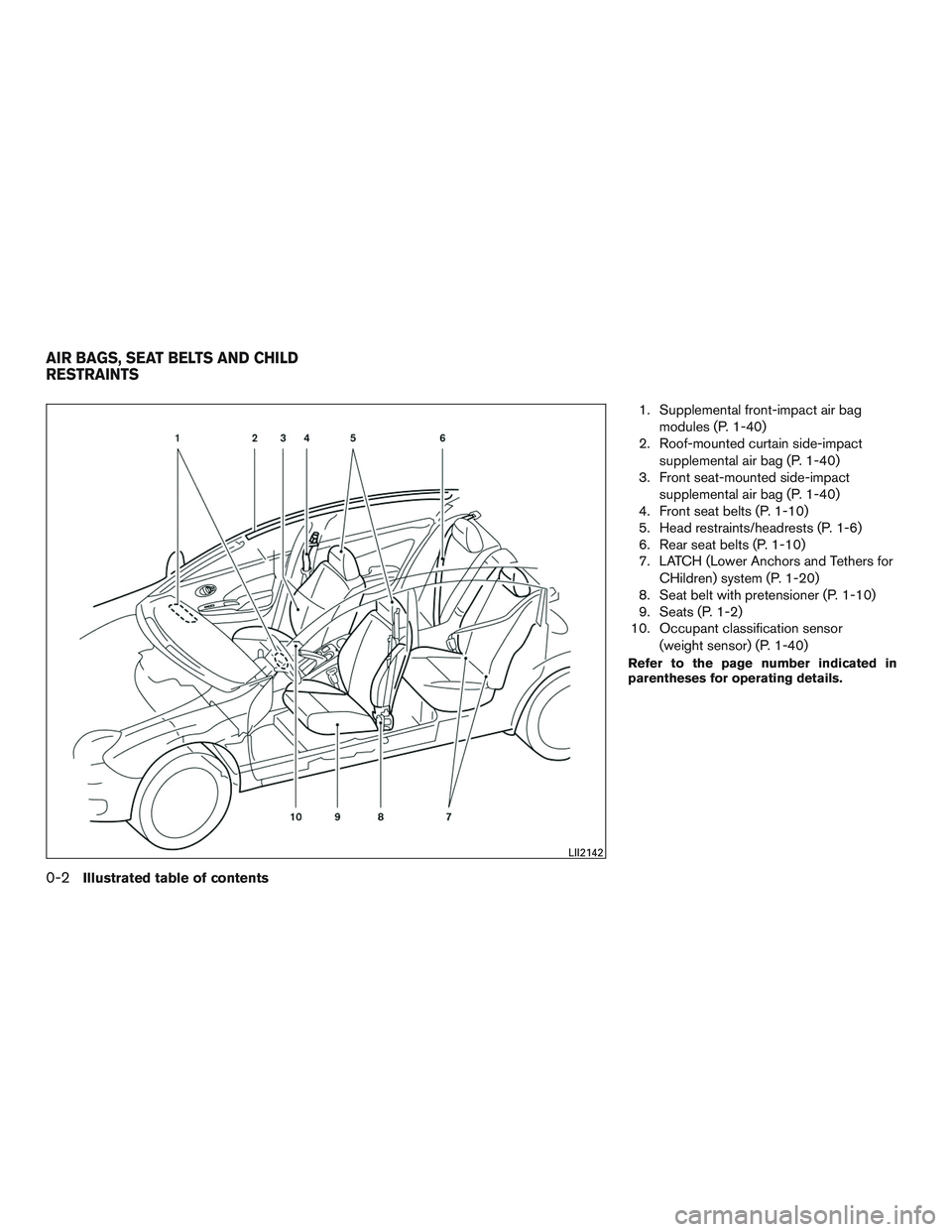

1. Supplemental front-impact air bagmodules (P. 1-40)
2. Roof-mounted curtain side-impact
supplemental air bag (P. 1-40)
3. Front seat-mounted side-impact
supplemental air bag (P. 1-40)
4. Front seat belts (P. 1-10)
5. Head restraints/headrests (P. 1-6)
6. Rear seat belts (P. 1-10)
7. LATCH (Lower Anchors and Tethers for
CHildren) system (P. 1-20)
8. Seat belt with pretensioner (P. 1-10)
9. Seats (P. 1-2)
10. Occupant classification sensor
(weight sensor) (P. 1-40)
Refer to the page number indicated in
parentheses for operating details.
LII2142
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1. Engine hood (P. 3-9)
2. Windshield (P. 8-17)
3. Windshield wiper and washer switch(P. 2-14)
4. Antenna (P. 4-45)
5. Manual windows (if so equipped) ,
power windows (if so equipped)
(P. 2-24)
6. Door locks, key fob (if so equipped) ,
keys (P. 3-3, 3-2, 3-2)
7 Mirrors (P. 3-14)
8. Tire pressure (P. 8-34)
9. Flat tire (P. 6-2)
10. Tire chains (P. 8-40)
11. Headlight and turn signal switch
(P. 2-17)
12. Replacing bulbs (P. 8-25)
13. Fog light switch (if so equipped)
(P. 2-19)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2145
EXTERIOR FRONT
Illustrated table of contents0-3

1. Replacing bulbs (P. 8-25)
2. Rear window defroster switch (P. 2-16)
3. Rear window wiper and washer switch(P. 2-16)
4. Rear hatch opener (P. 3-10)
5 Rearview monitor (if so equipped)
(P. 4-2)
6. Fuel-filler lid (P. 3-11)
7. Fuel-filler cap, fuel recommendation
(P. 3-11, 9-2)
8. Child safety rear door lock (P. 3-5)
Refer to the page number indicated in
parentheses for operating details.
LII2146
EXTERIOR REAR
0-4Illustrated table of contents

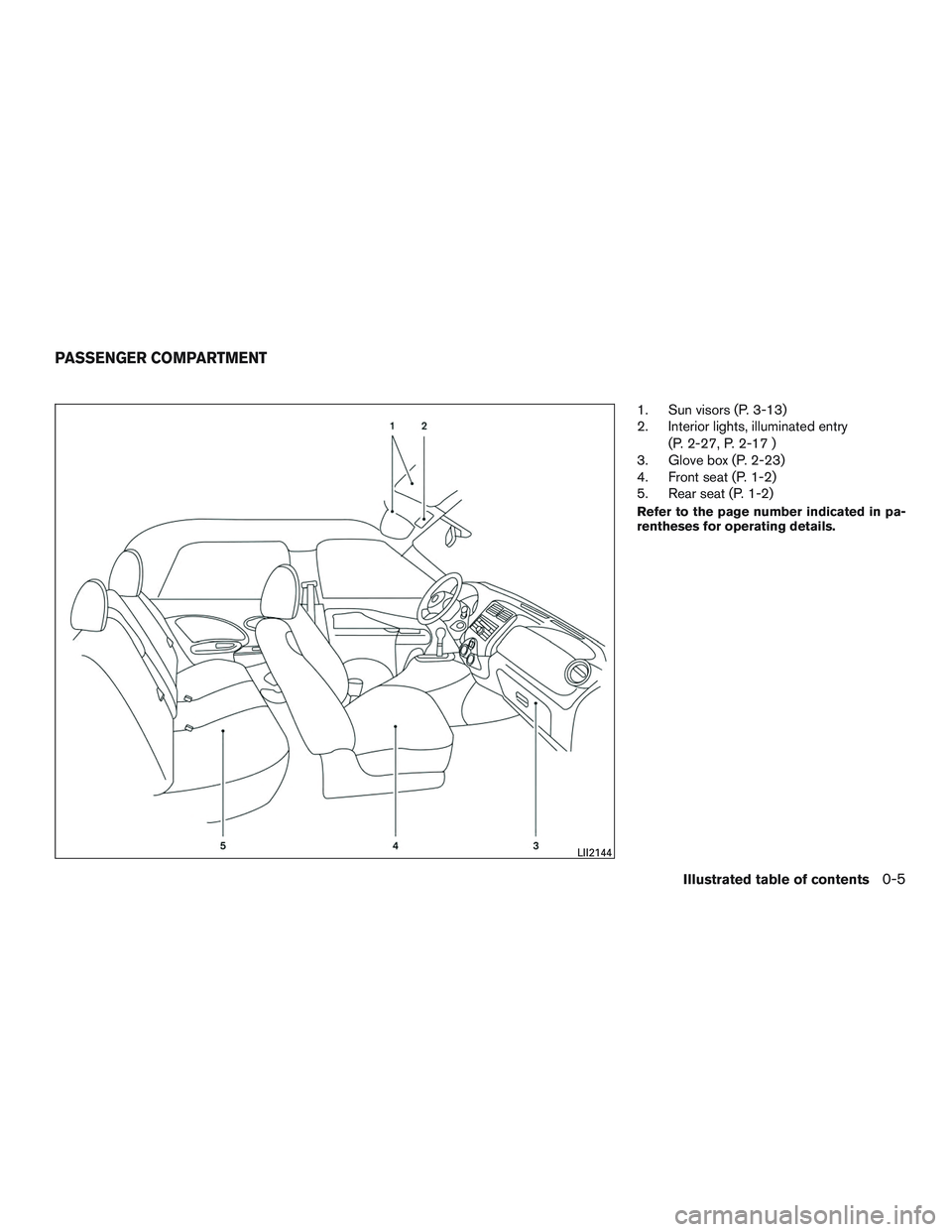

1. Sun visors (P. 3-13)
2. Interior lights, illuminated entry(P. 2-27, P. 2-17 )
3. Glove box (P. 2-23)
4. Front seat (P. 1-2)
5. Rear seat (P. 1-2)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2144
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Headlight/turn signal switch (P. 2-17)
2. Driver’s supplemental air bag/horn(P. 1-47, 2-20)
3. Meters and gauges (P. 2-3)
4. Windshield wiper/washer switch
(P. 2-14) 5. Center vents (P. 4-6)
6. Rear window and outside mirror (if so
equipped) defroster switch (P. 2-16)
7. Hazard warning flasher switch (P. 6-2)
8. Front passenger bag status light
(P. 1-49) 9. Climate controls (P. 4-7)
10. Audio system (P. 4-31, 4-23)
11. Passenger’s supplemental air bag
(P. 1-47)
12. Side vents (P. 4-6)
13. Electronic outside rearview mirror
control switch (if so equipped) (P.3-15)
14. Vehicle Dynamic Control (VDC) off
switch (P. 2-20)
15. Fuel-filler lid release lever (P. 3-11)/
Hood release lever (P. 3-9)
16. Audio control switches (if so equipped)
(P.4-44)
17. Tilt steering (P. 3-13)
18. Ignition switch (P. 5-5)
19. Cruise control (if so equipped) (P.5-15)
20. Shift lever (P. 5-8)
21. Cup holders (P. 2-22)
22. Glove box (P. 2-23)
23. 12v power outlet (P. 2-21)
24. USB port (if so equipped) (P. 4-40)Refer to the page number indicated in pa-
rentheses for operating details.LIC2799
INSTRUMENT PANEL
0-6Illustrated table of contents

HR16DE engine
1. Drive belt location (P. 8-15)
2. Engine oil filler cap (P. 8-9)
3. Air cleaner (P. 8-16)
4. Brake and clutch (*1) fluid reservoir(P. 8-12)
5. Fusible link (P. 8-20)
6. Battery (P. 8-13)
7. Engine coolant reservoir (P. 8-7)
8. Radiator cap (P. 8-7)
9. Engine oil dipstick (P. 8-9)
10. Windshield-washer fluid reservoir
(P. 8-13)
*1 For Manual Transmission (M/T) model
LDI2377
ENGINE COMPARTMENT CHECK
LOCATIONS
Illustrated table of contents0-7

Warninglight Name Page
Anti-lock Braking
System (ABS) warn-
ing light 2-8
Brake warning light 2-8
Charge warning light 2-8
Door open warning
light (if so equipped)
2-8
Engine oil pressure
warning light2-8
High temperature
warning light2-9
or
Low fuel warning
light2-9
Warning
light Name Page
Low windshield-
washer fluid warning
light 8-13
Power steering
warning light
2-9
Seat belt warning
light and chime2-9
Supplemental air
bag warning light2-10
Indicator
light Name Page
Automatic Transmis-
sion position indica-
tor light (A/T models
only) 2-10
Cruise main switch
indicator light (if so
equipped)
2-10
Indicator
light Name Page
Front fog light indi-
cator light (if so
equipped) 2-10
Front passenger air
bag status light
2-10
High beam indicator
light (blue)2-10
Malfunction Indica-
tor Light (MIL)2-11
Overdrive off indica-
tor light (A/T models
only)2-11
Security indicator
light
2-11
Slip indicator light 2-12
Turn signal/hazard
indicator lights2-12
WARNING/INDICATOR LIGHTS
0-8Illustrated table of contents

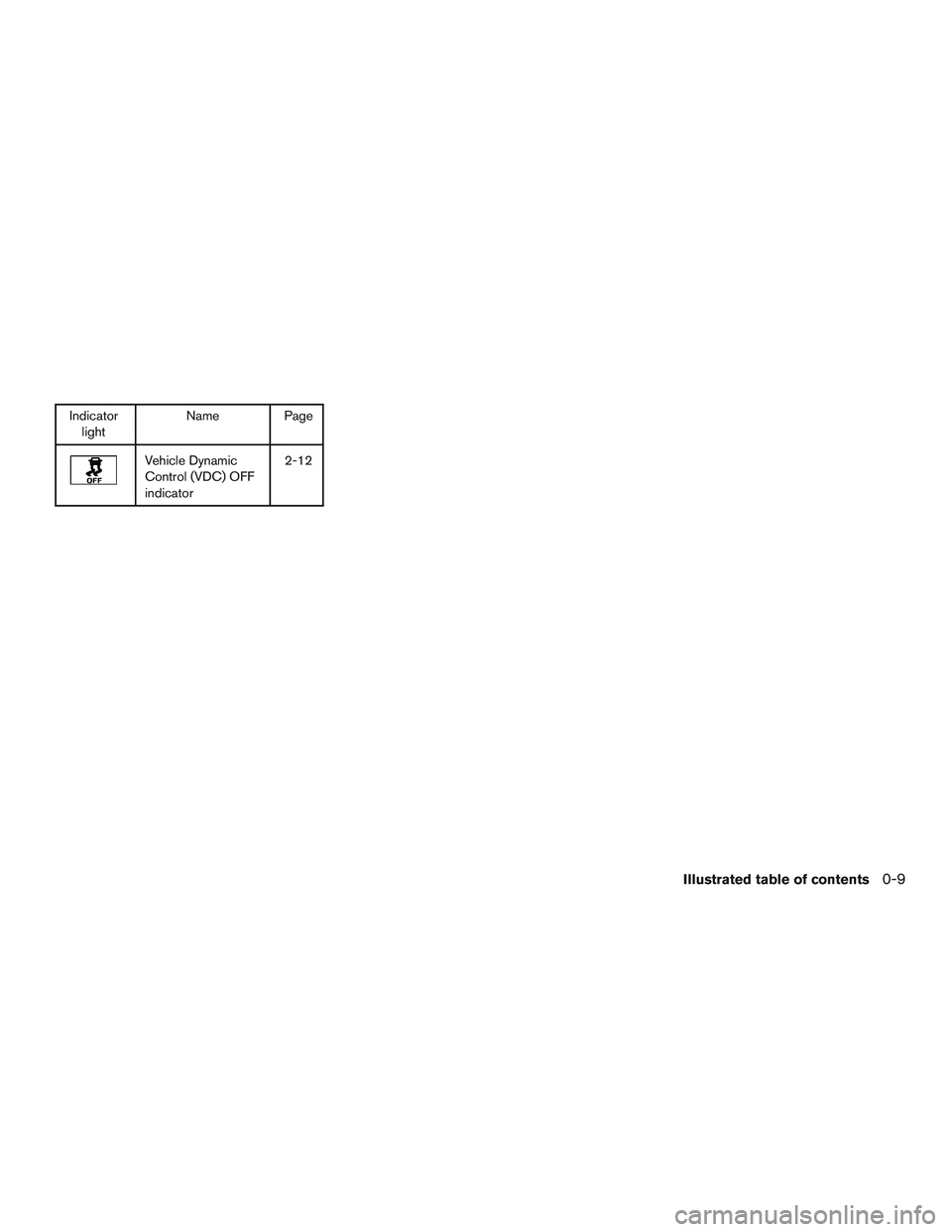

Indicatorlight Name Page
Vehicle Dynamic
Control (VDC) OFF
indicator 2-12
Illustrated table of contents0-9
