2015 NISSAN MICRA Owner´s Manual

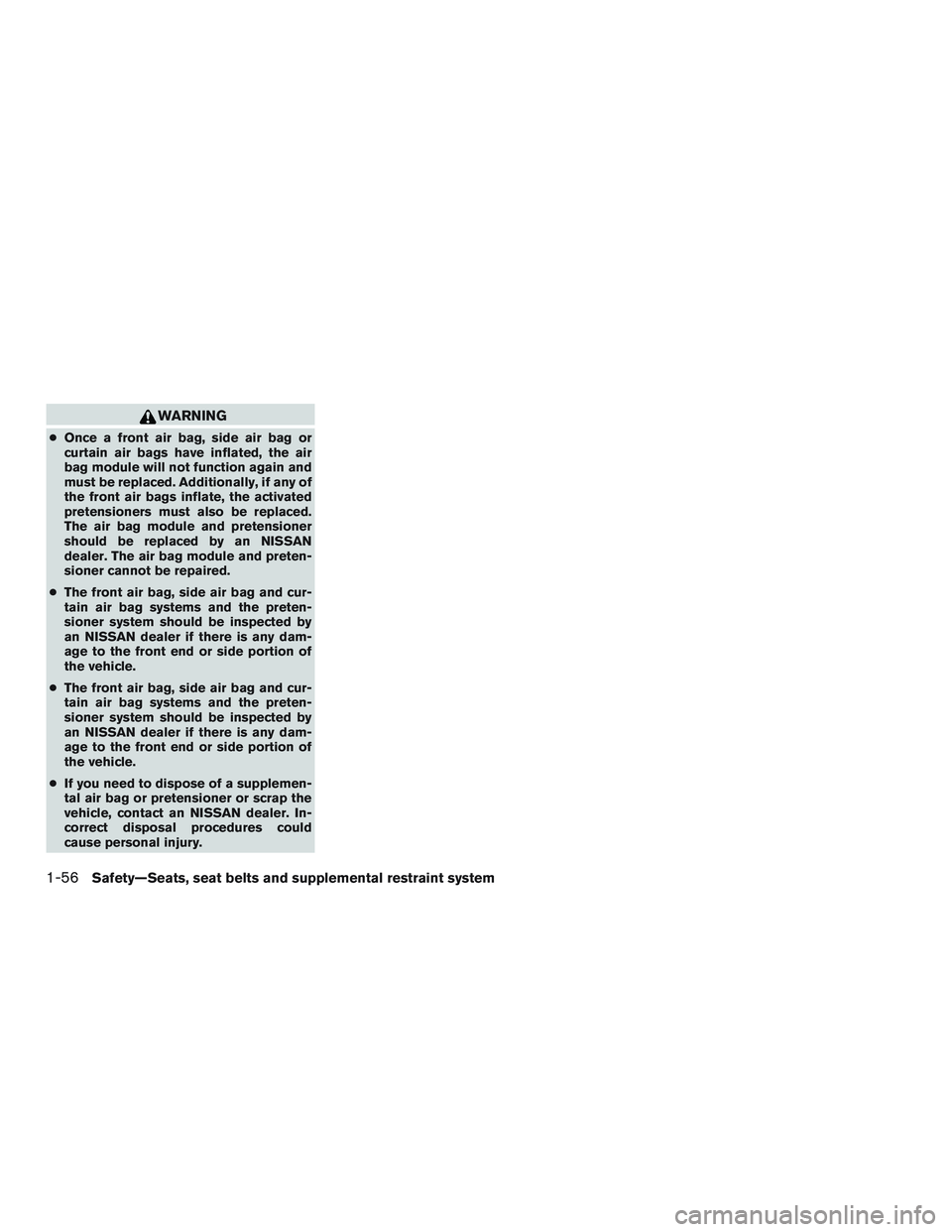

WARNING
●Once a front air bag, side air bag or
curtain air bags have inflated, the air
bag module will not function again and
must be replaced. Additionally, if any of
the front air bags inflate, the activated
pretensioners must also be replaced.
The air bag module and pretensioner
should be replaced by an NISSAN
dealer. The air bag module and preten-
sioner cannot be repaired.
● The front air bag, side air bag and cur-
tain air bag systems and the preten-
sioner system should be inspected by
an NISSAN dealer if there is any dam-
age to the front end or side portion of
the vehicle.
● The front air bag, side air bag and cur-
tain air bag systems and the preten-
sioner system should be inspected by
an NISSAN dealer if there is any dam-
age to the front end or side portion of
the vehicle.
● If you need to dispose of a supplemen-
tal air bag or pretensioner or scrap the
vehicle, contact an NISSAN dealer. In-
correct disposal procedures could
cause personal injury.
1-56Safety—Seats, seat belts and supplemental restraint system

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-3
Tachometer ....................................2-4
Fuel gauge ....................................2-5
Trip computer ..................................2-5
Warning/indicator lights and audible reminders .......2-7
Checking bulbs ................................2-7
Warning lights .................................2-8
Indicator lights ................................ 2-10
Audible reminders ............................. 2-12
Security systems ................................. 2-13
NISSAN vehicle immobilizer system .............2-13
Windshield wiper and washer switch ...............2-14
Switch operation .............................. 2-14
Rear window wiper and washer switch ..............2-16
Rear window defroster switch ......................2-16
Headlight and turn signal switch ....................2-17
Headlight control switch ........................ 2-17Daytime running light system
....................2-18
Instrument brightness control ...................2-18
Turn signal switch ............................. 2-19
Front fog lights (if so equipped) .................2-19
Horn ............................................ 2-20
Vehicle Dynamic Control (VDC) off switch ...........2-20
Power outlet ..................................... 2-21
Storage ......................................... 2-21
Map pockets .................................. 2-21
Storage trays ................................. 2-22
Cup holders .................................. 2-22
Soft bottle holder .............................. 2-23
Glove box .................................... 2-23
Tonneau cover (if so equipped) ..................2-23
Windows ........................................ 2-24
Power windows (if so equipped) ................2-24
Manual windows (if so equipped) ................2-26
Interior light ...................................... 2-27
Luggage

compartment light ........................ 2-27

1. Headlight/turn signal switch (P. 2-17)
2. Driver’s supplemental air bag/horn(P. 1-47, 2-20)
3. Meters and gauges (P. 2-3)
4. Windshield wiper/washer switch
(P. 2-14) 5. Center vents (P. 4-6)
6. Rear window and outside mirror (if so
equipped) defroster switch (P. 2-16)
7. Hazard warning flasher switch (P. 6-2)
8. Front passenger bag status light
(P. 1-49) 9. Climate controls (P. 4-7)
10. Audio system (P. 4-31, 4-23)
11. Passenger’s supplemental air bag
(P. 1-47)
12. Side vents (P. 4-6)
13. Electronic outside rearview mirror con-
trol switch (if so equipped) (P.3-15)
14. Vehicle Dynamic Control (VDC) off
switch (P. 2-20)
15. Fuel-filler lid release lever
(P. 3-11)/Hood release lever (P. 3-9)
16. Audio control switches (if so equipped)
(P.4-44)
17. Tilt steering (P. 3-13)
18. Ignition switch (P. 5-5)
19. Cruise control (if so equipped) (P.5-15)
20. Shift lever (P. 5-8)
21. Cup holders (P. 2-22)
22. Glove box (P. 2-23)
23. 12v power outlet (P. 2-21)
24. USB port (if so equipped) (P. 4-40)Refer to the page number indicated in pa-
rentheses for operating details.LIC2799
INSTRUMENT PANEL
2-2Instruments and controls

1. Tachometer
2. Speedometer
3. Trip odometer reset switch/trip com-puter mode
4. Instrument brightness control 5. Automatic Transmission (A/T) position
indicator (A/T models only)
6. Odometer/twin trip odometer/trip com-
puter
7. Fuel gauge
SPEEDOMETER AND ODOMETER
Speedometer
The speedometer indicates the vehicle speed.
LIC2283
LIC2118
METERS AND GAUGES
Instruments and controls2-3

Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer
1records the total distance the
vehicle has been driven.
The twin trip odometer
2records the distance
of individual trips. Changing the display:
Press the change button
3to change the dis-
play as follows:
Odo →Trip A →Trip B →Ins fuel consumption →
Average fuel consumption →Cruising range or
(DTE) →Odo
For trip computer information, refer to “Trip com-
puter” in this section.
Resetting the trip odometer:
Press the change/reset button
3for more than
1 second to reset the currently displayed trip
odometer to zero.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) . Do not rev the engine
into the red zone
1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.
LIC2119LIC2107
2-4Instruments and controls

FUEL GAUGE
The gauge indicatesAtheapproximate fuel
level in the tank when the ignition switch is placed
in the ON position.
When one segment remains on the digital fuel
gauge, only one segment will blink. When no
segments remain on the digital fuel gauge, the
fuel gauge symbol and the scale will blink.
Refill the fuel tank before the gauge regis-
ters E (Empty) .
The
indicates that the fuel-filler door is
located on the driver’s side of the vehicle.
CAUTION
● If the vehicle runs out of fuel, thecheck engine light may come on. Refuel
as soon as possible. After a few driving
trips, the
light should turn off. If
the light remains on after a few driving
trips, have the vehicle inspected by a
NISSAN dealer.
● For additional information, refer to
“Malfunction Indicator Light (MIL)” in
this section.
TRIP COMPUTER
When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer
change/reset button
Aon the instrument panel
located near the speedometer. The following
modes can be selected in the display
B:
● Instant fuel consumption
● Average fuel consumption
● Distance to empty
LIC2167LIC2168
Instruments and controls2-5

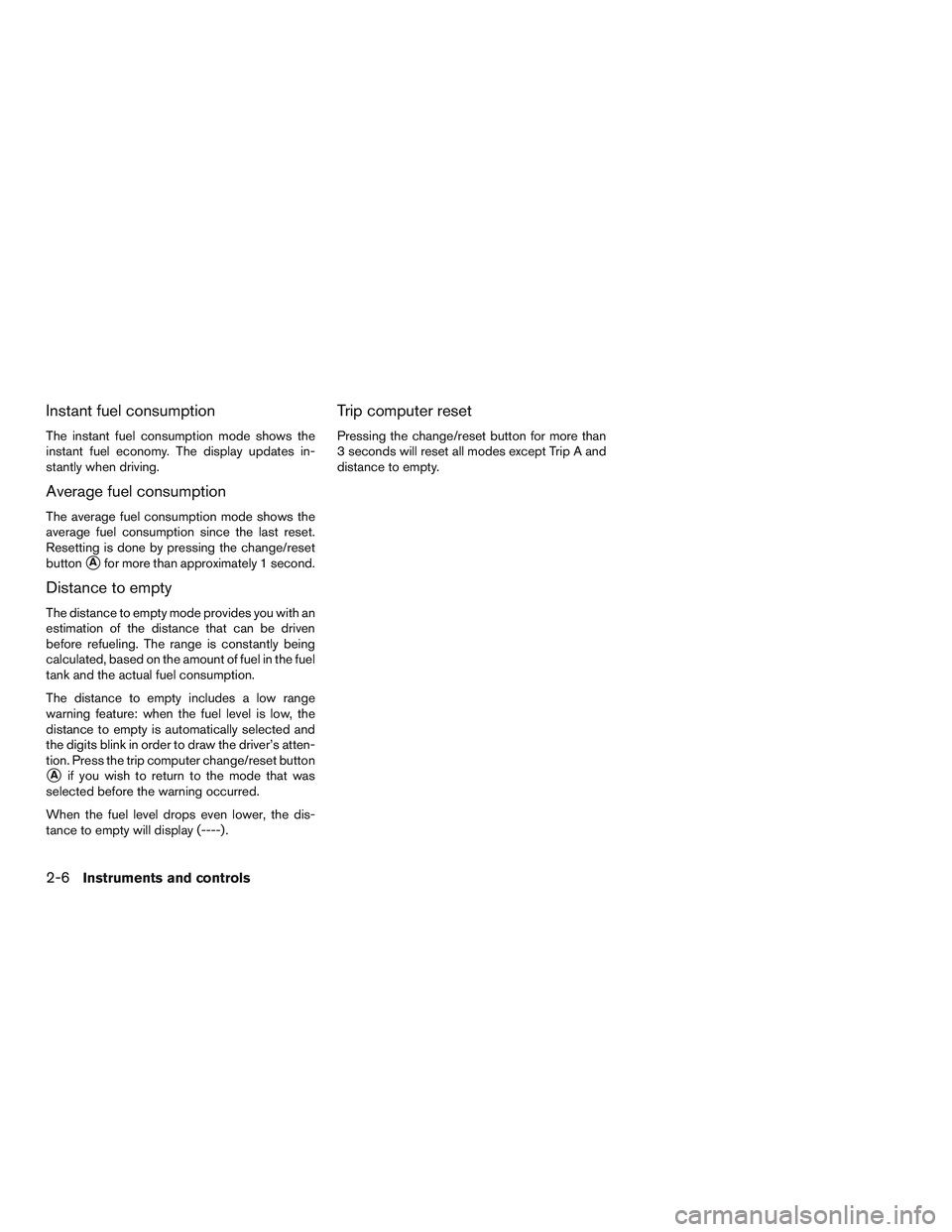

Instant fuel consumption
The instant fuel consumption mode shows the
instant fuel economy. The display updates in-
stantly when driving.
Average fuel consumption
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pressing the change/reset
button
Afor more than approximately 1 second.
Distance to empty
The distance to empty mode provides you with an
estimation of the distance that can be driven
before refueling. The range is constantly being
calculated, based on the amount of fuel in the fuel
tank and the actual fuel consumption.
The distance to empty includes a low range
warning feature: when the fuel level is low, the
distance to empty is automatically selected and
the digits blink in order to draw the driver’s atten-
tion. Press the trip computer change/reset button
Aif you wish to return to the mode that was
selected before the warning occurred.
When the fuel level drops even lower, the dis-
tance to empty will display (----) .
Trip computer reset
Pressing the change/reset button for more than
3 seconds will reset all modes except Trip A and
distance to empty.
2-6Instruments and controls

Anti-lock Braking System (ABS)
warning lightLow windshield-washer fluid
warning lightFront passenger air bag status
lightVehicle Dynamic Control (VDC)
OFF indicator light
Brake warning lightPower steering warning lightHigh beam indicator light (blue)
Charge warning lightSeat belt warning light and
chimeMalfunction Indicator Light
(MIL)
Door open warning light
(if so equipped)Supplemental air bag warning
lightOverdrive OFF indicator light
(A/T models only)
Engine oil pressure warning
lightAutomatic Transmission posi-
tion indicator light (A/T models
only)Security indicator light
High temperature warning lightCruise main switch indicator
light (if so equipped)Slip indicator light
orLow fuel warning
lightFront fog light indicator light
(if so equipped)Turn signal/hazard indicator
lights
CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch the in the ON posi-
tion without starting the engine. The following
lights will come on:,,,,
If equipped, the following lights come on briefly
and then go off:
(red) ,
If any light fails to come on, it may indicate
a burned-out bulb or an open circuit in the
electrical system. Have the system repaired
promptly.
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-7
