2015 NISSAN MAXIMA navigation system

Black plate (33,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

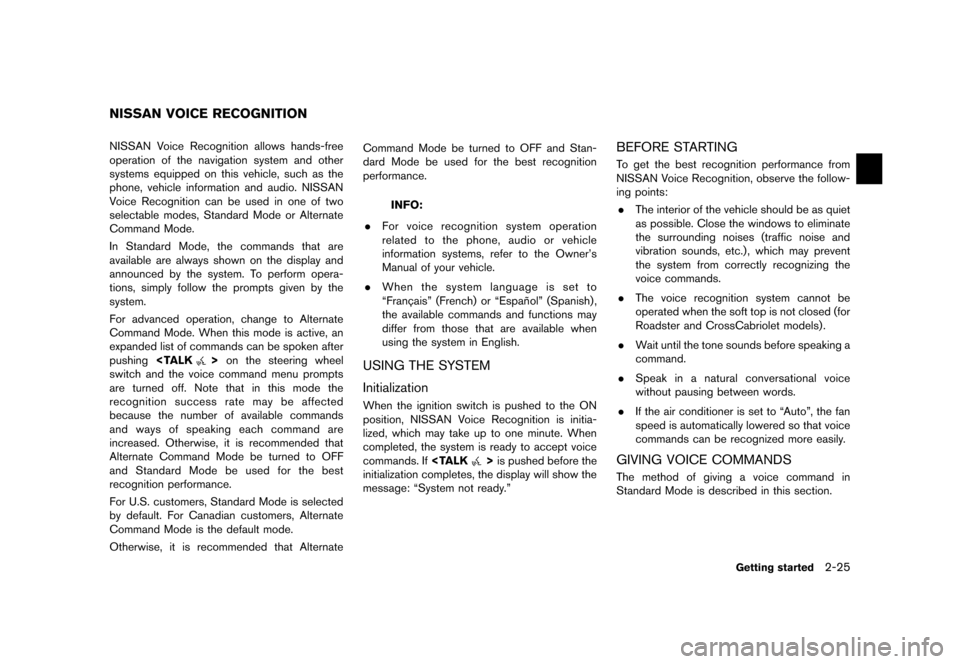

GUID-FD1FBD10-75D1-4081-91C2-28EA2D9965C8NISSAN Voice Recognition allows hands-free
operation of the navigation system and other
systems equipped on this vehicle, such as the
phone, vehicle information and audio. NISSAN
Voice Recognition can be used in one of two
selectable modes, Standard Mode or Alternate
Command Mode.
In Standard Mode, the commands that are
available are always shown on the display and
announced by the system. To perform opera-
tions, simply follow the prompts given by the
system.
For advanced operation, change to Alternate
Command Mode. When this mode is active, an
expanded list of commands can be spoken after
pushing >on the steering wheel
switch and the voice command menu prompts
are turned off. Note that in this mode the
recognition success rate may be affected
because the number of available commands
and ways of speaking each command are
increased. Otherwise, it is recommended that
Alternate Command Mode be turned to OFF
and Standard Mode be used for the best
recognition performance.
For U.S. customers, Standard Mode is selected
by default. For Canadian customers, Alternate
Command Mode is the default mode.
Otherwise, it is recommended that Alternate Command Mode be turned to OFF and Stan-
dard Mode be used for the best recognition
performance.
INFO:
. For voice recognition system operation
related to the phone, audio or vehicle
information systems, refer to the Owner’s
Manual of your vehicle.
. When the system language is set to
“Franc¸ ais” (French) or “Espan ˜
ol” (Spanish) ,
the available commands and functions may
differ from those that are available when
using the system in English.
USING THE SYSTEMGUID-217A7C91-A24A-4CAA-8F70-88C9037B64BF
InitializationGUID-3CE79205-468E-4D21-8B8F-B89EA20C4D01When the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If >is pushed before the
initialization completes, the display will show the
message: “System not ready.”
BEFORE STARTINGGUID-6E89E7AB-27A3-461E-A6D4-075A500F249FTo get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing points:
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.), which may prevent
the system from correctly recognizing the
voice commands.
. The voice recognition system cannot be
operated when the soft top is not closed (for
Roadster and CrossCabriolet models).
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to “Auto”, the fan
speed is automatically lowered so that voice
commands can be recognized more easily.
GIVING VOICE COMMANDSGUID-4BB6A4C9-7581-46E3-8A47-EAC62DB10347The method of giving a voice command in
Standard Mode is described in this section.
Getting started2-25
NISSAN VOICE RECOGNITION

Black plate (34,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-26Getting started
NGT0092Type A
JNB0093XType B
JNB0299XType C
1. Pushlocated on the steering
wheel switch.
NGT00682. A list of commands appears on the screen, and the system provides the voice menu
prompt “Would you like to access Phone,
Navigation, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from [
] to [], speak a
command. 4. Continue to follow the voice menu prompts
and speak after the tone sounds until
operation is completed.
Operating tipsGUID-CF72C705-9852-45A8-B220-CDE798C9F69C.Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
. If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
. Push once to return to the
previous screen.
. To cancel the command, push and hold
>. The message, “Voice recogni-
tion is canceled” will be announced.
. Push >to stop the voice prompt
and give the command at once. Remember
to wait for the tone before speaking.
. To adjust the volume of the system feed-
back, push the volume control buttons <+>
or <−> on the steering wheel switch or use
the audio system volume control knob while
the system is making an announcement.

Black plate (37,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
INFO:
Refer to the vehicle Owner’s Manual for the
operations related to phone, information and
audio.
Voice command examplesGUID-64627AA7-123D-4493-AF6F-AED702C85E6DTo use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations that are performed by voice com-
mands are described here.
Example 1: Placing a call to the phone
number 800-662-6200:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E1. Push located on the steering
wheel switch.
NGT00702. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”. 3. Speak “Phone”.
NGT00794. Speak “Dial Number”.
NGT00805. Speak “800”.
NGT0081
6. The system announces, “Please say next
three digits or dial, or say change number”.
Speak “662”.
NGT00827. The system announces, “Please say last fourdigits or say change number”. Speak
“6200”.
NGT00838. The system announces, “Dial or ChangeNumber?”. Speak “Dial”.
Getting started2-29

Black plate (38,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-30Getting started
NGT00849. The system makes a call to 800-662-6200.
INFO:
. Speaking “800-662-6200” (10 continuous
digits) or “662-6200” (7 continuous digits)
is acceptable, if the area code is not
necessary. However the 3-3-4 digit group-
ing is recommended for improved recogni-
tion.
“How to speak numbers” (page 9-20)
. The NISSAN voice recognition system is not
limited to recognizing phone numbers of
only 7 or 10 digits. To dial a number in a
format other than the 3-3-4 digit grouping,
use the “International Call” command.
. If “Change Number” is spoken during phone
number entry, the system will automatically
request that the number be repeated using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts. .
Do not add a “1” in front of the area code
when speaking phone numbers.
. If the system does not recognize a voice
command, please try repeating the com-
mand using a natural voice. Speaking too
slowly or too loudly may further decrease
recognition performance.
Example 2: Placing an international call to
the phone number 011-81-111-222-3333:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E1. Push located on the steering
wheel switch.
NGT00702. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”.
3. Speak “Phone”.
NGT00794. Speak “International Call”.
NGT00875. Speak “01181111222333”.
NGT0088

Black plate (39,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
6. Speak “Dial”.
NGT00897. The system makes a call to 011-81-111-222-3333.
INFO:
Any digit input format is available in the
International Number input process.
Example 3: Setting a destination by a
street address:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E1. Push located on the steering
wheel switch.
NGT0070
2. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”.
3. Speak “Navigation”.
JNB0277X4. Speak “Address”.
NGT00725. Speak the name of the state, “California”.
NGT00736. Speak the name of the city, “Gardena”.
NGT00937. Voice feedback will be provided when the command is accepted, and the list of city
names is displayed.
8. After the tone sounds and the icon on the screen changes again, speak “One”.
Getting started2-31

Black plate (60,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
3-20Map settings
MAP SYMBOLSGUID-FC1FD5A7-448C-4826-9850-38E2CAAC41DFThis navigation system uses symbols to display
facilities.
NMA0054

Black plate (67,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
INFO:
In some cases, when a street name has
been entered, the number of matching
destinations in the “Matches” column may
be different from the number displayed on
the list screen. If this occurs, enter more
characters to further reduce the number of
matches.
NDE00115. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed destination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location
of the destination can be adjusted, the route
can be stored, etc.
“Procedures after setting destination” (page 5-2)
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To set the destination from a street address:
“Navigation” “Address” (Standard mode)
“Address” (Alternate command mode)
INFO:
When using a voice command to set a street
name, the complete street name is recom-
mended to be stated.
Examples:
Correct input – North Elm Street East Jefferson Boulevard
Incorrect input – Elm Street East Jefferson
FINDING PLACEGUID-3DDEE2B7-BD88-493F-BB9C-A2A23D890CB2There are 3 methods to set the destination to
places of interest: typing the name, choosing a
category or selecting a Zagat reviewed location.
To help improve searching, different start points
can be chosen to search from such as Near
Current Location, Near the Destination, or a City
Center.
Finding nearby placeGUID-52051353-8473-4C50-93CA-11C08E61AD8D
NDE00121. Push.
2. Highlight [Places] and push .
NDE00133. Highlight the preferred nearby category from
the list and push .
A list screen is displayed.
INFO:
Highlight [Customize Nearby Places] to
customize the nearby places list to show
categories that are frequently used.
Setting destination4-5

Black plate (68,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
4-6Setting destination
NDE00144. Highlight the preferred destination from thelist, and push . The position of
the selected location is displayed in the
preview on the right side of the screen.
INFO:
.A maximum of 100 facilities can be displayed on the list screen.
.To search for facilities along your route, select [Show Along Route].
NDE0015
5. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed destination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
If there is a route already set, the newly selected
location can substitute a previously set destina-
tion or be added to a route already set.
Other settings:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E
NDE0016The destination can also be set by pushing
in the current or scrolled location
map screen and selecting [Nearby Places].
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To display the nearby category list and select the
destination from it:
“Navigation” “Places” (Standard mode)
“Places” (Alternate command mode)
Searching by other methodsGUID-2FD66D7E-D7C7-47C7-A461-3C5A7A26136D
NDE00121. Push .
2. Highlight [Places] and push .
