2015 NISSAN MAXIMA navigation system

Black plate (139,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

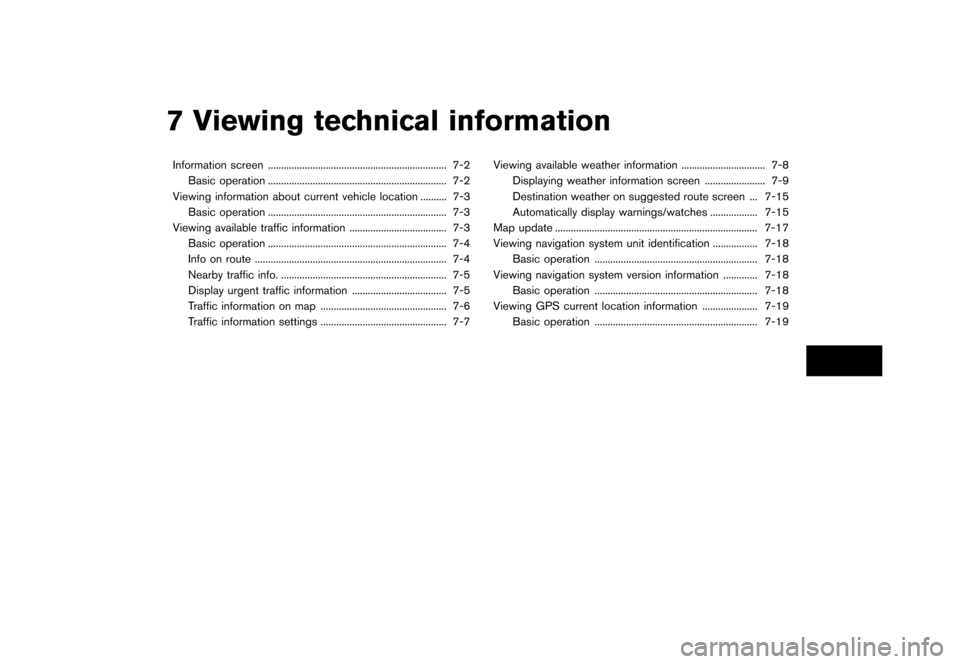

7 Viewing technical information
Information screen...
.................................................................... 7-2
Basic operation ...
.................................................................... 7-2
Viewing information about current vehicle location ...
.......... 7-3
Basic operation ...
.................................................................... 7-3
Viewing available traffic information ...
..................................... 7-3
Basic operation ...
.................................................................... 7-4
Info on route ...
........................................................................\
. 7-4
Nearby traffic info. ...
............................................................... 7-5
Display urgent traffic information ...
.................................... 7-5
Traffic information on map ...
................................................ 7-6
Traffic information settings ...
................................................ 7-7 Viewing available weather information
...
................................ 7-8
Displaying weather information screen ...
....................... 7-9
Destination weather on suggested route screen ...
... 7-15
Automatically display warnings/watches ...
.................. 7-15
Map update ...
........................................................................\
..... 7-17
Viewing navigation system unit identification ...
................. 7-18
Basic operation ...
.............................................................. 7-18
Viewing navigation system version information ...
............. 7-18
Basic operation ...
.............................................................. 7-18
Viewing GPS current location information ...
..................... 7-19
Basic operation ...
.............................................................. 7-19

Black plate (140,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

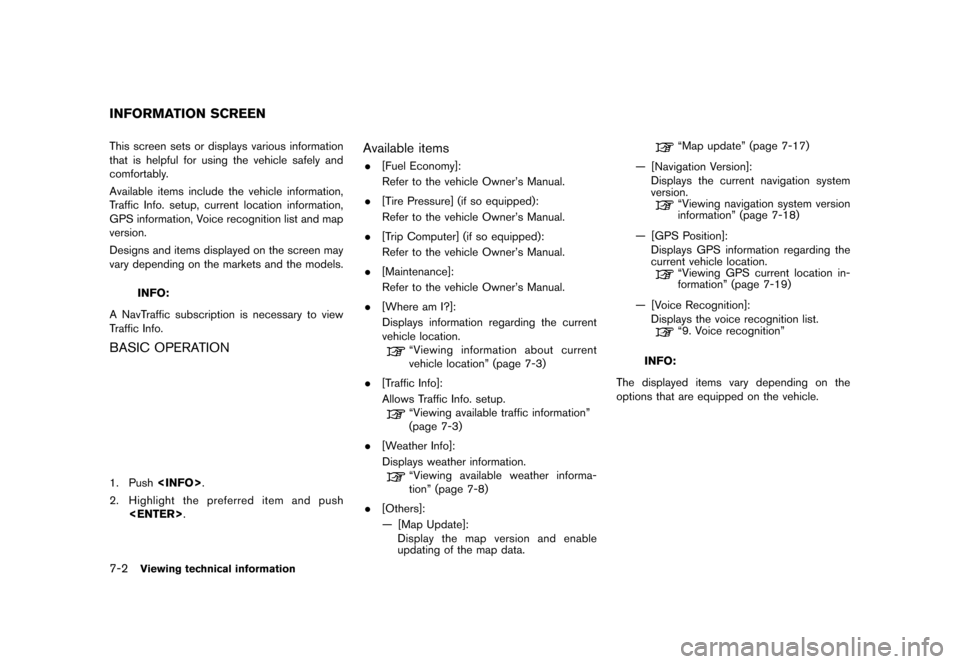

7-2Viewing technical information
GUID-4EDDA096-FC11-41F0-B857-178F3DC89E9AThis screen sets or displays various information
that is helpful for using the vehicle safely and
comfortably.
Available items include the vehicle information,
Traffic Info. setup, current location information,
GPS information, Voice recognition list and map
version.
Designs and items displayed on the screen may
vary depending on the markets and the models.
INFO:
A NavTraffic subscription is necessary to view
Traffic Info.
BASIC OPERATIONGUID-92A2336D-5526-4004-A06A-F3BC3265AF22
NIN00011. Push .
2. Highlight the preferred item and push
.
Available itemsGUID-6E9C6094-026F-4DBC-BE1B-878A137D9ACD.[Fuel Economy]:
Refer to the vehicle Owner’s Manual.
. [Tire Pressure] (if so equipped):
Refer to the vehicle Owner’s Manual.
. [Trip Computer] (if so equipped):
Refer to the vehicle Owner’s Manual.
. [Maintenance]:
Refer to the vehicle Owner’s Manual.
. [Where am I?]:
Displays information regarding the current
vehicle location.
“Viewing information about current
vehicle location” (page 7-3)
. [Traffic Info]:
Allows Traffic Info. setup.
“Viewing available traffic information”
(page 7-3)
. [Weather Info]:
Displays weather information.
“Viewing available weather informa-
tion” (page 7-8)
. [Others]:
— [Map Update]:
Display the map version and enable
updating of the map data.
“Map update” (page 7-17)
— [Navigation Version]: Displays the current navigation system
version.
“Viewing navigation system version
information” (page 7-18)
— [GPS Position]: Displays GPS information regarding the
current vehicle location.
“Viewing GPS current location in-
formation” (page 7-19)
— [Voice Recognition]: Displays the voice recognition list.
“9. Voice recognition”
INFO:
The displayed items vary depending on the
options that are equipped on the vehicle.
INFORMATION SCREEN

Black plate (141,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
GUID-2E229568-4415-4B37-8F8E-E0BF9708690DThis displays the information about the vehicle
location on the route when driving according to
route guidance.
NIN0054BASIC OPERATIONGUID-4E861DCA-CBDA-4C56-BAD7-BD3911E7E0F31. Push.
2. Highlight [Where am I?] and push
.
3. Push to return to the previous
screen. Push

Black plate (146,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

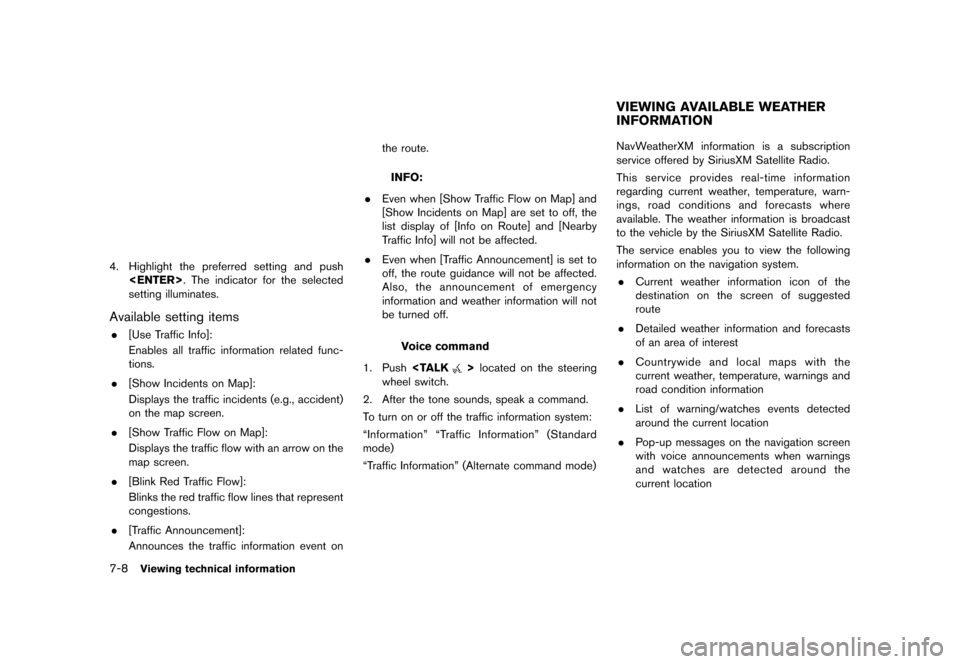

7-8Viewing technical information
NIN00384. Highlight the preferred setting and push. The indicator for the selected
setting illuminates.
Available setting itemsGUID-E9A89D82-7302-444A-98E7-C7B1C949A3F7.[Use Traffic Info]:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Blink Red Traffic Flow]:
Blinks the red traffic flow lines that represent
congestions.
. [Traffic Announcement]:
Announces the traffic information event on the route.
INFO:
. Even when [Show Traffic Flow on Map] and
[Show Incidents on Map] are set to off, the
list display of [Info on Route] and [Nearby
Traffic Info] will not be affected.
. Even when [Traffic Announcement] is set to
off, the route guidance will not be affected.
Also, the announcement of emergency
information and weather information will not
be turned off.
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To turn on or off the traffic information system:
“Information” “Traffic Information” (Standard
mode)
“Traffic Information” (Alternate command mode)
GUID-8394F5A9-674B-4EA4-A4B7-41BDB9D1CE5FNavWeatherXM information is a subscription
service offered by SiriusXM Satellite Radio.
This service provides real-time information
regarding current weather, temperature, warn-
ings, road conditions and forecasts where
available. The weather information is broadcast
to the vehicle by the SiriusXM Satellite Radio.
The service enables you to view the following
information on the navigation system. . Current weather information icon of the
destination on the screen of suggested
route
. Detailed weather information and forecasts
of an area of interest
. Countrywide and local maps with the
current weather, temperature, warnings and
road condition information
. List of warning/watches events detected
around the current location
. Pop-up messages on the navigation screen
with voice announcements when warnings
and watches are detected around the
current location
VIEWING AVAILABLE WEATHER
INFORMATION

Black plate (154,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

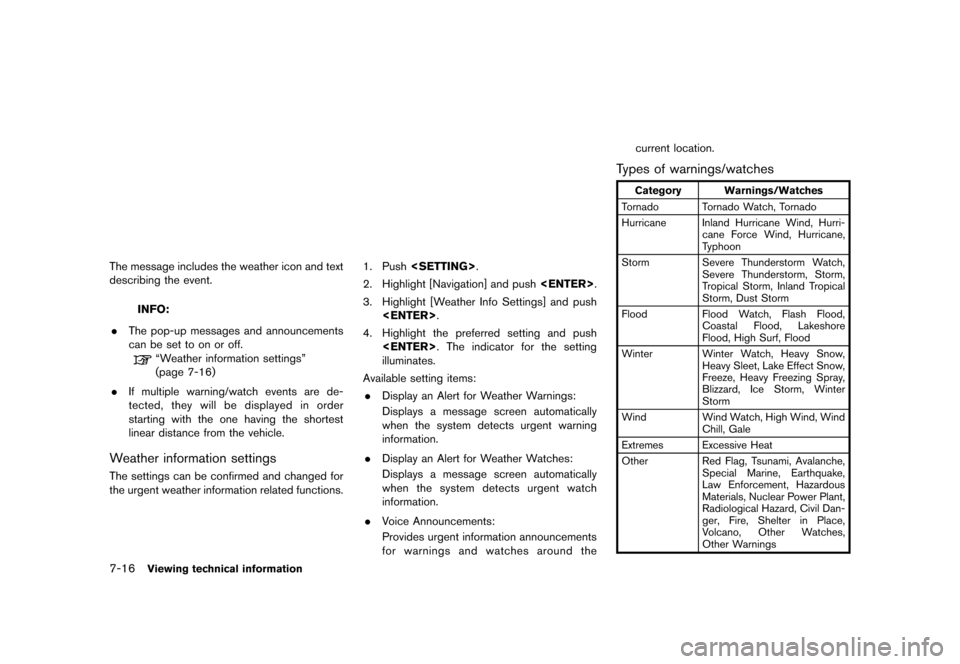

7-16Viewing technical information
NIN0033The message includes the weather icon and text
describing the event.
INFO:
. The pop-up messages and announcements
can be set to on or off.
“Weather information settings”
(page 7-16)
. If multiple warning/watch events are de-
tected, they will be displayed in order
starting with the one having the shortest
linear distance from the vehicle.
Weather information settingsGUID-4AF860D8-29F6-44C2-A69B-67744C8748BDThe settings can be confirmed and changed for
the urgent weather information related functions.
NIN00531. Push .
2. Highlight [Navigation] and push .
3. Highlight [Weather Info Settings] and push .
4. Highlight the preferred setting and push . The indicator for the setting
illuminates.
Available setting items: . Display an Alert for Weather Warnings:
Displays a message screen automatically
when the system detects urgent warning
information.
. Display an Alert for Weather Watches:
Displays a message screen automatically
when the system detects urgent watch
information.
. Voice Announcements:
Provides urgent information announcements
for warnings and watches around the current location.
Types of warnings/watchesGUID-D5907240-E2BF-4242-A4FF-F6EA93E6BF0C
Category Warnings/Watches
Tornado Tornado Watch, Tornado
Hurricane Inland Hurricane Wind, Hurri- cane Force Wind, Hurricane,
Typhoon
Storm Severe Thunderstorm Watch, Severe Thunderstorm, Storm,
Tropical Storm, Inland Tropical
Storm, Dust Storm
Flood Flood Watch, Flash Flood,
Coastal Flood, Lakeshore
Flood, High Surf, Flood
Winter Winter Watch, Heavy Snow, Heavy Sleet, Lake Effect Snow,
Freeze, Heavy Freezing Spray,
Blizzard, Ice Storm, Winter
Storm
Wind Wind Watch, High Wind, Wind
Chill, Gale
Extremes Excessive Heat
Other Red Flag, Tsunami, Avalanche,
Special Marine, Earthquake,
Law Enforcement, Hazardous
Materials, Nuclear Power Plant,
Radiological Hazard, Civil Dan-
ger, Fire, Shelter in Place,
Volcano, Other Watches,
Other Warnings

Black plate (155,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

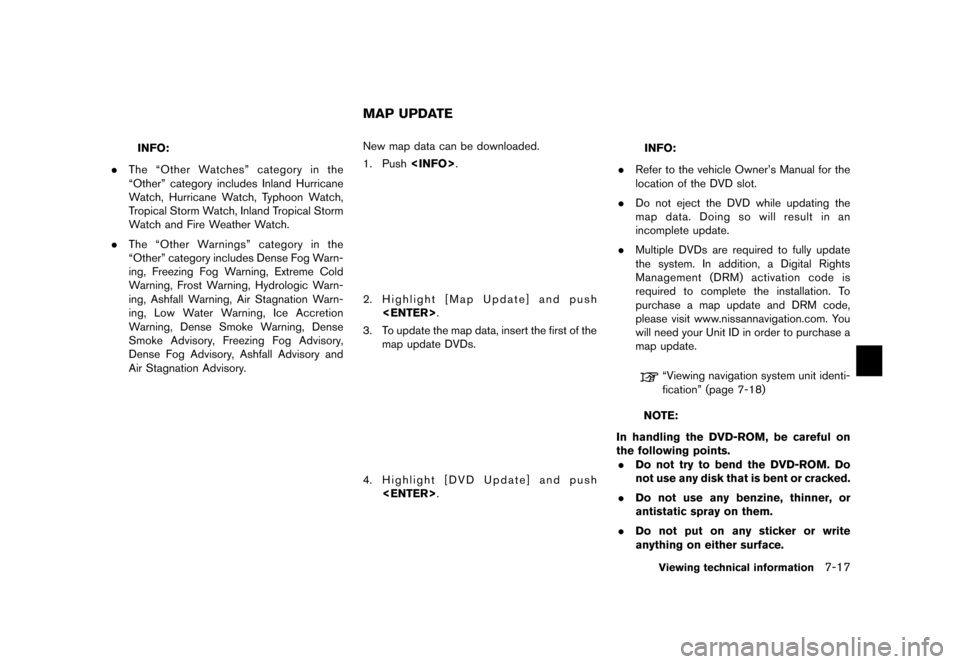

INFO:
. The “Other Watches” category in the
“Other” category includes Inland Hurricane
Watch, Hurricane Watch, Typhoon Watch,
Tropical Storm Watch, Inland Tropical Storm
Watch and Fire Weather Watch.
. The “Other Warnings” category in the
“Other” category includes Dense Fog Warn-
ing, Freezing Fog Warning, Extreme Cold
Warning, Frost Warning, Hydrologic Warn-
ing, Ashfall Warning, Air Stagnation Warn-
ing, Low Water Warning, Ice Accretion
Warning, Dense Smoke Warning, Dense
Smoke Advisory, Freezing Fog Advisory,
Dense Fog Advisory, Ashfall Advisory and
Air Stagnation Advisory.
GUID-82274F80-C030-482B-B018-23845E3B9E2CNew map data can be downloaded.
1. Push .
NIN00102.Highlight [Map Update] and push
.
3. To update the map data, insert the first of the map update DVDs.
NIN00114.Highlight [DVD Update] and push
.
INFO:
. Refer to the vehicle Owner’s Manual for the
location of the DVD slot.
. Do not eject the DVD while updating the
map data. Doing so will result in an
incomplete update.
. Multiple DVDs are required to fully update
the system. In addition, a Digital Rights
Management (DRM) activation code is
required to complete the installation. To
purchase a map update and DRM code,
please visit www.nissannavigation.com. You
will need your Unit ID in order to purchase a
map update.
“Viewing navigation system unit identi-
fication” (page 7-18)
NOTE:
In handling the DVD-ROM, be careful on
the following points. . Do not try to bend the DVD-ROM. Do
not use any disk that is bent or cracked.
. Do not use any benzine, thinner, or
antistatic spray on them.
. Do not put on any sticker or write
anything on either surface.
Viewing technical information7-17
MAP UPDATE

Black plate (156,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

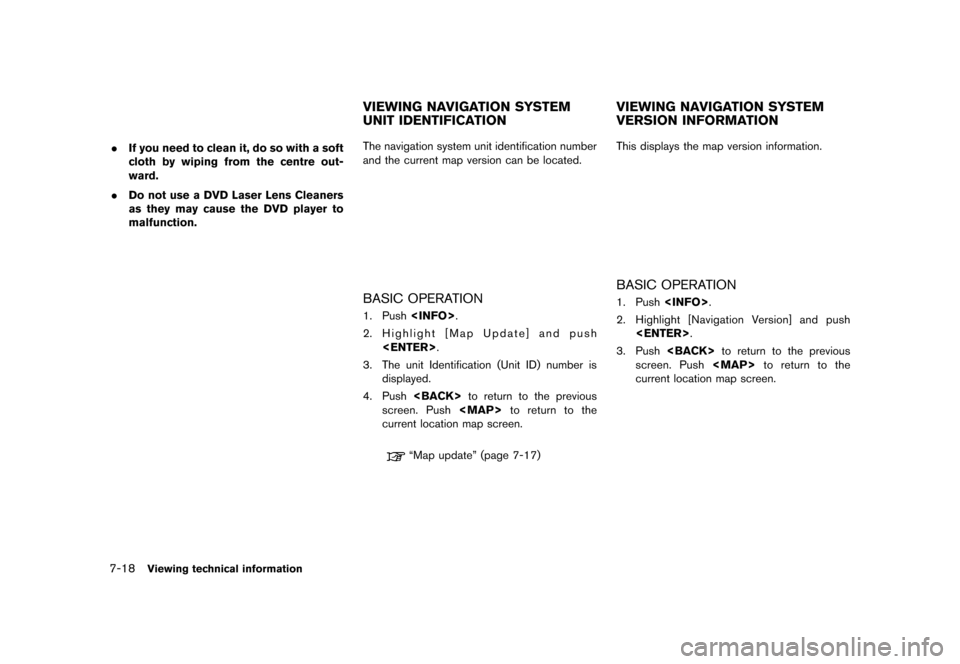

7-18Viewing technical information
.If you need to clean it, do so with a soft
cloth by wiping from the centre out-
ward.
. Do not use a DVD Laser Lens Cleaners
as they may cause the DVD player to
malfunction.
GUID-AAB50C73-546F-49B0-96AC-C40ABA6A0150The navigation system unit identification number
and the current map version can be located.
NIN0011BASIC OPERATIONGUID-366CF82A-B200-440E-8FC0-55CC493589641. Push .
2. Highlight [Map Update] and push
.
3. The unit Identification (Unit ID) number is displayed.
4. Push to return to the previous
screen. Push

Black plate (160,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
8-2Other settings
GUID-6C304C6D-8E4E-46F1-A8AC-ED4AC968621EThe navigation system can be customized to
make it easier for you to use.
BASIC OPERATIONGUID-99F3AE8C-0AFC-4B27-8A61-549AFD35A036
NSE00011. Push.
2. Highlight the preferred setting item and
push .
Available setting itemsGUID-788F0E55-36DC-4D36-9419-8D162954A5FB.[Navigation]:
Adjust various settings of the navigation
system.
“Navigation setting” (page 8-6)
. [Audio]:
Refer to the vehicle Owner’s Manual.
. [Phone]:
Refer to the vehicle Owner’s Manual.
. [Bluetooth]:
Set Bluetooth
®Audio and Phone.
Refer to the vehicle Owner’s Manual. .
[Volume and Beeps]:
“Volume adjustment” (page 8-11)
. [Rear Display] (if so equipped):
Refer to the vehicle Owner’s Manual.
. [Display]:
“Display settings” (page 8-3)
. [Clock]:
“Clock settings” (page 8-12)
. [Others]:
— [Comfort]:
This item is displayed when the ignition
switch is in the ON position.
Refer to the vehicle Owner’s Manual.
— [Language and Units]:
“Language and unit settings”
(page 8-13)
— [Voice Recognition]:
“System feedback announcement
modes” (page 9-20)
— [Camera] (if so equipped): Refer to the vehicle Owner’s Manual.
— [Sonar] (if so equipped): Adjust the parking sensor detection
sensitivity, etc.
Refer to the vehicle Owner’s Manual. — [Image Viewer]:
Refer to the vehicle Owner’s Manual.
INFO:
The displayed items vary depending on the
equipped options.
SETTINGS SCREEN
