2015 NISSAN MAXIMA navigation system

Black plate (73,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

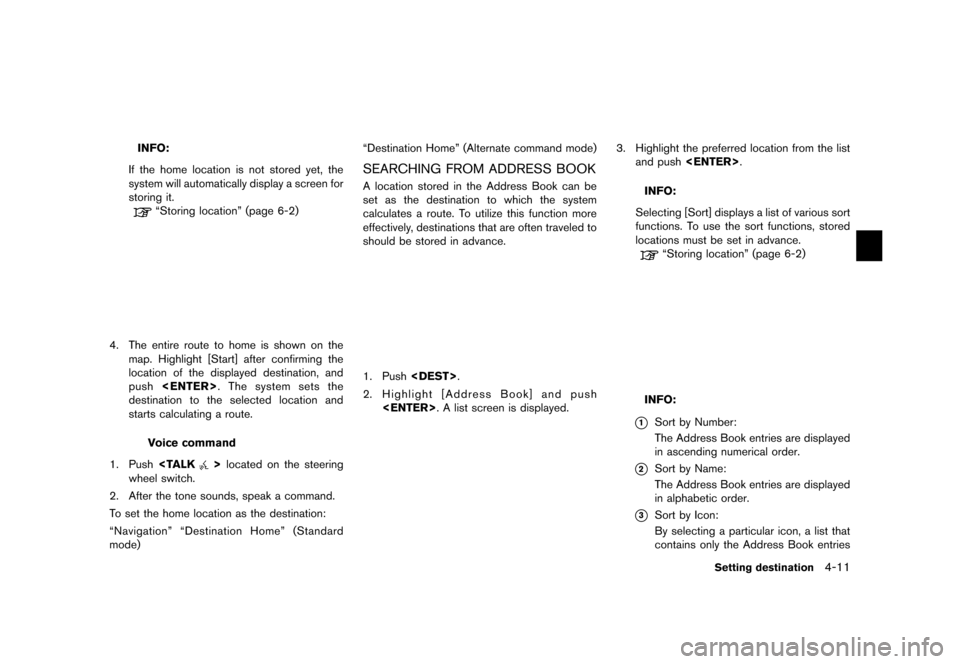

INFO:
If the home location is not stored yet, the
system will automatically display a screen for
storing it.
“Storing location” (page 6-2)
NDE00374. The entire route to home is shown on the map. Highlight [Start] after confirming the
location of the displayed destination, and
push . The system sets the
destination to the selected location and
starts calculating a route.
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To set the home location as the destination:
“Navigation” “Destination Home” (Standard
mode) “Destination Home” (Alternate command mode)
SEARCHING FROM ADDRESS BOOKGUID-879543E4-E927-408E-B827-8B554286DD90A location stored in the Address Book can be
set as the destination to which the system
calculates a route. To utilize this function more
effectively, destinations that are often traveled to
should be stored in advance.
NDE00381. Push
.
2. Highlight [Address Book] and push
. A list screen is displayed.
NDE0039
3. Highlight the preferred location from the list
and push .
INFO:
Selecting [Sort] displays a list of various sort
functions. To use the sort functions, stored
locations must be set in advance.
“Storing location” (page 6-2)
NDE0040
INFO:
*1Sort by Number:
The Address Book entries are displayed
in ascending numerical order.
*2Sort by Name:
The Address Book entries are displayed
in alphabetic order.
*3Sort by Icon:
By selecting a particular icon, a list that
contains only the Address Book entries
Setting destination4-11

Black plate (74,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

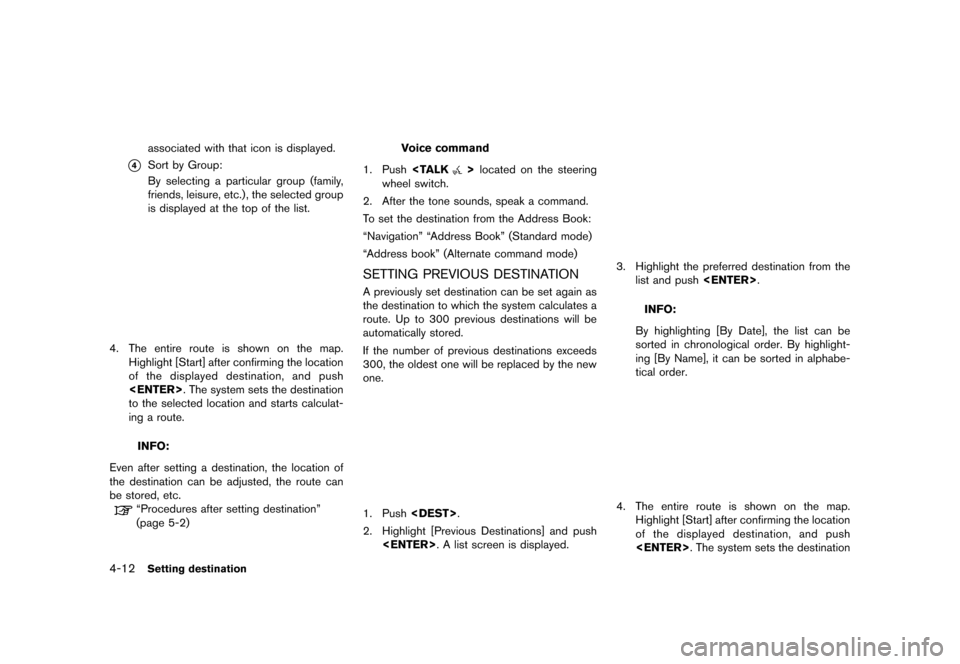

4-12Setting destination
associated with that icon is displayed.
*4Sort by Group:
By selecting a particular group (family,
friends, leisure, etc.), the selected group
is displayed at the top of the list.
NDE00414. The entire route is shown on the map.Highlight [Start] after confirming the location
of the displayed destination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.
“Procedures after setting destination”
(page 5-2)
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To set the destination from the Address Book:
“Navigation” “Address Book” (Standard mode)
“Address book” (Alternate command mode)
SETTING PREVIOUS DESTINATIONGUID-961FF82B-37C8-423A-89D5-7F56A3D728C5A previously set destination can be set again as
the destination to which the system calculates a
route. Up to 300 previous destinations will be
automatically stored.
If the number of previous destinations exceeds
300, the oldest one will be replaced by the new
one.
NDE00421. Push .
2. Highlight [Previous Destinations] and push . A list screen is displayed.
NDE00433. Highlight the preferred destination from thelist and push .
INFO:
By highlighting [By Date], the list can be
sorted in chronological order. By highlight-
ing [By Name], it can be sorted in alphabe-
tical order.
NDE00444. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed destination, and push
. The system sets the destination

Black plate (75,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.
“Procedures after setting destination”
(page 5-2)
Voice command
1. Push >located on the steering
wheel switch.
2. After the tone sounds, speak a command.
To display the Previous Destinations list:
“Navigation” “Previous Destinations” (Standard
mode)
“Previous Destinations” (Alternate command
mode)
SETTING PREVIOUS START POINTGUID-D3EABC23-3672-48AE-8031-57802CDCA4EFThe start point of the previous route guidance
can be set as the destination to which the
system calculates a route.
NDE00451. Push .
2. Highlight [Next Page] and push .
NDE00463. Highlight [Previous Start Point] and push
.
NDE00474. The previous start point is set as a destina-tion, and the entire route is shown on the
map. Highlight [Start] after confirming the
location of the displayed destination, and
push . The system sets the
destination to the selected location and
starts calculating a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.
“Procedures after setting destination”
(page 5-2)
Voice command
1. Push >located on the steering
wheel switch.
Setting destination4-13

Black plate (91,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

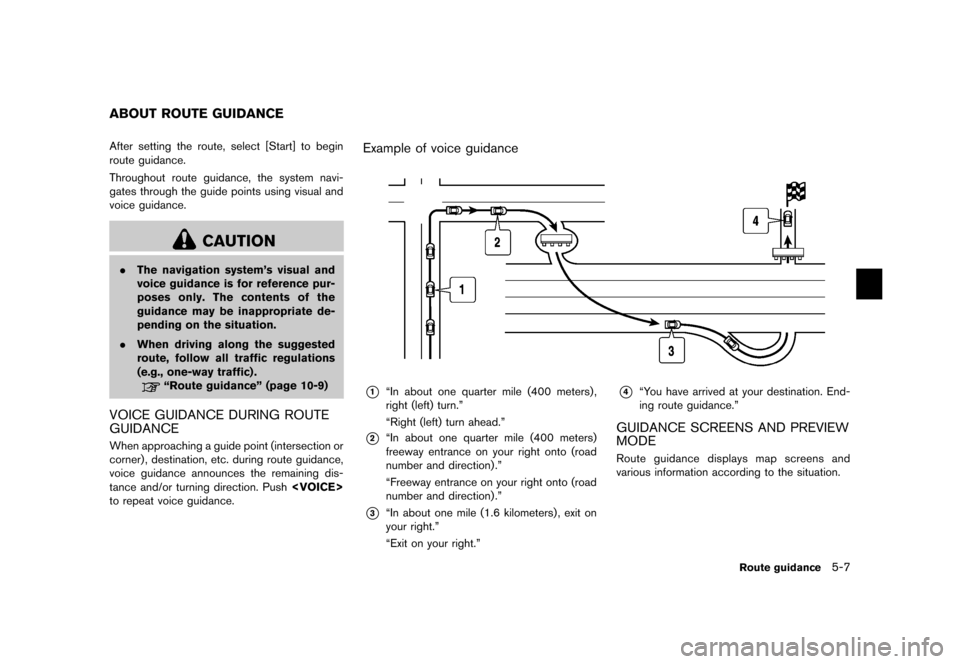

GUID-437FA6A7-F783-4919-9FB1-667800652A57After setting the route, select [Start] to begin
route guidance.
Throughout route guidance, the system navi-
gates through the guide points using visual and
voice guidance.
CAUTION
.The navigation system’s visual and
voice guidance is for reference pur-
poses only. The contents of the
guidance may be inappropriate de-
pending on the situation.
. When driving along the suggested
route, follow all traffic regulations
(e.g., one-way traffic) .
“Route guidance” (page 10-9)
VOICE GUIDANCE DURING ROUTE
GUIDANCE
GUID-10A3C111-08CC-4F86-918C-0ECF4945FE81When approaching a guide point (intersection or
corner) , destination, etc. during route guidance,
voice guidance announces the remaining dis-
tance and/or turning direction. Push
to repeat voice guidance.
Example of voice guidanceGUID-1B2F733F-51A2-4702-A46B-8B2F52D232E2
NAI0418
*1“In about one quarter mile (400 meters) ,
right (left) turn.”
“Right (left) turn ahead.”
*2“In about one quarter mile (400 meters)
freeway entrance on your right onto (road
number and direction) .”
“Freeway entrance on your right onto (road
number and direction) .”
*3“In about one mile (1.6 kilometers), exit on
your right.”
“Exit on your right.”
*4“You have arrived at your destination. End-
ing route guidance.”
GUIDANCE SCREENS AND PREVIEW
MODE
GUID-C1B6F0B6-5487-4D4C-90AE-8B26AFBDAA3CRoute guidance displays map screens and
various information according to the situation.
Route guidance5-7
ABOUT ROUTE GUIDANCE

Black plate (111,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
.[Guidance Display Settings]:
Activates or deactivates small turn arrow
display on the map.
“Displaying small turn arrow on map”
(page 5-28)
. [Estimated Time]:
Switches the display of estimated travel time
to the destination or waypoint that is
displayed on the map screen.
“Switching estimated arrival time dis-
play” (page 5-28)
. [Others]:
— [Set Average Speeds]:
Set an average vehicle speed for each
type of road, which is reflected in the
calculation of the required time to the
destination.
“Set average speeds” (page 5-29)
— [Auto Reroute]: If the vehicle deviates from the sug-
gested route, the system automatically
recalculates a route.
“Setting Auto Reroute” (page 5-21)
SETTING VOICE GUIDANCE AT IN-
TERSECTIONS
GUID-77FD38F3-D8EB-42AA-9F71-8BD92EA786D1
NRG00671. Push .
2. Highlight [Navigation] and push .
3. Highlight [Guidance Settings] and push
.
4. Highlight [Voice Guidance Settings] and
push .
NRG00835. Highlight [Intersection Guidance Settings]
and push .
NRG00646.Highlight the preferred item and push
.
Available setting itemsGUID-78F769A9-3918-4FD4-9CA4-51CAEE1848FD.[Voice Announcements]:
Sets how many times the voice guidance is
announced before the vehicle reaches an
intersection.
1. Highlight [Voice Announcements] and push .
2. Highlight the preferred item and push
.
.[Full]:
The system announces three kinds of
voice guidance: “Turning Point”, “1
Guide” and “2 Guide”.
.[Concise]:The system announces two kinds of
voice guidance: “Turning Point” and “1
Guide”.
Route guidance5-27

Black plate (113,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
6.Push

Black plate (121,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
GUID-293BCB0D-2D16-4B8F-BD4A-ED571A698FEBAn Avoid Area can be stored.
The Avoid Area is an area that can be excluded
from a route, such as a road that is always
congested. Once Avoid Areas are stored, the
system avoids those areas when calculating a
route. Up to 10 Avoid Areas can be stored.
1. Push.
NST00012. Highlight [Navigation] and push .
NST00023.Highlight [Address Book] and push
.
NST00214. Highlight [Avoid Area] and push .
NST00225. Highlight [Add New] and push.
INFO:
A maximum of 10 Avoid Areas can be
stored.
When 10 Avoid Areas are already stored, a
new Avoid Area cannot be stored until a
currently stored Avoid Area is deleted.
“Deleting stored item” (page 6-18)
NST00876. Highlight the appropriate method to search for a location and push .
“4. Setting destination”
NST00247. Set the following items for the searched
location.
Available setting items:
.[Rename]:
Changes the name.
“Rename” (page 6-16)
.[Move Location]:Adjusts the location of the Avoid Area.
“Move Location” (page 6-16)
Storing location/route6-7
STORING AVOID AREA

Black plate (122,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
6-8Storing location/route
.[Resize Area]:Adjusts the range of the Avoid Area.
“Resize Area” (page 6-16)
.[FWY]:Avoids Freeways.
“FWY” (page 6-17)
.[Delete]:Deletes the avoid area.
“Delete” (page 6-17)
8. After finishing the setting, highlight [OK] and push .
GUID-2F9B0811-F544-4F37-B2DA-3AF581679ADBItems stored in the Address Book can be
modified. These settings can be edited to make
the navigation system more useful.
NST0025BASIC OPERATIONGUID-97187BF2-B3AE-4D4C-B401-15DD9E49AF731. Push .
2. Highlight [Navigation] and push .
3. Highlight [Address Book] and push
.
4. Highlight the preferred item and push
.
Available itemsGUID-815404A1-FEEB-41ED-A39B-674B510D5788.[Stored Location]:
Edits the information of a stored home and
Address.
“Editing stored home and address”
(page 6-8)
. [Stored Routes]:
Edits the information of a stored route.
“Editing stored route” (page 6-14) .
[Stored Tracking]:
Edits the information of a stored tracked
route.
“Editing stored tracking” (page 6-14)
. [Avoid Area]:
Edits the information of a stored Avoid Area.
“Editing avoid area” (page 6-15)
. [Delete Stored Items]:
Deletes a stored location or route.
“Delete stored items” (page 8-10)
. [Transfer Address Book]:
Imports or exports the data of the stored
items using a USB memory.
EDITING STORED HOME AND AD-
DRESS
GUID-55B3E64C-040E-41C6-92AB-6A7FE497B952
NST00261. Highlight [Stored Location] and push
.
EDITING ADDRESS BOOK
