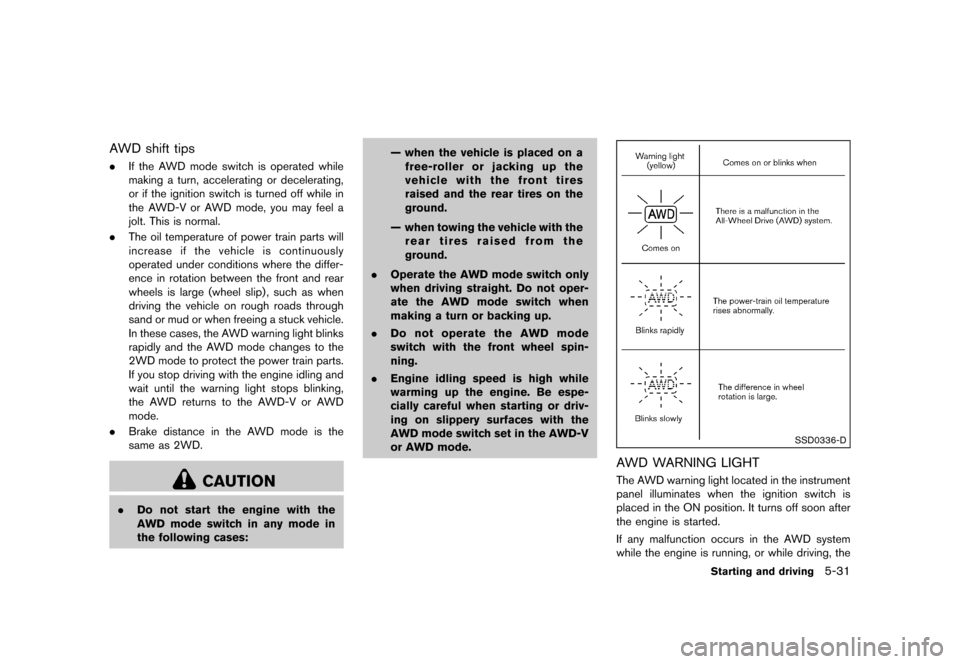

A WD shift tips
GUID-C35 72DD7-028 5-47BA-B5AE -F412F28BC6E1
. Ifthe AWD mode switch isoperated while
making aturn, accelerating ordecelerating,
or ifthe ignition switchisturned offwhile in
the AWD-V orAWD mode, youmay feela
jolt. This isnormal.
. The oiltemperature ofpower trainparts will
increase ifthe vehicle iscontinuously
operated underconditions wherethediffer-
ence inrotation between thefront andrear
wheels islarge (wheel slip),such aswhen
driving thevehicle onrough roadsthrough
sand ormud orwhen freeing astuck vehicle.
In these cases, theAWD warning lightblinks
rapidly andtheAWD mode changes tothe
2WD mode toprotect thepower trainparts.
If you stop driving withtheengine idlingand
wait until thewarning lightstops blinking,
the AWD returns tothe AWD-V orAWD
mode.
. Brake distance inthe AWD mode isthe
same as2WD.
CAUTION
. Do not start theengine withthe
AWD mode switch inany mode in
the following cases: Ð
when thevehicle isplaced ona
free-roller orjacking upthe
vehicle withthefront tires
raised andtherear tires onthe
ground.
Ð when towing thevehicle withthe
rear tires raised fromthe
ground.
. Operate theAWD mode switch only
when driving straight. Donot oper-
ate the AWD mode switch when
making aturn orbacking up.
. Do not operate theAWD mode
switch withthefront wheel spin-
ning.
. Engine idlingspeed ishigh while
warming upthe engine. Beespe-
cially careful whenstarting ordriv-
ing onslippery surfaces withthe
AWD mode switch setinthe AWD-V
or AWD mode.
SSD0336-D
A WD WARNING LIGHT
GUID-00 AD0D7B-4E5 0-437F-8A9D-C89C8757 711F
The AWD warning lightlocated inthe instrument
panel illuminates whentheignition switchis
placed inthe ON position. Itturns offsoon after
the engine isstarted.
If any malfunction occursinthe AWD system
while theengine isrunning, orwhile driving, the
Starting anddriving
5-31
&RQGLWLRQ


> (GLW   0RGHO )'@
5-32
Starting anddriving
warning lightwilleither remain illuminated or
blink.
High-temperature powertrainoildue tocon-
tinuous operation ofthe vehicle tofree astuck
vehicle makesthewarning lightblink rapidly
(about twicepersecond) .The driving modemay
change tothe 2WD mode. Ifthe warning light
blinks rapidly duringoperation, stopthevehicle
with theengine idlinginasafe place immedi-
ately .Then ifthe light goes offafter awhile, you
can continue driving.
A large difference betweenthediameters of
front andrear wheels willmake thewarning light
blink slowly (about onceper2seconds) .Pull off
the road inasafe area, andidletheengine.
Check thatalltire sizes arethesame, tire
pressure iscorrect andtires arenot worn.
Change theAWD mode switch tothe 2WD
mode anddonot drive fast.
CAUTION
. Ifthe warning lightilluminates while
driving, AWDmode willbechanged
to 2WD mode. Reduce thevehicle
speed andhave yourvehicle
checked byaNISSAN dealeras
soon aspossible. Beespecially
careful whendriving. .
The power trainmaybedamaged if
you continue drivingwiththeAWD
warning lightblinking rapidly.
&RQGLWLRQ


> (GLW   0RGHO )'@
5-34
Starting anddriving

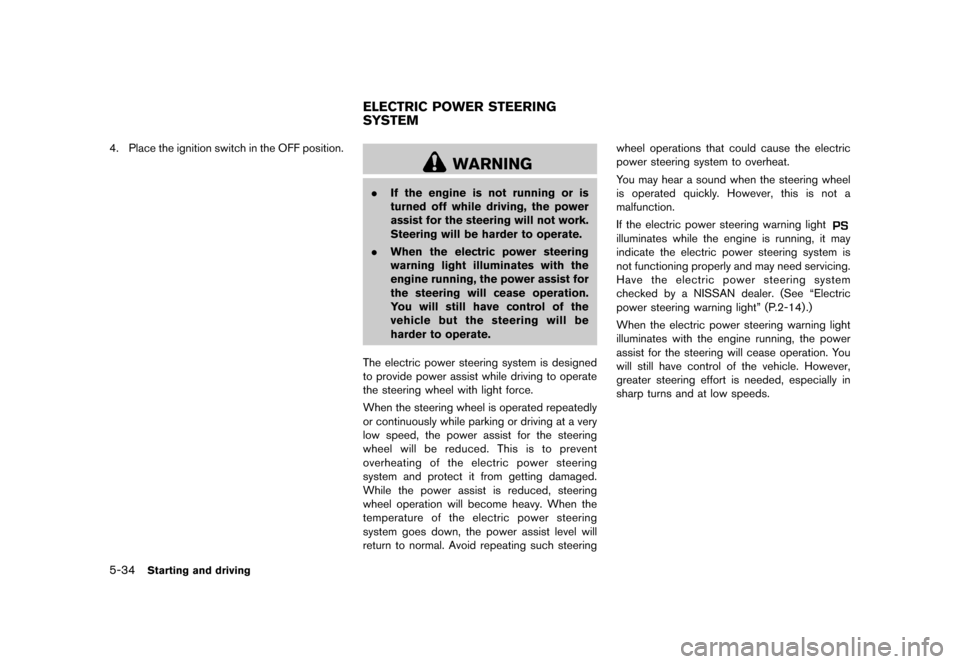

4. Place theignition switchinthe OFF position.
GUID-FCEF4 119-86A5-4E 02-81F1-220A1BD67BD0
WARNING
. Ifthe engine isnot running oris
turned offwhile driving, thepower
assist forthe steering willnotwork.
Steering willbeharder tooperate.
. When theelectric powersteering
warning lightilluminates withthe
engine running, thepower assistfor
the steering willcease operation.
Y ou will still have control ofthe
vehicle butthesteering willbe
harder tooperate.
The electric powersteering systemisdesigned
to provide powerassistwhiledriving tooperate
the steering wheelwithlight force.
When thesteering wheelisoperated repeatedly
or continuously whileparking ordriving atavery
low speed, thepower assistforthe steering
wheel willbereduced. Thisisto prevent
overheating ofthe electric powersteering
system andprotect itfrom getting damaged.
While thepower assistisreduced, steering
wheel operation willbecome heavy.When the
temperature ofthe electric powersteering
system goesdown, thepower assistlevelwill
return tonormal. Avoidrepeating suchsteering wheel
operations thatcould cause theelectric
power steering systemtooverheat.
Y ou may hear asound whenthesteering wheel
is operated quickly.However, thisisnot a
malfunction.
If the electric powersteering warninglight
illuminates whiletheengine isrunning, itmay
indicate theelectric powersteering systemis
not functioning properlyandmay need servicing.
Have theelectric powersteering system
checked byaNISSAN dealer.(SeeªElectric
power steering warninglightº(P.2-14) .)
When theelectric powersteering warninglight
illuminates withtheengine running, thepower
assist forthe steering willcease operation. You
will still have control ofthe vehicle. However,
greater steering effortisneeded, especially in
sharp turnsandatlow speeds.
ELECTRIC POWERSTEERING
S Y STEM
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-C85 EA487-970D -4143-8E32-0A76E249C6 2B
BRAKING PRECAUTION S
GUID-E19 3E720-D85 3-4379-82D C-E8EA84DDFD5B
The brake system hastwo separate hydraulic
circuits. Ifone circuit malfunctions, youwillstill
have braking attwo wheels.
Y ou may feelasmall clickandhear asound
when thebrake pedalisfully depressed slowly.
This isnot amalfunction andindicates thatthe
brake assist mechanism isoperating properly.
V acuum assisted brakes
GUID-0E2 3F656-D41A-4 88F-8147-9851A53DE80D
The brake booster aidsbraking byusing engine
vacuum. Ifthe engine stops,youcan stop the
vehicle bydepressing thebrake pedal. However,
greater footpressure onthe brake pedalwillbe
required tostop thevehicle andthestopping
distance willbelonger.
When thebrake pedalisdepressed slowlyand
firmly ,you may hear aclicking noiseandfeela
slight pulsation. Thisisnormal andindicates that
the Brake Assist System isoperating.
Using thebrakes
GUID-68FF F67F-04F0- 402E-BB4B-8 82B90506CCB
Avoid resting yourfootonthe brake pedalwhile
driving. Thiswillcause overheating ofthe
brakes, wearing outthebrake padsandshoes
faster andreduce gasmileage.
T o help reduce brakewearandtoprevent the
brakes fromoverheating, reducespeedand
downshift toalower gearbefore goingdownaslope
orlong grade. Overheated brakesmay
reduce braking performance andcould resultin
loss ofvehicle control.
WARNING
. While driving onaslippery surface,
be careful whenbraking, accelerat-
ing ordownshifting. Abruptbraking
or accelerating couldcause the
wheels toskid andresult inan
accident.
. Ifthe engine isnot running oris
turned offwhile driving, thepower
assist forthe brakes willnotwork.
Braking willbeharder.
W et brakes
GUID-853 A77D3-7334 -4546-A056-4F624706 91EB
When thevehicle iswashed ordriven through
water, thebrakes maygetwet. Asaresult, your
braking distance willbelonger andthevehicle
may pulltoone side during braking.
T o dry brakes, drivethevehicle atasafe speed
while lightly tapping thebrake pedaltoheat-up
the brakes. Dothis until thebrakes returnto
normal. Avoiddriving thevehicle athigh speeds
until thebrakes function correctly.
Parking brakebreak-in
GUID-3CAC C1C2-C000-436E-B53 F-77E9E90BA938
Break inthe parking brakeshoes whenever the
stopping effectofthe parking brakeisweakened
or whenever theparking brakeshoes and/or
drums/rotors arereplaced, inorder toassure the
best braking performance.
This procedure isdescribed inthe vehicle
service manual andcanbeperformed bya
NISSAN dealer.
Starting anddriving
5-35
BRAKE SY STEM
&RQGLWLRQ


> (GLW   0RGHO )'@
5-36
Starting anddriving
GUID-EC3 A4D5C-5B0D -4B05-8797-16078A3B B5CF

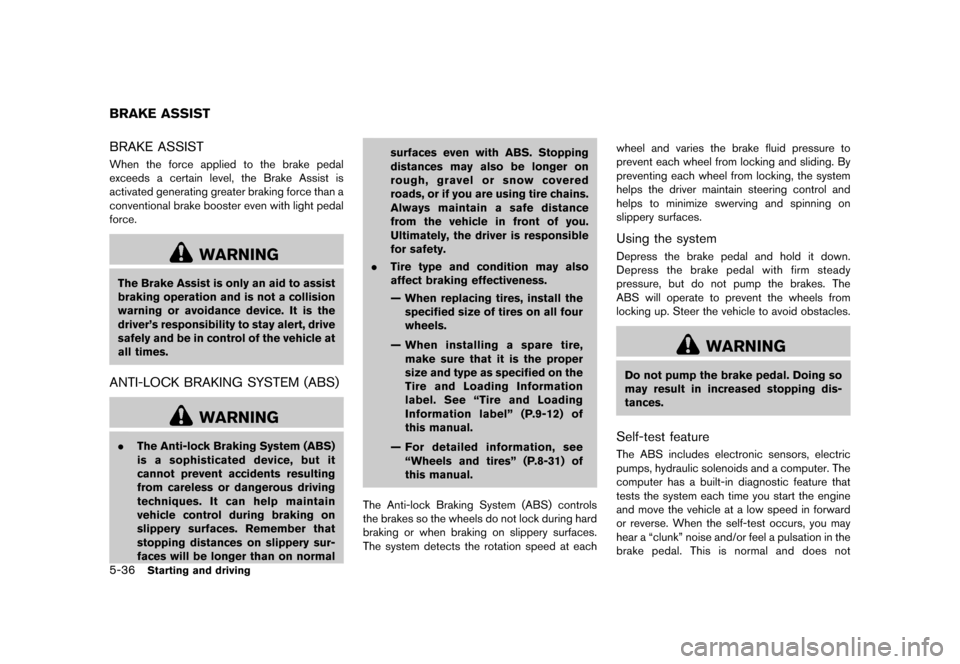

BRAKE ASSIST
GUID-4F7C1 0AE-4D30-42D8-A185-FF 61F97693EE
When theforce applied tothe brake pedal
exceeds acertain level,theBrake Assist is
activated generating greaterbraking forcethana
conventional brakebooster evenwithlight pedal
force.
WARNING
The Brake Assist isonly anaid toassist
braking operation andisnot acollision
warning oravoidance device.Itis the
driver's responsibility tostay alert, drive
safely andbeincontrol ofthe vehicle at
all times.
ANTI-L OCKBRAKING SYSTEM (ABS)
GUID-AD93 4732-3AE5-459A-B8C3 -7A014C0C24D9
WARNING
. The Anti-lock BrakingSystem(ABS)
is asophisticated device,butit
cannot prevent accidents resulting
from careless ordangerous driving
techniques. Itcan help maintain
vehicle control duringbraking on
slippery surfaces. Remember that
stopping distances onslippery sur-
faces willbelonger thanonnormal surfaces
evenwithABS. Stopping
distances mayalso belonger on
rough, gravelorsnow covered
roads, orifyou areusing tirechains.
Always maintain asafe distance
from thevehicle infront ofyou.
Ultimately, thedriver isresponsible
for safety.
. Tire type andcondition mayalso
affect braking effectiveness.
Ð When replacing tires,install the
specified sizeoftires onallfour
wheels.
Ð When installing aspare tire,
make surethatitis the proper
size andtype asspecified onthe
Tire andLoading Information
label. SeeªTire andLoading
Information labelº(P.9-12) of
this manual.
Ð For detailed information, see
ª Wheels andtiresº (P.8-31) of
this manual.
The Anti-lock BrakingSystem(ABS)controls
the brakes sothe wheels donot lock during hard
braking orwhen braking onslippery surfaces.
The system detects therotation speedateach wheel
andvaries thebrake fluidpressure to
prevent eachwheel fromlocking andsliding. By
preventing eachwheel fromlocking, thesystem
helps thedriver maintain steeringcontroland
helps tominimize swerving andspinning on
slippery surfaces.
Using thesystem
GUID-597 530BD-6BA 0-4B9D-B015-6FBB8D 66C7EE
Depress thebrake pedalandhold itdown.
Depress thebrake pedalwithfirmsteady
pressure, butdonot pump thebrakes. The
ABS willoperate toprevent thewheels from
locking up.Steer thevehicle toavoid obstacles.
WARNING
Do not pump thebrake pedal. Doingso
may result inincreased stoppingdis-
tances.
Self-test feature
GUID-A 2B20D88- 3F8D-458B-A0 1C-ABFC4E8BBA39
The ABS includes electronic sensors,electric
pumps, hydraulic solenoids andacomputer. The
computer hasabuilt-in diagnostic featurethat
tests thesystem eachtimeyoustart theengine
and move thevehicle atalow speed inforward
or reverse. Whentheself-test occurs,youmay
hear aªclunkº noiseand/or feelapulsation inthe
brake pedal. Thisisnormal anddoes not
BRAKE ASSIST
&RQGLWLRQ


> (GLW   0RGHO )'@
indicate amalfunction. Ifthe computer sensesa
malfunction, itswitches theABS offand
illuminates theABS warning lightonthe
instrument panel.Thebrake system thenoper-
ates normally ,but without anti-lock assistance.
If the ABS warning lightilluminates duringthe
self-test orwhile driving, havethevehicle
checked byaNISSAN dealer.
Normal operation
GUID-9CB A1EE9-2858-46A7-AF1 C-F9A91252FE68
The ABS operates atspeeds above3to 6MPH
(5 to10 km/h) .The speed variesaccording to
road conditions.
When theABS senses thatoneormore wheels
are close tolocking up,the actuator rapidly
applies andreleases hydraulic pressure. This
action issimilar topumping thebrakes very
quickly .You may feelapulsation inthe brake
pedal andhear anoise fromunder thehood or
feel avibration fromtheactuator whenitis
operating. Thisisnormal andindicates thatthe
ABS isoperating properly.However, thepulsa-
tion may indicate thatroad conditions are
hazardous andextra careisrequired while
driving.
GUID-4D5 7C7DA-67 68-4F4F-88 24-D372FBB 702EE
The Vehicle Dynamic Control(VDC)system
uses various sensors tomonitor driverinputs
and vehicle motion. Undercertain drivingcon-
ditions, theVDC system helpstoperform the
following functions.
. Controls brakepressure toreduce wheel
slip onone slipping drivewheel sopower is
transferred toanon slipping drivewheel on
the same axle.
. Controls brakepressure andengine output
to reduce drivewheel slipbased onvehicle
speed (traction controlfunction) .
. Controls brakepressure atindividual wheels
and engine outputtohelp thedriver maintain
control ofthe vehicle inthe following
conditions:
Ð understeer (vehicletendstonot follow
the steered pathdespite increased
steering input)
Ð oversteer (vehicletendstospin dueto
certain roadordriving conditions) .
The VDC system canhelp thedriver tomaintain
control ofthe vehicle, butitcannot prevent loss
of vehicle controlinall driving situations.
When theVDC system operates, theVDC
warning light
in the instrument panelflashes
so note thefollowing:
. The road maybeslippery orthe system may
determine someaction isrequired tohelp keep
thevehicle onthe steered path.
. You may feelapulsation inthe brake pedal
and hear anoise orvibration fromunder the
hood. Thisisnormal andindicates thatthe
VDC system isworking properly.
. Adjust yourspeed anddriving tothe road
conditions.
If a malfunction occursinthe system, theVDC
warning light
illuminates inthe instrument
panel. TheVDC system automatically turnsoff.
The VDC OFFswitch isused toturn offthe VDC
system. TheVDC offindicator
illuminates to
indicate theVDC system isoff. When theVDC
switch isused toturn offthe system, theVDC
system stilloperates toprevent onedrive wheel
from slipping bytransferring powertoanon
slipping drivewheel. TheVDC warning light
flashes ifthis occurs. Allother VDCfunctions
are off,and theVDC warning light
will not
flash. TheVDC system isautomatically resetto
on when theignition switchisplaced inthe off
position thenback tothe onposition.
See ªVehicle Dynamic Control(VDC)warning
lightº (P.2-17) andªVehicle Dynamic Control
(VDC) offindicator lightº(P.2-19) .
The computer hasabuilt-in diagnostic feature
that tests thesystem eachtimeyoustart the
engine andmove thevehicle forward orin
reverse ataslow speed. Whentheself-test
Starting anddriving
5-37
VEHICLE DYNAMIC CONTROL (VDC)
S Y STEM
&RQGLWLRQ


> (GLW   0RGHO )'@
5-38
Starting anddriving

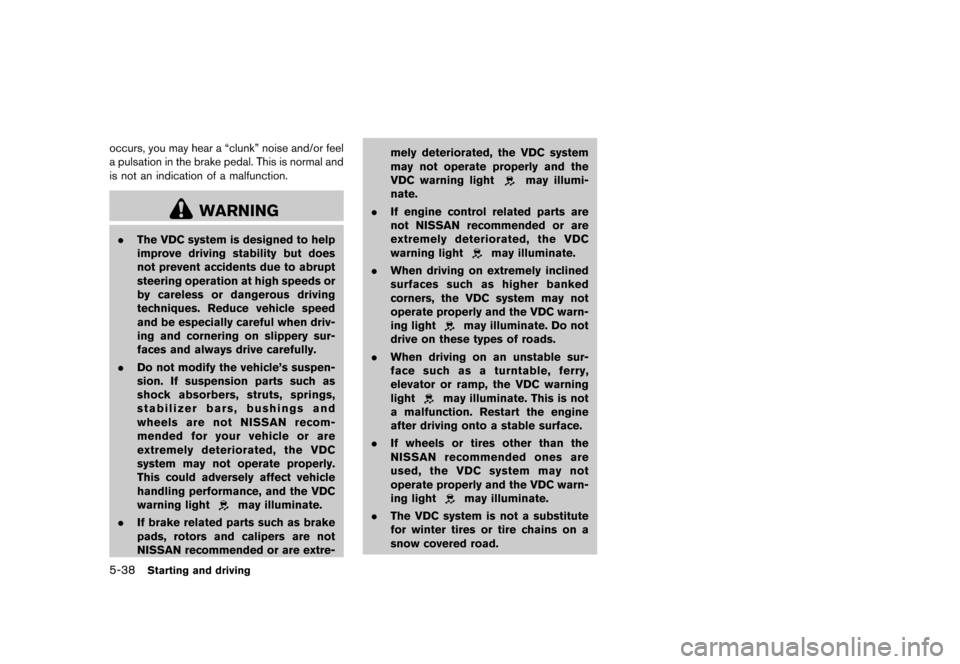

occurs, youmay hear aªclunkº noiseand/or feel
a pulsation inthe brake pedal. Thisisnormal and
is not anindication ofamalfunction.
WARNING
. The VDC system isdesigned tohelp
improve drivingstability butdoes
not prevent accidents duetoabrupt
steering operation athigh speeds or
by careless ordangerous driving
techniques. Reducevehiclespeed
and beespecially carefulwhendriv-
ing and cornering onslippery sur-
faces andalways drivecarefully.
. Do not modify thevehicle's suspen-
sion. Ifsuspension partssuchas
shock absorbers, struts,springs,
stabilizer bars,bushings and
wheels arenot NISSAN recom-
mended foryour vehicle orare
extremely deteriorated, theVDC
system maynotoperate properly.
This could adversely affectvehicle
handling performance, andtheVDC
warning light
may illuminate.
. Ifbrake related partssuchasbrake
pads, rotors andcalipers arenot
NISSAN recommended orare extre- mely
deteriorated, theVDC system
may notoperate properly andthe
VDC warning light
may illumi-
nate.
. Ifengine control relatedpartsare
not NISSAN recommended orare
extremely deteriorated, theVDC
warning light
may illuminate.
. When driving onextremely inclined
surfaces suchashigher banked
corners, theVDC system maynot
operate properly andtheVDC warn-
ing light
may illuminate. Donot
drive onthese typesofroads.
. When driving onanunstable sur-
face such asaturntable, ferry,
elevator orramp, theVDC warning
light
may illuminate. Thisisnot
a malfunction. Restarttheengine
after driving ontoastable surface.
. Ifwheels ortires other thanthe
NISSAN recommended onesare
used, theVDC system maynot
operate properly andtheVDC warn-
ing light
may illuminate.
. The VDC system isnot asubstitute
for winter tiresortire chains ona
snow covered road.
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-5D64A B92-19AE-4EBB-85E2-0 500CB2054C5

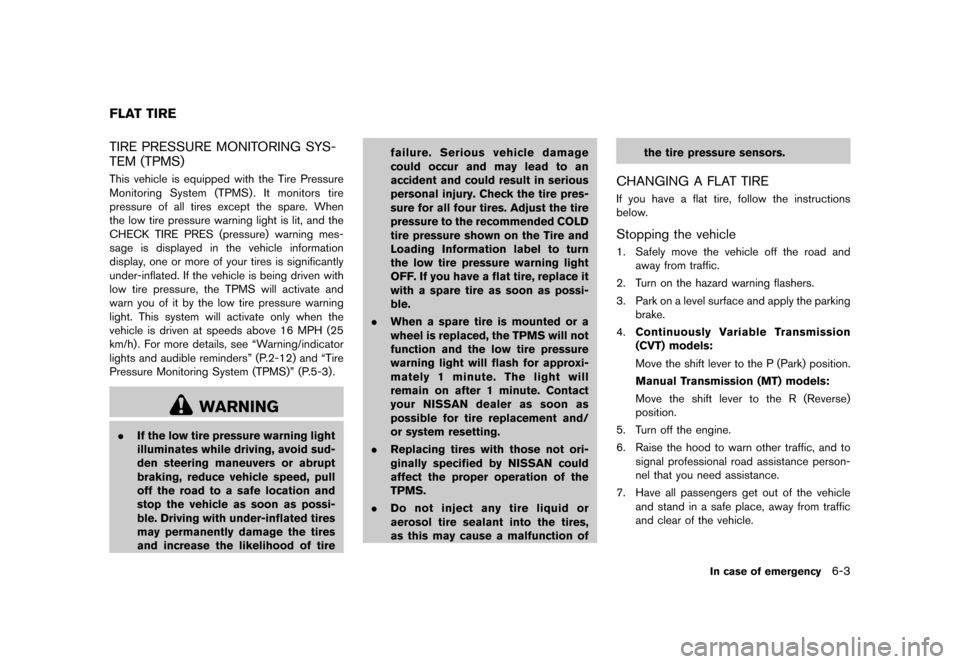

TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-E05 64C3C-60A 2-48DF-92E3 -FDD16E1184 5D
This vehicle isequipped withtheTire Pressure
Monitoring System(TPMS).It monitors tire
pressure ofall tires except thespare. When
the low tirepressure warninglightislit, and the
CHECK TIREPRES (pressure) warningmes-
sage isdisplayed inthe vehicle information
display ,one ormore ofyour tires issignificantly
under-inflated. Ifthe vehicle isbeing driven with
low tirepressure, theTPMS willactivate and
warn youofitby the low tirepressure warning
light. Thissystem willactivate onlywhen the
vehicle isdriven atspeeds above16MPH (25
km/h) .For more details, seeªWarning/indicator
lights andaudible remindersº (P.2-12) andªTire
Pressure Monitoring System(TPMS)º (P.5-3) .
WARNING
. Ifthe low tirepressure warninglight
illuminates whiledriving, avoidsud-
den steering maneuvers orabrupt
braking, reducevehicle speed,pull
off the road toasafe location and
stop thevehicle assoon aspossi-
ble. Driving withunder-inflated tires
may permanently damagethetires
and increase thelikelihood oftire failure.
Serious vehicledamage
could occurandmay lead toan
accident andcould result inserious
personal injury.Check thetire pres-
sure forallfour tires. Adjust thetire
pressure tothe recommended COLD
tire pressure shownonthe Tire and
Loading Information labeltoturn
the low tirepressure warninglight
OFF .If you have aflat tire, replace it
with aspare tireassoon aspossi-
ble.
. When aspare tireismounted ora
wheel isreplaced, theTPMS willnot
function andthelow tirepressure
warning lightwillflash forapproxi-
mately 1minute. Thelight will
remain onafter 1minute. Contact
your NISSAN dealerassoon as
possible fortire replacement and/
or system resetting.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
. Do not inject anytireliquid or
aerosol tiresealant intothetires,
as this may cause amalfunction ofthe
tire pressure sensors.
CHANGING AFLA TTIRE
GUID-847 4486F-6C 56-450C-B1 B8-C91BAAF1ADF3
If you have aflat tire, follow theinstructions
below .
Stopping thevehicle
GUID-C0CA 87DA-59C4-4915-A C34-CE46166 CC4B8
1. Safely movethevehicle offthe road and
away fromtraffic.
2. Turn onthe hazard warning flashers.
3. Park onalevel surface andapply theparking
brake.
4. Continuously Variable Transmission
(CVT) models:
Move theshift lever tothe P(Park) position.
Manual Transmission (MT)models:
Move theshift lever tothe R(Reverse)
position.
5. Turn offthe engine.
6. Raise thehood towarn other traffic, andto
signal professional roadassistance person-
nel that youneed assistance.
7. Have allpassengers getoutofthe vehicle
and stand inasafe place, awayfromtraffic
and clear ofthe vehicle.
In case ofemergency
6-3
FLA TTIRE
&RQGLWLRQ
