2015 NISSAN JUKE ESP


> (GLW   0RGHO )'@

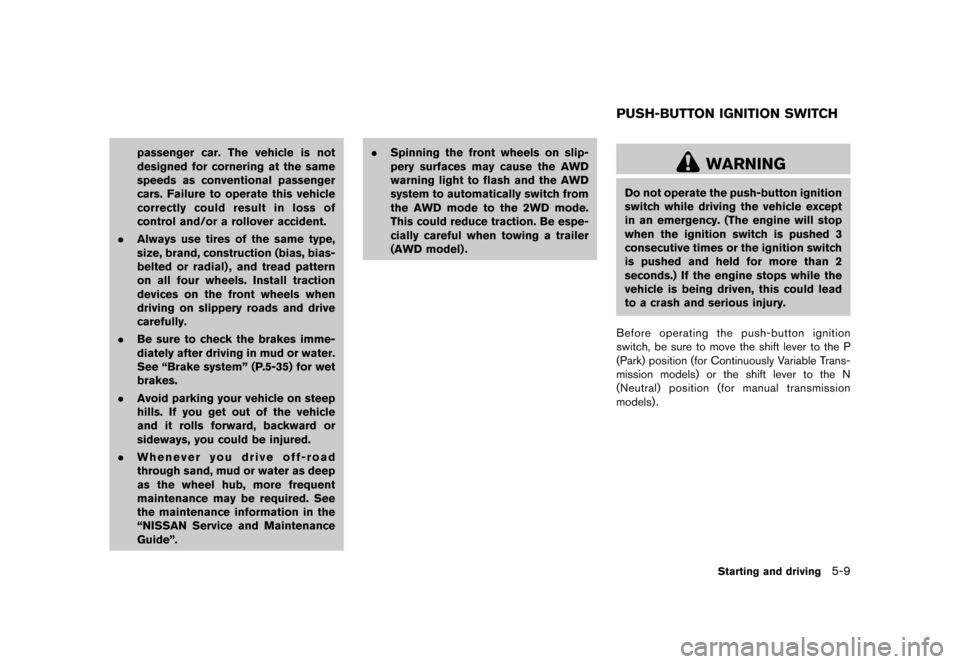

passenger car.The vehicle isnot
designed forcornering atthe same
speeds asconventional passenger
cars. Failure tooperate thisvehicle
correctly couldresult inloss of
control and/orarollover accident.
. Always usetires ofthe same type,
size, brand, construction (bias,bias-
belted orradial) ,and tread pattern
on allfour wheels. Installtraction
devices onthe front wheels when
driving onslippery roadsanddrive
carefully.
. Besure tocheck thebrakes imme-
diately afterdriving inmud orwater.
See ªBrake systemº (P.5-35) forwet
brakes.
. Avoid parking yourvehicle onsteep
hills. Ifyou getout ofthe vehicle
and itrolls forward, backward or
sideways, youcould beinjured.
. Whenever youdrive off-road
through sand,mudorwater asdeep
as the wheel hub,more frequent
maintenance mayberequired. See
the maintenance informationinthe
ªNISSAN ServiceandMaintenance
Guideº . .
Spinning thefront wheels onslip-
pery surfaces maycause theAWD
warning lighttoflash andtheAWD
system toautomatically switchfrom
the AWD mode tothe 2WD mode.
This could reduce traction. Beespe-
cially careful whentowing atrailer
(AWD model) .
GUID-A A9BA26A-B 49B-43B0-A908-85126 20A8F65
WARNING
Do not operate thepush-button ignition
switch whiledriving thevehicle except
in an emergency. (Theengine willstop
when theignition switchispushed 3
consecutive timesorthe ignition switch
is pushed andheld formore than2
seconds.) Ifthe engine stopswhilethe
vehicle isbeing driven, thiscould lead
to acrash andserious injury.
Before operating thepush-button ignition
switch, besure tomove theshift lever tothe P
(Park) position (forContinuously Variable Trans-
mission models) orthe shift lever tothe N
(Neutral) position(formanual transmission
models) .
Starting anddriving
5-9
PUSH-BUT TON IGNITION SWITCH
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-74 08FE11-64BC -4759-BC8E-07366732C0C9

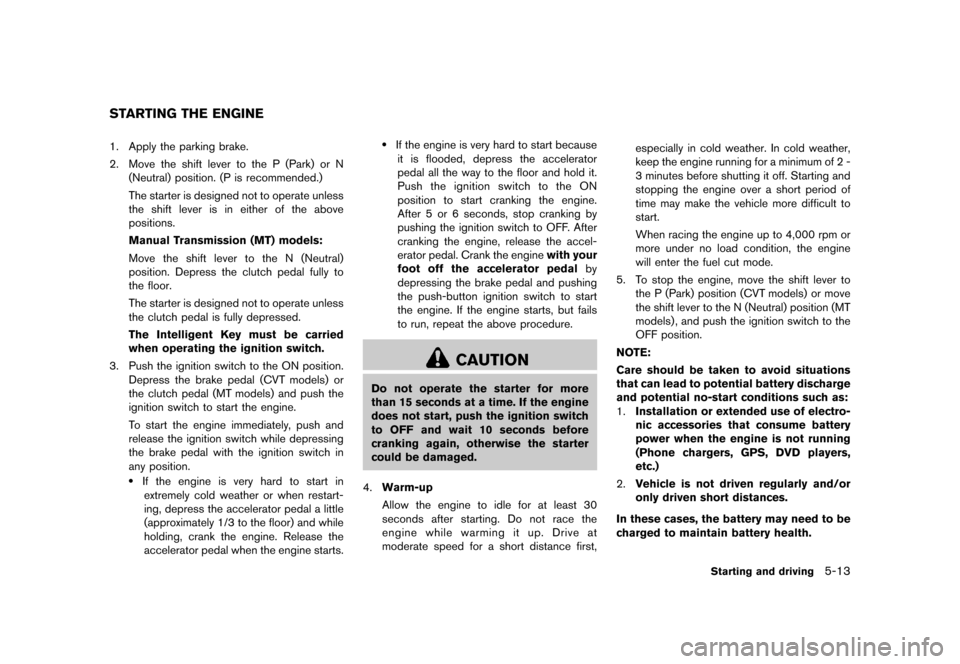

1. Apply theparking brake.
2. Move theshift lever tothe P(Park) orN
(Neutral) position.(Pisrecommended.)
The starter isdesigned nottooperate unless
the shift lever isin either ofthe above
positions.
Manual Transmission (MT)models:
Move theshift lever tothe N(Neutral)
position. Depresstheclutch pedalfullyto
the floor.
The starter isdesigned nottooperate unless
the clutch pedalisfully depressed.
The Intelligent Keymust becarried
when operating theignition switch.
3. Push theignition switchtothe ON position.
Depress thebrake pedal(CVTmodels) or
the clutch pedal(MTmodels) andpush the
ignition switchtostart theengine.
T o start theengine immediately ,push and
release theignition switchwhiledepressing
the brake pedal withtheignition switchin
any position.
.
If the engine isvery hard tostart in
extremely coldweather orwhen restart-
ing, depress theaccelerator pedalalittle
(approximately 1/3tothe floor) andwhile
holding, cranktheengine. Release the
accelerator pedalwhentheengine starts.
.
If the engine isvery hard tostart because
it is flooded, depresstheaccelerator
pedal allthe way tothe floor andhold it.
Push theignition switchtothe ON
position tostart cranking theengine.
After 5or 6seconds, stopcranking by
pushing theignition switchtoOFF .After
cranking theengine, releasetheaccel-
erator pedal. Cranktheengine withyour
foot offthe accelerator pedalby
depressing thebrake pedal andpushing
the push-button ignitionswitchtostart
the engine. Ifthe engine starts,butfails
to run, repeat theabove procedure.
CAUTION
Do not operate thestarter formore
than 15seconds atatime. Ifthe engine
does notstart, pushtheignition switch
to OFF andwait 10seconds before
cranking again,otherwise thestarter
could bedamaged.
4. Warm-up
Allow theengine toidle foratleast 30
seconds afterstarting. Donot race the
engine whilewarming itup. Drive at
moderate speedforashort distance first, especially
incold weather. Incold weather,
keep theengine running foraminimum of2-
3 minutes beforeshutting itoff. Starting and
stopping theengine overashort period of
time maymake thevehicle moredifficult to
start.
When racing theengine upto4,000 rpmor
more under noload condition, theengine
will enter thefuel cutmode.
5. To stop theengine, movetheshift lever to
the P(Park) position (CVTmodels) ormove
the shift lever tothe N(Neutral) position(MT
models) ,and push theignition switchtothe
OFF position.
NO TE:
Care should betaken toavoid situations
that canlead topotential batterydischarge
and potential no-startconditions suchas:
1. Installation orextended useofelectro-
nic accessories thatconsume battery
power whentheengine isnot running
(Phone chargers, GPS,DVDplayers,
etc .)
2. Vehicle isnot driven regularly and/or
only driven shortdistances.
In these cases, thebattery mayneed tobe
charged tomaintain batteryhealth.
Starting anddriving
5-13
ST ARTING THEENGINE
&RQGLWLRQ


> (GLW   0RGHO )'@
5-14
Starting anddriving
GUID-00 99E665-725B -489E-B596-F5A3F4CD54DB

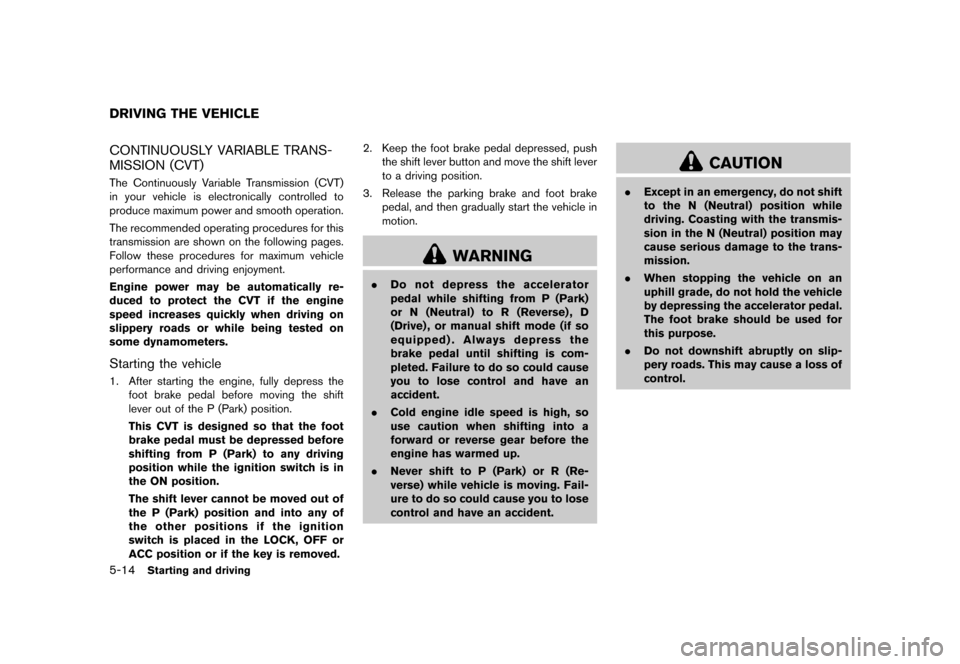

CONTINUOUS LY VARIABLE TRANS-
MISSION (CVT)
GUID-C69 9DF0B-987D -4AD2-879E-728294 24A200
The Continuously Variable Transmission (CVT)
in your vehicle iselectronically controlledto
produce maximum powerandsmooth operation.
The recommended operatingprocedures forthis
transmission areshown onthe following pages.
Follow theseprocedures formaximum vehicle
performance anddriving enjoyment.
Engine powermaybeautomatically re-
duced toprotect theCVT ifthe engine
speed increases quicklywhendriving on
slippery roadsorwhile being tested on
some dynamometers.
Starting thevehicle
GUID-5D2 73D53-F49E -430A-9675-C A17371F1DFA
1. After starting theengine, fullydepress the
foot brake pedalbefore moving theshift
lever outofthe P(Park) position.
This CVTisdesigned sothat thefoot
brake pedalmustbedepressed before
shifting fromP(Park) toany driving
position whiletheignition switchisin
the ONposition.
The shift lever cannot bemoved outof
the P(Park) position andinto anyof
the other positions ifthe ignition
switch isplaced inthe LOCK ,OFF or
ACC position orifthe key isremoved. 2.
Keep thefoot brake pedaldepressed, push
the shift lever button andmove theshift lever
to adriving position.
3. Release theparking brakeandfoot brake
pedal, andthen gradually startthevehicle in
motion.
WARNING
. Do not depress theaccelerator
pedal whileshifting fromP(Park)
or N(Neutral) toR(Reverse) ,D
(Drive) ,or manual shiftmode (ifso
equipped) .Always depress the
brake pedaluntilshifting iscom-
pleted. Failure todo socould cause
you tolose control andhave an
accident.
. Cold engine idlespeed ishigh, so
use caution whenshifting intoa
forward orreverse gearbefore the
engine haswarmed up.
. Never shifttoP(Park) orR(Re-
verse) whilevehicle ismoving. Fail-
ure todo socould cause youtolose
control andhave anaccident.
CAUTION
. Except inan emergency, donot shift
to the N(Neutral) positionwhile
driving. Coasting withthetransmis-
sion inthe N(Neutral) positionmay
cause serious damage tothe trans-
mission.
. When stopping thevehicle onan
uphill grade, donot hold thevehicle
by depressing theaccelerator pedal.
The foot brake should beused for
this purpose.
. Do not downshift abruptlyonslip-
pery roads. Thismay cause aloss of
control.
DRIVING THEVEHICLE
&RQGLWLRQ


> (GLW   0RGHO )'@
5-18
Starting anddriving

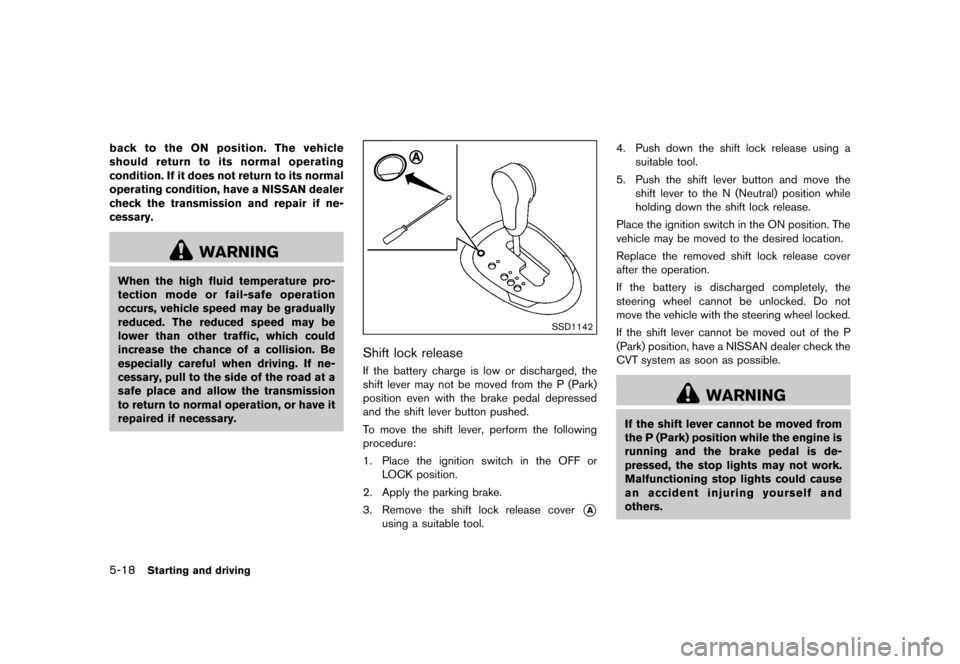

back tothe ONposition. Thevehicle
should returntoits normal operating
condition. Ifitdoes notreturn toits normal
operating condition, haveaNISSAN dealer
check thetransmission andrepair ifne-
cessary.
WARNING
When thehigh fluid temperature pro-
tection modeorfail-safe operation
occurs, vehiclespeedmaybegradually
reduced. Thereduced speedmaybe
lower thanother traffic,which could
increase thechance ofacollision. Be
especially carefulwhendriving. Ifne-
cessary, pulltothe side ofthe road ata
safe place andallow thetransmission
to return tonormal operation, orhave it
repaired if
necessary.
SSD1142
Shift lockrelease
GUID-39E4 740A-3513-44A0-A3 06-744DB1802606
If the battery charge islow ordischarged, the
shift lever maynotbemoved fromtheP(Park)
position evenwiththebrake pedal depressed
and theshift lever button pushed.
T o move theshift lever, perform thefollowing
procedure:
1. Place theignition switchinthe OFF or
L OCK position.
2. Apply theparking brake.
3. Remove theshift lockrelease cover
*
A
using asuitable tool. 4.
Push down theshift lockrelease usinga
suitable tool.
5. Push theshift lever button andmove the
shift lever tothe N(Neutral) positionwhile
holding downtheshift lockrelease.
Place theignition switchinthe ON position. The
vehicle maybemoved tothe desired location.
Replace theremoved shiftlockrelease cover
after theoperation.
If the battery isdischarged completely,the
steering wheelcannot beunlocked. Donot
move thevehicle withthesteering wheellocked.
If the shift lever cannot bemoved outofthe P
(Park) position, haveaNISSAN dealercheckthe
CVT system assoon aspossible.
WARNING
If the shift lever cannot bemoved from
the P(Park) position whiletheengine is
running andthebrake pedalisde-
pressed, thestop lights maynotwork.
Malfunctioning stoplights couldcause
an accident injuringyourself and
others.
&RQGLWLRQ


> (GLW   0RGHO )'@

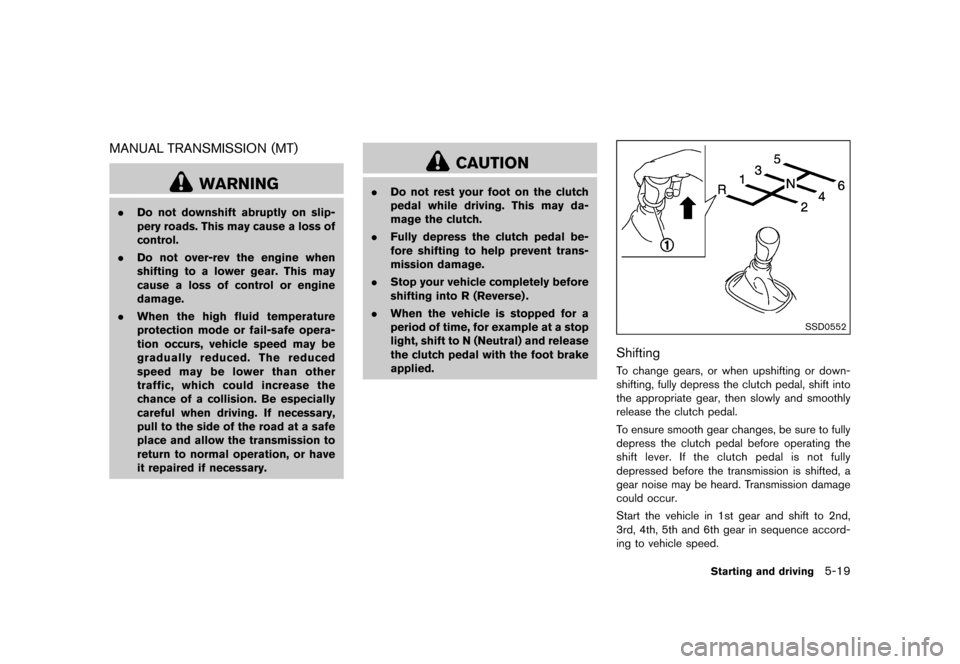

MANUAL TRANSMISSIO N(MT)
GUID-578 CD4B7-85A6 -49CB-AB4F-F226DA21 98CA
WARNING
. Do not downshift abruptlyonslip-
pery roads. Thismay cause aloss of
control.
. Do not over-rev theengine when
shifting toalower gear.Thismay
cause aloss ofcontrol orengine
damage.
. When thehigh fluid temperature
protection modeorfail-safe opera-
tion occurs, vehiclespeedmaybe
gradually reduced.Thereduced
speed maybelower thanother
traffic ,which couldincrease the
chance ofacollision. Beespecially
careful whendriving. Ifnecessary,
pull tothe side ofthe road atasafe
place andallow thetransmission to
return tonormal operation, orhave
it repaired ifnecessary.
CAUTION
. Do not rest your footonthe clutch
pedal whiledriving. Thismay da-
mage theclutch.
. Fully depress theclutch pedalbe-
fore shifting tohelp prevent trans-
mission damage.
. Stop yourvehicle completely before
shifting intoR(Reverse) .
. When thevehicle isstopped fora
period oftime, forexample atastop
light, shifttoN(Neutral) andrelease
the clutch pedalwiththefoot brake
applied.
SSD0552
Shifting
GUID-9FDDD F2D-B4D7-4E6E-B1E 7-9D36A148 D03F
T o change gears,orwhen upshifting ordown-
shifting, fullydepress theclutch pedal, shiftinto
the appropriate gear,thenslowly andsmoothly
release theclutch pedal.
T o ensure smooth gearchanges, besure tofully
depress theclutch pedalbefore operating the
shift lever. Ifthe clutch pedalisnot fully
depressed beforethetransmission isshifted, a
gear noise maybeheard. Transmission damage
could occur.
Start thevehicle in1st gear andshift to2nd,
3rd, 4th,5thand 6thgear insequence accord-
ing tovehicle speed.
Starting anddriving
5-19
&RQGLWLRQ


> (GLW   0RGHO )'@
5-20
Starting anddriving

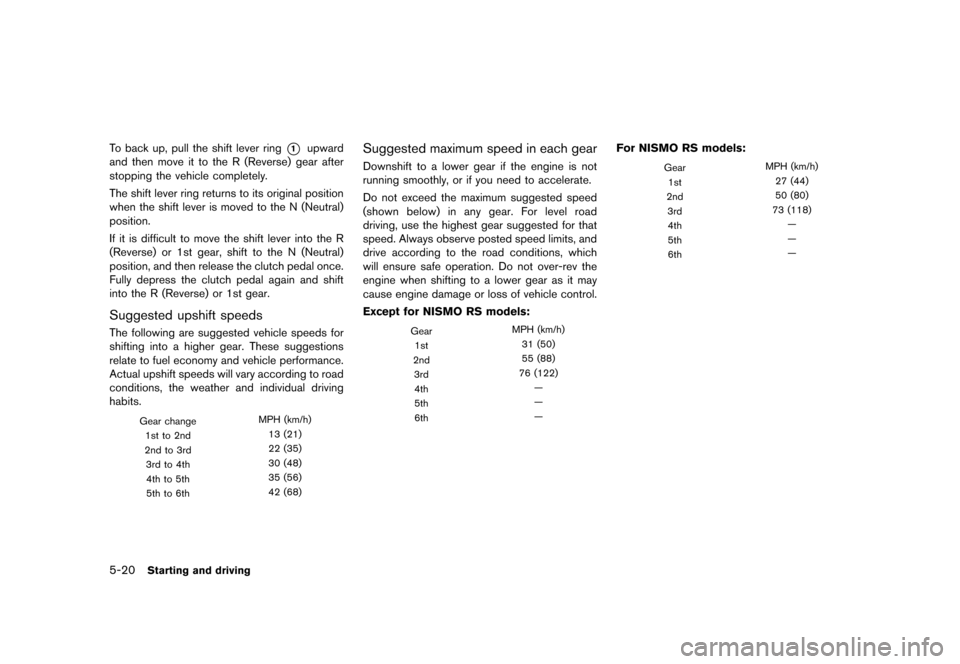

T o back up,pull theshift lever ring
*
1
upward
and then move itto the R(Reverse) gearafter
stopping thevehicle completely .
The shift lever ringreturns toits original position
when theshift lever ismoved tothe N(Neutral)
position.
If itis difficult tomove theshift lever intotheR
(Reverse) or1st gear, shifttothe N(Neutral)
position, andthen release theclutch pedalonce.
Fully depress theclutch pedalagainandshift
into theR(Reverse) or1st gear.
Suggested upshiftspeeds
GUID-24C1 C741-C5AB -4388-A7C4-8E56E96 33140
The following aresuggested vehiclespeeds for
shifting intoahigher gear.These suggestions
relate tofuel economy andvehicle performance.
Actual upshift speeds willvary according toroad
conditions, theweather andindividual driving
habits.
Gear change MPH
(km/h)
1st to2nd 13
(21)
2nd to3rd 22
(35)
3rd to4th 30
(48)
4th to5th 35
(56)
5th to6th 42
(68)
Suggested maximumspeedineach gear
GUID-BE B03AA8-9FB 8-4719-8FC9-F9ABBD368399
Downshift toalower gearifthe engine isnot
running smoothly ,or ifyou need toaccelerate.
Do not exceed themaximum suggested speed
(shown below)inany gear. Forlevel road
driving, usethehighest gearsuggested forthat
speed. Always observe postedspeedlimits,and
drive according tothe road conditions, which
will ensure safeoperation. Donot over-rev the
engine whenshifting toalower gearasitmay
cause engine damage orloss ofvehicle control.
Except forNISMO RSmodels:
Gear MPH
(km/h)
1st 31
(50)
2nd 55
(88)
3rd 76
(122)
4th Ð
5th Ð
6th Ð
For NISMO RSmodels:
Gear MPH
(km/h)
1st 27
(44)
2nd 50
(80)
3rd 73
(118)
4th Ð
5th Ð
6th Ð
&RQGLWLRQ


> (GLW   0RGHO )'@

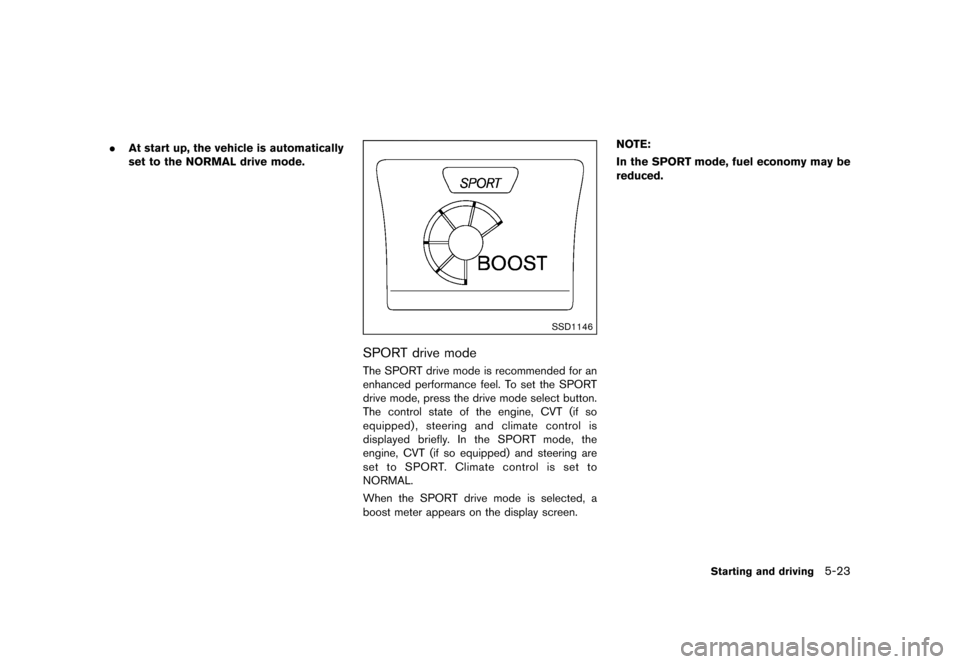

. Atstart up,the vehicle isautomatically
set tothe NORMAL drive
mode.
SSD1146
SPORT drivemode
GUID-0A6 211E0-42EC -41E4-8E12-C8C5047006 D5
The SPORT drivemode isrecommended foran
enhanced performance feel.To set the SPORT
drive mode, pressthedrive mode select button.
The control stateofthe engine, CVT(ifso
equipped) ,steering andclimate controlis
displayed briefly.In the SPORT mode,the
engine, CVT(ifso equipped) andsteering are
set toSPORT .Climate controlisset to
NORMAL.
When theSPORT drivemode isselected, a
boost meter appears onthe display screen. NO
TE:
In the SPORT mode,fueleconomy maybe
reduced.
Starting anddriving
5-23
&RQGLWLRQ


> (GLW   0RGHO )'@
5-28
Starting anddriving
GUID-7C03 A534-EF0E- 40B7-84F0-1 3B8CB4EE473

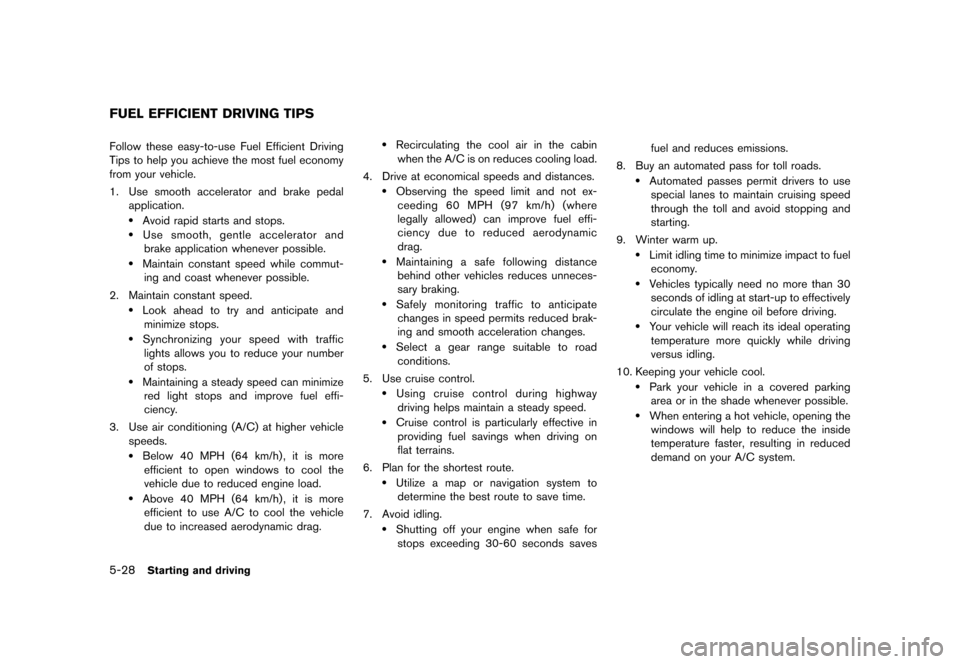

Follow theseeasy-to-use FuelEfficient Driving
Tips tohelp youachieve themost fueleconomy
from yourvehicle.
1. Use smooth accelerator andbrake pedal
application.
.
Avoid rapidstarts andstops.
.
Use smooth, gentleaccelerator and
brake application wheneverpossible.
.
Maintain constant speedwhilecommut-
ing and coast whenever possible.
2. Maintain constant speed.
.
Look ahead totry and anticipate and
minimize stops.
.
Synchronizing yourspeed withtraffic
lights allows youtoreduce yournumber
of stops.
.
Maintaining asteady speedcanminimize
red light stops andimprove fueleffi-
ciency .
3. Use airconditioning (A/C)athigher vehicle
speeds.
.
Below 40MPH (64km/h) ,it is more
efficient toopen windows tocool the
vehicle duetoreduced engineload.
.
Above 40MPH (64km/h) ,it is more
efficient touse A/C tocool thevehicle
due toincreased aerodynamic drag.
.
Recirculating thecool airinthe cabin
when theA/C ison reduces coolingload.
4. Drive ateconomical speedsanddistances.
.
Observing thespeed limitandnotex-
ceeding 60MPH (97km/h) (where
legally allowed) canimprove fueleffi-
ciency duetoreduced aerodynamic
drag.
.
Maintaining asafe following distance
behind othervehicles reduces unneces-
sary braking.
.
Safely monitoring traffictoanticipate
changes inspeed permits reduced brak-
ing and smooth acceleration changes.
.
Select agear range suitable toroad
conditions.
5. Use cruise control.
.
Using cruise control duringhighway
driving helpsmaintain asteady speed.
.
Cruise control isparticularly effectivein
providing fuelsavings whendriving on
flat terrains.
6. Plan forthe shortest route.
.
Utilize amap ornavigation systemto
determine thebest route tosave time.
7. Avoid idling.
.
Shutting offyour engine whensafefor
stops exceeding 30-60seconds saves fuel
and reduces emissions.
8. Buy anautomated passfortoll roads.
.
Automated passespermitdrivers touse
special lanestomaintain cruisingspeed
through thetolland avoid stopping and
starting.
9. Winter warmup.
.
Limit idling timetominimize impacttofuel
economy .
.
V ehicles typically neednomore than30
seconds ofidling atstart-up toeffectively
circulate theengine oilbefore driving.
.
Y our vehicle willreach itsideal operating
temperature morequickly whiledriving
versus idling.
10. Keeping yourvehicle cool.
.
Park yourvehicle inacovered parking
area orinthe shade whenever possible.
.
When entering ahot vehicle, opening the
windows willhelp toreduce theinside
temperature faster,resulting inreduced
demand onyour A/Csystem.
FUEL EFFICIENT DRIVINGTIPS
&RQGLWLRQ
