2015 NISSAN JUKE ESP


> (GLW   0RGHO )'@
8-16
Maintenance anddo-it-yours elf
in poor condition orloose, haveitreplaced
or adjusted byaNISSAN dealer.
2. Have thebelt condition checkedregularly.
GUID-A AF18895-9 2AC-4601-BD 68-201C81BA 060E
WARNING
Be sure theengine andignition switch
are offand that theparking brakeis
engaged securely.
CAUTION
Be sure touse thecorrect socketto
remove thespark plugs. Anincorrect
socket candamage thespark
plugs.
SDI2670
REPLACING SPARK PLUGS
GUID-C62 B4C9C-0259-481F-A 5AB-DFBBB3 D10B69
If replacement isrequired, seeaNISSAN dealer
for servicing.
Iridium platinum-tippe dspark plugs
GUID-E12E 20CD-D386 -439E-A361-4 3DA33D9C4A6
It is not necessary toreplace theiridium
platinum-tipped sparkplugs asfrequently as
the conventional typespark plugs sincetheywill
last much longer. Followthemaintenance log
shown inthe ªNISSAN ServiceandMainte-
nance Guideº.Do not reuse theiridium plati-
num-tipped sparkplugs bycleaning or
regapping.
Always replace sparkplugswithrecom-
mended orequivalent ones.
SP ARK PLUGS
&RQGLWLRQ


> (GLW   0RGHO )'@

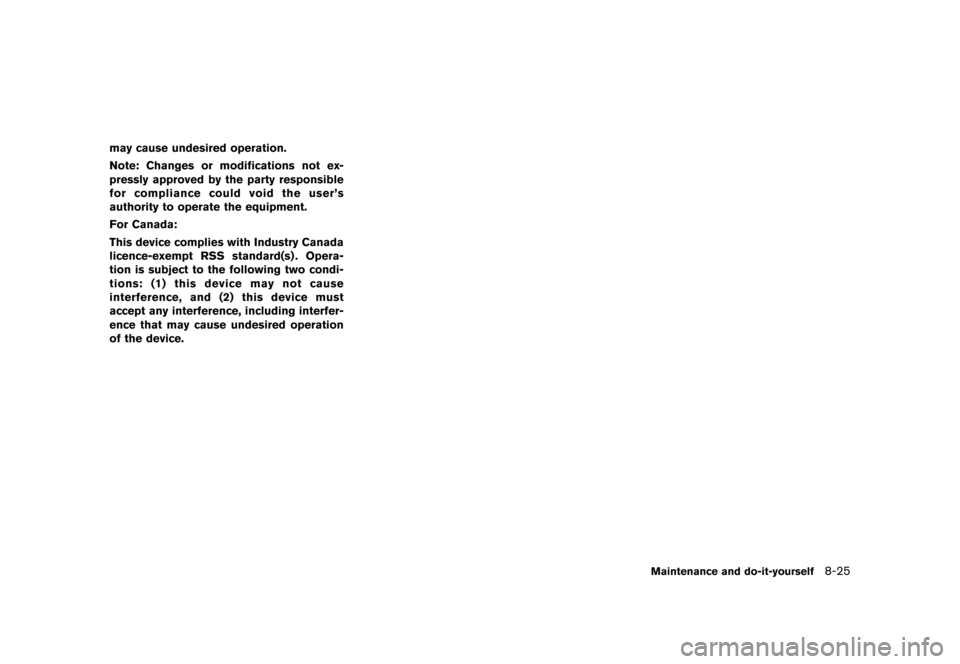

may cause undesired operation.
Note: Changes ormodifications notex-
pressly approved bythe party responsible
for compliance couldvoidtheuser's
authority tooperate theequipment.
For Canada:
This device complies withIndustry Canada
licence-exempt RSSstandard(s) .Opera-
tion issubject tothe following twocondi-
tions: (1)this device maynotcause
interference, and(2)this device must
accept anyinterference, includinginterfer-
ence thatmay cause undesired operation
of the device.
Maintenance anddo-it-yo urself
8-25
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-F6BA51 01-9D22-47BE-BE64-1 C192428380D

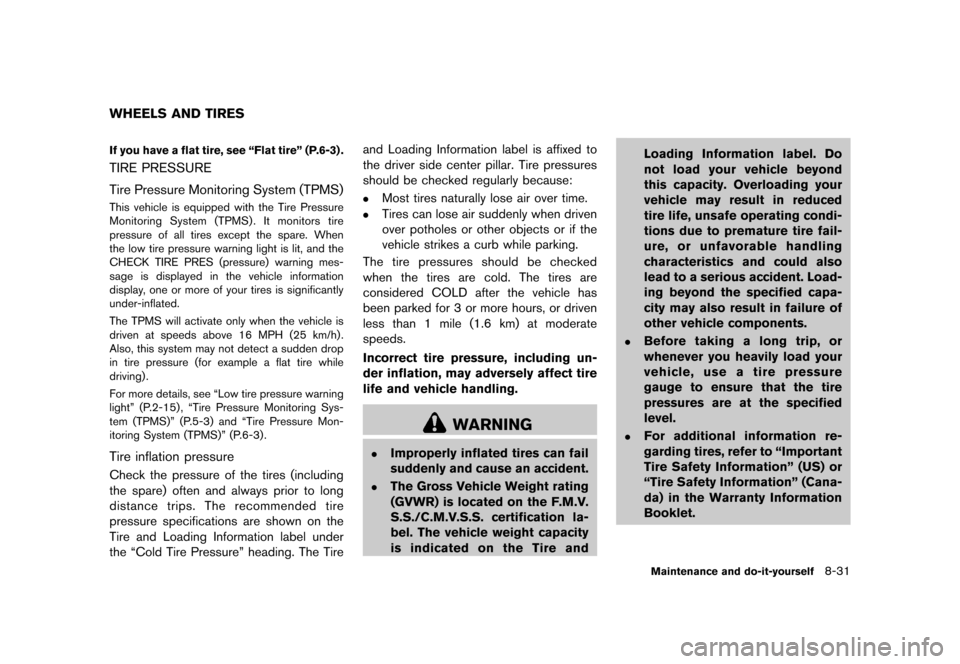

If you have aflat tire, seeªFlat tireº(P.6-3) .
TIRE PRESSURE
GUID-98529D 2F-C4E4-455A-AAA8-E A803AC65B2 4
Tire Pressure Monitoring System(TPMS)
GUID-D6 EF18B1-2442 -473D-A573-60D459 B74FC7
This vehicle isequipped withtheTire Pressure
Monitoring System(TPMS).It monitors tire
pressure ofall tires except thespare. When
the low tirepressure warninglightislit, and the
CHECK TIREPRES (pressure) warningmes-
sage isdisplayed inthe vehicle information
display ,one ormore ofyour tires issignificantly
under-inflated.
The TPMS willactivate onlywhen thevehicle is
driven atspeeds above16MPH (25km/h) .
Also, thissystem maynotdetect asudden drop
in tire pressure (forexample aflat tire while
driving) .
For more details, seeªLow tirepressure warning
lightº (P.2-15) ,ªTire Pressure Monitoring Sys-
tem (TPMS)º (P.5-3) andªTire Pressure Mon-
itoring System (TPMS)º (P.6-3) .
Tire inflation pressure
GUID-C576 45B5-E413-4FCA-B110 -F118428A3D6F
Check thepressure ofthe tires (including
the spare) oftenandalways priortolong
distance trips.Therecommended tire
pressure specifications areshown onthe
Tire and Loading Information labelunder
the ªCold TirePressureº heading.TheTire and
Loading Information labelisaffixed to
the driver sidecenter pillar.Tirepressures
should bechecked regularlybecause:
.
Most tiresnaturally loseairover time.
.
Tires canlose airsuddenly whendriven
over potholes orother objects orifthe
vehicle strikesacurb while parking.
The tirepressures shouldbechecked
when thetires arecold. Thetires are
considered COLDafterthevehicle has
been parked for3or more hours, ordriven
less than 1mile (1.6km)atmoderate
speeds.
Incorrect tirepressure, includingun-
der inflation, mayadversely affecttire
life and vehicle handling.
WARNING
.
Improperly inflatedtirescanfail
suddenly andcause anaccident.
.
The Gross Vehicle Weight rating
(GVWR) islocated onthe F.M .V.
S.S./C .M.V.S.S. certification la-
bel. The vehicle weightcapacity
is indicated onthe Tire and Loading
Information label.Do
not load yourvehicle beyond
this capacity. Overloading your
vehicle mayresult inreduced
tire life, unsafe operating condi-
tions duetopremature tirefail-
ure, orunfavorable handling
characteristic sand could also
lead toaserious accident. Load-
ing beyond thespecified capa-
city may also result infailure of
other vehicle components.
.
Before takingalong trip,or
whenever youheavily loadyour
vehicle, useatire pressure
gauge toensure thatthetire
pressures areatthe specified
level.
.
For additional information re-
garding tires,refertoªImportant
Tire Safety Informationº (US)or
ªTire Safety Informationº (Cana-
da) inthe Warranty Information
Booklet.
Maintenance anddo-it-yo urself
8-31
WHEELS ANDTIRES
&RQGLWLRQ


> (GLW   0RGHO )'@

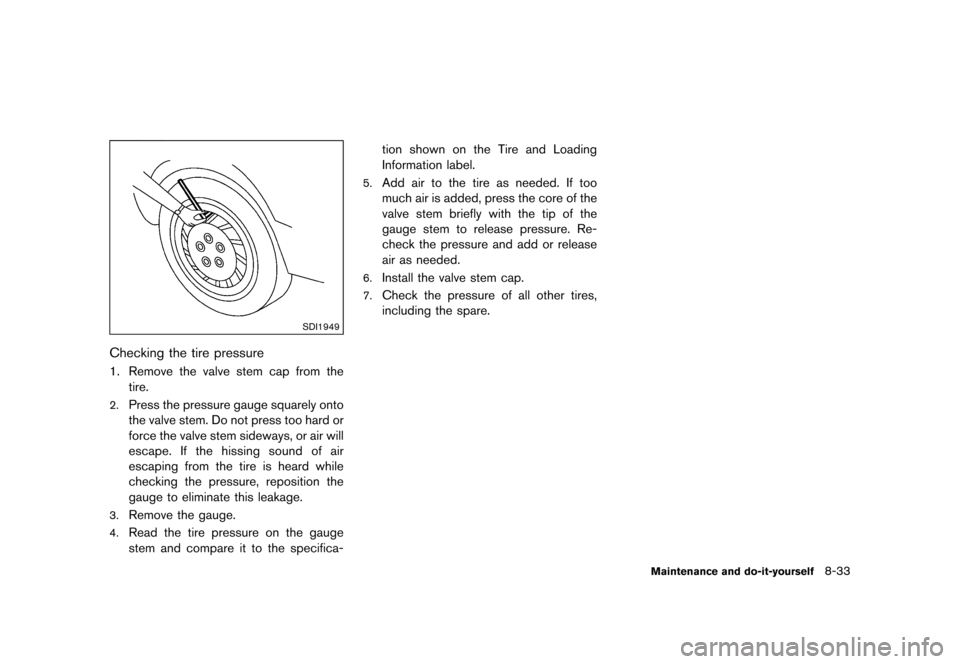

SDI1949
Checking thetire pressure
GUID-EAF7 4098-BED3 -48BE-BFDE-9B3D9F2 41441
1. Remove thevalve stemcapfrom the
tire.
2.
Press thepressure gaugesquarely onto
the valve stem. Donot press toohard or
force thevalve stemsideways, orair will
escape. Ifthe hissing soundofair
escaping fromthetire isheard while
checking thepressure, reposition the
gauge toeliminate thisleakage.
3.
Remove thegauge.
4.
Read thetirepressure onthe gauge
stem andcompare itto the specifica- tion
shown onthe Tire andLoading
Information label.
5.
Add airtothe tireasneeded. Iftoo
much airisadded, pressthecore ofthe
valve stembriefly withthetipofthe
gauge stemtorelease pressure. Re-
check thepressure andadd orrelease
air asneeded.
6.
Install thevalve stemcap.
7.
Check thepressure ofall other tires,
including thespare.
Maintenance anddo-it-yo urself
8-33
&RQGLWLRQ


> (GLW   0RGHO )'@

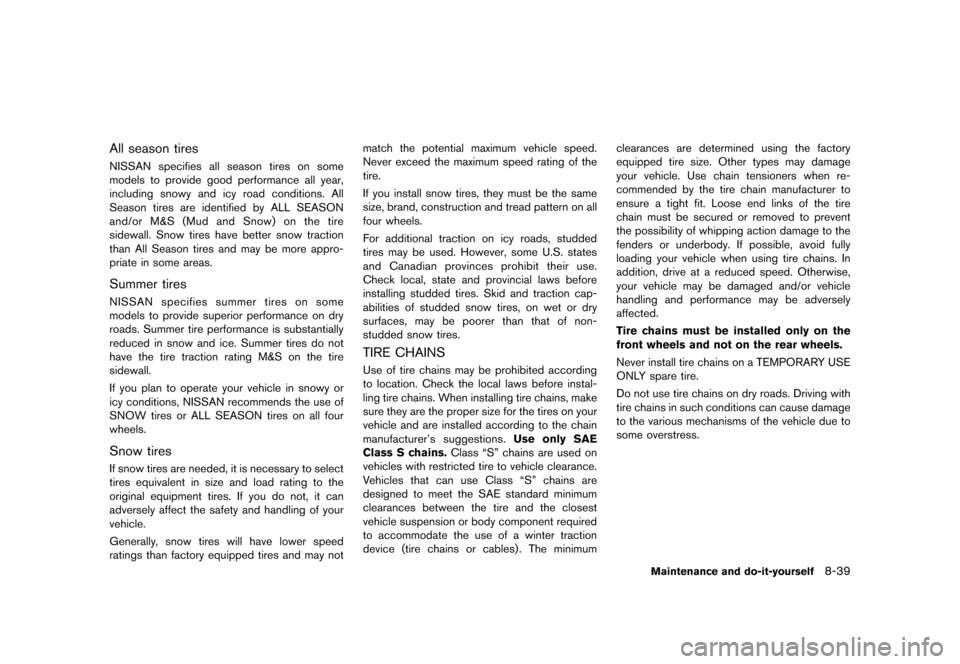

All season tires
GUID-41 6D8104-CC7 B-46FA-B4CA-B53 7AF5AE9CE
NISSAN specifies allseason tiresonsome
models toprovide goodperformance allyear,
including snowyandicyroad conditions. All
Season tiresareidentified byALL SEASON
and/or M&S(Mud andSnow) onthe tire
sidewall. Snowtireshave better snowtraction
than AllSeason tiresandmay bemore appro-
priate insome areas.
Summer tires
GUID-07 88A270-69FF -49A1-ACEC- 39C92FC91344
NISSAN specifies summertiresonsome
models toprovide superior performance ondry
roads. Summer tireperformance issubstantially
reduced insnow andice.Summer tiresdonot
have thetire traction ratingM&Sonthe tire
sidewall.
If you plan tooperate yourvehicle insnowy or
icy conditions, NISSANrecommends theuse of
SNOW tiresorALL SEASON tiresonallfour
wheels.
Snow tires
GUID-7DBD9 178-687B-4889-BA79 -417F594D0 842
If snow tiresareneeded, itis necessary toselect
tires equivalent insize andload rating tothe
original equipment tires.Ifyou donot, itcan
adversely affectthesafety andhandling ofyour
vehicle.
Generally ,snow tireswillhave lower speed
ratings thanfactory equipped tiresandmay not match
thepotential maximum vehiclespeed.
Never exceed themaximum speedratingofthe
tire.
If you install snowtires,theymust bethe same
size, brand, construction andtread pattern onall
four wheels.
For additional tractiononicy roads, studded
tires maybeused. However, someU.S.states
and Canadian provinces prohibittheiruse.
Check local,stateandprovincial lawsbefore
installing studdedtires.Skidandtraction cap-
abilities ofstudded snowtires,onwet ordry
surfaces, maybepoorer thanthatofnon-
studded snowtires.
TIRE CHAINS
GUID-74 141916-76 68-4C78-8B 9E-6B18B49D3DE7
Use oftire chains maybeprohibited according
to location. Checkthelocal lawsbefore instal-
ling tirechains. Wheninstalling tirechains, make
sure theyarethe proper sizeforthe tires onyour
vehicle andareinstalled according tothe chain
manufacturer's suggestions.Useonly SAE
Class Schains. ClassªSºchains areused on
vehicles withrestricted tiretovehicle clearance.
V ehicles thatcanuseClass ªSºchains are
designed tomeet theSAE standard minimum
clearances betweenthetireand theclosest
vehicle suspension orbody component required
to accommodate theuse ofawinter traction
device (tirechains orcables) .The minimum clearances
aredetermined usingthefactory
equipped tiresize. Other typesmaydamage
your vehicle. Usechain tensioners whenre-
commended bythe tirechain manufacturer to
ensure atight fit.Loose endlinks ofthe tire
chain mustbesecured orremoved toprevent
the possibility ofwhipping actiondamage tothe
fenders orunderbody .If possible, avoidfully
loading yourvehicle whenusingtirechains. In
addition, driveatareduced speed.Otherwise,
your vehicle maybedamaged and/orvehicle
handling andperformance maybeadversely
affected.
Tire chains mustbeinstalled onlyonthe
front wheels andnotonthe rear wheels.
Never installtirechains onaTEMPORAR YUSE
ONL Yspare tire.
Do not use tirechains ondry roads. Driving with
tire chains insuch conditions cancause damage
to the various mechanisms ofthe vehicle dueto
some overstress.
Maintenance anddo-it-yo urself
8-39
&RQGLWLRQ


> (GLW   0RGHO )'@
8-40
Maintenance anddo-it-yours elf

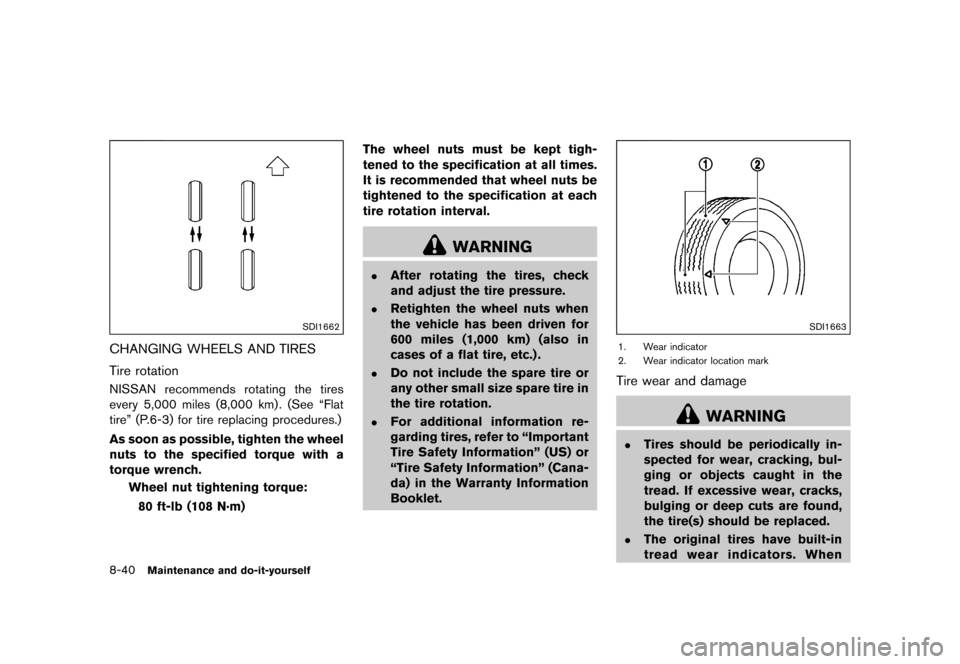

SDI1662
CHANGING WHEELSANDTIRES
GUID-41BC 763C-419B-45A4-AD0 E-D41987D9B9CC
Tire rotation
GUID-F 5986E33-082B -45E2-BD27-0D11FB4C 108F
NISSAN recommends rotatingthetires
every 5,000 miles(8,000 km).(See ªFlat
tireº (P.6-3) fortire replacing procedures.)
As soon aspossible, tightenthewheel
nuts tothe specified torquewitha
torque wrench.
Wheel nuttightening torque:
80 ft-lb (108 N´m) The
wheel nutsmust bekept tigh-
tened tothe specification atall times.
It is recommended thatwheel nutsbe
tightened tothe specification ateach
tire rotation interval.
WARNING
.
After rotating thetires, check
and adjust thetire pressure.
.
Retighten thewheel nutswhen
the vehicle hasbeen driven for
600 miles (1,000 km)(also in
cases ofaflat tire, etc.).
.
Do not include thespare tireor
any other small sizespare tirein
the tire rotation.
.
For additional information re-
garding tires,refertoªImportant
Tire Safety Informationº (US)or
ªTire Safety Informationº (Cana-
da) inthe Warranty Information
Booklet.
SDI1663
1. Wear indicator
2. Wear indicator locationmark
Tire wear anddamage
GUID-31749D 32-974E-4A82-89B7-A06D0BF3E07F
WARNING
.
Tires should beperiodically in-
spected forwear, cracking, bul-
ging orobjects caughtinthe
tread. Ifexcessive wear,cracks,
bulging ordeep cutsarefound,
the tire(s) should bereplaced.
.
The original tireshave built-in
tread wearindicators. When
&RQGLWLRQ


> (GLW   0RGHO )'@

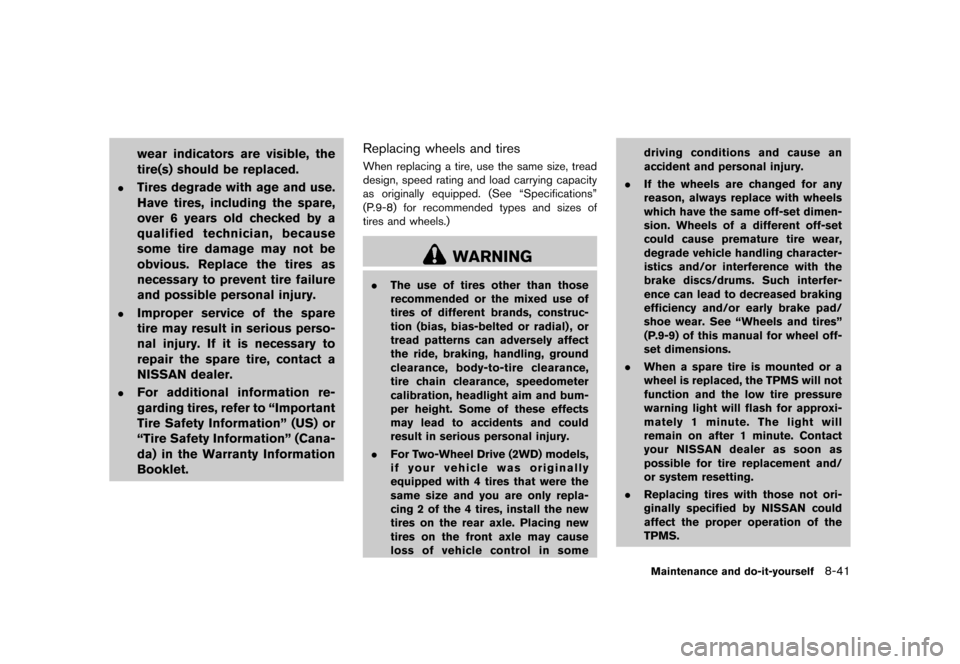

wear indicators arevisible, the
tire(s) should bereplaced.
.
Tires degrade withageand use.
Have tires,including thespare,
over 6years oldchecked bya
qualified technician, because
some tiredamage maynotbe
obvious. Replacethetires as
necessary toprevent tirefailure
and possible personal injury.
.
Improper serviceofthe spare
tire may result inserious perso-
nal injury. Ifitis necessary to
repair thespare tire,contact a
NISSAN dealer.
.
For additional information re-
garding tires,refertoªImportant
Tire Safety Informationº (US)or
ªTire Safety Informationº (Cana-
da) inthe Warranty Information
Booklet.
Replacing wheelsandtires
GUID-230 95086-9B18-4 E25-B69C-85FAB59BB 518
When replacing atire, usethesame size,tread
design, speedratingandload carrying capacity
as originally equipped. (SeeªSpecificationsº
(P .9-8) forrecommended typesandsizes of
tires andwheels.)
WARNING
. The useoftires other thanthose
recommended orthe mixed useof
tires ofdifferent brands,construc-
tion (bias, bias-belted orradial) ,or
tread patterns canadversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlightaimand bum-
per height. Someofthese effects
may lead toaccidents andcould
result inserious personal injury.
. For Two-Wheel Drive(2WD) models,
if your vehicle wasoriginally
equipped with4tires thatwere the
same sizeandyouareonly repla-
cing 2of the 4tires, install thenew
tires onthe rear axle. Placing new
tires onthe front axlemay cause
loss ofvehicle control insome driving
conditions andcause an
accident andpersonal injury.
. Ifthe wheels arechanged forany
reason, alwaysreplace withwheels
which havethesame off-set dimen-
sion. Wheels ofadifferent off-set
could cause premature tirewear,
degrade vehiclehandling character-
istic sand/or interference withthe
brake discs/drums. Suchinterfer-
ence canlead todecreased braking
efficiency and/orearlybrake pad/
shoe wear. SeeªWheels andtiresº
(P .9-9) ofthis manual forwheel off-
set dimensions.
. When aspare tireismounted ora
wheel isreplaced, theTPMS willnot
function andthelow tirepressure
warning lightwillflash forapproxi-
mately 1minute. Thelight will
remain onafter 1minute. Contact
your NISSAN dealerassoon as
possible fortire replacement and/
or system resetting.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
Maintenance anddo-it-yo urself
8-41
&RQGLWLRQ


> (GLW   0RGHO )'@

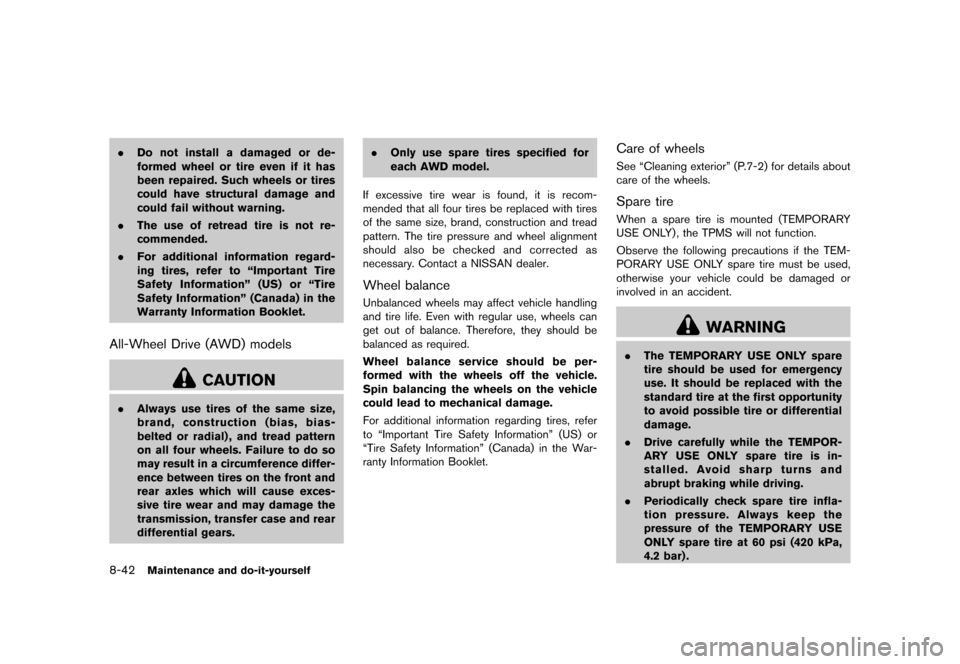

8-42
Maintenance anddo-it-yours elf
. Do not install adamaged orde-
formed wheelortire even ifithas
been repaired. Suchwheels ortires
could havestructural damageand
could failwithout warning.
. The useofretread tireisnot re-
commended.
. For additional information regard-
ing tires, refertoªImportant Tire
Safety Informationº (US)orªTire
Safety Informationº (Canada)inthe
Warranty Information Booklet.
All-Wheel Drive(AWD) models
GUID-98BA F2A8-B68B-4B03-94 73-BDE7F96 77004
CAUTION
. Always usetires ofthe same size,
brand, construction (bias,bias-
belted orradial) ,and tread pattern
on allfour wheels. Failuretodo so
may result inacircumference differ-
ence between tiresonthe front and
rear axles which willcause exces-
sive tirewear andmay damage the
transmission, transfercaseandrear
differential gears. .
Only usespare tiresspecified for
each AWD model.
If excessive tirewear isfound, itis recom-
mended thatallfour tires bereplaced withtires
of the same size,brand, construction andtread
pattern. Thetirepressure andwheel alignment
should alsobechecked andcorrected as
necessary .Contact aNISSAN dealer.
Wheel balance
GUID-89D C94BE-30B 6-4D4F-83D4 -7CDA2484D5 D9
Unbalanced wheelsmayaffect vehicle handling
and tirelife. Even withregular use,wheels can
get outofbalance. Therefore, theyshould be
balanced asrequired.
Wheel balance serviceshouldbeper-
formed withthewheels offthe vehicle.
Spin balancing thewheels onthe vehicle
could leadtomechanical damage.
For additional information regardingtires,refer
to ªImportant TireSafety Informationº (US)or
ªTire Safety Informationº (Canada)inthe War-
ranty Information Booklet.
Care ofwheels
GUID-22 21D553-79 8A-4070-BF97-2228C8 0D3EF8
See ªCleaning exteriorº(P.7-2) fordetails about
care ofthe wheels.
Spare tire
GUID-45 B66525-EAC 8-4147-B096-8 F8081E1C4C1
When aspare tireismounted (TEMPORAR Y
USE ONLY),the TPMS willnotfunction.
Observe thefollowing precautions ifthe TEM-
PORAR YUSE ONLYspare tiremust beused,
otherwise yourvehicle couldbedamaged or
involved inan accident.
WARNING
. The TEMPORAR YUSE ONLYspare
tire should beused foremergency
use. Itshould bereplaced withthe
standard tireatthe first opportunity
to avoid possible tireordifferential
damage.
. Drive carefully whiletheTEMPOR-
AR YUSE ONLYspare tireisin-
stalled. Avoidsharpturnsand
abrupt braking whiledriving.
. Periodically checksparetireinfla-
tion pressure. Alwayskeepthe
pressure ofthe TEMPORAR YUSE
ONL Yspare tireat60 psi (420 kPa,
4.2 bar) .
&RQGLWLRQ
