2015 NISSAN ARMADA Owners Manual

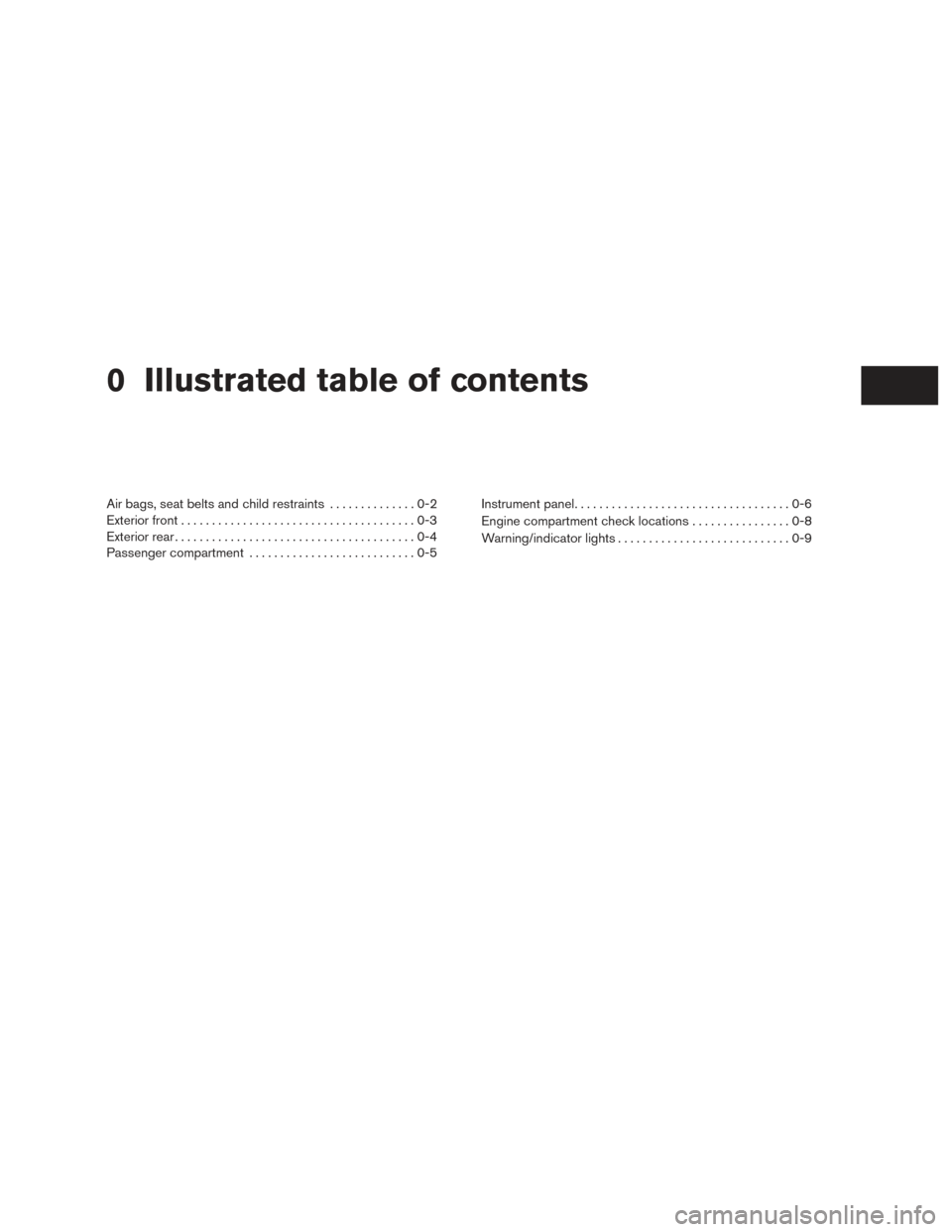

0 Illustrated table of contents
Air bags, seat belts and child restraints..............0-2
Exterior front ......................................0-3
Exterior rear .......................................0-4
Passenger compartment ...........................0-5 Instrument panel
...................................0-6
Engine compartment check locations . . ..............0-8
Warning/indicator lights ............................0-9

1. 3rd row bench seat belts (P. 1-20)
2. 2nd row seat belts (P. 1-20)
3. Roof-mounted curtain side-impact androllover supplemental air bag (P. 1-55)
4. Front seat belt with pretensioner(s) and
shoulder height adjuster (P. 1-20, 1-55)
5. Head restraints/headrests (P.1-14)
6. Supplemental front-impact air bags
(P.1-55)
7. Seats (P. 1-2)
8. Occupant classification sensor
(weight sensor) (P.1-55)
9. Front seat-mounted side-impact
supplemental air bag (P. 1-55)
10. LATCH (Lower Anchors and Tethers for
CHildren) (P. 1-34)
11. 2nd row seat top tether strap anchor
(P. 1-50)
12. 3rd row bench seat top tether strap
anchor (P. 1-50)
See the page number indicated in paren-
theses for operating details.
LII2393
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

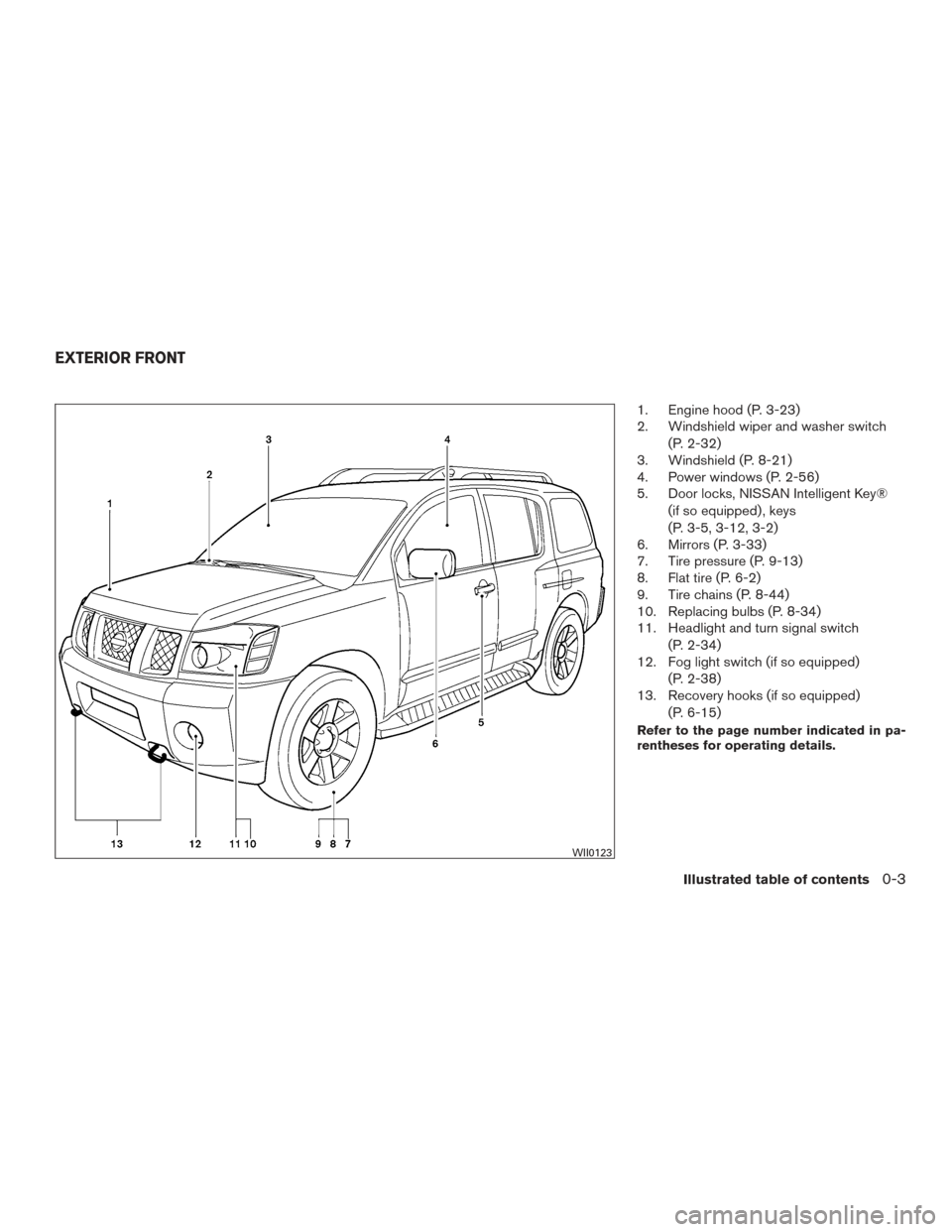

1. Engine hood (P. 3-23)
2. Windshield wiper and washer switch(P. 2-32)
3. Windshield (P. 8-21)
4. Power windows (P. 2-56)
5. Door locks, NISSAN Intelligent Key®
(if so equipped) , keys
(P. 3-5, 3-12, 3-2)
6. Mirrors (P. 3-33)
7. Tire pressure (P. 9-13)
8. Flat tire (P. 6-2)
9. Tire chains (P. 8-44)
10. Replacing bulbs (P. 8-34)
11. Headlight and turn signal switch
(P. 2-34)
12. Fog light switch (if so equipped)
(P. 2-38)
13. Recovery hooks (if so equipped)
(P. 6-15)
Refer to the page number indicated in pa-
rentheses for operating details.
WII0123
EXTERIOR FRONT
Illustrated table of contents0-3

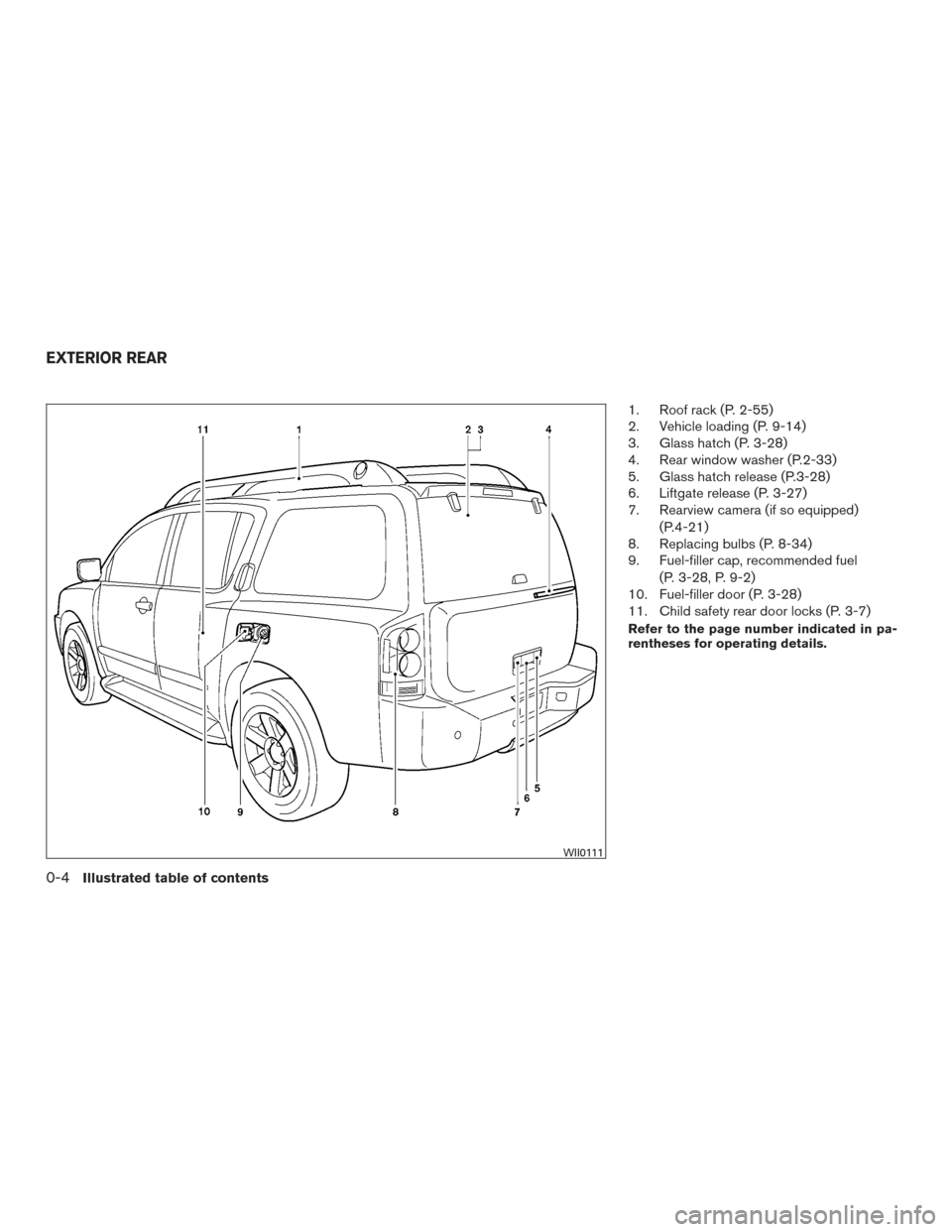

1. Roof rack (P. 2-55)
2. Vehicle loading (P. 9-14)
3. Glass hatch (P. 3-28)
4. Rear window washer (P.2-33)
5. Glass hatch release (P.3-28)
6. Liftgate release (P. 3-27)
7. Rearview camera (if so equipped)(P.4-21)
8. Replacing bulbs (P. 8-34)
9. Fuel-filler cap, recommended fuel
(P. 3-28, P. 9-2)
10. Fuel-filler door (P. 3-28)
11. Child safety rear door locks (P. 3-7)
Refer to the page number indicated in pa-
rentheses for operating details.
WII0111
EXTERIOR REAR
0-4Illustrated table of contents

1. Rear ventilators (P. 4-28)
2. Storage (P. 2-45)
3. Power moonroof (if so equipped)(P. 2-60)
4. Map lights (P. 2-63)
5. Sun visors (P. 3-32)
6. HomeLink® Universal Transceiver
(if so equipped) (P. 2-64)
7. DVD entertainment system
(if so equipped) (P. 4-63)
8. Glove box (P. 2-47)
9. Seats (P. 1-2)
10. Cup holders (P. 2-45)
11. Luggage storage (P. 2-52)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2227
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vents (P. 4-28)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-34)
3. Steering wheel switch for audio
control/Bluetooth® Hands-Free Phone
System (P. 4-81, P. 4-108)
4. Instrument brightness control (P. 2-37)
5. Driver supplemental air bag/horn
(P. 1-55, P. 2-38)
6. Meters, gauges and warning/indicator
lights (P. 2-3, 2-12)
7. Cruise control main/set switches
(P. 5-20)
8. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-32, P. 2-33)
9. Ignition switch (P. 5-9)
10. Display screen/Display screen with
navigation system* (if so equipped)
(P.4-4, P. 4-10)
11. Navigation system* controls
(if so equipped) (P. 4-10)
12. Audio system controls (P. 4-33)
13. Front passenger supplemental air bag
(P. 1-55)
14. Glove box (P. 2-47)
15. Hazard lights (P. 6-2)
LIC2892
INSTRUMENT PANEL
0-6Illustrated table of contents

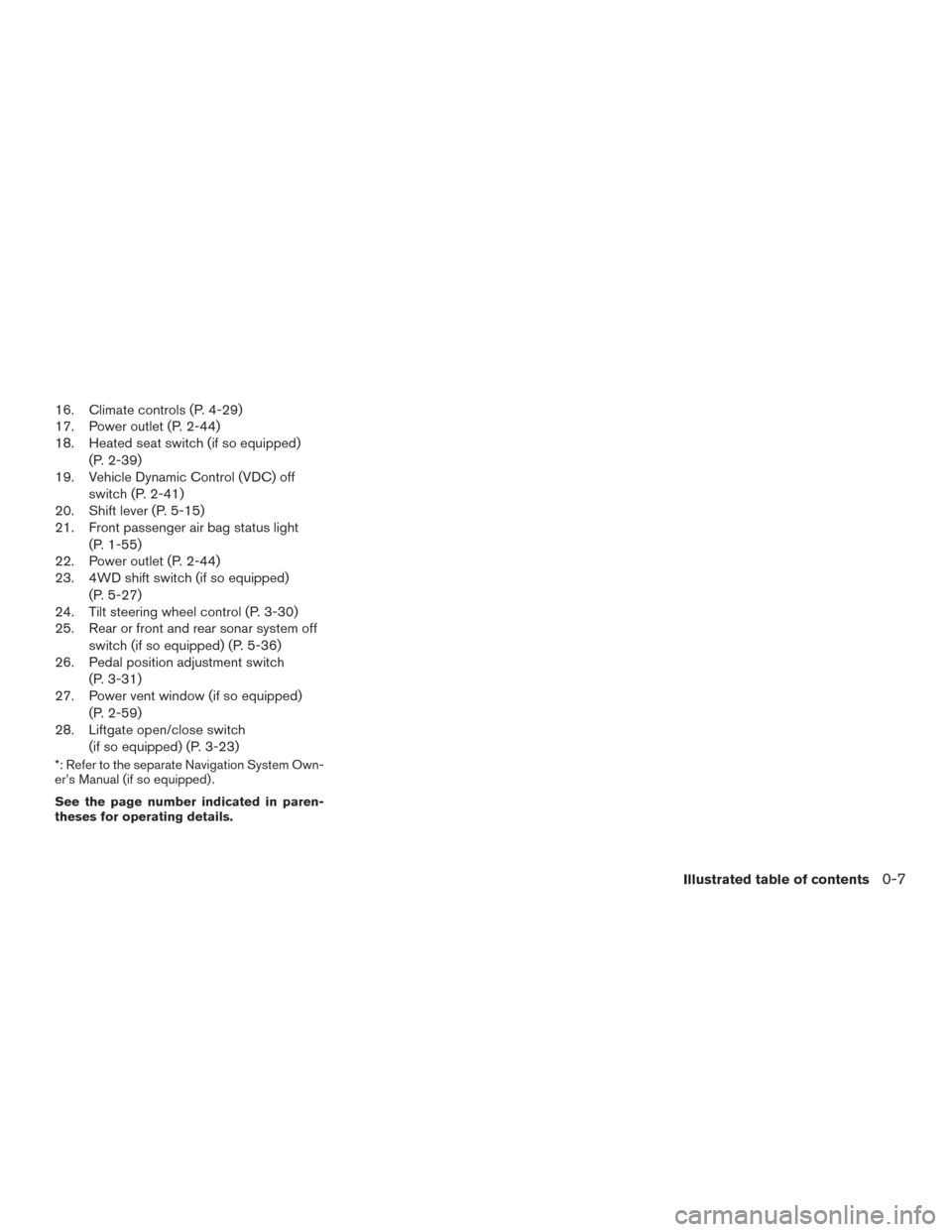

16. Climate controls (P. 4-29)
17. Power outlet (P. 2-44)
18. Heated seat switch (if so equipped)(P. 2-39)
19. Vehicle Dynamic Control (VDC) off
switch (P. 2-41)
20. Shift lever (P. 5-15)
21. Front passenger air bag status light
(P. 1-55)
22. Power outlet (P. 2-44)
23. 4WD shift switch (if so equipped)
(P. 5-27)
24. Tilt steering wheel control (P. 3-30)
25. Rear or front and rear sonar system off
switch (if so equipped) (P. 5-36)
26. Pedal position adjustment switch
(P. 3-31)
27. Power vent window (if so equipped)
(P. 2-59)
28. Liftgate open/close switch
(if so equipped) (P. 3-23)
*: Refer to the separate Navigation System Own-
er’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7
