Due to legal requirements in some states and
Canadian Provinces, your vehicle may be re-
quired to be in what is called the “ready condi-
tion” for an Inspection/Maintenance (I/M) test of
the emission control system.
The vehicle is set to the “ready condition” when it
is driven through certain driving patterns. Usually,
the ready condition can be obtained by ordinary
usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready” condition. Before taking the
I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Place the ignition switch in the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20 sec-
onds and then blinks for 10 seconds , the I/M test
condition is “not ready”. If the MIL does not blink
after 20 seconds, the I/M test condition is
“ready”. Contact a NISSAN dealer to set the
“ready condition” or to prepare the vehicle for
testing.This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
● How various systems in your vehicle were
operating;
● Whether or not the driver and passenger
safety belts were buckled/fastened;
● How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
● How fast the vehicle was traveling.
● Sounds are not recorded. These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur. NOTE: EDR data are recorded by
your vehicle only if a nontrivial crash situation
occurs; no data are recorded by the EDR under
normal driving conditions and no personal data
(e.g. name, gender, age and crash location) are
recorded. However, other parties, such as law
enforcement, could combine the EDR data with
the type of personally identifying data routinely
acquired during a crash investigation.
To read data recorded by an EDR, special equip-
ment is required and access to the vehicle or the
EDR is needed. In addition to the vehicle manu-
facturer and NISSAN dealer, other parties, such
as law enforcement, that have the special equip-
ment, can read the information if they have ac-
cess to the vehicle or the EDR. EDR data will only
be accessed with the consent of the vehicle
owner or lessee or as otherwise required or per-
mitted by law.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
EVENT DATA RECORDERS (EDR)
9-34Technical and consumer information

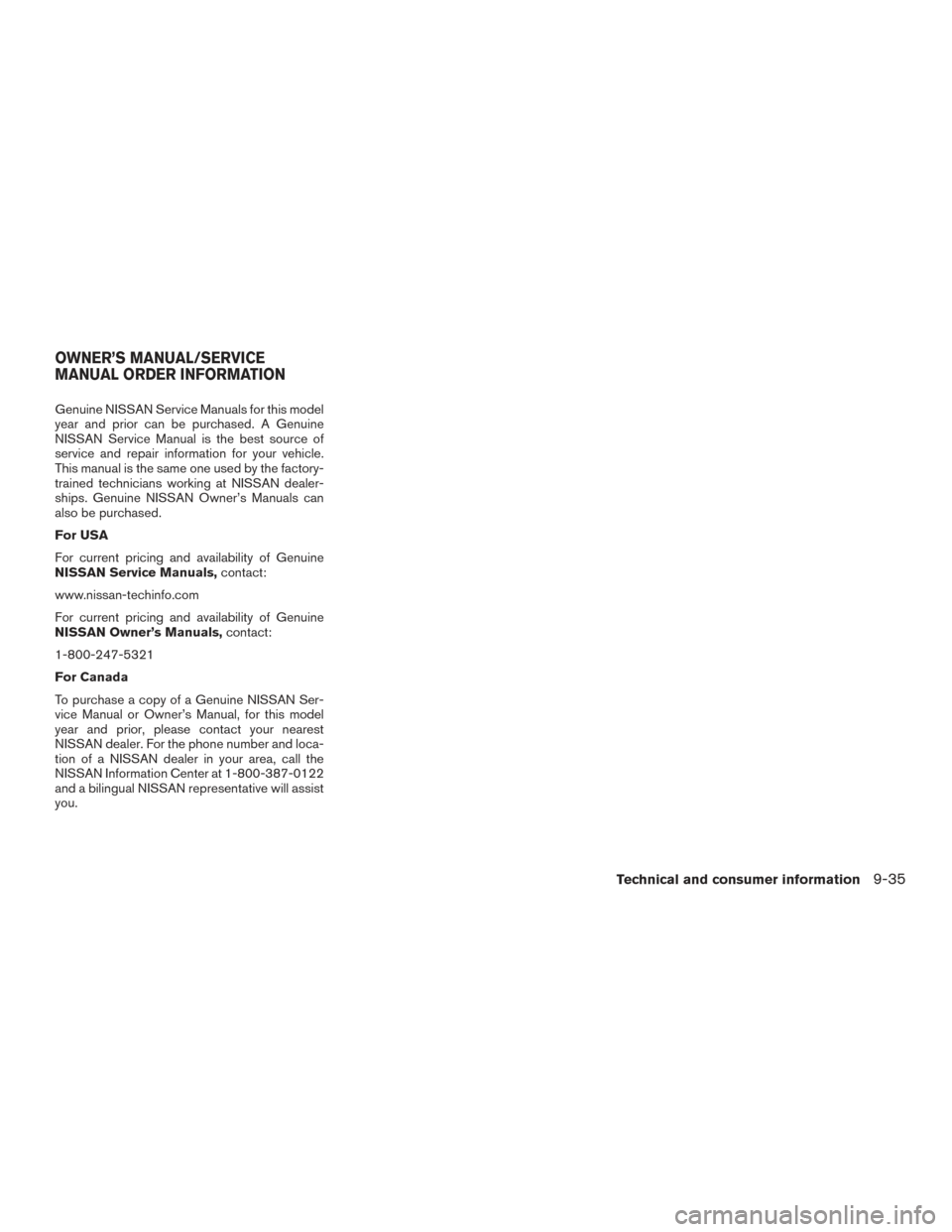

Genuine NISSAN Service Manuals for this model
year and prior can be purchased. A Genuine
NISSAN Service Manual is the best source of
service and repair information for your vehicle.
This manual is the same one used by the factory-
trained technicians working at NISSAN dealer-
ships. Genuine NISSAN Owner’s Manuals can
also be purchased.
For USA
For current pricing and availability of Genuine
NISSAN Service Manuals,contact:
www.nissan-techinfo.com
For current pricing and availability of Genuine
NISSAN Owner’s Manuals, contact:
1-800-247-5321
For Canada
To purchase a copy of a Genuine NISSAN Ser-
vice Manual or Owner’s Manual, for this model
year and prior, please contact your nearest
NISSAN dealer. For the phone number and loca-
tion of a NISSAN dealer in your area, call the
NISSAN Information Center at 1-800-387-0122
and a bilingual NISSAN representative will assist
you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Technical and consumer information9-35

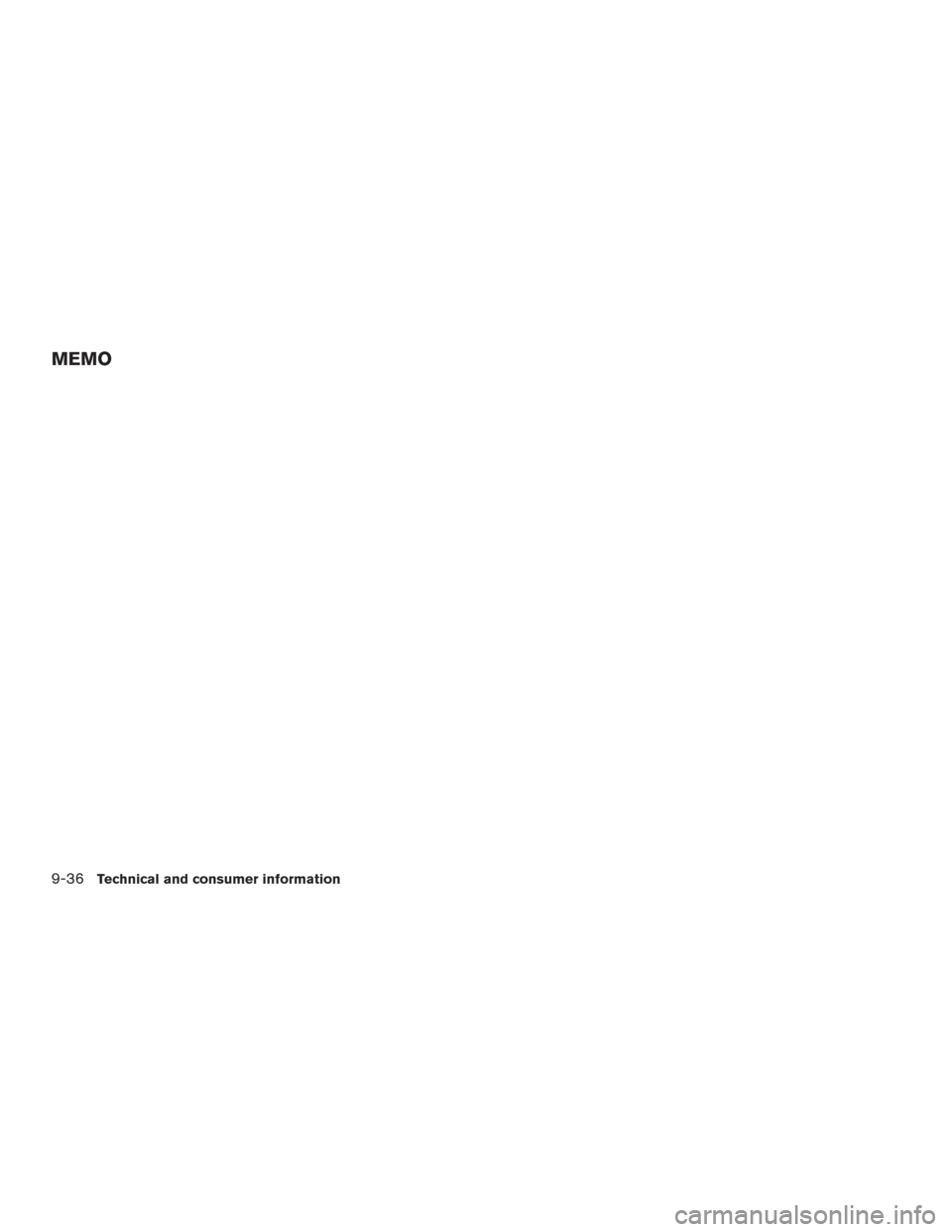

MEMO
9-36Technical and consumer information

10 Index
2nd row bench seat adjustment.........1-4
4WDwarninglight...............2-15
A
Adjusting pedal position ............3-31
Air bag (See supplemental restraint
system) .....................1-55
Air bag system Front (See supplemental front impact
air bag system) ...............1-62
Airbagwarninglabels.............1-72
Airbagwarninglight...........1-72,2-18
Air bag warning light, supplemental . .1-72, 2-18
AirCleaner ...................8-19
Air cleaner housing filter ............8-19
Air conditioner Air conditioner service ...........4-33
Air conditioner specification label .....9-13
Air conditioner system refrigerant and oil
recommendations ..............9-8
Air conditioner system refrigerant
recommendations ..............9-8
Heater and air conditioner controls ....4-29
Rear seat air conditioner ..........4-31
Servicing air conditioner ..........4-33
Anchor point locations .............1-38
Antenna .....................4-82
Antifreeze ....................5-37
Anti-lock brake warning light ..........2-13
Anti-lock Braking System (ABS) ........5-32
Audible reminders ...............2-20 Audio system
..................4-33
AMradioreception.............4-34
Bluetooth®audio..............4-77
Bluetooth® streaming audio ........4-77
Compact disc (CD) player .....4-53,4-59
Digital Versatile Disc (DVD) Player
Operation ..................4-63
FM/AM/SAT radio with compact disc (CD)
player.................4-49,4-55
FMradioreception.............4-33
iPod® Player .............4-71,4-74
iPod® player operation .......4-71,4-74
Radio ....................4-33
Settings ...............4-50,4-56
Steering wheel audio control switch . . .4-81
USB interface ............4-66,4-67
USB (Universal Serial Bus)
Connection Port ...........4-66,4-67
Autolight switch .................2-35
Automatic Automatic drive positioner .....3-36,3-36
Automatic power window switch .....2-58
Automatic transmission position indicator
light .....................2-28
Driving with automatic transmission ....5-15
Automatic anti-glare inside mirror .......3-33
Automatic door locks ..............3-6
Automatic drive positioner .......3-36,3-36
Automatic transmission fluid temperature
gauge.......................2-8 B
Battery ..................5-37, 8-15
Charge warning light ............2-15
Battery replacement Keyfob................8-28,8-29
NISSAN Intelligent Key® ..........8-30
Before starting the engine ...........5-13
Belt (See drive belt) ..............8-17
Block heater Engine ....................5-39
Bluetooth® audio ................4-77
Bluetooth® hands-free
phone system .............4- 108, 4-122
Boosterseats..................1-52
Brake Anti-lock Braking System (ABS) ......5-32
Brake fluid ..................8-13
Brakelight(Seestoplight).........8-33
Brake system ................5-31
Brakewarninglight.............2-14
Brakewearindicators........2-20,8-24
Parking brake operation ..........5-19
Self-adjusting brakes ............8-24
Brake

fluid ....................8-13
Brakes ......................8-24
Brake system ..................5-31
Break-inschedule ...............5-21
Brightness/contrast button .......4-10,4-19
Brightness control Instrument panel ..............2-37
Bulb check/instrument panel ..........2-13

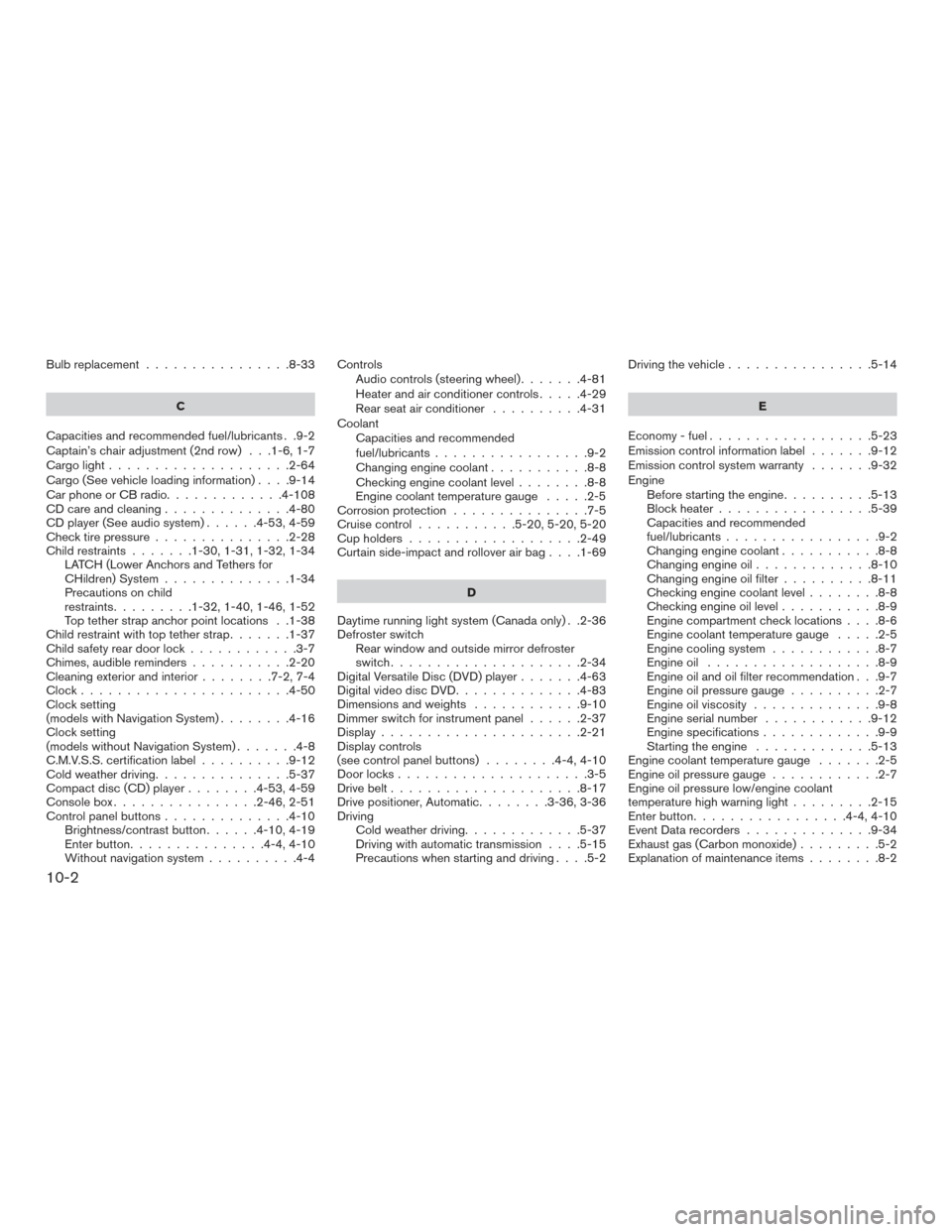

Bulb replacement................8-33
C
Capacities and recommended fuel/lubricants . .9-2
Captain’s chair adjustment (2nd row) . . .1-6, 1-7
Cargolight....................2-64
Cargo(Seevehicleloadinginformation)....9-14
Car phone or CB radio .............4-108
CD care and cleaning ..............4-80
CD player (See audio system) ......4-53,4-59
Check tire pressure ...............2-28
Child restraints .......1-30,1-31,1-32,1-34
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-34
Precautions on child
restraints.........1-32,1-40,1-46,1-52
Top tether strap anchor point locations . .1-38
Child restraint with top tether strap .......1-37
Child safety rear door lock ............3-7
Chimes, audible reminders ...........2-20
Cleaningexteriorandinterior........7-2,7-4
Clock.......................4-50
Clock setting
(models with Navigation System) ........4-16
Clock setting
(models without Navigation System) .......4-8
C.M.V.S.S. certification label ..........9-12
Cold weather driving ...............5-37
Compact disc (CD) player ........4-53,4-59
Consolebox................2-46,2-51
Control panel buttons ..............4-10
Brightness/contrast button ......4-10,4-19
Enterbutton...............4-4,4-10
Without navigation system ..........4-4Controls
Audio controls (steering wheel) .......4-81
Heater and air conditioner controls .....4-29
Rear seat air conditioner ..........4-31
Coolant Capacities and recommended
fuel/lubricants .................9-2
Changingenginecoolant...........8-8
Checking engine coolant level ........8-8
Engine coolant temperature gauge .....2-5
Corrosion protection ...............7-5
Cruisecontrol ...........5-20,5-20,5-20
Cupholders...................2-49
Curtainside-impactandrolloverairbag....1-69
D
Daytime running light system (Canada only) . .2-36
Defroster switch Rear window and outside mirror defroster
switch.....................2-34
Digital Versatile Disc (DVD) player .......4-63
Digital video disc DVD ..............4-83
Dimensionsandweights ............9-10
Dimmer switch for instrument panel ......2-37
Display......................2-21
Display controls
(seecontrolpanelbuttons) ........4-4,4-10
Door locks .....................3-5
Drive belt .....................8-17
Drive positioner, Automatic ........3-36,3-36
Driving Cold weather driving .............5-37
Driving with automatic transmission ....5-15
Precautions when starting and driving ....5-2Driving the vehicle
................5-14
E
Economy-fuel..................5-23
Emission control information label .......9-12
Emission control system warranty .......9-32
Engine Before starting the engine ..........5-13
Blockheater.................5-39
Capacities and recommended
fuel/lubricants.................9-2
Changing engine coolant ...........8-8
Changingengineoil.............8-10
Changing engine oil filter ..........8-11
Checking engine coolant level ........8-8
Checking engine oil level ...........8-9
Engine compartment check locations ....
8-6
Engine coolant temperature gauge .....2-5
Engine cooling system ............8-7
Engineoil ...................8-9
Engine oil and oil filter recommendation . . .9-7
Engineoilpressuregauge..........2-7
Engine oil viscosity ..............9-8
Engine serial number ............9-12
Engine specifications .............9-9
Starting the engine .............5-13
Engine coolant temperature gauge .......2-5
Engine oil pressure gauge ............2-7
Engine oil pressure low/engine coolant
temperature high warning light .........2-15
Enter button .................4-4,4-10
Event Data recorders ..............9-34
Exhaust gas (Carbon monoxide) .........5-2
Explanation of maintenance items ........8-2
10-2

Extendedstorageswitch ............8-28
Eyeglass case..................2-47
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire ....................6-2,6-3
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-13
Capacities and recommended
fuel/lubricants .................9-2
Engine coolant .................8-7
Engine oil ...................8-9
Power steering fluid .............8-13
Windshield-washerfluid...........8-14
F.M.V.S.S. certification label ...........9-12
Foglightswitch .................2-38
Front air bag system
(See supplemental restraint system) ......1-62
Front and rear sonar system ..........5-36
Front power seat adjustment ...........1-3
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-23
Fuel gauge ...................2-6
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Loose fuel cap warning ........2-28,3-28
Fuel Cell Vehicle (FCV) System Tirepressure.................8-37
Fuel-filler door ..................3-28
Fuel gauge .....................2-6 Fuses.......................8-24
Fusiblelinks ...................8-26
G
Garage door opener, HomeLink® Universal
Transceiver .........2-64,2-65,2-66,2-67
Gauge Automatic transmission fluid temperature
gauge .....................2-8
Engine coolant temperature gauge .....2-5
Engine oil pressure gauge ..........2-7
Fuel gauge ...................2-6
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
Voltmeter....................2-7
General maintenance ...............8-2
Glass hatch ...................3-28
Glovebox.....................2-47
Gloveboxlock..................2-47
H
Hands-free phone system,
Bluetooth®...............4- 108, 4-122
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-34
Headlight control switch ............2-35
Headlights ....................8-31
Head restraints ..................1-14
Heated seats ...............2-39,2-40
Heated steering wheel .............2-41 Heater
Heater and air conditioner controls .....4-29
Heater operation ...............4-30
Rear seat air conditioner ..........4-31
HomeLink® Universal
Transceiver .........2-64,2-65,2-66,2-67
H
ood.......................3-23
Hook Luggage hook ................2-53
Horn .......................2-38
I
Ignition switch ...................5-9
Imageviewer...................4-19
Immobilizer system .........2-30,3-4,5-12
Important vehicle information label .......9-12
In-cabin microfilter ................8-19
Increasing fuel economy .............5-23
Indicator lights and audible reminders
(See warning/indicator lights and
audible reminders) .........2-12,2-13,2-18
Information display ................2-21
Inside automatic anti-glare mirror ........3-33
Instrument brightness control ..........2-37
Instrumentpanel...............0-6,2-2
Instrument panel dimmer switch ........2-37
Intelligent Key system Key operating range .............3-14
Key operation ................3-15
Mechanical key ................3-3
Remote keyless entry operation.......3-17
Troubleshooting guide ............3-22
Warning signals ...............3-22
Interior light ....................2-62
10-3

iPod®Player ...............4-71,4-74
ISOFIX child restraints.............1-34
J
Jump starting ...............6-10,8-16
K
Key.........................3-2
Key fob battery replacement .......8-28,8-29
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-17
Without Intelligent Key system
(See remote keyless entry system) ......3-8
Keyless entry system
(See remote keyless entry system) ........3-7
Keys NISSAN Intelligent Key® .......3-2,3-12
L
Labels Air conditioner specification label .....9-13
C.M.V.S.S. certification label ........9-12
Emissioncontrolinformationlabel.....9-12
Engine serial number ............9-12
F.M.V.S.S. certification label .........9-12
Tire and Loading Information label .....9-13
Vehicle identification number (VIN) .....9-11
Vehicle identification number (VIN) plate . .9-11
Warning labels (for SRS) ..........1-72LATCH (Lower Anchors and Tethers for CHildren)
System
......................1-34
License plate Installing the license plate ..........9-13
Liftgate ......................3-23
Liftgate release ..................3-27
Light Air bag warning light .........1-72,2-18
Brake light (See stop light) .........8-33
Bulb check/instrument panel ........2-13
Bulbreplacement..............8-33
Charge warning light ............2-15
Foglights...................8-32
Foglightswitch ...............2-38
Headlight and turn signal switch ......2-34
Headlight control switch ..........2-35
Headlights..................8-31
Interiorlight..................2-62
Lightbulbs..................8-31
Low tire pressure warning light .......2-16
Low windshield-washer fluid
warning light ..............2-17,2-27
Passenger air bag and status light .....1-64
Personal lights ................2-63
Security indicator light ............2-20
Warning/indicator lights and
audiblereminders.......2-12,2-13,2-18
Lights.......................8-31 Maplights ..................2-63
Lock Child safety rear door lock ..........3-7
Door locks ...................3-5
Gloveboxlock................2-47
Liftgate release ................3-27
Power door locks ...............3-6
Loose fuel cap warning ..........2-28,3-28 Low fuel warning light
.......2-16,2-17,2-27
Low tire pressure warning light .........2-16
Low windshield-washer fluid warning
light ....................2-17,2-27
Luggage hook ..................2-53
Luggage rack (see roof rack) ..........2-55
Luggage (See vehicle loading information) . .9-14
Luggage storage
(see vehicle loading information) ........2-52
M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............
8-2
Seat belt maintenance ............1-29
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-19
Manual vent windows ..............2-60
Maplights ....................2-63
Mappocket....................2-45
Memory Seat ...............3-36,3-36
Meters and gauges ................2-3
Instrument brightness control ........2-37
Mirror Automatic anti-glare inside mirror ......3-33
Outside mirror control ............3-34
Outside mirrors ...............3-34
Rearview ...................3-33
Vanity mirror .................3-32
Mirrors ......................3-33
Moonroof .....................2-60
10-4

N
NISSAN Intelligent Key® .........3-2,3-12
NISSAN mobile entertainment system
(MES) .......................4-83
NISSAN Vehicle Immobilizer
System ................2-30,3-4,5-12
NISSAN voice recognition system ......4-135
O
Octanerating(Seefueloctanerating)......9-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-10
Changing engine oil filter ..........8-11
Checking engine oil level ...........8-9
Engine oil ...................8-9
Engine oil and oil filter recommendation . . .9-7
Engine oil pressure low/engine coolant
temperature high warning light .......2-15
Engine oil viscosity ..............9-8
Oneshotcall..............4- 112, 4-124
Outside mirror control ..............3-34
Outside mirrors .................3-34
Overhead console ................2-48
Overheat Ifyourvehicleoverheats...........6-12
Owner’s manual order form ...........9-35
Owner’s manual/service manual order
information ....................9-35 P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-31
Parking brake ...................5-19
Pedal position adjustment ............3-31
Personallights..................2-63
Phone, Bluetooth® hands-free
system .................4- 108, 4-122
Power Power door locks ...............3-6
Power outlet .................2-44
Power rear windows .............2-58
Power steering fluid .............8-13
Power steering system ...........5-31
Power vent windows .............2-59
Rear power windows ............2-58
Power outlet ...................2-44
Power steering ..................5-31
Power steering fluid ...............8-13
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-5
Precautions on booster
seats...........1-32,1-40,1-46,1-52
Precautions on child
restraints .........1-32,1-40,1-46,1-52
Precautions on seat belt usage .......1-20
Precautions on supplemental restraint
system ....................1-55
Precautions when starting and driving ....5-2
Push starting ...................6-12 R
Radio CarphoneorCBradio...........4-108
FM/AM/SAT radio with compact disc (CD)
player .................4-49,4-55
Steering wheel audio control switch . . . .4-81
Readiness for inspection maintenance (I/M)
test ........................9-34
Rear center seat belt ..............1-26
Rear power windows ..............
2-58
Rear seat air conditioner ............4-31
Rear sonar system ................5-35
Rear sonar system off switch ..........2-42
Rearview mirror .................3-33
RearView Monitor .............4-21,4-24
Rear window and outside mirror defroster
switch.......................2-34
Rear window wiper and washer switches . . .2-33
Recorders EventData..................9-34
Refrigerant recommendation ...........9-8
Registering a vehicle in another country ....9-11
Remote keyless entry system ........3-7,3-8
Reporting safety defects (US only) .......9-33
Roof rack .....................2-55
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-32,1-40,1-46,1-52
Reporting safety defects (US only) .....9-33
10-5
