2015 MITSUBISHI LANCER EVOLUTION door locks

Seats 4-2 Seat and restraint systems
4
N00408401548
 To adjust the seat forward or backward  P.4-3
 To adjust the seatback
 P.4-4
 To adjust the seat height (Driver’s side only, if so equipped)
 P.4-4
 Heated seats (if so equipped)
 P.4-5
 Arm rest
 P.4-5
N00401600182
Your vehicle has seat belts and other features that help protect you and your passengers inan accident. Seat belts are the most important safety device. When worn properly, seat belts canreduce the chance of serious injury or death in various types of crashes. For added protec- tion during a severe frontal collision, yourvehicle has a Supplemental Restraint System(SRS) with airbags for the driver and passen- gers. The seats, head restraints, and door
locks also are safety equipment, which must be used correctly. Always check the following before you drive: That everyone in your vehicle is properly wearing their seat belt.  That infants and small children are prop- erly secured in appropriate child restraint systems in the rear seat.  That all doors are full
y closed and locked.
 That seatbacks are upright, with head restraints properly adjusted.
Seats 1 - Front seats 2 - Rear seats
Seats and restraint systems
BK0210800US.bo
ok 2 ページ ２０１４年４月８日　火曜日　午前１１時２８分

5
Features and controlsBreak-in period ...............
.................................................................5-3
Keys ..........................................
.......................................................5-3
Electronic immobilizer (Anti-thef
t starting system) ........................5-4
Keyless entry system (if so equipped) ..............................................5-7Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) .
.................................................
........................ 5-11
Door locks .......................
...............................................................5-33
Power door locks ............
...............................................................5-35
“Child safety locks” for
rear door ..................................................5-36
Trunk lid ...................................
.....................................................5-37
Inside emergency trunk lid
release ................................................5-38
Theft-alarm system
................................................
........................5-39
Power windows ...............
...............................................................5-42
Sunroof (if so equipped
) .........................................
........................5-44
Parking brake ..................
...............................................................5-46
Steering wheel tilt lock lever .........................................................5-47Inside day/night rearview
mirror ...................................................5-48
Outside rearview mirr
ors ...............................................................5-49
Ignition switch ......
.................................................
........................5-50
Steering wheel lock
................................................
........................5-52
Starting and stopping the e
ngine ....................................................5-52
Turbocharger operation
..........................................
........................5-55
Clutch pedal operation (if so equipped)..........................................5-56Manual transaxle (if so equipped) ..................................................5-56 Twin Clutch SST (Sportronic Shift Transmission) (if so equipped) .
.................................................
........................5-58
All-wheel drive system
..........................................
........................5-70
Cautions on handling of all-wheel drive vehicles ..........................5-70
S-AWC (Super-All Wheel C
ontrol) ............................................... 5-71
Anti-lock braking syst
em .....................................
......................... 5-74
Active stability control
(ASC) ....................
................................... 5-76
Limited-slip differenti
al ..............................
................................... 5-78
Service brake .................
.................................................
............... 5-79
Brake assist system
...............................................
......................... 5-80
Power steering system
..........................................
......................... 5-80
Cruise control ................
.................................................
............... 5-80
Tire pressure monitoring
system ................................................... 5-85
Instrument cluster
.................................................
......................... 5-89
Multi-information disp
lay ....................................
......................... 5-90
Indicator light, warning light, and information screen display list ...........................
.................................................... 5-110
Indicators .................................
.................................................... 5-120
Warning lights ................
.................................................
............. 5-121
Information screen disp
lay ...................................
....................... 5-122
Combination headlights and dimmer switch ............................... 5-124 Turn signal lever ..
.................................................
....................... 5-129
Hazard warning flasher
switch .................................................... 5-130
Front fog light switch
...........................................
....................... 5-130
Wiper and washer swit
ch ......................................
....................... 5-131
Electric rear window def
ogger switch ......................................... 5-135
Horn switch .............................
.................................................... 5-136
Link System .............................
.................................................... 5-136
Bluetooth
® 2.0 interface ..........
.................................................... 5-136
USB input terminal
...............................................
....................... 5-157
Sun visors ......................
.................................................
............. 5-160
12 V power outlet ..........
.................................................
............. 5-160
BK0210800US.bo
ok 1 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) 5-14 Features and controls
5
N00503300038
The operating range is the interior of the vehicle.
N00503401254
While carrying the F.A.S.T.-key, press the driver’s or front passenger’s door lock/unlock switch (A) within the operating range to lock all the doors.The turn signal lights will blink once and thebuzzer will sound once. Also refer to “Door locks”and “Power door locks” on pages 5-33 and 5-35 respectively.
While carrying the F.A.S.T.-key within the operating range, you can unlock the doors byusing the F.A.S.T.-key operation. The dome light will turn on for 30 seconds. The turn signal lights will blink twice and thebuzzer will sound twice. Also refer to “Door locks” and “Power door locks” on pages 5-33 and 5-35 respectively. Press the driver’s door lock/unlock switch (A) to unlock only the driver’s door.Within about 2 seconds, press the driver’s door lock/unlock switch one more time to unlock all the doors.
Operating range for starting the engine
* : Front of the vehicle : Operating range
NOTE
 Even if the F.A.S.T.-key is within the operat- ing range, it may not be possible to start the engine if the key is in a storage space such asthe glove compartment, on top of the instru- ment panel, or in the door pocket or trunk compartment.  Even if the F.A.S.T.-key is outside the vehi- cle, it may be possible
to start the engine if
the key is close to a door or door window.
To operate using the F.A.S.T.- key

To l o c k

NOTE
 In cases such as the following, the F.A.S.T.- key does not operate.
• There is a F.A.S.T.-key in the passenger compartment • A door is open or ajar • The ignition switch is in a position other than “LOCK” • The emergency key is inserted into the igni- tion switch
To unlock (Driver’s and passenger doors)
NOTE
BK0210800US.bo
ok 14 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Free-hand Advanced Security Transmit
ter (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
Press the front passenger’s door lock/unlock switch (B) to unlock all the doors.
While carrying the F.A.S.T.-key within the operating range to open the trunk lid, pressand hold down the OPEN
switch (A) until the
trunk lid opens. Also refer to “Trunk lid” on page 5-37.
N00513500046
To prevent vehicle theft, no F.A.S.T.-keys other than those registered in advance can be used to start the engine. (Electronic immobi-lizer function)
NOTE
 Settings can be changed so that all doors are unlocked automatically by pressing the driver’s door lock/unlock switch once. Refer to “Setting of door unlock function” onpage 5-30.
NOTE
 If the doors are unlocked when all doors are locked and no doors are opened within about 30 seconds, the doors will automatically re- lock.  The amount of time after unlocking until the vehicle relocks automatically can be adjusted. See an authorized MitsubishiMotors dealer for details.  In cases such as the following, the F.A.S.T.- key does not operate. • A door is open or ajar• The ignition switch is in a position other than “LOCK” • The emergency key is inserted into the igni- tion switch
 Function settings can be modified as stated below.See an authorized Mitsubishi Motors dealer for details. • Activating the operation confirmation func- tion (blinking of the hazard warning lights) only during locking, or only during unlock-ing. • Deactivating the operation confirmation function (blinking of the hazard warning lights) and buzzer. • Modifying the number of blinkings in the operation confirmation function (blinking of the hazard warning lights). • Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all the doors are closed.
To open (Trunk lid)

NOTE
 The F.A.S.T.-key does not operate when the trunk lid is open.
Ignition switch

BK0210800US.bo
ok 15 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Door locks
Features and controls 5-33
5
 This device may not cause harmful inter- ference.  This device must accept any interference received, including interference that maycause undesired operation.
N00561700094
1. Before replacing the battery, remove static electricity from your body by touching a metal grounded object.2. With the Mitsubishi mark facing you, insert the cloth-covered tip of a flat blade screwdriver into the notch in the remotecontrol transmitter case and use it to open the case.
3. Remove the old battery. 4. Install a new battery with the + side (A) up.
5. Close the remote control transmitter case firmly. 6. Check the keyless entry system to see that it works.
N00509200518
CAUTION Changes or modifications not expressly approved by the manufacturer for compli- ance could void the user’s authority to oper-ate the equipment.
Procedure for replacing the remote control transmitter battery

NOTE
 Be sure to perform the procedure with the Mitsubishi mark facing you. If the Mitsubi- shi mark is not facing you when you open the remote control transmitter case, the transmit-ter may come out.
+ side - side
Coin type bat- tery CR2032
NOTE
 You may purchase a replacement battery at an electric appliance store.  An authorized Mitsubishi Motors dealer can replace the battery for you if you prefer.CAUTION When the remote control transmitter case is opened, be careful to keep water, dust, etc. out. Also, do not touch the internal compo-nents.
Door locks
WA R N I N G Make sure all doors are tightly closed and locked while driving.• Locked doors, in combination with theuse of seat belts, can help reduce the risk of ejection in an accident.• Locked doors can help keep passengers,especially small children, from opening doors and falling out of moving vehicles.
BK0210800US.bo
ok 33 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Door locks 5-34 Features and controls
5
Turn the key toward the front of the vehicle to lock the door. After checking that the door is locked, turn the key back to the center andremove it.
Move the lock knob to the lock position to lock the door.All doors should be kept locked while driv- ing. The driver’s door can be unlocked without using the lock knob by pulling on the inside door handle. 1. Move the inside lock knob to the locked position.
• Locked doors can help prevent outsiders from gaining access to your vehicle when you slow or come to a stop.
 Lock your vehicle whenever you leave it. Children who get into unlocked vehicles may not be able to get out. Children trapped inside vehicles can quickly beovercome by heat and suffer serious injury or death due to heat stroke. Never leave children unattended inside a vehicle. In addition to the risk of heat stroke, children can activate switches andcontrols, resulting in an injury or fatal accident.
To lock or unlock the driver’s door with the key
WA R N I N G
1- Insert or remove the key 2- Lock 3- Unlock
NOTE
 When locking or unlocking with the key, only the driver’s door will be locked orunlocked. To lock or unlock all doors, use the power door lock switch, the keyless entry system orthe F.A.S.T.-key. Refer to “Power door locks” on page 5-35, “Keyless entry system” on pages 5-7 and5-28, and “To operate using the F.A.S.T.- key” on page 5-14.  In vehicles equipped with the F.A.S.T.-key, the driver’s door can be locked and unlocked using the emergency key.Refer to “Emergency key” on page 5-21.
To lock or unlock the door from the inside 1- Lock 2- Unlock To lock the door without using the key
BK0210800US.bo
ok 34 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Power door locks
Features and controls 5-35
5
2. Be sure the keys are not inside the vehi- cle. Close the door.
N00549600211
If the ignition switch is turned off and the driver’s door is opened with the key in the ignition switch, the key reminder buzzer willsound intermittently to remind you to remove the key.
The warning display will be displayed on the information screen in the multi-information display.
N00517300039
When you push the lock knob forward or lockthe door with the power door lock switch in both of the following conditions, the lockknob will automatically return to theunlocked position.  The key is in the ignition switch or the ignition switch is in the “ACC” or “ON” position. Driver’s door or front passenger door is opened.
N00503800147
If the driver’s door is opened while the igni- tion switch is in a position other than “LOCK (PUSH OFF)”, the ignition switch return reminder buzzer will sound intermittently toremind you to return th
e ignition switch to the
“LOCK (PUSH OFF)” position. The warning display will be displayed on theinformation screen in the multi-information display.
N00509300580
Key reminder system When a key was used to start the engine
Lock out protection Ignition switch return reminder system When the F.A.S.T.-key was used to start the engine
Power door locks
NOTE
 When locking or unlocking with the key on the driver’s door, only the driver’s door will lock or unlock.  Repeated continuous operation between lock and unlock could activate the power doorlocking systems built-in protection circuit and prevent the system from operating. If this occurs, wait about 1 minute before oper-ating the power door lock switch.
BK0210800US.bo
ok 35 ページ ２０１４年４月８日　火曜日　午前１１時２８分

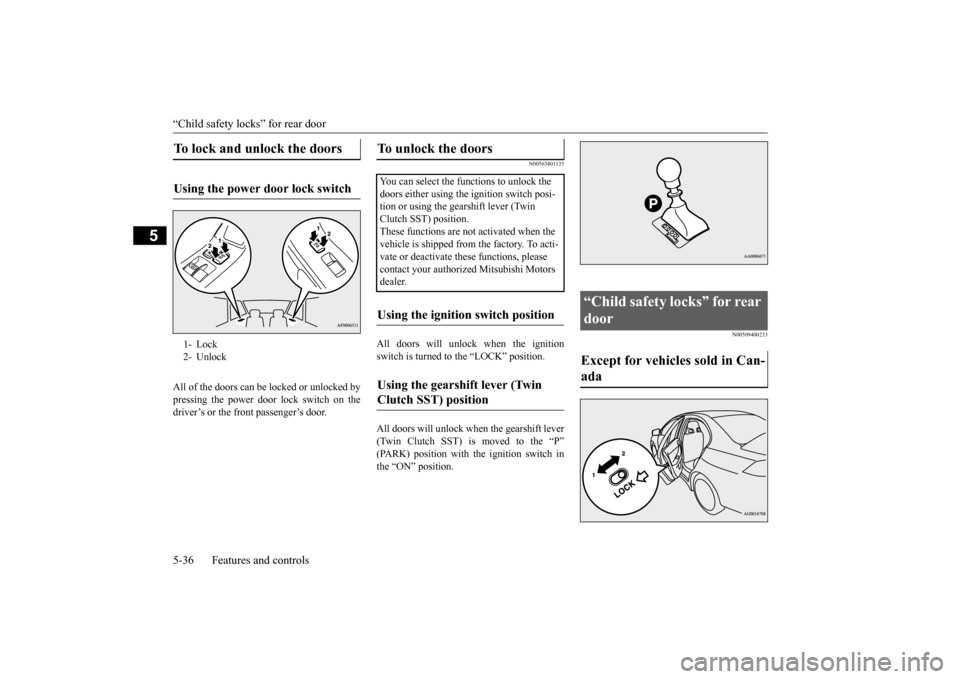

“Child safety locks” for rear door 5-36 Features and controls
5
All of the doors can be locked or unlocked by pressing the power door lock switch on the driver’s or the front passenger’s door.
N00563401135
All doors will unlock when the ignitionswitch is turned to the “LOCK” position. All doors will unlock when the gearshift lever (Twin Clutch SST) is moved to the “P” (PARK) position with the ignition switch in the “ON” position.
N00509400233
To lock and unlock the doors Using the power door lock switch 1- Lock 2- Unlock
To unlock the doors You can select the functions to unlock the doors either using the ignition switch posi- tion or using the gearshift lever (Twin Clutch SST) position.These functions are not activated when the vehicle is shipped from the factory. To acti- vate or deactivate these functions, please contact your authorized Mitsubishi Motors dealer.Using the ignition switch position Using the gearshift lever (Twin Clutch SST) position
“Child safety locks” for rear door Except for vehicles sold in Can- ada
