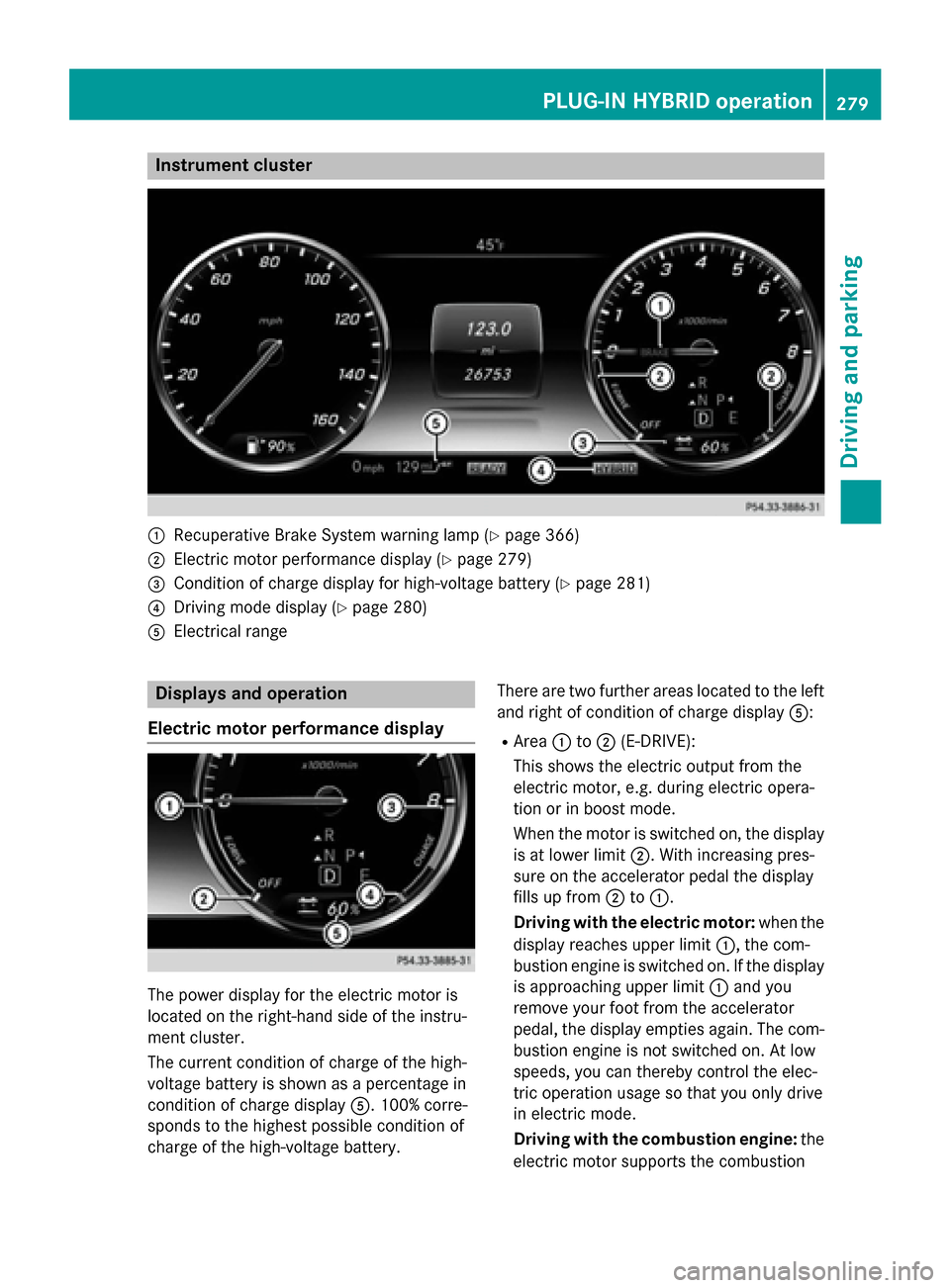

Instrument cluster
:
Recuperative Brake System warning lamp (Y page 366)
; Electric motor performance display (Y page 279)
= Condition of charge display for high-voltage battery (Y page 281)
? Driving mode display (Y page 280)
A Electrical range Displays and operation
Electric motor performance display The power display for the electric motor is
located on the right-hand side of the instru-
ment cluster.
The current condition of charge of the high-
voltage battery is shown as a percentage in
condition of charge display A. 100% corre-
sponds to the highest possible condition of
charge of the high-voltage battery. There are two further areas located to the left
and right of condition of charge display A:
R Area :to; (E-DRIVE):
This shows the electric output from the
electric motor, e.g. during electric opera-
tion or in boost mode.
When the motor is switched on, the display is at lower limit ;. With increasing pres-
sure on the accelerator pedal the display
fills up from ;to:.
Driving with the electric motor: when the
display reaches upper limit :, the com-
bustion engine is switched on. If the display is approaching upper limit :and you
remove your foot from the accelerator
pedal, the display empties again. The com- bustion engine is not switched on. At low
speeds, you can thereby control the elec-
tric operation usage so that you only drive
in electric mode.
Driving with the combustion engine: the
electric motor supports the combustion PLUG-IN HYBRID operation
279Driving and parking Z

engine by providing additional torque
(boost mode) until the display reaches
upper limit
:.
You can also select the operating mode of
the hybrid system (Y page 280).
R Area =to? (CHARGE):
This shows the recuperated energy which is stored in the high-voltage battery as elec-
trical energy.
When the display reaches lower limit ?,
the maximum recuperative braking power
has been exhausted. The mechanical brake is activated.
Selecting the operating mode Button
:allows you to choose between dif-
ferent operating modes.
X Press button :to change the operating
mode.
The operating mode selected appears in
the instrument cluster (Y page 279).
If it is not possible to change operating
modes, the display message Change
Change the the
current drive program before
current drive program before
changing the operating mode. changing the operating mode. or
Exit
Exit manual
manual drive
driveprogram
program M
Mbefore
before
changing the operating mode.
changing the operating mode.
appears in the multifunction display. Fur-
ther information on "Display messages"
(Y page 340). :
Operating mode selected
; Operating mode unavailable
= Operating mode available HYBRID R
Electric mode or driving
with the internal com-
bustion engine is possi-
ble
R Automatic selection of
drive mode with electric
mode as often as possi-
ble
R The high-voltage battery
is discharged to approx-imately 20%.
R To subsequently main-
tain the condition of
charge of the high-volt-
age battery, the electric
output is reduced. All
vehicle functions such
as electric mode,
energy recuperation or
boost mode, for exam-
ple, are still available. E-MODE R
Electric-only drive
R Electrical power output
allotted using the haptic
accelerator pedal
(Y page 286)
R Internal combustion
engine activation using
the haptic accelerator
pedal 280
PLUG-IN HYBRID operationDriving and parking

E-SAVE R
Electric mode or driving
with the internal com-
bustion engine is possi-
ble
R Automatic selection of
drive mode with electric
mode as often as possi-
ble
R The current condition of
charge of the high-volt-
age battery is main-
tained so the electrical
energy can be used at a
later time. CHARGE R
Electric drive is not pos-
sible
R Charging the high-volt-
age battery while driv-
ing using the combus-
tion engine In automatic drive program
S(Y page 285)
and in manual drive program M(Y page 286),
only HYBRID operating mode is available.
If you switch from automatic drive program S
to automatic drive program Eor E+ ,HYBRID
operating mode continues to be selected.
If manual drive program Mis deactivated, the
automatic transmission shifts:
R into the automatic drive program that was
last selected
R into the driving mode that was last selected
Operating the on-board computer You can display the current operating condi-
tion of the hybrid system in the multifunction
display and the COMAND display
(Y page 281).
In the COMAND display, you can also call up a graphic display of the fuel consumption and
generated electricity (Y page 285). Menus and submenus
Selecting displays in the COMAND dis-
play X
Press button Øon the controller.
The vehicle menu is displayed.
X To select Energy EnergyFlow
Flow: turn and press the
controller.
The energy flow is displayed.
X To select Consumption Consumption: turn and press the
controller.
Fuel consumption and the generated elec-
tric energy are displayed.
X To exit the display: press the %button
on the controller.
Selecting the energy flow display in the
multifunction display X
Use Ñ on the steering wheel to call up
the list of menus.
X Press the :or9 button on the steer-
ing wheel to select the Trip Tripmenu.
X Confirm by pressing aon the steering
wheel.
X Use : or9 to select Energy Flow
Energy Flow .
The active hybrid components are highligh-
ted in the energy flow display.
Energy flow display Overview
:
Internal combustion engine
; Electric motor
= High-voltage battery condition of charge PLUG-IN HYBRID operation
281Driving and parking Z

?
High-voltage battery
A Energy flow
The active hybrid components are highligh-
ted.
The energy flow is indicated by arrows. The
arrows have a different color depending on
the operating state.
Automatic engine switch-off The engine and electric motor are switched
off.
The arrows for the energy flow are not shown.
The condition of charge of the high-voltage
battery is shown when the SmartKey is in
position 2in the ignition lock.
Engine running while vehicle is stationary The combustion engine is running while the
vehicle is stationary. The high-voltage battery
is not being charged.
The arrows for the energy flow are not shown. The combustion engine is highlighted. Charging while vehicle is stationary
The engine powers the electric motor. The
electric motor operates as a generator. The
high-voltage battery is being charged.
The arrow representing energy flow is shown
in white.
Driving using the engine The engine powers the vehicle.
The arrows for the energy flow are shown in
white.
Driving using the engine plus boost mode282
PLUG-IN HYBRID operationDriving and parking

If you rapidly depress the accelerator, the
electric motor supports the internal combus-
tion engine by providing additional torque.
The arrows for the energy flow are shown in
red.
Driving using the engine plus energy
recovery The engine powers the vehicle. The electric
motor is operating as a generator, e.g. in
overrun mode and when braking
(Y page 289). The kinetic energy of the vehi-
cle is converted into electrical energy. The
high-voltage battery is being charged.
The arrows for the energy flow are shown in
green.
Driving using the internal combustion
engine and charging the high-voltage bat-
tery The engine powers the vehicle. The engine
also powers the electric motor. The electric
motor operates as a generator. The high-volt-
age battery is being charged. The arrows for the energy flow are shown in
white.
Driving using the internal combustion
engine and discharging the high-voltage
battery The engine powers the vehicle. If the vehicle
is approaching a downhill gradient with a high
potential for energy recuperation, the condi-
tion of charge of the high-voltage battery is
intentionally kept low or intentionally
reduced.
The arrows for the energy flow are shown in
white.
Further information about map-based energy
management (Y page 289).
Electric operation mode The electric motor powers the vehicle. The
high-voltage battery supplies energy to the
electric motor.
The arrows for the energy flow are shown in
green. PLUG-IN HYBRID operation
283Driving and parking Z

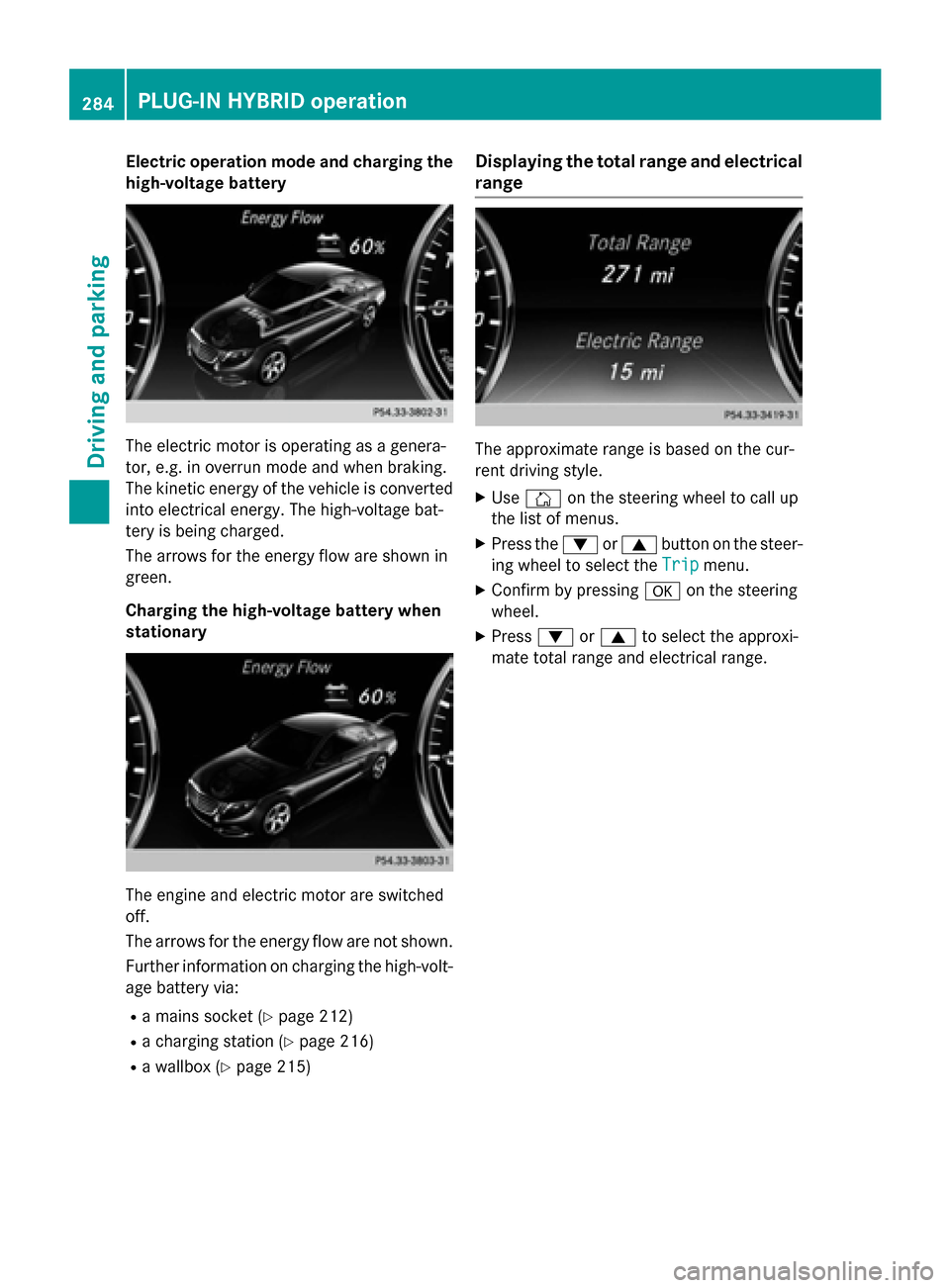

Electric operation mode and charging the
high-voltage battery The electric motor is operating as a genera-
tor, e.g. in overrun mode and when braking.
The kinetic energy of the vehicle is converted into electrical energy. The high-voltage bat-
tery is being charged.
The arrows for the energy flow are shown in
green.
Charging the high-voltage battery when
stationary The engine and electric motor are switched
off.
The arrows for the energy flow are not shown.
Further information on charging the high-volt-
age battery via:
R a mains socket (Y page 212)
R a charging station (Y page 216)
R a wallbox (Y page 215) Displaying the total range and electrical
range The approximate range is based on the cur-
rent driving style.
X Use Ñ on the steering wheel to call up
the list of menus.
X Press the :or9 button on the steer-
ing wheel to select the Trip
Trip menu.
X Confirm by pressing aon the steering
wheel.
X Press :or9 to select the approxi-
mate total range and electrical range. 284
PLUG-IN HYBRID operationDriving and parking

Displaying fuel consumption and generated electricity
:
Fuel consumption
; Electrical energy generated
Every bar of the graph displays the average value for one minute.
Fuel consumption indicator :may differ from the indicator in the From
FromStart
Start trip computer
in the Trip
Trip menu.
To reset values: the values are reset along with the From
FromStart
Start trip computer (Y page 300).
X To select Consumption
Consumption: turn and press the controller.
Fuel consumption :and electrical energy ;generated for the last 15 minutes are shown
in the COMAND display. Starting the engine
The vehicle starts in electric mode without the
internal combustion engine (noiseless start).
The internal combustion engine starts only
after the power demanded by the driver
exceeds the available power that the electric motor can currently provide.
Noiseless start operation is dependent on the
outside temperature and the operating tem-
perature of the internal combustion engine. If
not all conditions for noiseless start operation are fulfilled, the vehicle starts with the inter-
nal combustion engine. X
Switch on the ignition.
X Depress the brake pedal.
X Observe the notes on starting the engine
(Y page 191).
X Start the vehicle (Y page 192).
The vehicle is operational when READY indi-
cator :lights up. Pulling away
X Depress the brake pedal and keep it
depressed.
X Shift the transmission to position Dor R.
X If the Apply Brake to Shift from 'P' Apply Brake to Shift from 'P'
display message appears in the multifunc-
tion display, depress the brake pedal more firmly and select the desired transmission
position.
X Release the brake pedal.
X Carefully depress the accelerator pedal.
For further information on pulling away
(Y page 192). Driving
Program selector button Automatic drive programs E, S and E+ PLUG-IN HYBRID ope
ration
285Driving an d parking Z

X
Press program selector button :to
change the drive program.
The selected drive program appears in the
multifunction display.
The program selector button allows you to
choose between different driving character-
istics. E
Economy R
Comfortable, economi-
cal driving
R Electric operation mode
is used as often as pos-
sible
R The ECO start/stop
function is available S
Sport R
Sporty driving style with
boost mode
R The internal combus-
tion engine is always
switched on E+
Economy
Plus R
Comfortable, economi-
cal driving
R Electric operation mode
is used as often as pos-
sible
R The ECO start/stop
function is available
R Double pulses in the
haptic accelerator
pedal, as an indication
to release the accelera-
tor pedal (Y page 286)
R After the accelerator
pedal has been
released, the coasting
characteristics of the
vehicle are adapted to
the traffic conditions. For further information on the automatic drive
program, see (Y page 202). Manual drive program M
In addition to automatic drive programs
Eand
S, you can switch to manual drive program M
using the steering wheel paddle shifters.
In manual drive program M, you can briefly
change gear yourself by using the steering
wheel paddle shifters. The transmission must be in position D. In manual drive program M
the internal combustion engine is always
switched on.
Activating when driving with the electric
motor:
X Pull the left or right steering wheel paddle
shifter (Y page 201).
The combustion engine is switched on.
Manual drive program Mis temporarily acti-
vated. The selected gear and Mappear in
the multifunction display.
Activating when driving with the combustion
engine:
X Pull the left or right steering wheel paddle
shifter (Y page 201).
Manual drive program Mis temporarily acti-
vated. The selected gear and Mappear in
the multifunction display.
The ECO start/stop function is not available
in manual drive program M.
Haptic accelerator pedal General notes
The haptic accelerator pedal helps you to
reduce the fuel consumption and emissions
of your vehicle.
There are two different functions available for this purpose:
R an additional point of resistance in E-MODE
operating mode (Y page 280)
R a double impulse in E+operating mode
(Y page 285) 286
PLUG-IN HYBRID operationDriving and parking
