2015 MERCEDES-BENZ GLE SUV Owners Manual

Cockpit
Function Page
:
Steering wheel gearshift pad-
dles 172
;
Combination switch 123
=
Instrument cluster 32
?
Horn
A
DIRECT SELECT lever 168
B
PARKTRONIC warning dis-
play
225
C
Overhead control panel 39
D
Climate control systems 135
E
Ignition lock 158
Start/Stop button 158 Function Page
F
Adjusts the steering wheel
manually
114
G
Adjusts the steering wheel
electrically
114
Steering wheel heating 115
H
Cruise control lever 203
I
Opens the bonnet 374
J
Diagnostics connection 27
K
Electric parking brake 192
L
Light switch 12130

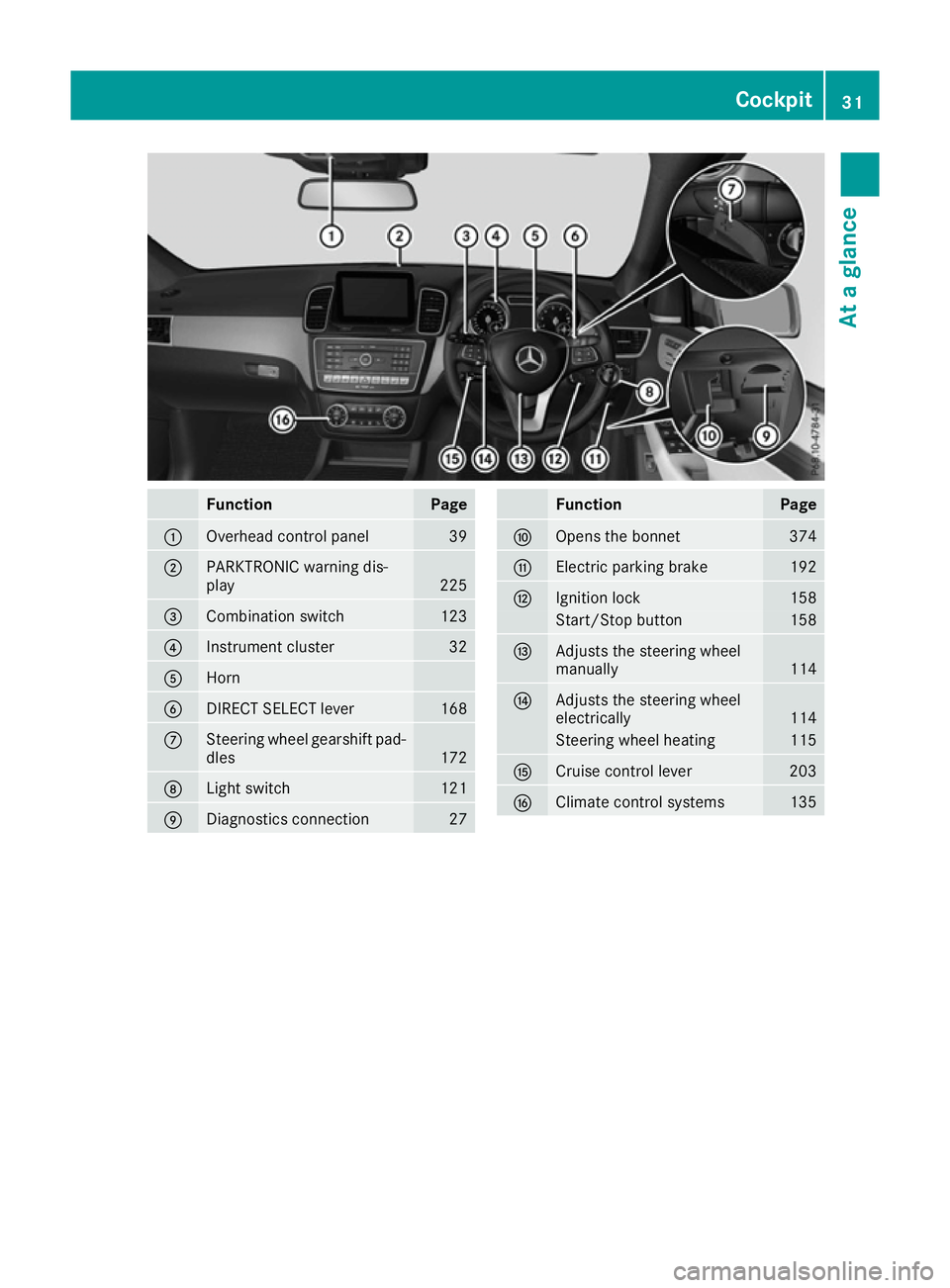

CockpitAt a glance

Function Page
:
Overhead control panel 39
;
PARKTRONIC warning dis-
play
225
=
Combination switch 123
?
Instrument cluster 32
A
Horn
B
DIRECT SELECT lever 168
C
Steering wheel gearshift pad-
dles 172
D
Light switch 121
E
Diagnostics connection 27 Function Page
F
Opens the bonnet 374
G
Electric parking brake 192
H
Ignition lock 158
Start/Stop button 158
I
Adjusts the steering wheel
manually
114
J
Adjusts the steering wheel
electrically
114
Steering wheel heating 115
K
Cruise control lever 203
L
Climate control systems 135Cockpit
31At a glance

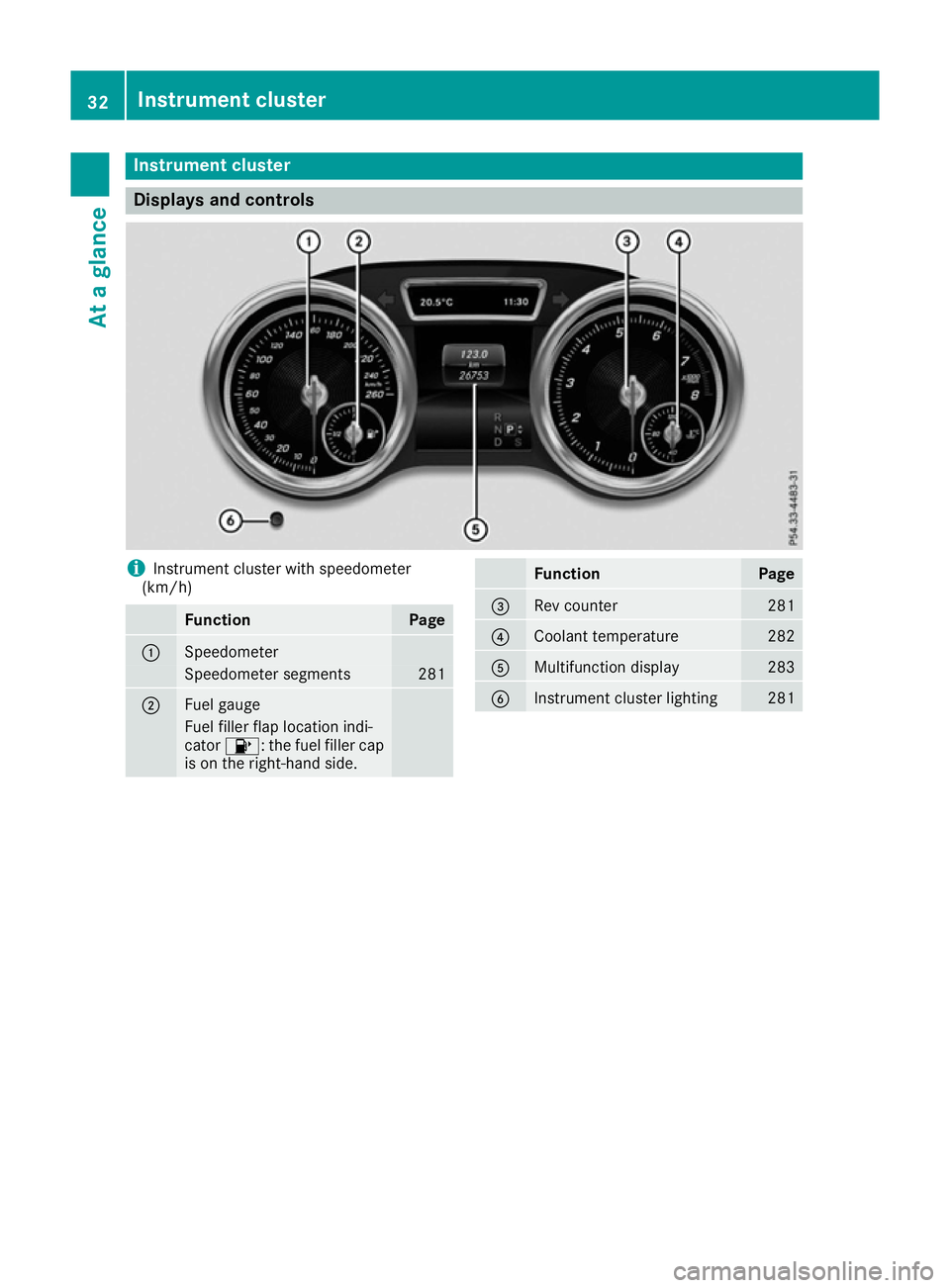

Instrument cluster
Displays and controls
i
Instrument cluster with speedometer
(km/h) Function Page
:
Speedometer
Speedometer segments 281
;
Fuel gauge
Fuel filler flap location indi-
cator
8: the fuel filler cap
is on the right-hand side. Function Page
=
Rev counter 281
?
Coolant temperature 282
A
Multifunction display 283
B
Instrument cluster lighting 28132
Instrument clusterAt a glance

i

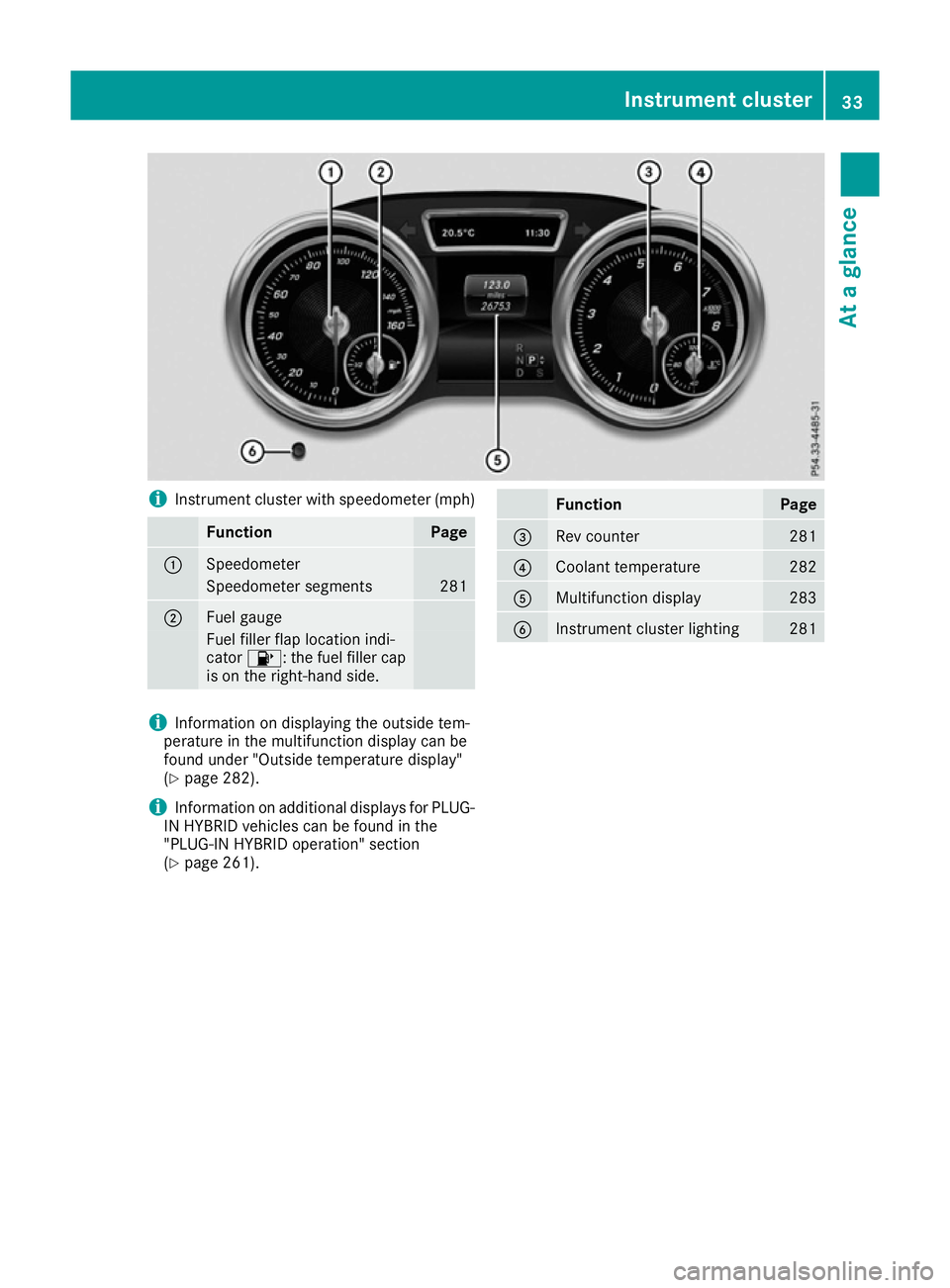

Instrument cluster with speedometer (mph) Function Page
:
Speedometer
Speedometer segments 281
;
Fuel gauge
Fuel filler flap location indi-
cator
8: the fuel filler cap
is on the right-hand side. Function Page
=
Rev counter 281
?
Coolant temperature 282
A
Multifunction display 283
B
Instrument cluster lighting 281
i
Information on displaying the outside tem-
perature in the multifunction display can be
found under "Outside temperature display"
(Y page 282).
i Information on additional displays for PLUG-
IN HYBRID vehicles can be found in the
"PLUG-IN HYBRID operation" section
(Y page 261). Instrument cluster
33At a glance

Warning and indicator lamps
Function Page
:
L
Dipped-beam head-
lamps 122
;
T
Side lamps 122
=
÷
ESP® 343
?
K
Main-beam headlamps 123
A
!
Electric parking brake
(red) 346
B
!
Electric parking brake
(yellow) 346
C
J
Brakes (yellow) 339
D
·
Distance warning 349
E
#!
Turn signals 123
F
h
Tyre pressure monitor 350 Function Page
G
6
Restraint system 44
H
ü
Seat belt 337
I
%
Diesel engine: preglow 160
J
?
Coolant 347
K
R
Rear foglamp 122
L
;
Engine diagnostics 347
M
8
Reserve fuel 347
N
å
ESP®
OFF 343
O
!
ABS 341
P
J
Brakes (red) 339
i
Information on additional indicator and
warning lamps for PLUG-IN vehicles can be
found in the "PLUG-IN HYBRID operation"
section (Y page 261). 34
Instrument clusterAt a glance

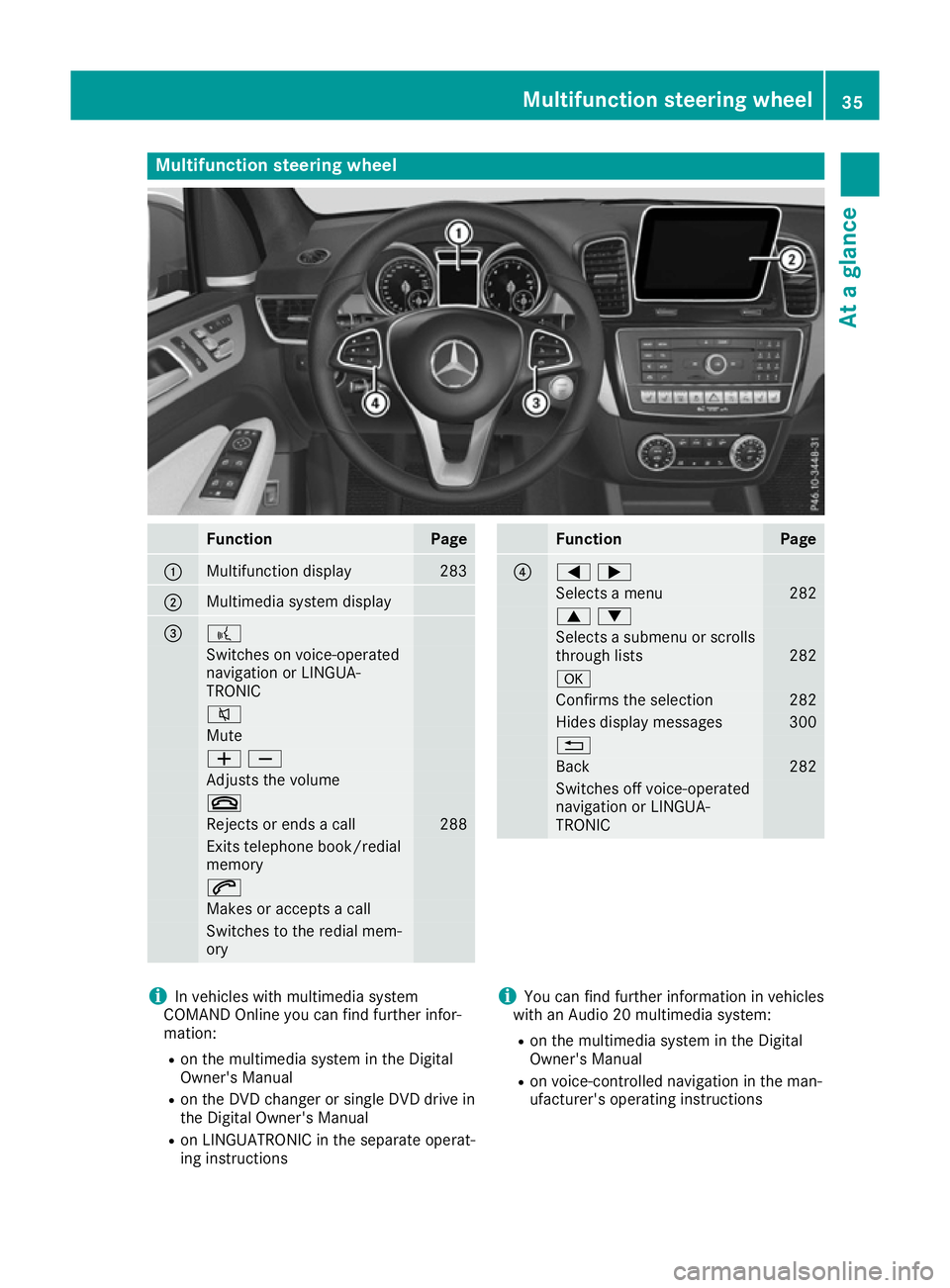

Multifunction steering wheel
Function Page
:
Multifunction display 283
;
Multimedia system display
= ?
Switches on voice-operated
navigation or LINGUA-
TRONIC 8
Mute
WX
Adjusts the volume
~
Rejects or ends a call 288
Exits telephone book/redial
memory
6
Makes or accepts a call
Switches to the redial mem-
ory Function Page
?
=;
Selects a menu 282
9:
Selects a submenu or scrolls
through lists 282
a
Confirms the selection 282
Hides display messages 300
%
Back 282
Switches off voice-operated
navigation or LINGUA-
TRONIC
i
In vehicles with multimedia system
COMAND Online you can find further infor-
mation:
R on the multimedia system in the Digital
Owner's Manual
R on the DVD changer or single DVD drive in
the Digital Owner's Manual
R on LINGUATRONIC in the separate operat-
ing instructions i
You can find further information in vehicles
with an Audio 20 multimedia system:
R on the multimedia system in the Digital
Owner's Manual
R on voice-controlled navigation in the man-
ufacturer's operating instructions Multifunction steering wheel
35At a glance

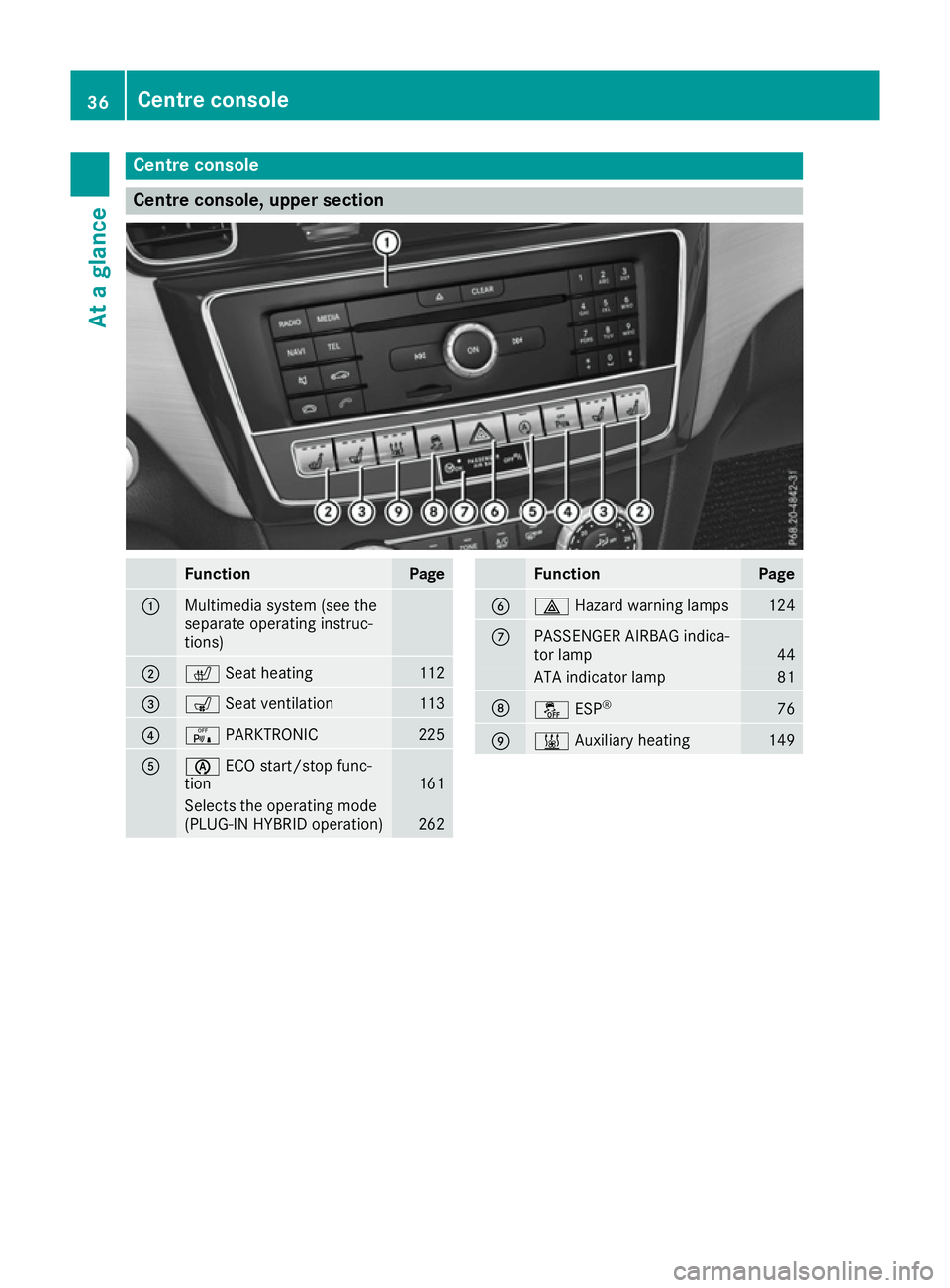

Centre console
Centre console, upper section
Function Page
:
Multimedia system (see the
separate operating instruc-
tions)
;
c
Seat heating 112
=
s
Seat ventilation 113
?
c
PARKTRONIC 225
A
è
ECO start/stop func-
tion 161
Selects the operating mode
(PLUG-IN HYBRID operation) 262 Function Page
B
£
Hazard warning lamps 124
C
PASSENGER AIRBAG indica-
tor lamp 44
ATA indicator lamp 81
D
å
ESP® 76
E
&
Auxiliary heating 14936
Centre consoleAt a glance

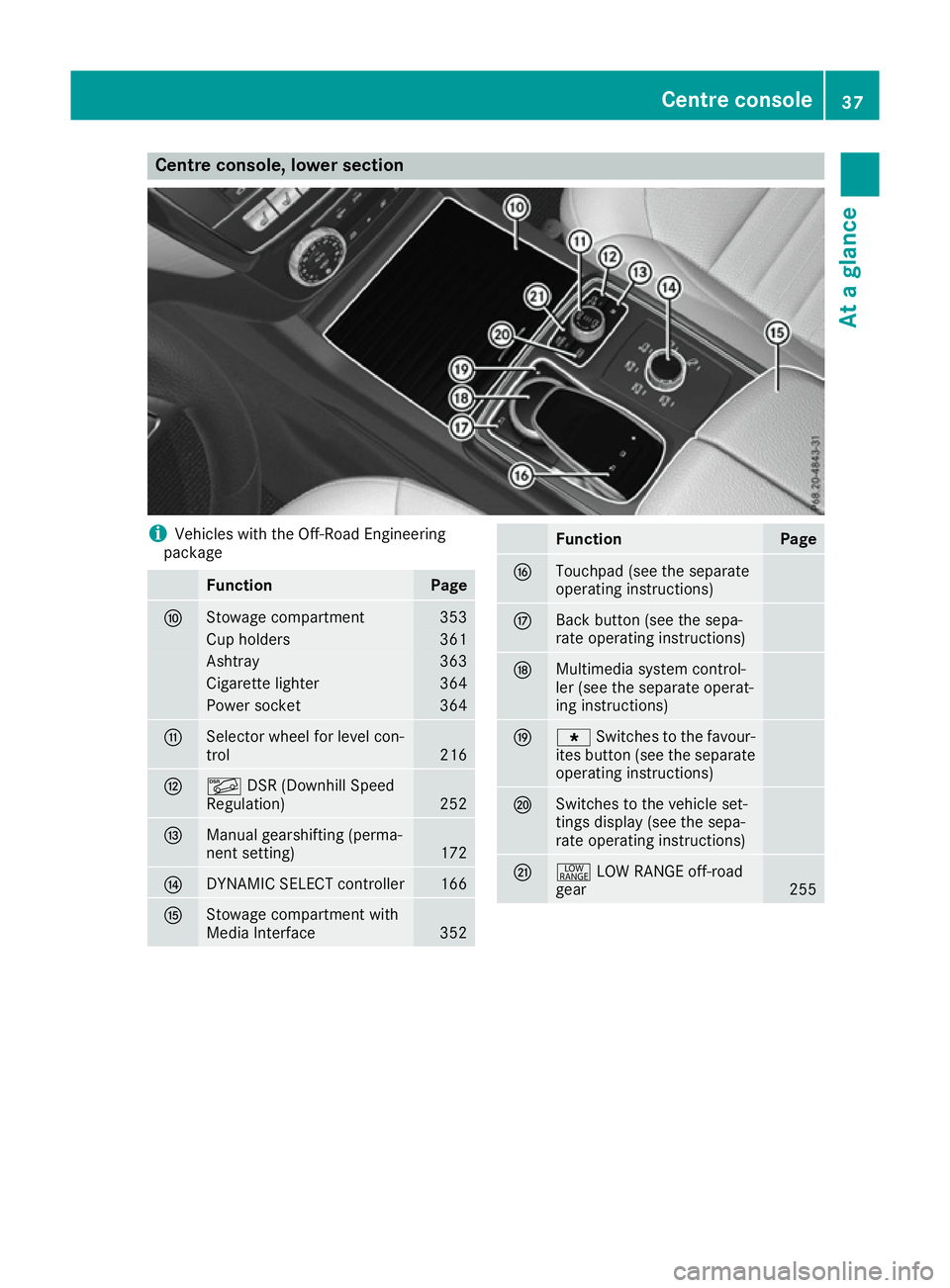

Centre console, lower section
i
Vehicles with the Off-Road Engineering
package Function Page
F
Stowage compartment 353
Cup holders 361
Ashtray 363
Cigarette lighter 364
Power socket 364
G
Selector wheel for level con-
trol 216
H
Ã
DSR (Downhill Speed
Regulation) 252
I
Manual gearshifting (perma-
nent setting)
172
J
DYNAMIC SELECT controller 166
K
Stowage compartment with
Media Interface
352 Function Page
L
Touchpad (see the separate
operating instructions)
M
Back button (see the sepa-
rate operating instructions)
N
Multimedia system control-
ler (see the separate operat-
ing instructions)
O
g
Switches to the favour-
ites button (see the separate
operating instructions) P
Switches to the vehicle set-
tings display (see the sepa-
rate operating instructions) Q
+
LOW RANGE off-road
gear 255Centre console
37At a glance
