R
do not open or close a door or the tailgate
while the vehicle is raised.
R make sure that no persons are present in
the vehicle when the vehicle is raised.
Vehicles with steel wheels: the hub cap
covers the wheel bolts. Before you can
unscrew the wheel bolts, you must remove
the hub cap. X
Using both hands, carefully reach into two
wheel trim openings and remove the wheel trim. X
Using wheel wrench :, loosen the bolts on
the wheel you wish to change by about one full turn. Do not unscrew the bolts com-
pletely. Jacking points
The jacking points are located just behind the front wheel arches and just in front of the rear
wheel arches (arrows).
Mercedes-AMG vehicles and vehicles
with AMG equipment: to protect the vehicle
body, the vehicle has covers fitted next to the jacking points on the outer sills. Covers, front (example: vehicles with AMG equip-
ment)
X Mercedes-AMG vehicles and vehicles
with AMG equipment: fold cover;
upwards. 382
Changing a wheelWheels and tyres

X

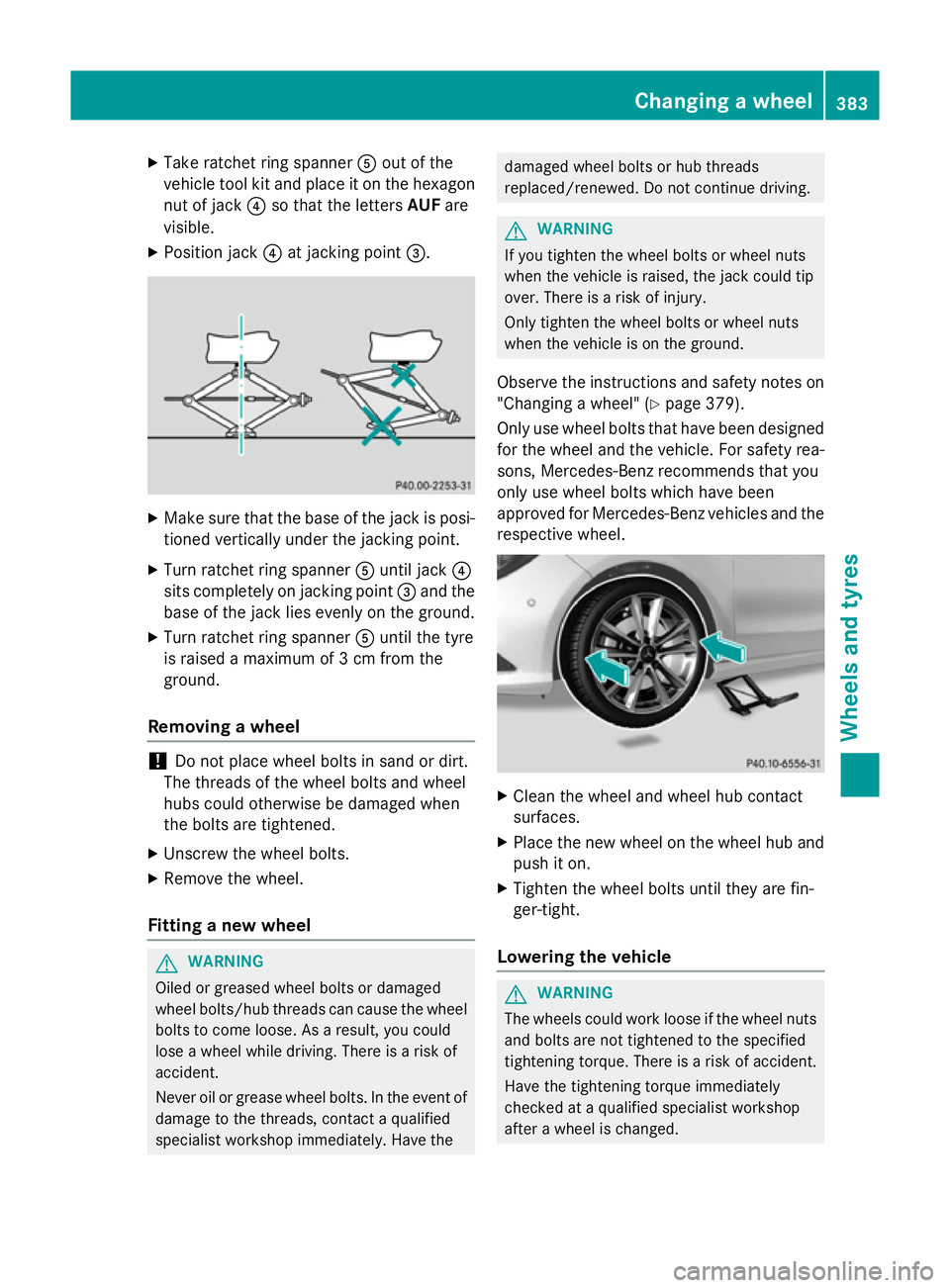

Take ratchet ring spanner Aout of the
vehicle tool kit and place it on the hexagon nut of jack ?so that the letters AUFare
visible.
X Position jack ?at jacking point =. X
Make sure that the base of the jack is posi-
tioned vertically under the jacking point.
X Turn ratchet ring spanner Auntil jack ?
sits completely on jacking point =and the
base of the jack lies evenly on the ground.
X Turn ratchet ring spanner Auntil the tyre
is raised a maximum of 3 cm from the
ground.
Removing a wheel !
Do not place wheel bolts in sand or dirt.
The threads of the wheel bolts and wheel
hubs could otherwise be damaged when
the bolts are tightened.
X Unscrew the wheel bolts.
X Remove the wheel.
Fitting a new wheel G
WARNING
Oiled or greased wheel bolts or damaged
wheel bolts/hub threads can cause the wheel bolts to come loose. As a result, you could
lose a wheel while driving. There is a risk of
accident.
Never oil or grease wheel bolts. In the event ofdamage to the threads, contact a qualified
specialist workshop immediately. Have the damaged wheel bolts or hub threads
replaced/renewed. Do not continue driving.
G
WARNING
If you tighten the wheel bolts or wheel nuts
when the vehicle is raised, the jack could tip
over. There is a risk of injury.
Only tighten the wheel bolts or wheel nuts
when the vehicle is on the ground.
Observe the instructions and safety notes on "Changing a wheel" (Y page 379).
Only use wheel bolts that have been designed
for the wheel and the vehicle. For safety rea-
sons, Mercedes-Benz recommends that you
only use wheel bolts which have been
approved for Mercedes-Benz vehicles and the
respective wheel. X
Clean the wheel and wheel hub contact
surfaces.
X Place the new wheel on the wheel hub and
push it on.
X Tighten the wheel bolts until they are fin-
ger-tight.
Lowering the vehicle G
WARNING
The wheels could work loose if the wheel nuts and bolts are not tightened to the specified
tightening torque. There is a risk of accident.
Have the tightening torque immediately
checked at a qualified specialist workshop
after a wheel is changed. Changing a wheel
383Wheels and tyres Z

X

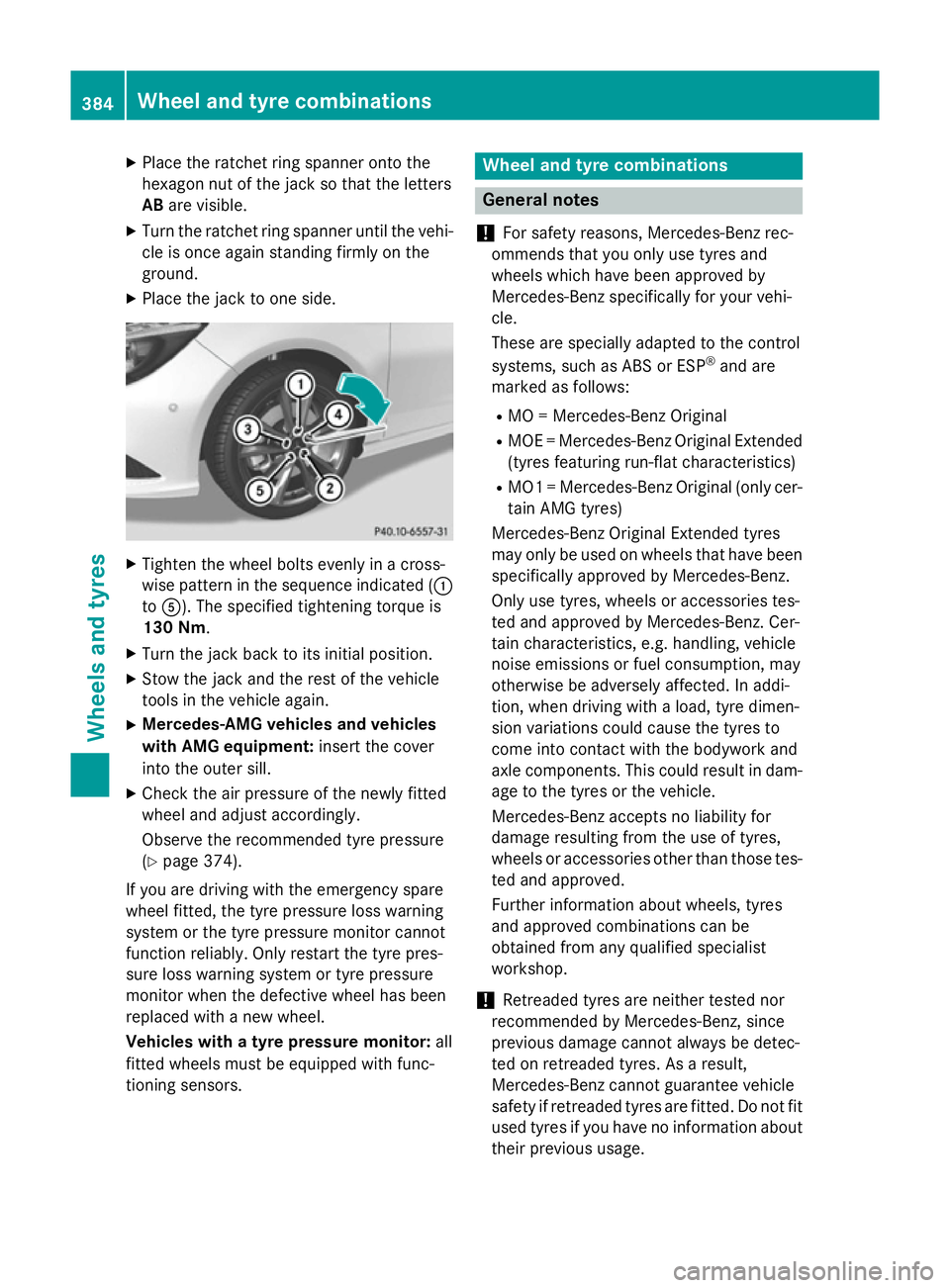

Place the ratchet ring spanner onto the
hexagon nut of the jack so that the letters
AB are visible.
X Turn the ratchet ring spanner until the vehi-
cle is once again standing firmly on the
ground.
X Place the jack to one side. X
Tighten the wheel bolts evenly in a cross-
wise pattern in the sequence indicated ( :
to A). The specified tightening torque is
130 Nm.
X Turn the jack back to its initial position.
X Stow the jack and the rest of the vehicle
tools in the vehicle again.
X Mercedes-AMG vehicles and vehicles
with AMG equipment: insert the cover
into the outer sill.
X Check the air pressure of the newly fitted
wheel and adjust accordingly.
Observe the recommended tyre pressure
(Y page 374).
If you are driving with the emergency spare
wheel fitted, the tyre pressure loss warning
system or the tyre pressure monitor cannot
function reliably. Only restart the tyre pres-
sure loss warning system or tyre pressure
monitor when the defective wheel has been
replaced with a new wheel.
Vehicles with a tyre pressure monitor: all
fitted wheels must be equipped with func-
tioning sensors. Wheel and tyre combinations
General notes
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle.
These are specially adapted to the control
systems, such as ABS or ESP ®
and are
marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tyres featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components. This could result in dam- age to the tyres or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tyres,
wheels or accessories other than those tes- ted and approved.
Further information about wheels, tyres
and approved combinations can be
obtained from any qualified specialist
workshop.
! Retreaded tyres are neither tested nor
recommended by Mercedes-Benz, since
previous damage cannot always be detec-
ted on retreaded tyres. As a result,
Mercedes-Benz cannot guarantee vehicle
safety if retreaded tyres are fitted. Do not fit
used tyres if you have no information about their previous usage. 384
Wheel and tyre combinationsWheels and tyres

!

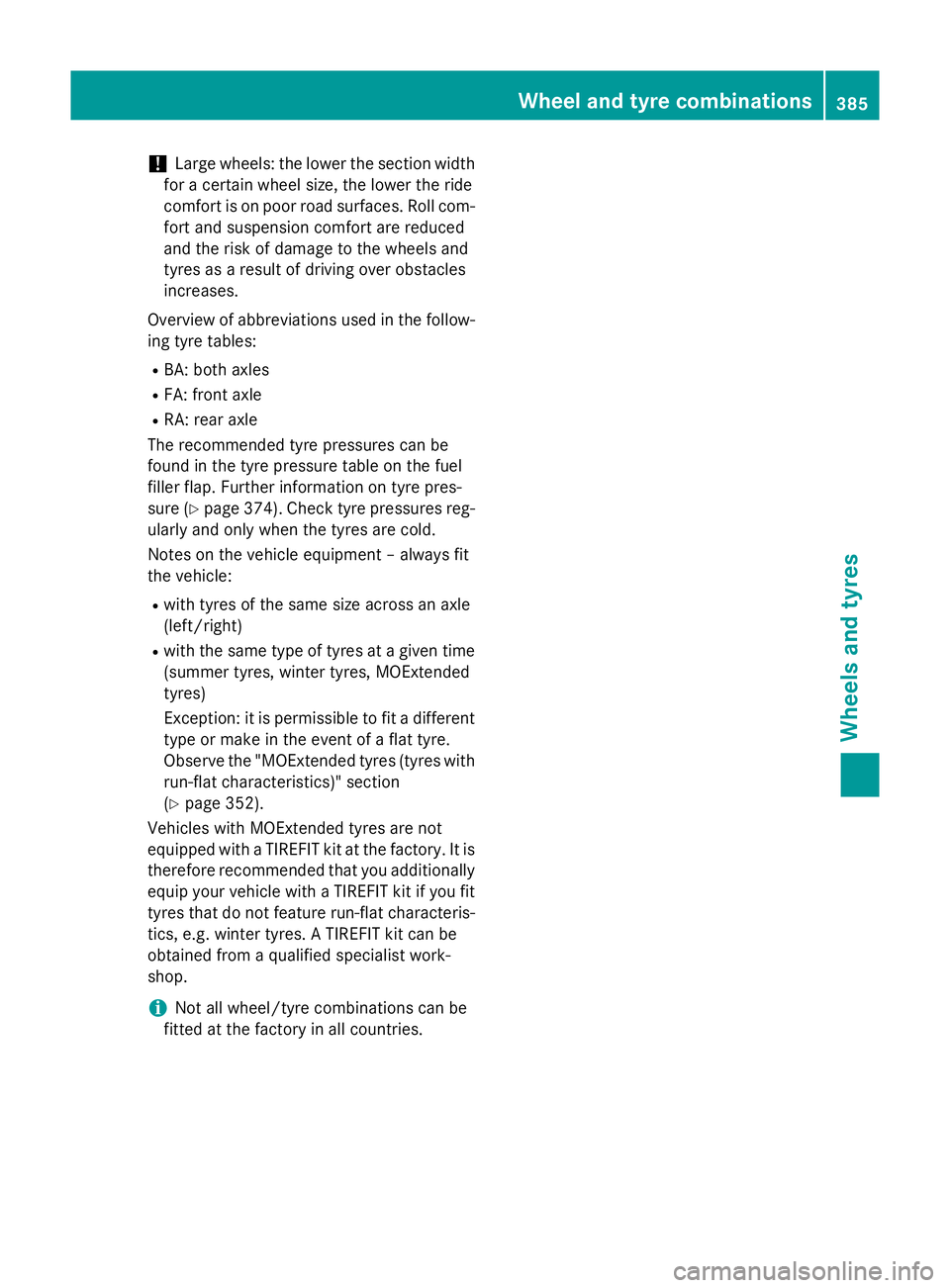

Large wheels: the lower the section width
for a certain wheel size, the lower the ride
comfort is on poor road surfaces. Roll com-
fort and suspension comfort are reduced
and the risk of damage to the wheels and
tyres as a result of driving over obstacles
increases.
Overview of abbreviations used in the follow- ing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
The recommended tyre pressures can be
found in the tyre pressure table on the fuel
filler flap. Further information on tyre pres-
sure (Y page 374). Check tyre pressures reg-
ularly and only when the tyres are cold.
Notes on the vehicle equipment – always fit
the vehicle:
R with tyres of the same size across an axle
(left/right)
R with the same type of tyres at a given time
(summer tyres, winter tyres, MOExtended
tyres)
Exception: it is permissible to fit a different
type or make in the event of a flat tyre.
Observe the "MOExtended tyres (tyres with
run-flat characteristics)" section
(Y page 352).
Vehicles with MOExtended tyres are not
equipped with a TIREFIT kit at the factory. It is
therefore recommended that you additionally equip your vehicle with a TIREFIT kit if you fit tyres that do not feature run-flat characteris-
tics, e.g. winter tyres. A TIREFIT kit can be
obtained from a qualified specialist work-
shop.
i Not all wheel/tyre combinations can be
fitted at the factory in all countries. Wheel and tyre combinations
385Wheels and tyres Z

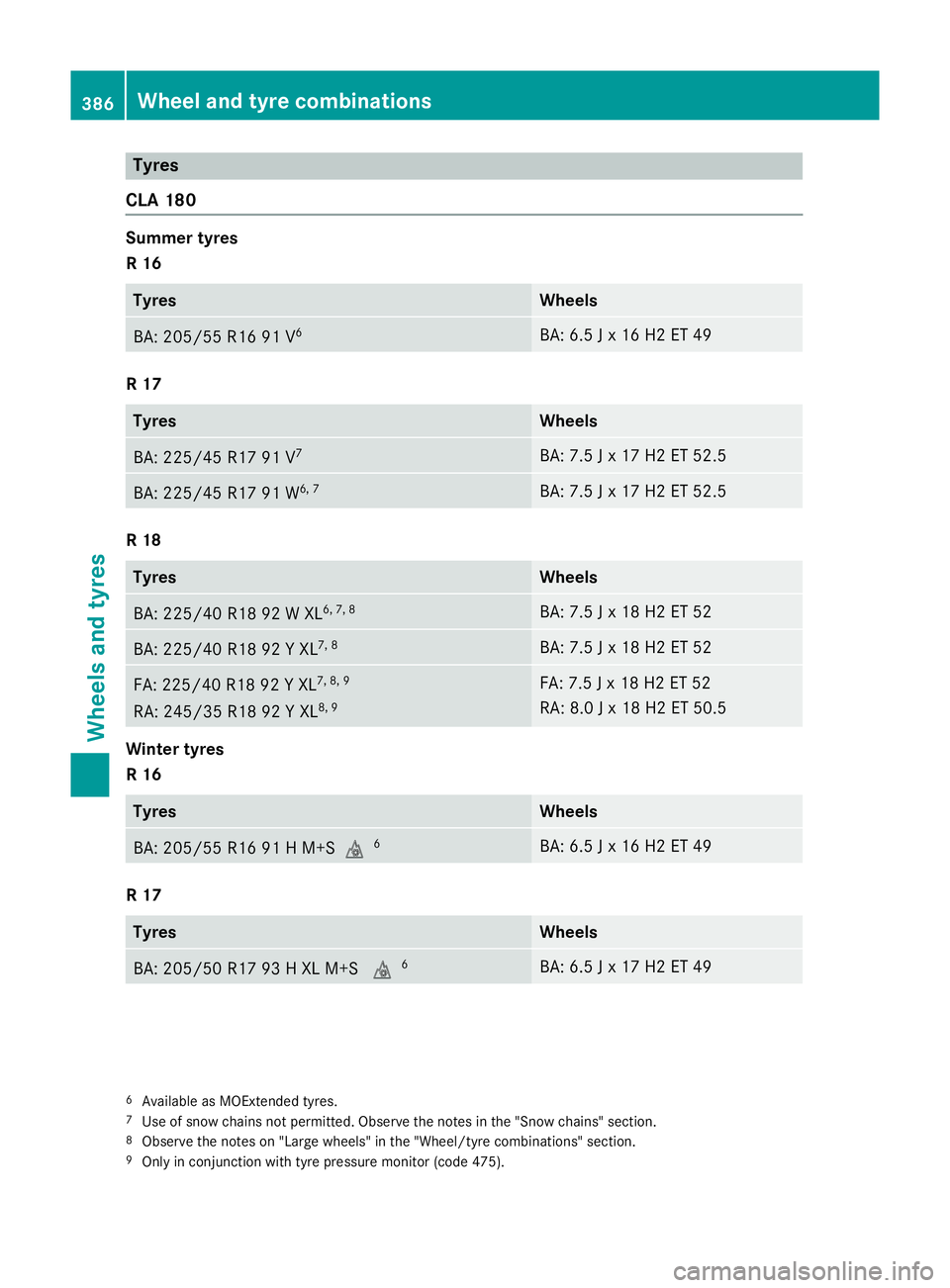

Tyres
CLA 180 Summer tyres
R 16
Tyres Wheels
BA: 205/5
5 R16 91 V 6 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 225/45 R17 91 V
7 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
6, 7 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
6, 7, 8 BA: 7.5 J x 18 H2 ET 52
BA: 225/40 R18 92 Y XL
7, 8 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
7, 8, 9
RA: 245/35 R18 92 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 H M+S
i6 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i6 BA: 6.5 J x 17 H2 ET 49
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section.
9 Only in conjunction with tyre pressure monitor (code 475). 386
Wheel and tyre combinationsWheels and tyres

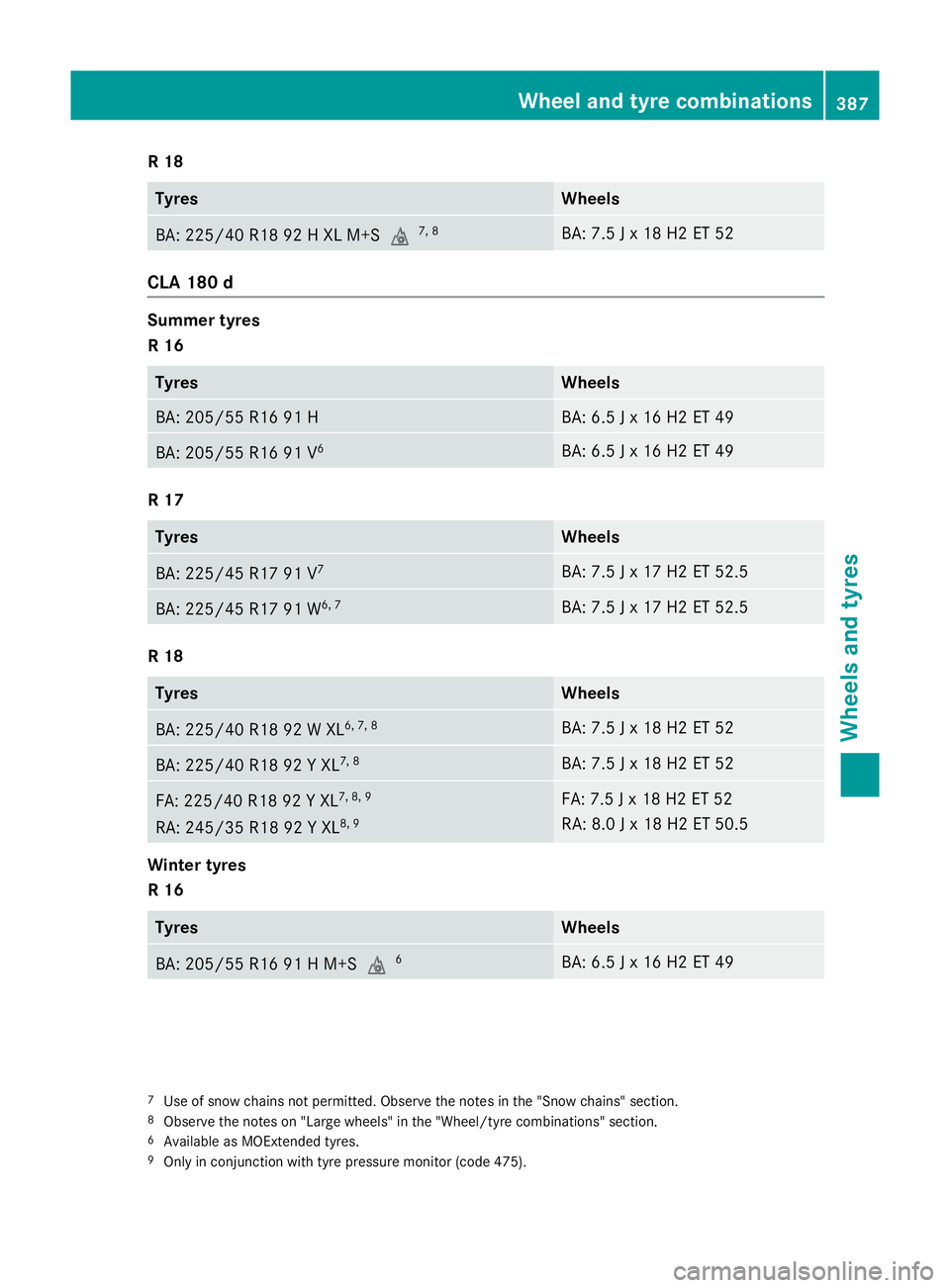

R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+S
i7, 8 BA: 7.5 J x 18 H2 ET 52
CLA 180 d
Summer tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 H BA: 6.5 J x 16 H2 ET 49
BA: 205/55 R16 91 V
6 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 225/45 R17 91 V
7 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
6, 7 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
6, 7, 8 BA: 7.5 J x 18 H2 ET 52
BA: 225/40 R18 92 Y XL
7, 8 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
7, 8, 9
RA: 245/35 R18 92 Y XL 8, 9 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 H M+S
i6 BA: 6.5 J x 16 H2 ET 49
7
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section.
6 Available as MOExtended tyres.
9 Only in conjunction with tyre pressure monitor (code 475). Wheel and tyre combinations
387Wheels and tyres Z

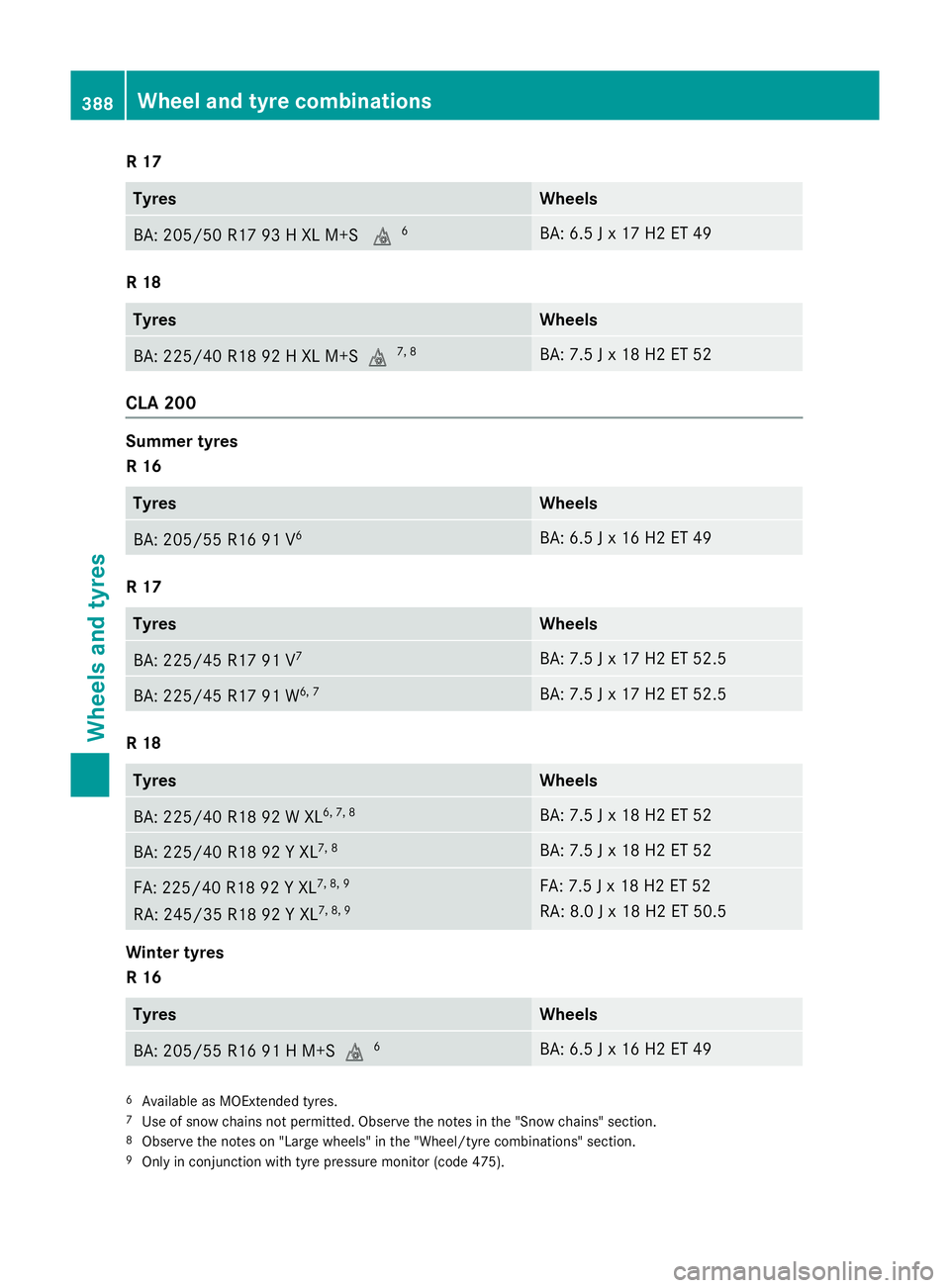

R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i6 BA: 6.5 J x 17 H2 ET 49
R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+S
i7, 8 BA: 7.5 J x 18 H2 ET 52
CLA 200
Summer tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 V
6 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 225/45 R17 91 V
7 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
6, 7 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
6, 7, 8 BA: 7.5 J x 18 H2 ET 52
BA: 225/40 R18 92 Y XL
7, 8 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
7, 8, 9
RA: 245/35 R18 92 Y XL 7, 8, 9 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 H M+S
i6 BA: 6.5 J x 16 H2 ET 49
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section.
9 Only in conjunction with tyre pressure monitor (code 475). 388
Wheel and tyre combinationsWheels and tyres

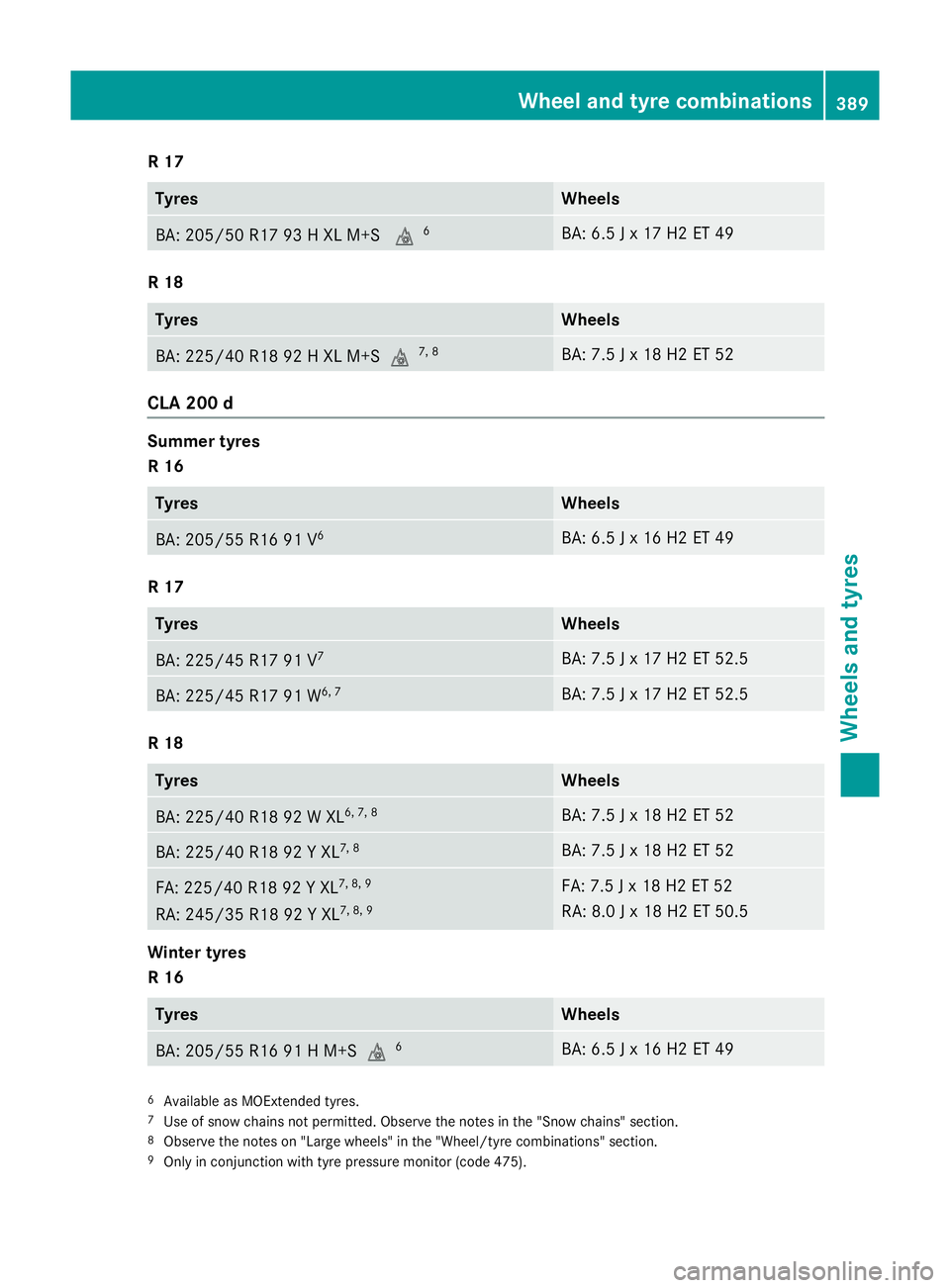

R 17
Tyres Wheels
BA: 205/50 R17 93 H XL M+S
i6 BA: 6.5 J x 17 H2 ET 49
R 18
Tyres Wheels
BA: 225/40 R18 92 H XL M+S
i7, 8 BA: 7.5 J x 18 H2 ET 52
CLA 200 d
Summer tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 V
6 BA: 6.5 J x 16 H2 ET 49
R 17
Tyres Wheels
BA: 225/45 R17 91 V
7 BA: 7.5 J x 17 H2 ET 52.5
BA: 225/45 R17 91 W
6, 7 BA: 7.5 J x 17 H2 ET 52.5
R 18
Tyres Wheels
BA: 225/40 R18 92 W XL
6, 7, 8 BA: 7.5 J x 18 H2 ET 52
BA: 225/40 R18 92 Y XL
7, 8 BA: 7.5 J x 18 H2 ET 52
FA: 225/40 R18 92 Y XL
7, 8, 9
RA: 245/35 R18 92 Y XL 7, 8, 9 FA: 7.5 J x 18 H2 ET 52
RA: 8.0 J x 18 H2 ET 50.5
Winter tyres
R 16
Tyres Wheels
BA: 205/55 R16 91 H M+S
i6 BA: 6.5 J x 16 H2 ET 49
6
Available as MOExtended tyres.
7 Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
8 Observe the notes on "Large wheels" in the "Wheel/tyre combinations" section.
9 Only in conjunction with tyre pressure monitor (code 475). Wheel and tyre combinations
389Wheels and tyres Z
