2015 MAZDA MODEL CX-9 Owners Manual (in English)

Black plate (521,1)
2. Remove the cover.
3. Turn the socket and bulb assemblycounterclockwise and remove it.
4. Disconnect the bulb from the socket.
Taillights (Liftgate side)
Reverse lights
5. Install the new bulb in the reverse order of the removal procedure.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
License plate lights
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft cloth to prevent damage to the lens,
and then remove the lens by carefully
prying on the edge of the lens with a
flathead screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order of the removal procedure.
Maintenance and Care
Owner Maintenance
8-45
CX-9_8DU1-EA-14H_Edition1 Page521
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (522,1)

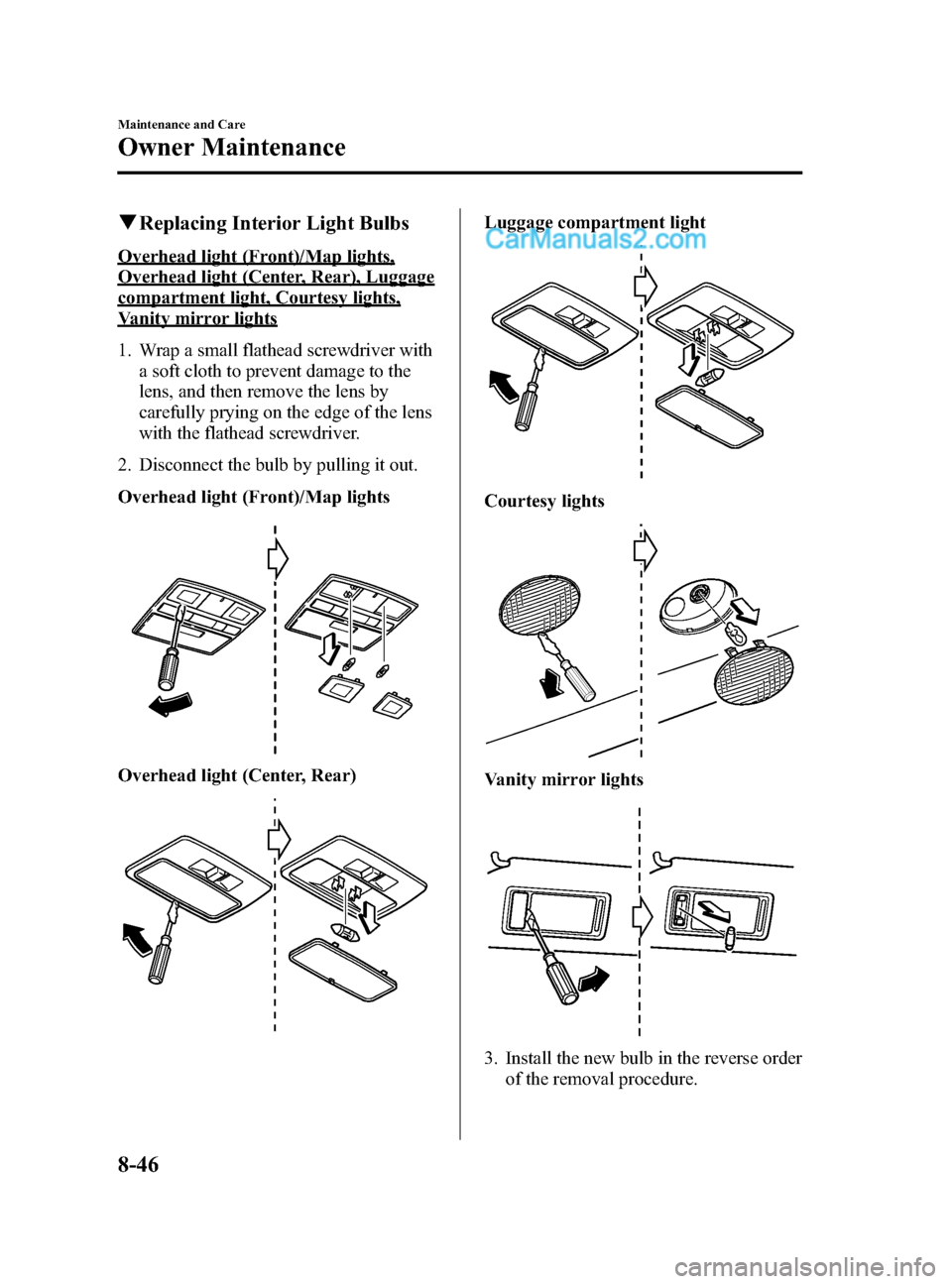

qReplacing Interior Light Bulbs
Overhead light (Front)/Map lights,
Overhead light (Center, Rear), Luggage
compartment light, Courtesy lights,
Vanity mirror lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light (Front)/Map lights
Overhead light (Center, Rear)
Luggage compartment light
Courtesy lights
Vanity mirror lights
3. Install the new bulb in the reverse order of the removal procedure.
8-46
Maintenance and Care
Owner Maintenance
CX-9_8DU1-EA-14H_Edition1 Page522
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (523,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing fuses located behind the
glove compartment
If an electrical system is inoperative,
inspect the fuses located behind the glove
compartment.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the glove compartment.
3. Remove the cover.
Fuse
4. Pull the fuse straight out with the fuse puller provided on the fuse block
located in the engine compartment.
5. Inspect the fuse and replace it if it'sblown.
Normal Blown
Maintenance and Care
Owner Maintenance
8-47
CX-9_8DU1-EA-14H_Edition1 Page523
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (524,1)
6. Insert a new fuse of the same amperagerating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the ROOM circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
7. Reinstall the cover and make sure that it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover or the relay box cover.
Fuse block
Relay box
3. If any fuse but the MAIN fuse isblown, replace it with a new one of the
same amperage rating .
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4. Reinstall the cover and make sure that it is securely installed.
8-48
Maintenance and Care
Owner Maintenance
CX-9_8DU1-EA-14H_Edition1 Page524
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (525,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 MAIN 150 A For protection of all circuits
2 ―― ―
3 ENGINE 20 A Engine control system
4 H/L R
*115 A Headlight (RH)
H/L HI RY*215 A For protection of various circuitsí
5 R HEATER 40 A Heater
6 P.SEAT R 30 A Power seat (RH)í
7 HEATER 50 A Heater
8 IGKEY 2 40 A For protection of various circuits
9 FAN 1 30 A
íCooling fan
40 Aí
10 P.SEAT L 40 A Power seat (LH)í
11 DEFOG30 A Rear window defogger
12 BTN 50 A For protection of various circuits
13 FUEL PUMP 30 A Fuel pump
14 IGKEY 1 30 A For protection of various circuits
15 FOG 15 A Fog lights
í
Maintenance and Care
Owner Maintenance
8-49íSome models.
CX-9_8DU1-EA-14H_Edition1 Page525
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (526,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
16 ABS (SOL) 30 A ABS
17 D/L 25 A Power door locks
18 ROOM 15 A Overhead light
19 OUTLET CTR 15 A Accessory socket (Center)
20 OUTLET RR 15 A Accessory socket (Rear)
21 AC PWR 15 A Moonroof
í, DC/AC inverterí
22 S.WARM15 A Seat warmerí
23 A/C MAG 10 A Air conditioner
24 BOSE 25 A Audio system (Bose®Sound System-equipped model)í
25FAN 2 30 AíCooling fan
40 Aí
26 ABS 50 A ABS
27 IG COIL 25 A Engine control system
28 H/L L
*115 A Headlight (LH)
H/L LOW L*215 A Headlight low beam (LH)
29 ―*1――
H/L LOW R*215 A Headlight low beam (RH)
30 ―*1――
H/L HIGH*220 A Headlight high beam
31 HAZARD 15 A Hazard warning flashers, Turn signal lights
32
10 A Engine control system
33 HORN 15 A Horn
34 STOP 7.5 A Brake lights
35 EGI INJ 10 A Engine control system
36 ENG BAR 20 A Engine control system
37 ENG BAR 2 7.5 A Engine control system
*1 With xenon fusion headlights
*2 With halogen headlights
8-50
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8DU1-EA-14H_Edition1 Page526
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (527,1)
Relay box (Engine compartment)í
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 INJ 7.5 A Engine control system
2 ―― ―
3 ―― ―
Maintenance and Care
Owner Maintenance
8-51íSome models.
CX-9_8DU1-EA-14H_Edition1 Page527
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (528,1)
Fuse block (Glove box)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 OUTLET FR 15 A Accessory socket (Front)
2 MIRROR 7.5 A Power control mirror
3 C/U-IG1 15 A For protection of various circuits
4 METER 10 A Instrument cluster
5 SAS 7.5 A ABS, Air bag
6 ENG. IGA 7.5 A Engine control system
7 STA 7.5 A Engine control system
8 ―― ―
9 A/C 7.5 A Air conditioner
10 R.WIPER 15 A Rear window wiper 11 ―― ―
12 P.LIFT GATE 20 A Power lift gate
í
13 SUNROOF 15 A Moonroofí
14 AUDIO 10 A Audio system
15 M.DEF 10 A Mirror defoggerí
16P/W 25 A Power windows (Passenger-side)
17 TAIL 10 ATaillights, Parking lights, License plate lights, Side-marker
lights
18 ILLUMI 10 A Instrument panel illumination
8-52
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8DU1-EA-14H_Edition1 Page528
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H
