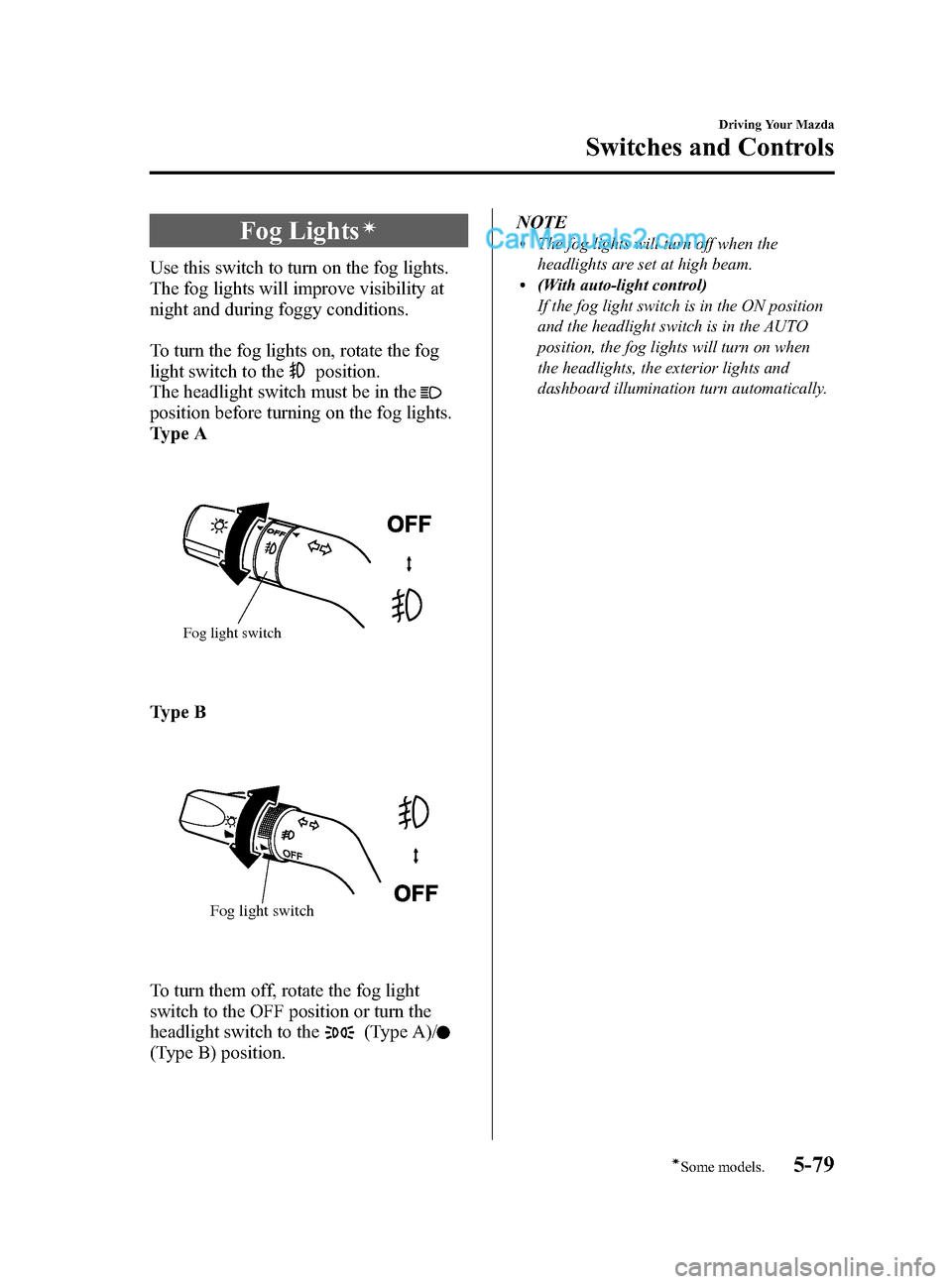

Fog Lightsí
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Type A
Fog light switch
Type B
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
(Type A)/
(Type B) position. NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will turn on when
the headlights, the exterior lights and
dashboard illumination turn automatically.
Driving Your Mazda
Switches and Controls
5-79íSome models.
CX-9_8DU1-EA-14H_Edition1 Page257
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (258,1)
Windshield Wipers and
Washer
The ignition must be switched ON.
WARNING
Use only windshield washer fluid or
plain water in the reservoir:Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions: Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid. NOTE
Because heavy ice and snow can jam the wiper
blades, the wiper motor is protected from
motor breakdown, overheating and possible
fire by a circuit breaker. This mechanism will
automatically stop operation of the blades, but
only for about 5 minutes.
If this happens, turn off the wiper switch and
park off the right-of-way, and remove the snow
and ice.
After 5 minutes, turn on the switch and the
blades should operate normally. If they do not
resume functioning, consult an Authorized
Mazda Dealer as soon as possible. Drive to
the side of the road and park off the right-of-
way. Wait until the weather clears before trying
to drive with the wipers inoperative.
q
Windshield Wipers
Turn the wipers on by pressing the lever
up or down.
With INT position
5-80
Driving Your Mazda
Switches and Controls
CX-9_8DU1-EA-14H_Edition1 Page258
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (259,1)
Switch PositionWiper operation
No. Type
A Type
B
Single wipe cycle (mist)
Intermittent
Low speed
High speed
With AUTO position
Switch Position
Wiper operation
No. Type
A Type
B
Single wipe cycle (mist)
Auto control
Low speed
High speed
Variable-speed intermittent wipers
Set the lever to the intermittent position
and choose the interval timing by rotating
the ring. Type A
INT ring
Type B
INT ring
AUTO (Auto-wiper control)
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wipers on or off automatically
(off
―intermittent ―low speed ―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch downward for higher
sensitivity (faster response) or rotate it
upward for less sensitivity (slower
response).
Driving Your Mazda
Switches and Controls
5-81
CX-9_8DU1-EA-14H_Edition1 Page259
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (260,1)
Type A
Higher sensitivity
Less sensitivity
Switch
Center
position
Type B
Center
position
Higher sensitivity Less sensitivity
Switch
CAUTION
Ø Do not shade the rain sensor by
adhering a sticker or a label on
the windshield. Otherwise the rain
sensor will not operate correctly.
5-82
Driving Your Mazda
Switches and Controls
CX-9_8DU1-EA-14H_Edition1 Page260
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (261,1)

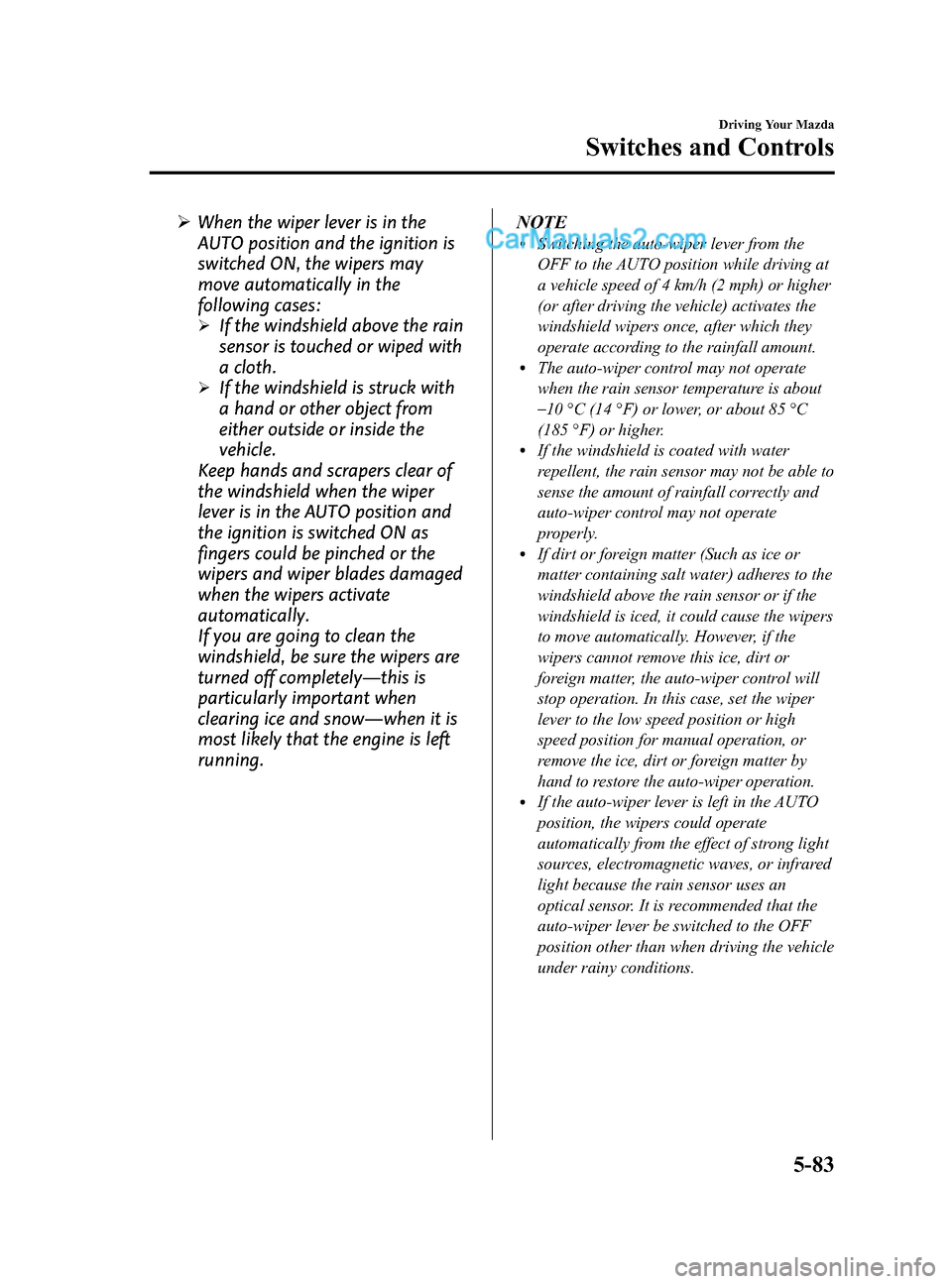

ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely ―this is
particularly important when
clearing ice and snow ―when it is
most likely that the engine is left
running. NOTE
lSwitching the auto-wiper lever from the
OFF to the AUTO position while driving at
a vehicle speed of 4 km/h (2 mph) or higher
(or after driving the vehicle) activates the
windshield wipers once, after which they
operate according to the rainfall amount.
lThe auto-wiper control may not operate
when the rain sensor temperature is about
_
10 °C (14 °F) or lower, or about 85 °C
(185 °F) or higher.
lIf the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.
lIf dirt or foreign matter (Such as ice or
matter containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, set the wiper
lever to the low speed position or high
speed position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper operation.
lIf the auto-wiper lever is left in the AUTO
position, the wipers could operate
automatically from the effect of strong light
sources, electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended that the
auto-wiper lever be switched to the OFF
position other than when driving the vehicle
under rainy conditions.
Driving Your Mazda
Switches and Controls
5-83
CX-9_8DU1-EA-14H_Edition1 Page261
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (262,1)
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
Washer
OFF
NOTE
With the wiper lever in the OFF or intermittent
position/AUTO position, the wipers will
operate continuously until the lever is
released.
If the washer does not work, inspect the
fluid level (page 8-26). If it's normal,
consult an Authorized Mazda Dealer.
Rear Window Wiper and
Washer
The ignition must be switched ON.
q
Rear Window Wiper
Type A
Type B
Turn the wiper on by turning the rear
wiper/washer switch.
ON ―Normal
INT ―Intermittent
5-84
Driving Your Mazda
Switches and Controls
CX-9_8DU1-EA-14H_Edition1 Page262
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (263,1)
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer does not work, inspect the
fluid level (page 8-26). If it's normal and
the washer still does not work, consult an
Authorized Mazda Dealer.
Rear Window Defogger
The rear window defogger clears fog from
the rear window.
The ignition must be switched ON.
Press the switch to turn on the rear
window defogger. The rear window
defogger operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
The defogger operation can be confirmed
by the indicator in the display.
To turn off the rear window defogger
before the 15 minutes has elapsed, press
the switch again.
Indicator light
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.
NOTE
This defogger is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defogger.
Driving Your Mazda
Switches and Controls
5-85
CX-9_8DU1-EA-14H_Edition1 Page263
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (264,1)
qMirror Defoggerí
To turn on the mirror defoggers, switch
the ignition ON and press the rear window
defogger switch (page 5-85).
Horn
To sound the horn, press themark on
the steering wheel.
