2015 MAZDA MODEL CX-9 Owners Manual (in English)

Black plate (225,1)
NOTElDo not install any accessories within the detection ranges of the sensors. It may affect the system
operation.
lDepending on the type of obstruction and the surrounding conditions, the detection range of a
sensor may narrow, or the sensors may not be able to detect obstructions.
lThe system may not operate normally under the following conditions:lMud, ice, or snow is adhering to the sensor area (Returns to normal operation when removed).lThe sensor area is frozen (Returns to normal operation when the ice is thawed).lThe sensor is covered by a hand.lThe sensor is excessively shocked.lThe vehicle is excessively tilted.lUnder extremely hot or cold weather conditions.lThe vehicle is driven on bumps, inclines, gravel, or grass covered roads.lAnything which generates ultrasound is near the vehicle, such as another vehicle's horn, the
engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or another vehicle's
sensors.
lThe vehicle is driven in heavy rain or in road conditions causing water-splash.lA commercially-available fender pole or an antenna for a radio transmitter is installed to the
vehicle.
lThe vehicle is moving towards a tall or square curbstone.lAn obstruction is too close to the sensor.lObstructions under the bumper may not be detected. Obstructions that are lower than the bumper
or thin which may have been initially detected but are no longer detected as the vehicle
approaches more closely.
lThe following types obstructions may not be detected:lThin objects such as wire or ropelThings which absorb sonic waves easily such as cotton or snowlAngular shaped objectslVery tall objects, and those which are wide at the toplSmall, short objectslAlways have the system inspected at an Authorized Mazda Dealer if any shock is applied to the
bumpers, even in a minor accident. If the sensors are deviated, they cannot detect obstructions.
lThe system may have a malfunction if the beep does not operate or the indicator light does not
illuminate when the park assist sensors switch is turned on. Consult an Authorized Mazda Dealer.
lThe system may have a malfunction if the beep sound which indicates a system malfunction is
heard and the indicator light flashes. Consult an Authorized Mazda Dealer.
lThe beeper which indicates a system malfunction may not be heard if the ambient temperature is
extremely cold, or mud, ice, or snow adheres to the sensor area. Remove any foreign material
from the sensor area.
Driving Your Mazda
Starting and Driving
5-47
CX-9_8DU1-EA-14H_Edition1 Page225
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (226,1)
qSensor Detection Range
The sensors detect obstructions within the following range.
Rear sensor detection range
Rear corner sensor detection range
A
Unit: cm (in)
B A: About 150 (About 59.1)
B: About 150 (About 59.1)
q
Park Assist Sensors Switch
The switch can be activated when the ignition is switched ON, the shift lever is in any
position except reverse (R), and the vehicle speed is about 10 km/h (6 mph) or less.
When the parking sensor switch is pressed, a beep sound is heard and the indicator light in
the switch illuminates.
NOTE
If the system is cancelled, it will not restore automatically even when the vehicle speed is decreased to
10 km/h (6 mph) or less.
5-48
Driving Your Mazda
Starting and Driving
CX-9_8DU1-EA-14H_Edition1 Page226
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (227,1)
Sensor detection condition
The system can be used when the ignition is switched ON and the Park Assist Sensor
Switch has been turned on.
The system will then operate when the shift lever is placed in reverse (R).
The sensors detect obstructions under the following conditions:
SensorCondition
Rear Sensor The shift lever is in reverse (R).
Rear Corner Sensor The shift lever is in reverse (R), and the vehicle speed is about 10 km/h (6 mph) or less.
The system is cancelled under the following conditions:lThe vehicle speed is 10 km/h (6 mph) or more.lThe parking sensor switch is pressed while the parking sensor is in operation.
Driving Your Mazda
Starting and Driving
5-49
CX-9_8DU1-EA-14H_Edition1 Page227
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (228,1)
qParking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Distance between vehicle and obstruction
Beeper sound*1Rear SensorRear Corner Sensor
Approx. 150 ―100 cm (59.0 ―39.3 in)
Approx. 150 ―100 cm (59.0 ―39.3 in)
Slow intermittent sound
Approx. 100 ―50 cm (39.3 ―19 in)
Approx. 100 ―50 cm (39.3 ―19 in)
Medium intermittent
sound
Approx. 50 ―30 cm (19 ―11 in)
Approx. 50 ―30 cm (19 ―11 in)
Fast intermittent sound
Within approx. 30 cm (11 in)
Within approx. 30 cm (11 in)
Continuous sound
*1 The speed of the intermittent sound increases as the vehicle approaches the obstruction.
5-50
Driving Your Mazda
Starting and Driving
CX-9_8DU1-EA-14H_Edition1 Page228
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (229,1)
qWhen Warning Beep is Activated
The system notifies the driver of an abnormality by activating the beep sound.
Beep How to check
The beep sound is not heard. The system may have a malfunction. Have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
1 consecutive beep Corner Left Sensor Remove any foreign material from the sensor area. If
the system does not recover, have the vehicle
inspected at an Authorized Mazda Dealer.
2 consecutive beeps Left Sensor
3 consecutive beeps Right Sensor
4 consecutive beeps Corner Right Sensor
Corner right sensor
Corner left sensor
Right sensor
Left sensor
Driving Your Mazda
Starting and Driving
5-51
CX-9_8DU1-EA-14H_Edition1 Page229
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (230,1)

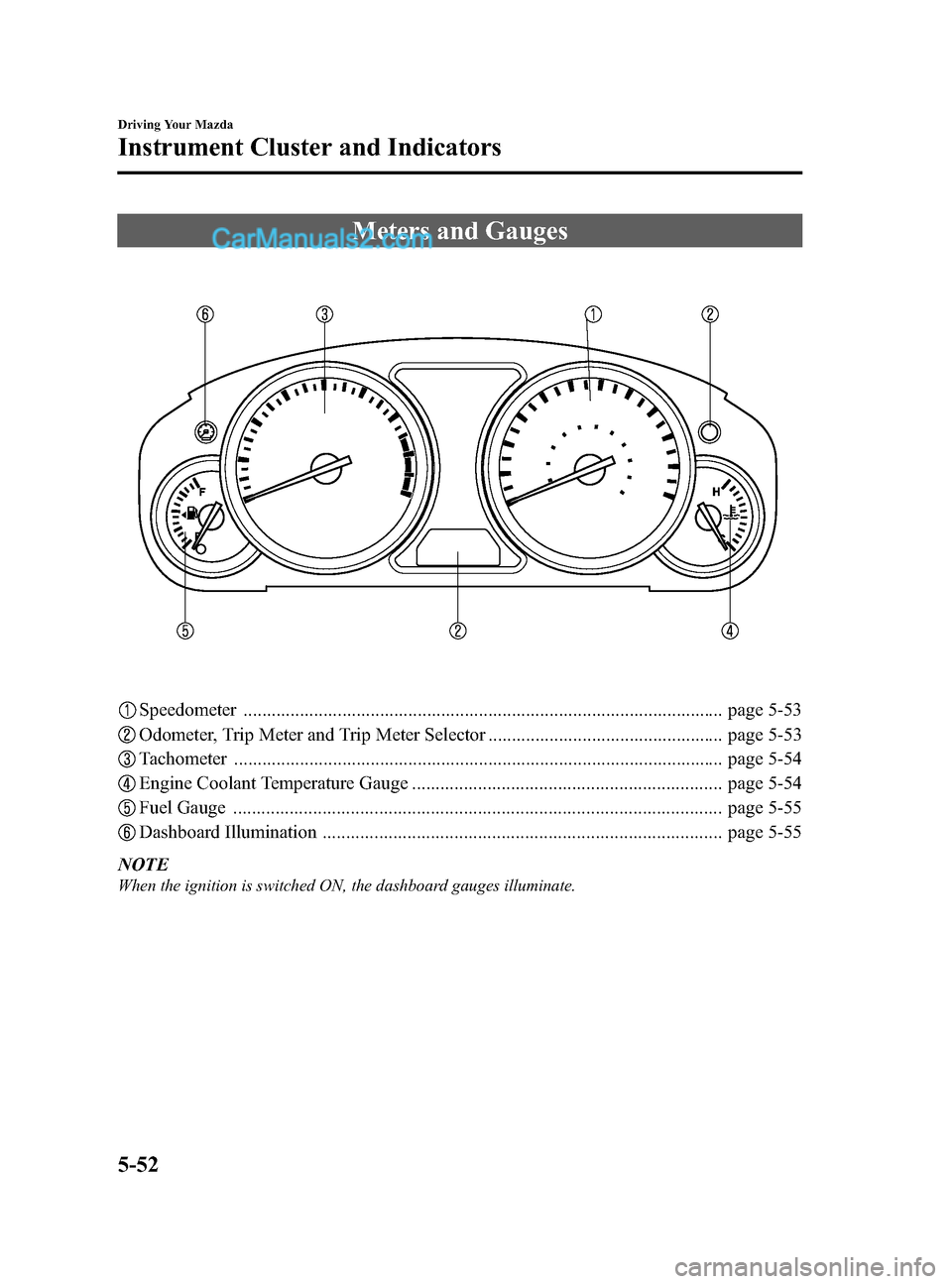

Meters and Gauges
Speedometer ...................................................................................................... page 5-53
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-53
Tachometer ........................................................................................................ page 5-54
Engine Coolant Temperature Gauge .................................................................. page 5-54
Fuel Gauge ........................................................................................................ page 5-55
Dashboard Illumination ..................................................................................... page 5-55
NOTE
When the ignition is switched ON, the dashboard gauges illuminate.
5-52
Driving Your Mazda
Instrument Cluster and Indicators
CX-9_8DU1-EA-14H_Edition1 Page230
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (231,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Selector
Odometer
Trip meter
Press the selector Press the selector
Trip meter A
Odometer
Trip meter B
Odometer
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
Driving Your Mazda
Instrument Cluster and Indicators
5-53
CX-9_8DU1-EA-14H_Edition1 Page231
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (232,1)
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0 ”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).
q Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
Red zone
qEngine Coolant Temperature Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle is near H, it indicates
overheating.
CAUTION
Driving with an overheated engine
can cause serious engine damage
(page 7-16).
5-54
Driving Your Mazda
Instrument Cluster and Indicators
CX-9_8DU1-EA-14H_Edition1 Page232
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H
