2015 LINCOLN MKT engine

Items CapacityFord part name or
equivalentFord part number /
Ford specification
Engine oil
5,6,7
6.0 qts (5.7L)
(3.7L V6 engine)Motorcraft SAE 5W-20
Synthetic Blend Motor
Oil or Motorcraft SAE
5W-20 Fully Synthetic
Motor OilXO–5W20–QSP or
XO-5W20–QFS (U.S.);
CXO-5W20–LSP12 or
CXO-5W20–LFS12
(Canada) /
WSS-M2C945-A
6.0 qt (5.7L)
(3.5L V6 EcoBoost
engine)Motorcraft SAE 5W-30
Synthetic Blend Motor
Oil or Motorcraft SAE
5W-30 Fully Synthetic
Motor OilXO–5W30–QSP or
XO-5W30–QFS (U.S.);
CXO-5W30–LSP12 or
CXO-5W30–LFS12
(Canada) /
WSS-M2C946-A 5.7 qt (5.4L)
(2.0L EcoBoost
engine)
Engine coolant
8
13.2 qt (12.5L)
3.7L V6 engine
Motorcraft Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (U.S.);
CVC-3DIL-B (Canada) /
WSS-M97B44-D2 13.7 qt (13.0L)
3.5L V6 EcoBoost
engine
11.6 qt (11.0L)
2.0L EcoBoost
engine
Fuel tank 18.6 gal (70.4L) Not applicable Not applicable
362Capacities and Specifications
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification
Windshield washer fluid Fill as requiredMotorcraft Premium
Windshield Washer
Concentrate with
Bitterant (US);
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-B2 (U.S.)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2
A/C refrigerant
9
3.5L & 2.0L
Ecoboost engines
2.44 lb (1.11kg)
3.7L V6 engines
2.31 lb (1.05kg)Motorcraft R34a
RefrigerantYN-19 (U.S.); CYN–16–R
(Canada) /
WSH-M17B19–A
A/C refrigerant
compressor oil
9
3.5L & 2.0L
EcoBoost engines
7.9 fl oz (0.23L)
3.7L V6 engines
8.9 fl oz (0.26L)Motorcraft PAG
Refrigerant Compressor
OilYN-12–D /
WSH-M1C231–B
1Ford recommends using Motorcraft (Ford) DOT 4 Low Viscosity High Performance Brake Fluid
or equivalent meeting WSS-M6C65-A2. Use of any fluid other than the recommended fluid may
cause degraded brake performance and not meet the Ford performance standards. Keep brake
fluid clean and dry. Contamination with dirt, water, petroleum products or other materials may
result in brake system damage and possible failure.2Approximate dry fill capacity. Actual amount may vary during fluid changes.3Automatic transmissions that require MERCON LV should only use MERCON LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
Capacities and Specifications363
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

Items CapacityFord part name or
equivalentFord part number /
Ford specification
4See your authorized dealer for fluid level checking or filling.5Your engine has been designed to use Motorcraft engine oils or equivalent oils that meet Ford
specifications. It is also acceptable to use an engine oil of recommended viscosity grade that
meets API SN requirements and displays the API Certification Mark for gasoline engines.6Do not use supplemental engine oil additives in your engine. They are unnecessary and could
lead to engine damage that is not covered by your Ford warranty.7Do not use API S category labeled as SN, SM, SL or lower category unless the label also
displays the API certification mark. These oils do not meet the requirements of your engine and
emission systems.8Add the coolant type originally equipped in your vehicle.9See warning below:
WARNING:The air conditioning refrigerant system contains refrigerant R–134a under high
pressure. Opening the air conditioning refrigerant system can cause personal injury. Air
conditioning refrigerant system is to be serviced only by qualified personnel.
364Capacities and Specifications
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

MOTORCRAFT® PART NUMBERS
Component 3.7L V6 Engine3.5L V6
EcoBoost
Engine2.0L EcoBoost
Engine
Engine air filter
elementFA-1884 FA-1884 FA-1884
Battery BXT-65-650 BXT-65-650 BXT-65-750
Oil filter FL-500-S FL-500-S FL-910-S
Spark plugs SP-520 SP-534 SP-537
Cabin air filter FP68 FP68 FP68
Seat air filter FS106 FS106 FS106
Windshield
wiper bladeWW-2429 (driver side)
WW-2235 (passenger side)
WW-1202 (rear)
We recommend Motorcraft replacement parts available at your Lincoln
dealer or at fordparts.com for scheduled maintenance. These parts meet
or exceed Ford Motor Company’s specifications and are engineered for
your vehicle. Use of other parts may impact vehicle performance,
emissions and durability. Your warranty may be void for any damage
related to use of other parts.
If a Motorcraft oil filter is not available, use an oil filter that meets
industry performance specification SAE/USCAR-36.
For spark plug replacement, contact an authorized dealer. Replace the
spark plugs at the appropriate intervals. Refer toscheduled
maintenance information.
Capacities and Specifications365
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

VEHICLE IDENTIFICATION NUMBER
The vehicle identification number is
located on the driver’s side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
A. World manufacturer identifier
B. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
C. Make, vehicle line, series, body
type
D. Engine type
E. Check digit
F. Model year
G. Assembly plant
H. Production sequence number.
XXXXXXXXXXXXXXXXX
366Capacities and Specifications
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact an authorized dealer or visit our online store at:
www.Accessories.Lincoln.com (United States only).
Lincoln Motor Company will repair or replace any properly authorized
dealer-installed Lincoln Genuine Accessory found to be defective in
factory-supplied materials or workmanship during the warranty period, as
well as any component damaged by the defective accessories.
Lincoln Motor Company will warrant your accessory through the
warranty that provides the greatest benefit:
•24 months, unlimited mileage.
•The remainder of your new vehicle limited warranty.
Contact an authorized dealer for details and a copy of the warranty.
Exterior style
•Side window deflectors
Interior style
•Floor mats•Rear seat entertainment*
Lifestyle
•Ash cup / smoker’s package•Cargo organization and
management
•Conversation mirror•Trailer towing accessories
•Hitch-mounted bike carrier
Peace of mind
•Remote start•Wheel locks
•Vehicle security•Locking fuel plug
*The accessory manufacturer designs, develops and therefore warrants
Lincoln Licensed Accessories, and does not design or test these
accessories to Lincoln Motor Company engineering requirements.
Contact an authorized Lincoln dealer for the manufacturer’s limited
warranty details, and request a copy of the Lincoln Licensed Accessories
product limited warranty from the accessory manufacturer.
368Accessories
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

Your A/V inputs allow you to connect an
auxiliary audio/video source (such as a
gaming systems or a personal camcorder)
by connecting RCA cords (not included)
to these input jacks. The jacks are yellow,
red and white and are located either
behind a small access door on the
instrument panel or in your center console.
You can also use the A/V inputs as an auxiliary input jack to play music
from your portable music player over your vehicle’s speakers. Plug in
your 1/8 inch (3.5 millimeter) RCA adapter into the two left A/V input
jacks (red and white).
Press the lower left corner of the touchscreen, and then selectA/V In.
To use the auxiliary input jack feature, make sure that your portable
music player is designed for use with headphones and that it is fully
charged. You also need an audio extension cable with stereo male
1/8th-inch (3.5 millimeter) connectors at one end and a RCA jack at the
other.
1. Switch off the engine, radio and portable music player. Set the
parking brake and put the transmission in positionP.
2. Attach one end of the audio extension cable to the headphone output
of your player and the other end into the adapter in one of the two
left A/V input jacks (white or red) inside the center console.
3. Press the lower left corner on the touchscreen. Select either a tuned
FM station or a CD (if there is a CD already loaded into the system).
4. Adjust the volume as desired.
5. Turn the portable music player on and adjust the volume to
12the
maximum.
6. Press the lower left corner on the touchscreen. Select the A/V In tab.
(You should hear audio from your portable music player although it
may be low.)
7. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between
the controls.
In order to playback video from your iPod® or iPhone® (if compatible),
you must have a special combination USB/RCA composite video cable
(which you can buy from Apple®). When the cable is connected to your
iPod® or iPhone®, plug the other end into both the RCA jacks and the
USB port.
410MyLincoln Touch™
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)

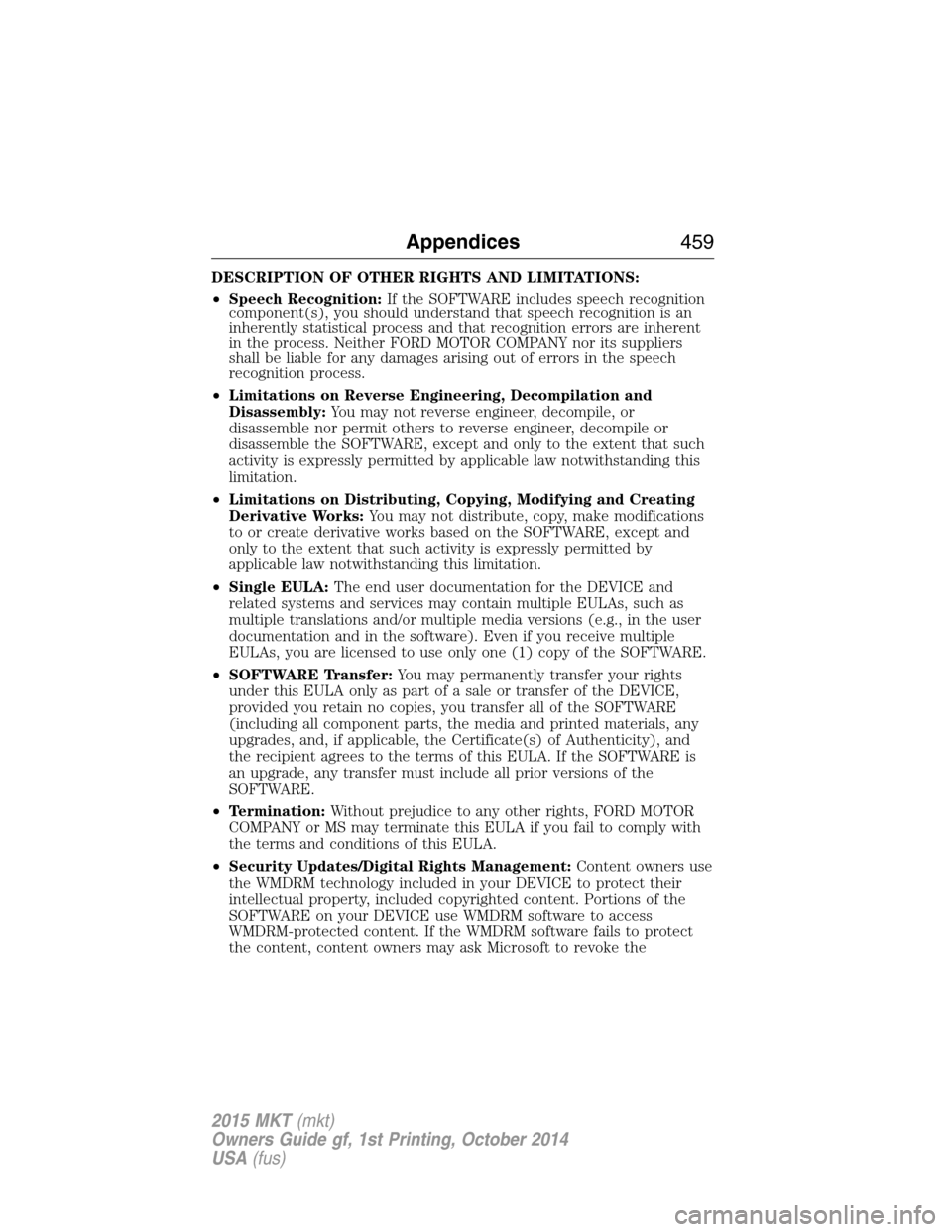

DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS:
•Speech Recognition:If the SOFTWARE includes speech recognition
component(s), you should understand that speech recognition is an
inherently statistical process and that recognition errors are inherent
in the process. Neither FORD MOTOR COMPANY nor its suppliers
shall be liable for any damages arising out of errors in the speech
recognition process.
•Limitations on Reverse Engineering, Decompilation and
Disassembly:You may not reverse engineer, decompile, or
disassemble nor permit others to reverse engineer, decompile or
disassemble the SOFTWARE, except and only to the extent that such
activity is expressly permitted by applicable law notwithstanding this
limitation.
•Limitations on Distributing, Copying, Modifying and Creating
Derivative Works:You may not distribute, copy, make modifications
to or create derivative works based on the SOFTWARE, except and
only to the extent that such activity is expressly permitted by
applicable law notwithstanding this limitation.
•Single EULA:The end user documentation for the DEVICE and
related systems and services may contain multiple EULAs, such as
multiple translations and/or multiple media versions (e.g., in the user
documentation and in the software). Even if you receive multiple
EULAs, you are licensed to use only one (1) copy of the SOFTWARE.
•SOFTWARE Transfer:You may permanently transfer your rights
under this EULA only as part of a sale or transfer of the DEVICE,
provided you retain no copies, you transfer all of the SOFTWARE
(including all component parts, the media and printed materials, any
upgrades, and, if applicable, the Certificate(s) of Authenticity), and
the recipient agrees to the terms of this EULA. If the SOFTWARE is
an upgrade, any transfer must include all prior versions of the
SOFTWARE.
•Termination:Without prejudice to any other rights, FORD MOTOR
COMPANY or MS may terminate this EULA if you fail to comply with
the terms and conditions of this EULA.
•Security Updates/Digital Rights Management:Content owners use
the WMDRM technology included in your DEVICE to protect their
intellectual property, included copyrighted content. Portions of the
SOFTWARE on your DEVICE use WMDRM software to access
WMDRM-protected content. If the WMDRM software fails to protect
the content, content owners may ask Microsoft to revoke the
Appendices459
2015 MKT(mkt)
Owners Guide gf, 1st Printing, October 2014
USA(fus)
