2015 LINCOLN MKC Owners Manual

•
retractor and anchor pretensioner at the
front outboard seating positions
• belt tension sensor at the front outboard
passenger seating position •
safety belt warning light and chime •
crash sensors and monitoring system
with readiness indicator.
The safety belt pretensioners are designed
to activate in frontal, near-frontal and side
crashes, and in rollovers. The safety belt
pretensioners on the retractor and anchor at
the front seating positions are designed to
tighten the safety belts firmly against the
occupant's body when activated. This helps
increase the effectiveness of the safety belts.
In frontal crashes, the safety belt
pretensioners can be activated alone or, if
the crash is of sufficient severity, together
with the front airbags. FASTENING THE SAFETY BELTS
The front outboard and rear safety restraints
in the vehicle are combination lap and
shoulder belts.
1. Insert the belt tongue into the proper
buckle (the buckle closest to the direction
the tongue is coming from) until you hear
a snap and feel it latch. Make sure the
tongue is securely fastened in the buckle. 2. To unfasten, press the release button
and remove the tongue from the buckle. When in use, the rear safety belts should be
placed in the belt guides on the outboard
seatbacks.
38
MKC (TME), enUSA Safety Belts E142587 E142588 E142589

Using Safety Belts During Pregnancy
WARNING
Always ride and drive with your
seatback upright and the safety belt
properly fastened. The lap portion of the
safety belt should fit snug and be positioned
low across the hips. The shoulder portion of
the safety belt should be positioned across
the chest. Pregnant women should also
follow this practice. See the following figure. Pregnant women should always wear their
safety belt. The lap belt portion of a
combination lap and shoulder belt should be
positioned low across the hips below the
belly and worn as tight as comfort will allow.
The shoulder belt should be positioned to
cross the middle of the shoulder and the
center of the chest.
Safety Belt Locking Modes
WARNINGS
After any vehicle crash, the safety belt
system at all passenger seating
positions must be checked by an authorized
dealer to verify that the automatic locking
retractor feature for child seats is still
functioning properly. In addition, all safety
belts should be checked for proper function. BELT AND RETRACTOR ASSEMBLY
MUST BE REPLACED if the safety belt
assembly automatic locking retractor feature
or any other safety belt function is not
operating properly when checked by an
authorized dealer. Failure to replace the belt
and retractor assembly could increase the
risk of injury in crashes. All safety restraints in the vehicle are
combination lap and shoulder belts. The
driver safety belt has the first type of locking
mode, and the front outboard passenger and
rear seat safety belts have both types of
locking modes described as follows:
Vehicle Sensitive Mode
This is the normal retractor mode, which
allows free shoulder belt length adjustment
to your movements and locking in response
to vehicle movement. For example, if the
driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of
approximately 5 mph (8 km/h) or more, the
combination safety belts will lock to help
reduce forward movement of the driver and
passengers.
In addition, the retractor is designed to lock
if the webbing is pulled out too quickly. If this
occurs, let the belt retract slightly and pull
webbing out again in a slow and controlled
manner.
39
MKC (TME), enUSA Safety BeltsE142590

Automatic Locking Mode
In this mode, the shoulder belt is
automatically pre-locked. The belt will still
retract to remove any slack in the shoulder
belt. The automatic locking mode is not
available on the driver safety belt.
When to Use the Automatic Locking Mode
This mode should be used any time a child
safety seat, except a booster, is installed in
passenger front or rear seating positions.
Children 12 years old and under should be
properly restrained in a rear seating position
whenever possible. See Child Safety (page
23).
How to Use the Automatic Locking Mode 1.
Buckle the combination lap and shoulder
belt.
2. Grasp the shoulder portion and pull downward until the entire belt is pulled
out.
Allow the belt to retract. As the belt retracts,
you will hear a clicking sound. This indicates
the safety belt is now in the automatic
locking mode. How to Disengage the Automatic Locking
Mode
Unbuckle the combination lap and shoulder
belt and allow it to retract completely to
disengage the automatic locking mode and
turn on the vehicle sensitive (emergency)
locking mode.
How to Extract Safety Belts in the Rear
Outboard Positions
Safety belts in the rear outboard positions
can lock if the seatback is returned firmly to
its upright position. You can unlock the safety
belts using the following procedures.
For vehicles where the rear seats recline:
1. Recline the seat to its full rear recline
position.
2. The safety belt should then unlock.
3. Return the seatback to its desired upright
position.
For vehicles with rear seats that do not
recline or are locked with the seat in its full
rear recline position:
40
MKC (TME), enUSA Safety BeltsE142591

1.
Grasp the safety belt webbing at the top
of the seatback.
2. Pull the safety belt webbing forward, firmly.
3. After pulling the safety belt forward, allow
the safety belt to feed back into the
safety belt retractor as much as possible.
If necessary, press the seatback down to
allow the safety belt webbing to retract
further.
4. The safety belt should then unlock.
5. If the safety belt does not unlock, repeat
steps 1-3.
Safety Belt Extension Assembly WARNING
Do not use extensions to change the
fit of the shoulder belt across the torso.
If the safety belt is too short when fully
extended, you can obtain a safety belt
extension assembly from an authorized
dealer. Use only extensions manufactured by the
same supplier as the safety belt.
Manufacturer identification is on a label
located either at the end of the webbing or
on the retractor behind the trim. Also, use
the safety belt extension only if the safety
belt is too short for you when fully extended.
SAFETY BELT HEIGHT
ADJUSTMENT
WARNING
Position the safety belt height adjusters
so that the belt rests across the middle
of your shoulder. Failure to adjust the safety
belt correctly could reduce the effectiveness
of the safety belt and increase the risk of
injury in a crash. To adjust the shoulder belt height, squeeze
the button and slide the height adjuster up
or down. Release the button and pull down
on the height adjuster to make sure it is
locked in place.
41
MKC (TME), enUSA Safety BeltsE87511

SAFETY BELT WARNING LAMP
AND INDICATOR CHIME This lamp illuminates and an
audible warning will sound if the
driver's safety belt has not been
fastened when the vehicle's ignition is turned
on.
Conditions of operation Then...
If...
The safety belt warning light illuminates 1-2 minutes and the warningchime sounds 4-8 seconds.
The driver's safety belt is not buckled before the ignition switch is
turned to the on position...
The safety belt warning light and warning chime turn off.
The driver's safety belt is buckled while the indicator light is illuminated
and the warning chime is sounding...
The safety belt warning light and indicator chime remain off.
The driver's safety belt is buckled before the ignition switch is turned
to the on position...
42
MKC (TME), enUSA Safety Belts

SAFETY BELT MINDER
Belt-Minder™
This feature supplements the safety belt
warning function by providing additional
reminders by intermittently sounding a chime
and illuminating the safety belt warning light
when the driver seat or front passenger seat
is occupied and the safety belt is unbuckled.
The system uses information from the front
passenger sensing system to determine if a
front seat passenger is present and therefore
potentially in need of a warning. To avoid
activating the Belt-Minder feature for objects
placed in the front passenger seat, warnings
will only be given to front seat occupants as
determined by the front passenger sensing
system.
If the Belt-Minder warnings have expired
(warnings for about five minutes) for one
occupant (driver or front passenger), the
other occupant can still activate the
Belt-Minder feature. Then...
If...
The Belt-Minder feature will not activate.
The driver and front passenger safety belts are buckled before the
ignition is turned on or less than 1-2 minutes have elapsed since the ignition has been turned on...
The Belt-Minder feature is activated - the safety belt warning light
illuminates and the warning chime sounds for six seconds every 25
seconds, repeating for about five minutes or until the safety belts are buckled.
The driver or front passenger safety belt is not buckled when the
vehicle has reached at least 6 mph (9.7 km/h) and 1-2 minutes have elapsed since the ignition has been turned on...
The Belt-Minder feature is activated - the safety belt warning light
illuminates and the warning chime sounds for six seconds every 25
seconds, repeating for about five minutes or until the safety belts are buckled.
The driver or front passenger safety belt becomes unbuckled for
about one minute while the vehicle is traveling at least 6 mph (9.7
km/h) and more than 1-2 minutes have elapsed since the ignition has been turned on...
43
MKC (TME), enUSA Safety Belts

Deactivating and Activating the Belt-Minder
Feature
WARNING
While the system allows you to
deactivate it, this system is designed
to improve your chances of being safely
belted and surviving an accident. We
recommend you leave the system activated
for yourself and others who may use the
vehicle. To reduce the risk of injury, do not
deactivate or activate the system while
driving the vehicle. Note:
The driver and front passenger
warning are deactivated and activated
independently. When deactivating or
activating one seating position, do not
buckle the other position as this will
terminate the process.
Read Steps 1 - 4 thoroughly before
proceeding with the programming
procedure. Before following the procedure, make sure
that:
•
The parking brake is set.
• The transmission is in park (P) or neutral
(N).
• The ignition is off.
• The driver and front passenger safety
belts are unbuckled.
1. Turn the ignition on. Do not start the vehicle.
2. Wait until the safety belt warning light turns off (about one minute). After Step
2, wait an additional five seconds before
proceeding with Step 3. Once Step 3 is
started, the procedure must be
completed within 30 seconds.
3. For the seating position being disabled, buckle then unbuckle the safety belt
three times at a moderate speed, ending
in the unbuckled state. After Step 3, the
safety belt warning light will turn on.
4. While the safety belt warning light is on, buckle and then unbuckle the safety belt.
After Step 4, the safety belt warning light
will flash for confirmation. •
This will disable the feature for that
seating position if it is currently enabled.
• This will enable the feature for that
seating position if it is currently disabled.

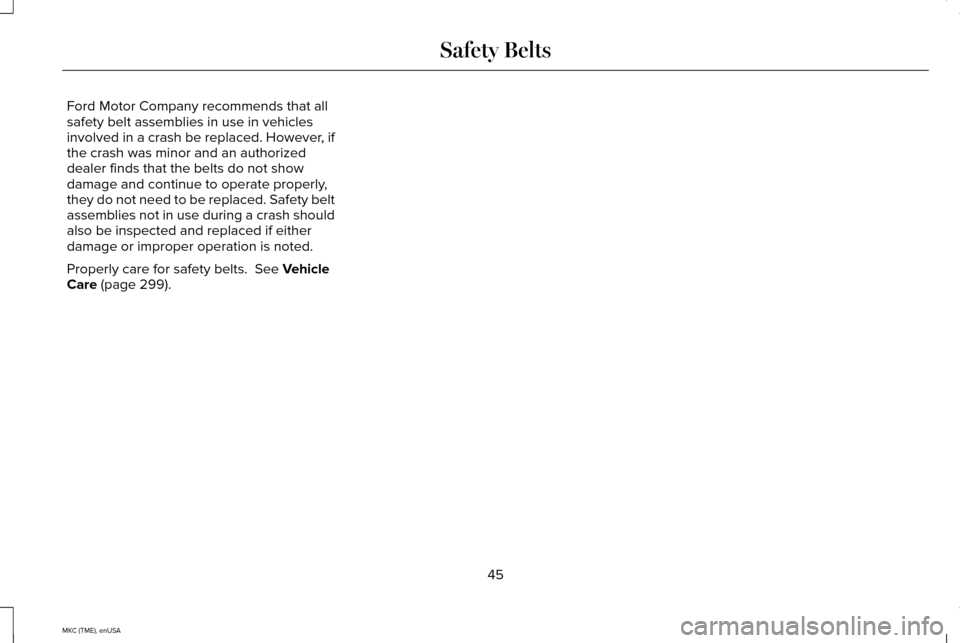

CHILD RESTRAINT AND SAFETY
BELT MAINTENANCE
Inspect the vehicle safety belts and child
safety seat systems periodically to make sure
they work properly and are not damaged.
Inspect the vehicle and child seat safety belts
to make sure there are no nicks, tears or
cuts. Replace if necessary. All vehicle safety
belt assemblies, including retractors, buckles,
front safety belt buckle assemblies, buckle
support assemblies (slide bar-if equipped),
shoulder belt height adjusters (if equipped),
shoulder belt guide on seat back (if
equipped), child safety seat LATCH and
tether anchors, and attaching hardware,
should be inspected after a crash. Read the
child restraint manufacturer's instructions for
additional inspection and maintenance
information specific to the child restraint.
44
MKC (TME), enUSA Safety Belts

Ford Motor Company recommends that all
safety belt assemblies in use in vehicles
involved in a crash be replaced. However, if
the crash was minor and an authorized
dealer finds that the belts do not show
damage and continue to operate properly,
they do not need to be replaced. Safety belt
assemblies not in use during a crash should
also be inspected and replaced if either
damage or improper operation is noted.
Properly care for safety belts. See Vehicle
Care (page 299).
45
MKC (TME), enUSA Safety Belts
