4556-3. Do-it-yourself maintenance
6
Maintenance and care
LS600hL_U(OM50E41U)
Your vehicle is equipped with a tire pressure warning system that uses tire
pressure warning valves and transmitters to detect low tire inflation pres-
sure before serious problems arise.
●If the tire pressure drops below a predetermined level, the driver is
warned by a screen display and a warning light. (P. 497, 503)
◆Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and trans-
mitters must also be installed.
When new tire pressure warning valves and transmitters are installed,
new ID codes must be registered in the tire pressure warning computer
and the tire pressure warning system must be initialized. Have tire pres-
sure warning valve and transmitter ID codes registered by your Lexus
dealer. ( P. 4 5 7 )
◆Initializing the tire pressure warning system
■The tire pressure warning system must be initialized in the following
circumstances:
●When rotating the tires.
●When the tire inflation pressure is changed such as when changing
traveling speed.
●When changing the tire size.
When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.
Tire pressure warning system
●The tire pressure detected by the tire pressure
warning system can be displayed on the multi-
information display. ( P. 1 0 8 )

4566-3. Do-it-yourself maintenance
LS600hL_U(OM50E41U)
■How to initialize the tire pressure warning systemPark the vehicle in a safe place and turn the power switch off.
Initialization cannot be performed while the vehicle is moving.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. ( P. 546)
Make sure to adjust the tire pressure to the specified cold tire inflation pres-
sure level. The tire pressure warning sy stem will operate based on this pressure
level.
Turn the power switch to ON mode.
Press and hold the tire pres-
sure warning reset switch until
the tire pressure warning light
blinks slowly 3 times.
Wait for a few minutes with the power switch in ON mode and then
turn the power switch off.
1
2
3
4
5

4576-3. Do-it-yourself maintenance
6
Maintenance and care
LS600hL_U(OM50E41U)
◆Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to register the ID code. Have the ID code
registered by your Lexus dealer.
■When to replace your vehicle’s tires
Tires should be replaced if:
●You have tire damage such as cuts, splits , cracks deep enough to expose the fabric,
and bulges indicating internal damage
●A tire goes flat repeatedly or cannot be properly repaired due to the size or loca-
tion of a cut or other damage
If you are not sure, consul t with your Lexus dealer.
■Replacing tires and wheels
If the ID code of the tire pressure warning valve and transmitter is not registered, the
tire pressure warning system will not work properly. After driving for about 20 min-
utes, the tire pressure warning light blinks for 1 minute and stays on to indicate a sys-
tem malfunction.
■Tire life
Any tire over 6 years old must be checked by a qualified technician even if it has sel-
dom or never been used or damage is not obvious.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.
■When rotating the tires
Make sure that the power switch is off. If the tires are rotated while the power switch
is in ON mode, the tire position information will not be updated.
If this accidentally occurs, either turn the power switch to off and then to ON mode,
or initialize the system after checking that the tire pressure is properly adjusted.

4606-3. Do-it-yourself maintenance
LS600hL_U(OM50E41U)
■The initialization operation
●Make sure to carry out initialization after adjusting the tire inflation pressure.
Also, make sure the tires are cold before carrying out initialization or tire inflation
pressure adjustment.
●If you have accidentally turned the power switch off during initialization, it is not
necessary to press the reset switch again as initialization will restart automatically
when the power switch has been turned to ON mode for the next time.
●If you accidentally press the reset switch when initialization is not necessary, adjust
the tire inflation pressure to the specified level when the tires are cold, and conduct
initialization again.
■When initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases, the
settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
●When operating the tire pressure warning reset switch, the tire pressure warning
light does not blink 3 times.
●After carrying out the initialization proced ure, the tire pressure warning light blinks
for 1 minute then stays on after driving for 20 minutes.

4626-3. Do-it-yourself maintenance
LS600hL_U(OM50E41U)
CAUTION
■When inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as dangerous
handling characteristics, which may lead to an accident resulting in death or seri-
ous injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (r adial, bias-belted or bias-ply tires).
●Do not mix summer, all season and snow tires.
●Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
■When initializing the tire pressure warning system
Do not operate the tire pressure warning re set switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on when
the tire inflation pressure is actually normal.
■Caution regarding interference with electronic devices
●Users of any electrical medical device other than implantable cardiac pacemak-
ers, cardiac resynchronization therapy-pacemakers or implantable cardioverter
defibrillators should consult the manufacturer of the device for information about
its operation under the influence of radio waves.
Radio waves could have unexpected effects on the operation of such medical
devices.
●People with implantable cardiac pacemak-
ers, cardiac resynchronization therapy-
pacemakers or implantable cardioverter
defibrillators should not come within 17.7 in.
(450 mm) of the tire pressure warning sys-
tem initiators. The radio waves may affect
the operation of such devices.

483
When trouble arises7
LS600hL_U(OM50E41U)7-1. Essential information
Emergency flas hers.................. 484
If your vehicle has to be stopped in an
emergency ................................ 485 7-2. Steps to take in an
emergency
If your vehicle needs to be towed ...........................................486
If you think something is wrong ........................................... 492
If a warning light turns on or a warning buzzer
sounds.......................................... 493
If a warning message is displayed.....................................503
If you have a flat tire (vehicles with
a spare tire)................................506
If you have a flat tire (vehicles with
run-flat tires)............................... 515
If the hybrid system will not start .........................................517
If the shift lever cannot be shifted from P............................. 519
If the parking brake cannot be released................. 520
If the electronic key does not operate properly ............. 524
If the 12-volt battery is discharged ................................. 527
If your vehicle overheats .........530
If the vehicle becomes stuck ............................................. 535

4937-2. Steps to take in an emergency
7
When trouble arises
LS600hL_U(OM50E41U)
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.

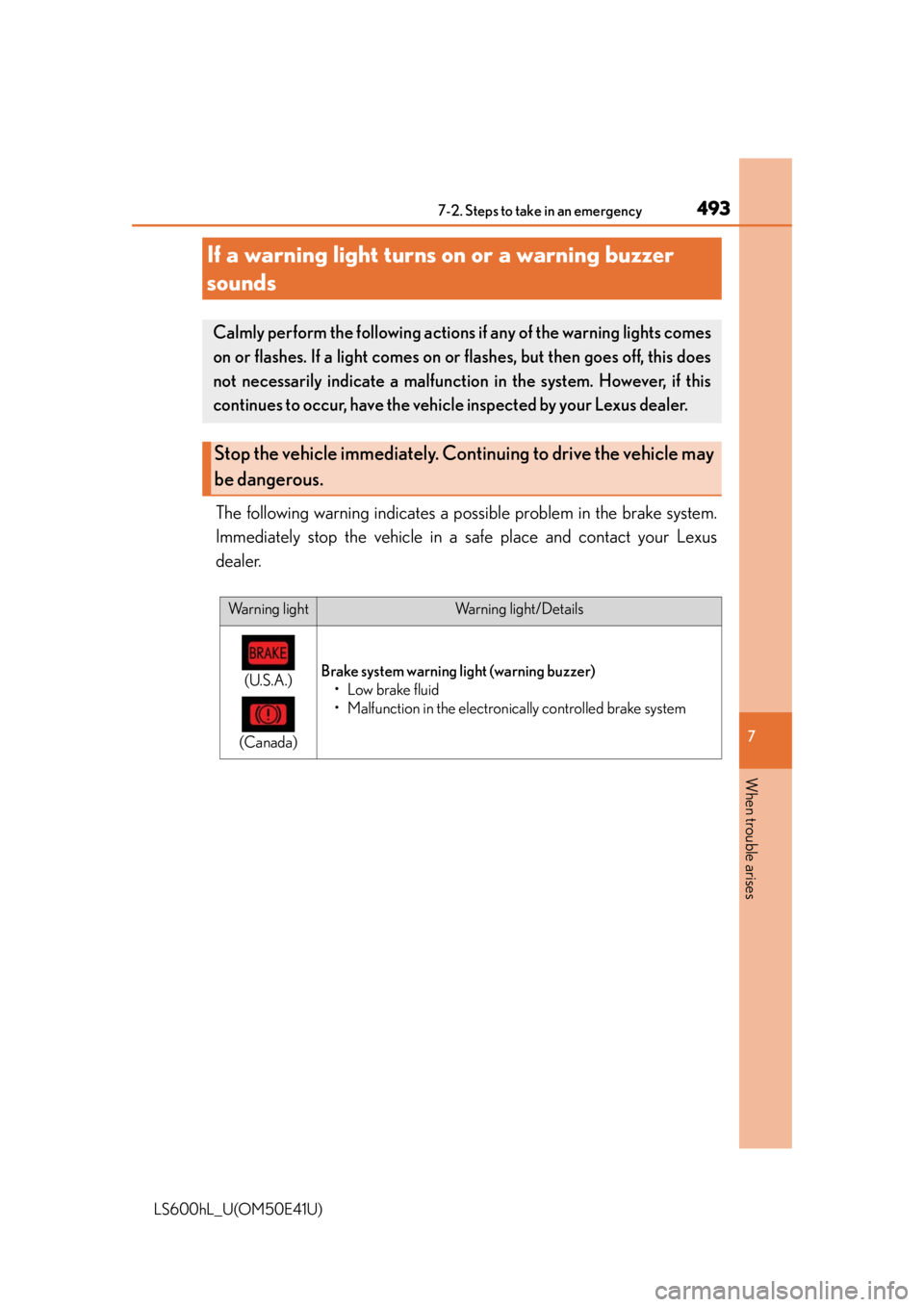

If a warning light turns on or a warning buzzer
sounds
Calmly perform the following actions if any of the warning lights comes
on or flashes. If a light comes on or flashes, but then goes off, this does
not necessarily indicate a malfunction in the system. However, if this
continues to occur, have the vehicle inspected by your Lexus dealer.
Stop the vehicle immediately. Cont inuing to drive the vehicle may
be dangerous.
Warning lightWarning light/Details
(U.S.A.)
(Canada)Brake system warning light (warning buzzer) •Low brake fluid
• Malfunction in the electronically controlled brake system

4947-2. Steps to take in an emergency
LS600hL_U(OM50E41U)
The following warning indicates the possibility of damage to the vehicle
that may lead to an acc ident. Immediately stop th e vehicle in a safe place
and contact your Lexus dealer.
Failure to investigate the cause of th e following warnings may lead to the
system operating abnormally and possib ly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Stop the vehicl e immediately.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Have the vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
(U.S.A.)
(Canada)
Malfunction indicator lamp Indicates a malfunction in:
• The hybrid system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic hybrid transmission control system
SRS warning lightIndicates a malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system;
• The seat belt pretensioner system; or
• The active head restraints system
(U.S.A.)
(Canada)
ABS warning light Indicates a malfunction in:
•The ABS; or
• The brake assist system
Electric power steering system warning lightIndicates a malfunction in the EPS (Electric Power Steering)
system
