2015 Lexus GS350 Quick Guide

24
GS350_QG_OM30F71U_(U)
Eco Driving Indicator
■Eco Driving Indicator Zone Display
Eco driving ratio based on accelera-
tion
If the acceleration exceeds Zone of
Eco driving, the right side of Eco Driv-
ing Indicator Zone Display blinks.
Zone of Eco driving
Eco Driving Indicator will not operate in the
following conditions:
● The shift lever is anything other than D.
● Paddle shift switch is operated.
● Neither normal mode nor Eco drive
mode is selected.
● The vehicle speed is approximately 80
mph (130 km/h) or higher.1
2
GS350_QG_OM30F71U_(U).book Page 24 Monday, January 19, 2015 4:43 PM

25
GS350_QG_OM30F71U_(U)
Headlights
The side marker, parking, tail,
license plate and instrument
panel lights turn on.
The headlights and all the lights
listed above turn on.
The headlights, daytime run-
ning lights and all the lights
listed above turn on and off
automatically. (When the
engine switch is in IGNITION
ON mode.)
Off
The daytime running lights turn
on.
■Turning on the high beam headlights
With the headlights on, push the lever
away from you to turn on the high
beams.
Pull the lever toward you to the center
position to turn the high beams off.
Pull the lever toward you and release it
to flash the high beams once.
You can flash the high beams with the
headlights on or off.
(Canada)
(U.S.A.)
1
2
3
4
(U.S.A.)
(Canada)
1
2
GS350_QG_OM30F71U_(U).book Page 25 Monday, January 19, 2015 4:43 PM

26
GS350_QG_OM30F71U_(U)

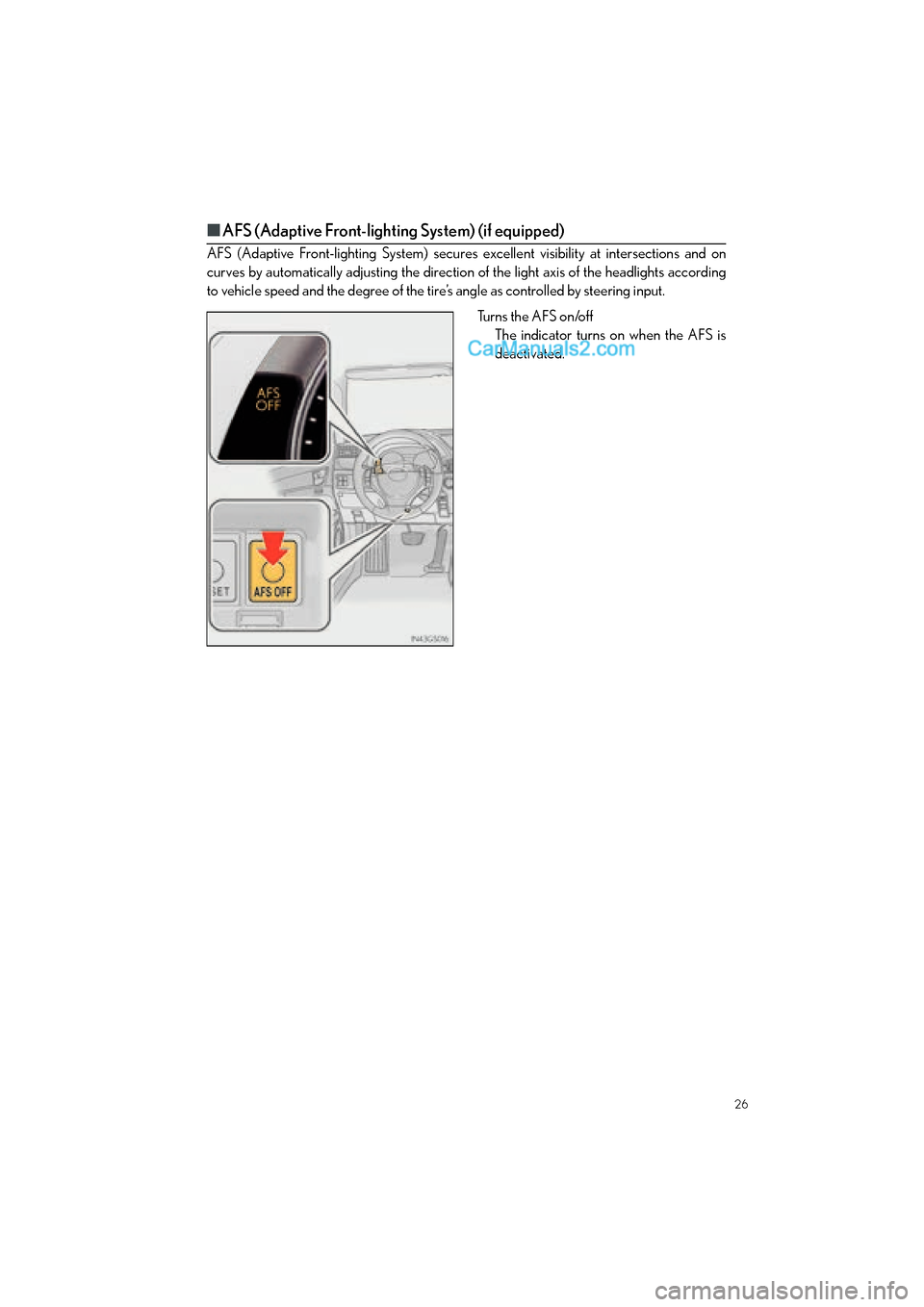

■AFS (Adaptive Front-lighting System) (if equipped)
AFS (Adaptive Front-lighting System) secures excellent visibility at intersections and on
curves by automatically adjusting the direction of the light axis of the headlights according
to vehicle speed and the degree of the tire’s angle as controlled by steering input.
Tu r n s t h e A F S o n /o f fThe indicator turns on when the AFS is
deactivated.
GS350_QG_OM30F71U_(U).book Page 26 Monday, January 19, 2015 4:43 PM

27
GS350_QG_OM30F71U_(U)
Windshield Wipers and Washer
■Intermittent wipers with interval adjuster
(U.S.A.) or (Canada)
Move the lever up 2 levels
Move the lever up 1 level

(U.S.A.) or (Canada)
Move the lever down 1 level

(U.S.A.) or (Canada)
Move the lever down 2 levels
The lever will return to its original position immediately after operation.
1
2
3
4
or or or
OffTe m p o r a r y
operationTe m p o r a r yoperationIntermittent operationHigh speedoperation
Intermittent operationOffOffLow speedoperationHigh speed operation
Low speed operationOffIntermittent operationHigh speedoperationHigh speedoperation
High speed operationOffLow speedoperationNo changeNo change
Status
before
operation
Operation
GS350_QG_OM30F71U_(U).book Page 27 Monday, January 19, 2015 4:43 PM

28
GS350_QG_OM30F71U_(U)
Wiper intervals can be adjusted when inter-
mittent operation is selected.Increases the intermittent windshield
wiper frequency
Decreases the intermittent windshield
wiper frequency
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
5
6
7
GS350_QG_OM30F71U_(U).book Page 28 Monday, January 19, 2015 4:43 PM

29
GS350_QG_OM30F71U_(U)
■Rain-sensing windshield wipers
(U.S.A.) or (Canada)
Move the lever up 2 levels
Move the lever up 1 level
(U.S.A.) or (Canada)
Move the lever down 1 level
(U.S.A.) or (Canada)
Move the lever down 2 levels AUTO mode on/off switch
With AUTO mode selected, the wipers
will operate automatically when the
sensor detects falling rain. The system
automatically adjusts wiper timing in
accordance with rain volume and vehi-
cle speed.
AUTO mode indicator will turn on
when AUTO mode is selected.
*1: After temporary operation, the mode will return to AUTO mode.
*2: AUTO mode will be canceled.
AUTO mode
indicator
1
2
3
4
5
or or or
OffTe m p o r a r y operationTe m p o r a r yoperationLow speedoperationHigh speed operation
Low speed operationOffOffHigh speed operationHigh speedoperation
High speed operationOffLow speedoperationNo changeNo change
AUTO mode
Intermit- tent
operation
Off
Te m p o r a r y
operation
*1Low speed
operation
*2
High speed
operation
*2
Continu- ouslyNo change
Status
before
operation
Operation
GS350_QG_OM30F71U_(U).book Page 29 Monday, January 19, 2015 4:43 PM

30
GS350_QG_OM30F71U_(U)
When AUTO mode is selected, the sensor
sensitivity can be adjusted by turning the
switch ring.Increases the sensitivity
Decreases the sensitivity
Washer/wiper dual operation
Wipers will automatically operate a
couple of times after the washer
squirts.
6
7
8
GS350_QG_OM30F71U_(U).book Page 30 Monday, January 19, 2015 4:43 PM

31
GS350_QG_OM30F71U_(U)
Cruise Control (if equipped)
Indicators
Cruise control switch
■Setting the vehicle speed
Press the “ON/OFF” button to activate
the cruise control.
Cruise control indicator will come on.
Press the button again to deactivate
the cruise control.
Accelerate or decelerate the vehicle to
the desired speed, and push the lever
down to set the speed.
“SET” indicator will come on.
The vehicle speed at the moment the
lever is released becomes the set
speed.
Use the cruise control to maintain a set speed without depressing the accelerator pedal.
1
2
1
2
GS350_QG_OM30F71U_(U).book Page 31 Monday, January 19, 2015 4:43 PM
