2015 Lexus GS350 fuse box

395
GS350_OM_OM30F69U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Engine compartment
Fuse boxes ( →P. 4 2 7 )
Battery ( →P. 404)
Engine oil level dipstick (→P. 397)
Engine coolant reservoir (→P. 4 0 0 )
Engine oil filler cap ( →P. 398) Brake fluid reservoir
(→P. 403)
Washer fluid tank ( →P. 4 0 7 )
Electric cooling fans
Condenser ( →P. 4 0 2 )
Radiator ( →P. 4 0 2 )1
2
3
4
5
6
7
8
9
10
GS350_OM_OM30F69U_(U).book Page 395 Monday, January 19, 2015 2:53 PM

427
GS350_OM_OM30F69U_(U)6-3. Do-it-yourself maintenance
6
Maintenance and care
Checking and replacing fuses
Turn the engine switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. (→ P. 4 3 0 )
Open the Fuse box cover.
XEngine compartment (type A fuse box)
Push the tab in and lift the lid off.
XEngine compartment (type B fuse box)
Push the tab in and lift the lid off.
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
1
2
3
GS350_OM_OM30F69U_(U).book Page 427 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
4296-3. Do-it-yourself maintenance
6
Maintenance and care

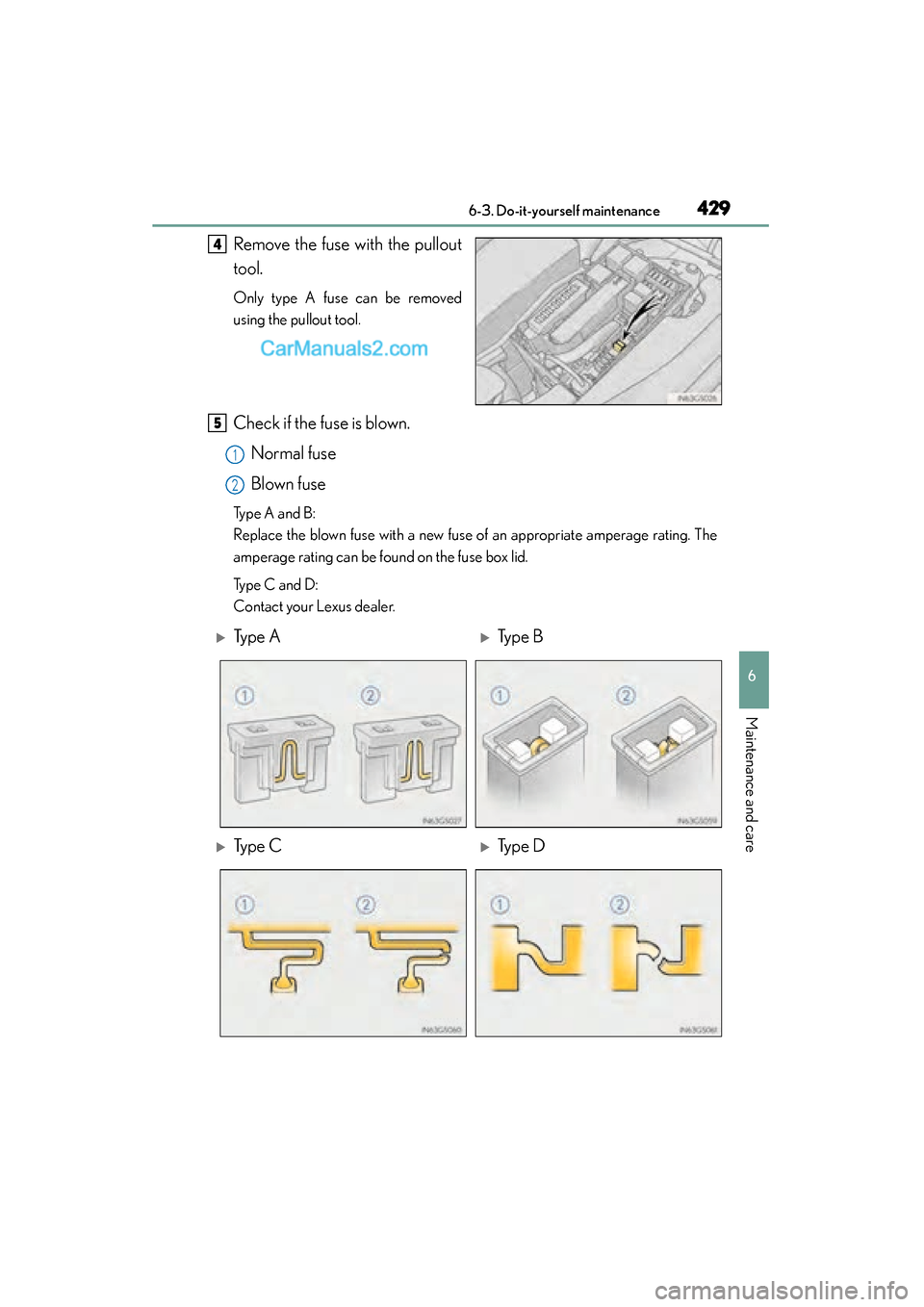

Remove the fuse with the pullout
tool.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rating. The
amperage rating can be found on the fuse box lid.
Type C and D:
Contact your Lexus dealer.
4
5
1
2
XTy p e AXType B
XTy p e CXType D
GS350_OM_OM30F69U_(U).book Page 429 Monday, January 19, 2015 2:53 PM

430
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

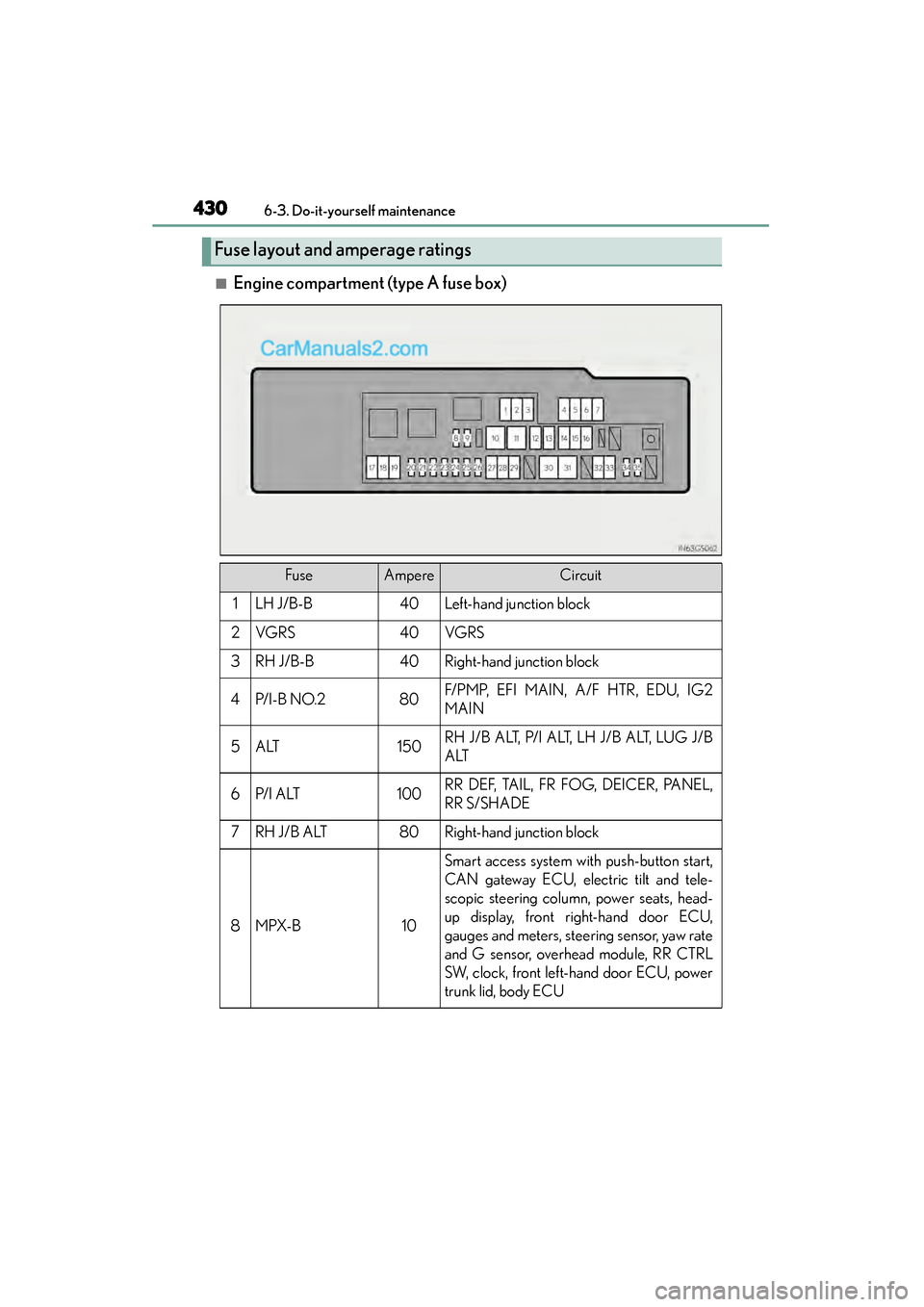

■Engine compartment (type A fuse box)
Fuse layout and amperage ratings
FuseAmpereCircuit
1LH J/B-B40Left-hand junction block
2VGRS40VGRS
3RH J/B-B40Right-hand junction block
4P/ I - B N O. 280F/PMP, EFI MAIN, A/F HTR, EDU, IG2
MAIN
5ALT150RH J/B ALT, P/I ALT, LH J/B ALT, LUG J/B
ALT
6P/ I A LT100RR DEF, TAIL, FR FOG, DEICER, PANEL,
RR S/SHADE
7RH J/B ALT80Right-hand junction block
8MPX-B10
Smart access system with push-button start,
CAN gateway ECU, electric tilt and tele-
scopic steering column, power seats, head-
up display, front right-hand door ECU,
gauges and meters, steering sensor, yaw rate
and G sensor, overhead module, RR CTRL
SW, clock, front left-hand door ECU, power
trunk lid, body ECU
GS350_OM_OM30F69U_(U).book Page 430 Monday, January 19, 2015 2:53 PM

432
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance
■Engine compartment (type B fuse box)
33FA N N O. 240Electric cooling fans
34A/C COMP7. 5Air conditioning system
35FILTER10Condenser
FuseAmpereCircuit
FuseAmpereCircuit
1IGN10Starting system
2INJ10Multiport fuel injection system/sequential
multiport fuel injection system
3EFI NO.210Fuel system, exhaust system
4IG2 MAIN20IGN, GAUGE, INJ, AIR BAG, IG2 NO.1,
LH-IG2
5EFI MAIN25Multiport fuel injection system/sequential
multiport fuel injection system, EFI NO.2
6A/F15Air intake system
7EDU20Multiport fuel injection system/sequential
multiport fuel injection system
8F/ P M P25Multiport fuel injection system/sequential
multiport fuel injection system
9SPARE30Spare fuse
GS350_OM_OM30F69U_(U).book Page 432 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
4396-3. Do-it-yourself maintenance
6
Maintenance and care
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (→P. 4 4 2 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, non-
genuine parts or parts not designed for this vehicle may be unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any
other object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.
GS350_OM_OM30F69U_(U).book Page 439 Monday, January 19, 2015 2:53 PM
