2015 Lexus GS350 service indicator

366
GS350_OM_OM30F69U_(U)

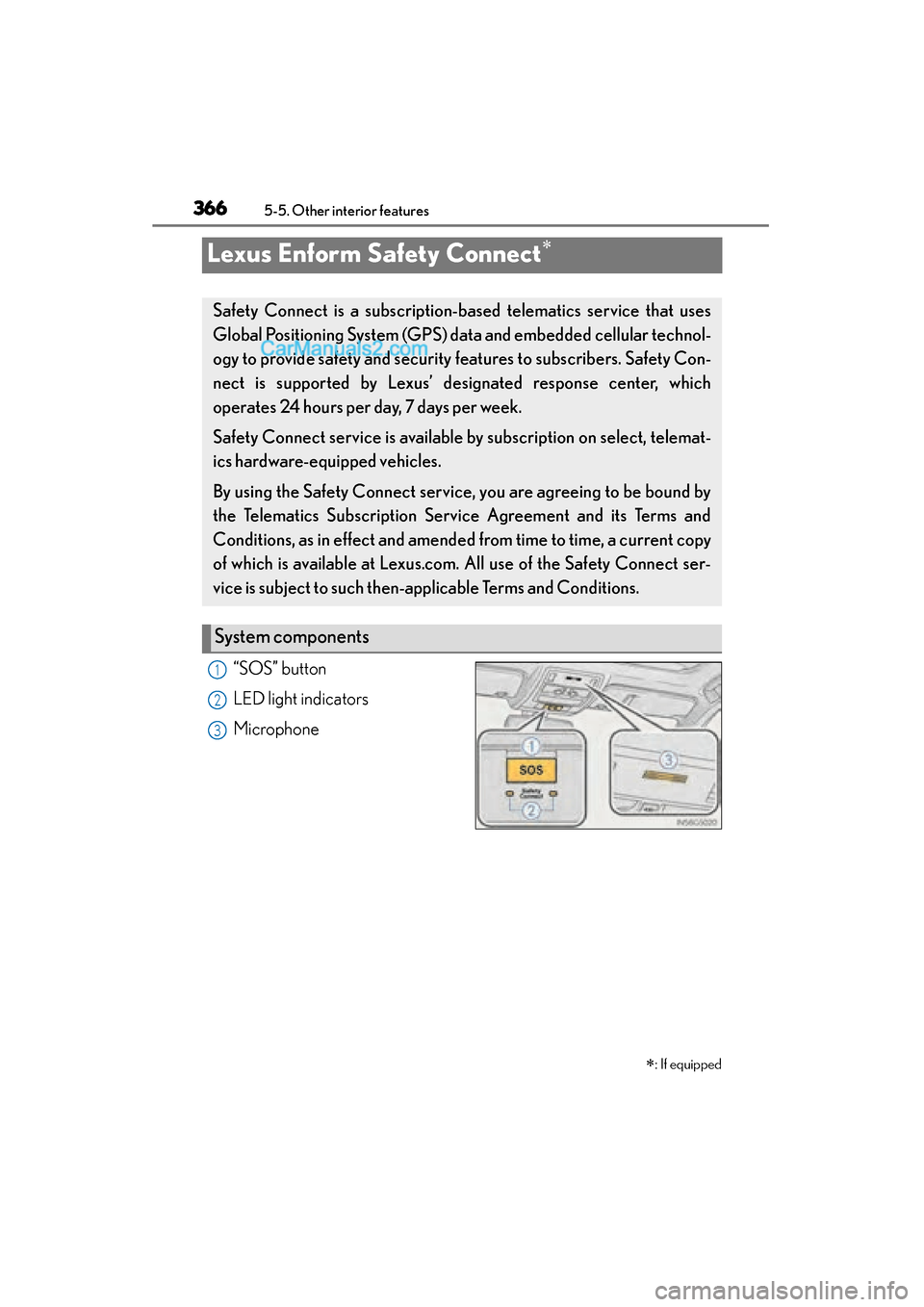

5-5. Other interior features
Lexus Enform Safety Connect∗
“SOS” button
LED light indicators
Microphone∗
: If equipped
Safety Connect is a subscription-based telematics service that uses
Global Positioning System (GPS) data and embedded cellular technol-
ogy to provide safety and security features to subscribers. Safety Con-
nect is supported by Lexus’ de signated response center, which
operates 24 hours per day, 7 days per week.
Safety Connect service is available by subscription on select, telemat-
ics hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be bound by
the Telematics Subscription Ser vice Agreement and its Terms and
Conditions, as in effect and amended from time to time, a current copy
of which is available at Lexus.com. All use of the Safety Connect ser-
vice is subject to such then-app licable Terms and Conditions.
System components
1
2
3
GS350_OM_OM30F69U_(U).book Page 366 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
3695-5. Other interior features
5
Interior features
When the engine switch is turned to IGNITION ON mode, the red indi-
cator light comes on for 2 seconds then turns off. Afterward, the green
indicator light comes on, indicating that the service is active.
The following indicator light patterns indicate specific system usage con-
ditions:
●Green indicator light on = Active service
●Green indicator light flashing = Safety Connect call in process
●Red indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
●No indicator light (off) = Safety Connect service not active
■Automatic Collision Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to speak
with the vehicle occupants to assess the level of emergency. If the occu-
pants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest emergency services pro-
vider to describe the situation, and requests that assistance be sent to
the location.
Safety Connect LED light Indicators
Safety Connect services
GS350_OM_OM30F69U_(U).book Page 369 Monday, January 19, 2015 2:53 PM

388
GS350_OM_OM30F69U_(U)
6-2. Maintenance
Emission inspection and maintenance (I/M)
programs
The OBD system determines that a problem exists somewhere in the
emission control system. Your vehicle may not pass the I/M test and may
need to be repaired. Contact your Lexus dealer to service the vehicle.
●When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may not be
completely set.
●When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary mal-
function and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehicle is
driven 40 or more times.
Contact your Lexus dealer to prepare the vehicle for re-testing.
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks . The OBD system monitors the
operation of the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M test in the following situations:
When the malfunction indicator lamp still remains on after several
driving trips
If your vehicle does not pass the I/M test
GS350_OM_OM30F69U_(U).book Page 388 Monday, January 19, 2015 2:53 PM

546
GS350_OM_OM30F69U_(U)
8-1. Specifications
■Non-recommendation of the use of gasoline containing MMT
Some gasoline contains an octane enhancing additive called MMT (Methylcyclo-
pentadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gasoline that contains MMT. If fuel containing
MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating or
driving uphill. This is normal and there is no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be dam-
aged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic convert-
ers causing the emission control system to malfunction.
●Do not use gasohol other than the type previously stated.
Other gasohol may cause fuel system damage or vehicle performance problems.
●Using unleaded gasoline with an octane number or rating lower than the level
previously stated will cause persistent heavy knocking.
At worst, this will lead to engine damage.
■Fuel-related poor driveability
If poor driveability is encountered after using a different type of fuel (poor hot start-
ing, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■When refueling with gasohol
Take care not to spill gasohol. It can damage your vehicle’s paint.
GS350_OM_OM30F69U_(U).book Page 546 Monday, January 19, 2015 2:53 PM

605Alphabetical index
GS350_OM_OM30F69U_(U)
Seats.............................................................134Adjustment ............................................. 134
Adjustment precautions .................. 135
Child seats/child restraint
system installation..............................59
Cleaning .................................................378
Driving position memory ................ 136
Head restraints......................................142
Power easy access system ............ 136
Properly sitting in the seat ................28
Seat heaters .......................................... 347
Seat position memory....................... 136
Seat ventilators .................................... 347
Sensor
Automatic headlight system .......... 199
Humidity sensor .................................. 315
Inside rear view mirror ......................147
Intuitive parking assist
*
Lexus night view .................................. 281
LKA (Lane-Keeping Assist) ......... 233
Radar sensor ................227, 260, 270
Rain-sensing windshield wipers ...................................................207
Service reminder indicators ................76
S-FLOW mode .......................................313
Shift lever .................................................. 184
Automatic transmission ................... 184
If the shift lever cannot be shifted from P ............. 517
Shift lever light ....................................... 327
Shift lock system......................................517
Side airbags ............................................... 37
Side display ............................................. 296 Side marker lights .................................. 196
Light switch.............................................196
Replacing light bulbs ....................... 453
Welcome light illumination
control....................................................107
Side mirrors ..............................................148
Adjusting and folding ........................148
Blind Spot Monitor ........................... 267
Linked mirror function when reversing..................................149
Mirror position memory ..................136
Side turn signal lights ............................190
Replacing light bulbs ....................... 453
Turn signal lever .................................. 190
Smart access system with push-button start ....................... 107
Antenna location................................. 109
Entry functions ......................................107
Starting the engine .............................. 177
Warning message............................. 484
Snow tires .................................................287
Spare tire ................................................. 502 Inflation pressure................................ 542
Storage location .................................503
Spark plug ............................................... 538
Specifications......................................... 534
Speedometer .............................................. 81
Steering lock ........................................... 180 Column lock release .......................... 181
Steering lock system warning message.......................... 500
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
GS350_OM_OM30F69U_(U).book Page 605 Monday, January 19, 2015 2:53 PM
