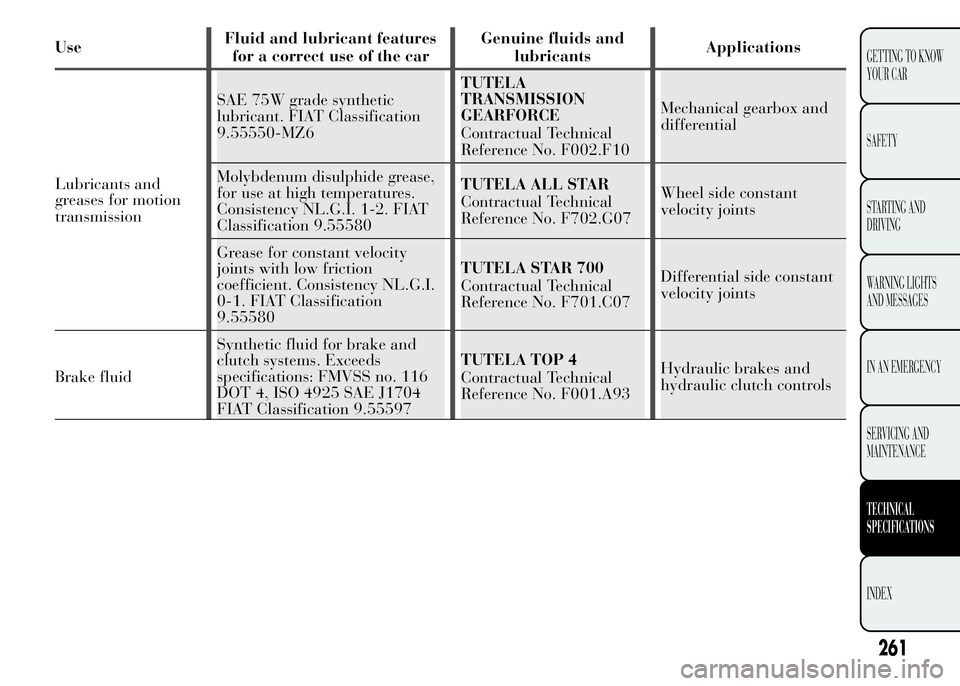

2015 Lancia Ypsilon Owner handbook (in English)

UseFluid and lubricant features
for a correct use of the carGenuine fluids and
lubricantsApplications
Lubricants and
greases for motion
transmissionSAE 75W grade synthetic
lubricant. FIAT Classification
9.55550-MZ6TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Mechanical gearbox and
differential
Molybdenum disulphide grease,
for use at high temperatures.
Consistency NL.G.I. 1-2. FIAT
Classification 9.55580TUTELA ALL STAR
Contractual Technical
Reference No. F702.G07Wheel side constant
velocity joints
Grease for constant velocity
joints with low friction
coefficient. Consistency NL.G.I.
0-1. FIAT Classification
9.55580TUTELA STAR 700
Contractual Technical
Reference No. F701.C07Differential side constant
velocity joints
Brake fluidSynthetic fluid for brake and
clutch systems. Exceeds
specifications: FMVSS no. 116
DOT 4, ISO 4925 SAE J1704
FIAT Classification 9.55597TUTELA TOP 4
Contractual Technical
Reference No. F001.A93Hydraulic brakes and
hydraulic clutch controls
261
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

UseFluid and lubricant features
for a correct use of the carGenuine fluids and
lubricantsApplications
Protective agent for
radiatorsRed protective agent with
antifreeze action, based on
inhibited monoethylene glycol
with organic formula. Exceeds
CUNA NC 956-16, ASTM D
3306 specifications. FIAT
Classification 9.55523PARAFLU
UP(*)
Contractual Technical
Reference No. F101.M01Cooling circuit usage
percentage: 50% water
50% PARAFLUUP(**)
Diesel fuel additiveAdditive for diesel with
antifreeze and protective action
for diesel engines.TUTELA DIESEL ART
Contractual Technical
Reference No. F601.L06To be mixed with the
diesel (25 cc per 10 litres)
Windscreen/rear
window washer fluidMixture of spirits and
surfactants. Exceeds CUNA NC
956-11 specifications. FIAT
Classification 9.55522TUTELA
PROFESSIONAL SC 35
Contractual Technical
Reference No. F201.D02To be used diluted or
undiluted in
windscreen/rear window
washer/wiper systems
(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%PARAFLUUPand 40% demineralised water is recommended.
262
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the type-approval
tests laid down by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extraurban use of the car: speed
varies between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle
and 63% of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition
of the car, trim level/equipment/accessories, use of the climate control, car load, presence of roof racks
and other situations that adversely affect the aerodynamics or wind resistance lead to different fuel
consumption figures than those measured.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
km)
(*)Versions with long gear ratios (for versions/markets, where applicable)
(**)Versions with short gear ratios and Start&Stop (for versions/markets, where applicable)
263
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
(* *)Versions with short gear ratios Start&Stop (for versions/markets, where applicable)* without
Versions Urban Extra-urban Combined
0.9 TwinAir 85 HP5.0 3.8 4.2
1.2 8V 69 HP
(*)6.4 4.1 4 9
1.2 8V 69 HP
(**)6.4 4.3 5.1
1.2 8V 69
(***)6 7 4.3 5.2
1.3 16V MultiJet4.7 3.2 3.8 HP ..
IMPORTANT The fuel consumption will get more regular only after having driven the first 3000 km.
(litres/100

CO2EMISSIONS
The CO2emission levels given in the following tables refer to combined consumption.
(*)Versions with long gear ratios (for versions/markets, where applicable)
(**)Versions with short gear ratios and Start&Stop (for versions/markets, where applicable)
264
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
(
* *)Versions with short gear ratios Start&Stop (for versions/markets, where applicable)* without
Versions CO2emissions according to the current European directive (g/km)
0.9 TwinAir 85 HP99
1.2 8V 69 HP
(*)115
1.2 8V 69 HP
(**)118
1.2 8V 69
(***)120
1.3 16v MultiJet99 HP

PRESCRIPTIONS FOR HANDLING THE VEHICLE AT THE END OF ITS LIFE
265
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
FCA has been committed for many years to safeguarding the environment through the constant
improvement of its production processes and manufacturing products that are increasingly "eco-
compatible". To grant customers the best possible service in terms of respecting environmental laws and
in response to European Directive 2000/53/EC governing vehicles at the end of their life, FCA is
offering its customers the chance to hand over their vehicle at the end of its life without incurring any
additional costs. The European Directive sets out that when the vehicle is handed over, the last keeper or
owner should not incur any expenses as a result of it having a zero or negative market value.
To hand your vehicle over at the end of its life without extra cost, contact one of our dealerships if you
are purchasing another vehicle or an FCA-authorised collection and scrapping centre. These centres
have been carefully chosen to offer high quality service for the collection, treatment and recycling of
vehicles at their end of life, respecting the surrounding environment.
You can find further information on these collection and scrapping centres either from an FCA
dealership or by calling the number in the Warranty Booklet or by consulting the websites of the various
FCA brands.

page intentionally left blank

TABLE OF CONTENTS
INTRODUCTION.....................................................269
TIPS ......................................................................269
TECHNICAL CHARACTERISTICS .......................271
Speakers for Basic Audio specification....................271
Speakers for 360° HI-FI MUSIC specification ........271
QUICK GUIDE ........................................................272
General functions ...................................................273
Radio functions ......................................................274
CD functions ..........................................................274
Media Player functions (only withBlue&Me™) ...275
STEERING WHEEL CONTROLS ..........................276
INTRODUCTION.....................................................278
FUNCTIONS AND ADJUSTMENTS ........................279
SWITCHING ON THE CAR RADIO ......................279
SWITCHING OFF THE CAR RADIO.....................279
SELECTING THE RADIO FUNCTIONS ...............279
SELECTING CD FUNCTION ................................280
AUDIO SOURCE MEMORY FUNCTION ...............280
VOLUME ADJUSTMENT ......................................280
MUTE/PAUSE FUNCTION....................................280
AUDIO SETTINGS ................................................281
TONE ADJUSTMENT (bass/treble) .......................281
BALANCE ADJUSTMENT.....................................282
FADER ADJUSTMENT ..........................................282
LOUDNESS FUNCTION .......................................282
EQ FUNCTION .....................................................282
USER EQ SETTINGS FUNCTION ........................283
MENU....................................................................283
AF SWITCHING function .....................................284
TRAFFIC INFORMATION function ......................285REGIONAL MODE function .................................286
MP3 DISPLAY function ........................................286
SPEED VOLUME function ...................................287
RADIO ON VOLUME function .............................287
PHONE FUNCTION ..............................................288
AUX OFFSET function .........................................289
RADIO OFF function ............................................289
SYSTEM RESET function......................................289
PHONE SET-UP ....................................................290
ANTI-THEFT PROTECTION ................................290
RADIO (TUNER) .....................................................292
INTRODUCTION...................................................292
FREQUENCY BAND SELECTION ........................293
PRESET BUTTONS...............................................293
STORING THE LAST STATION LISTENED TO...293
AUTOMATIC TUNING ..........................................294
MANUAL TUNING ................................................294
AUTOSTORE FUNCTION ....................................294
EMERGENCY ALARM RECEPTION ....................295
EON FUNCTION (Enhanced Other Network) ........295
STEREOPHONIC BROADCASTERS .....................295
CD PLAYER ............................................................296
INTRODUCTION...................................................296
SELECTING THE CD PLAYER ............................296
LOADING/EJECTING A CD..................................296
DISPLAY INFORMATION .....................................297
TRACK SELECTION (forward/back) ....................297
TRACK FAST FORWARD/REWIND ......................298
PAUSE FUNCTION ...............................................298
CD MP3 PLAYER ....................................................298
267
SOUND-SYSTEM

INTRODUCTION...................................................298
MP3 MODE ...........................................................298
SELECTING MP3 SESSIONS ON HYBRID
DISCS ....................................................................299
DISPLAY INFORMATION .....................................300
SELECTING NEXT/PREVIOUS FOLDER ............300
STRUCTURE OF THE FOLDERS.........................301AUX (only with theBlue&Me™ system) ................301
INTRODUCTION...................................................301
AUX MODE ...........................................................301
TROUBLESHOOTING ...........................................302
GENERAL .............................................................302
CD PLAYER ..........................................................303
MP3 FILE READING.............................................303
268
SOUND-SYSTEM
