2015 Lancia Ypsilon Owner handbook (in English)

DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒rotate the cover C fig. 129 anticlockwise;
❒remove the bulb D fig. 133 from its housing E.Side
To change the bulb, proceed as follows:
❒adjust the lens A fig. 134 to compress in the
internal catch B, then pull the unit outwards;
❒turn the bulb holder C anticlockwise, extract the
bulb and replace it;
❒refit the bulb holder C in the lens and turn it
clockwise;
❒refit the unit making sure that the internal catch
B clips into position.
fig. 133L0F0071fig. 134L0F0209
197
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FOG LIGHTS
(for versions/markets, where provided)
Replace the bulb as follows:
❒steer the wheel completely;
❒adjust the tabs A fig. 135 and remove the flap
B;
❒adjust the catch C fig. 136 and disconnect the
electrical connector D;
❒remove the cover E by turning it clockwise (see
the word OFF and the arrow on the cover);
❒release the catches F fig. 137 removing them
outwards;❒release the connector G fig. 138 and replace the
bulb H;
❒refit the new lamp and carry out the procedure
described previously in reverse.
fig. 135L0F0205
fig. 136L0F0206
fig. 137L0F0207
198
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REAR LIGHT CLUSTERS
These contain the bulbs for the side lights, brake
lights and direction indicators. The reversing
lights and rear fog lights are located instead in the
rear bumper.
The bulbs are arranged as follows fig. 139:
ADirection indicators
BBrake lights
fig. 138L0F0208fig. 139L0F0034
199
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DIRECTION INDICATORS/BRAKE LIGHTS
Turn the bulb holder in directionO(open) to
replace the bulbs. After replacing the bulb, turn
the bulb holder in directionC(close).
SIDE LIGHTS
These are LED lights. Contact a Lancia
Dealership for replacement.
3
rdBRAKE LIGHTS
These are located in the tailgate and are LED
lights. Contact a Lancia Dealership for
replacement.REAR FOG LIGHT
To change the bulb, proceed as follows:
❒working from inside the bumper, turn the bulb
holder unit A fig. 140 by a 1/4 turn;
❒extract the bulb and replace it;
❒refit the new bulb then reinsert the bulb holder
in its housing.WARNING
Before replacing bulb, wait for the
catalytic converter to cool down:
RISK OF BURNS!
REVERSE LIGHT
To change the bulb, proceed as follows:
❒working from inside the bumper, turn the bulb
holder unit B fig. 140 by a 1/4 turn;
❒extract the bulb and replace it;
❒refit the new bulb then reinsert the bulb holder
in its housing.
fig. 140L0F0219
200
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

NUMBER PLATE LIGHTS
To replace the bulbs proceed as follows:
❒remove lens A fig. 141;
❒turn the bulb holder B fig. 142 anticlockwise,
extract the bulb C and replace it;
❒refit the lens.REPLACING INTERIOR BULBS
For the type of bulb and corresponding power
rating, see the paragraph "Changing a bulb".
FRONT ROOF LIGHT
To change the bulbs, proceed as follows:
❒remove the roof light A fig. 143 working at the
points indicated by the arrows;
❒open the flap B fig. 144 and replace the bulbs C
releasing them from the side contacts. Make
sure that the new bulbs are correctly secured
between the contacts;
❒reclose the flap B fig. 144 and fix the roof light
A fig. 143 in its housing making sure that it is
locked.
fig. 141L0F0259fig. 142L0F0214
201
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REAR ROOF LIGHT
Versions without sun roof
To change the bulb, proceed as follows:
❒operate in the point shown by the arrow and
remove the roof light A fig. 145;❒open the flap C fig. 146 and replace the bulb B
releasing it from the side contacts;
❒Insert the new bulb and make sure that it is
correctly clamped between the contacts.
fig. 143L0F0066
fig. 144L0F0067
fig. 145L0F0237
fig. 146L0F0235
202
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

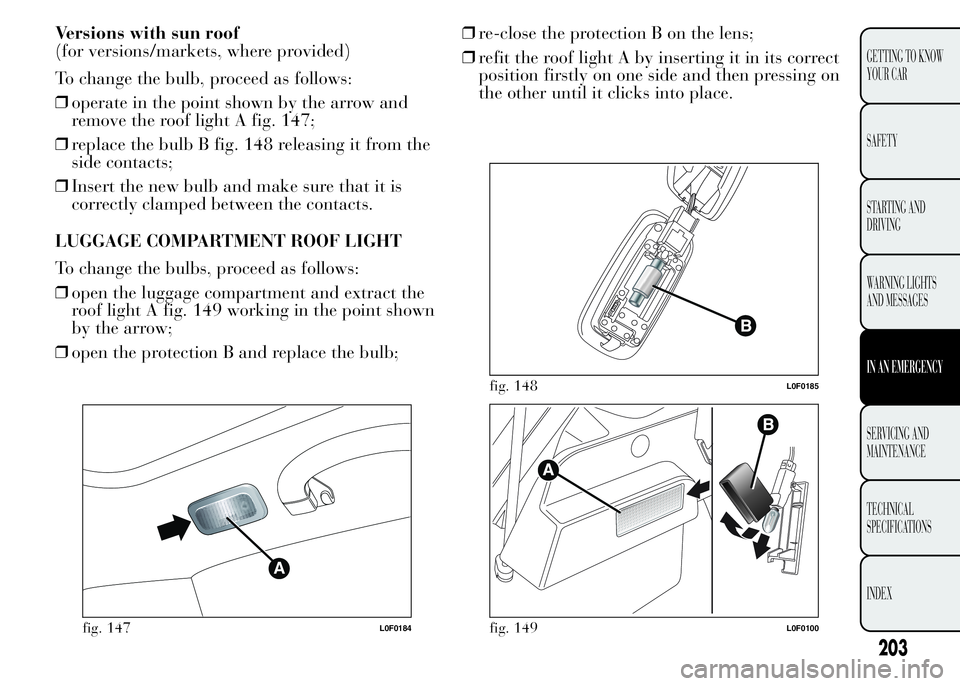

Versions with sun roof
(for versions/markets, where provided)
To change the bulb, proceed as follows:
❒operate in the point shown by the arrow and
remove the roof light A fig. 147;
❒replace the bulb B fig. 148 releasing it from the
side contacts;
❒Insert the new bulb and make sure that it is
correctly clamped between the contacts.
LUGGAGE COMPARTMENT ROOF LIGHT
To change the bulbs, proceed as follows:
❒open the luggage compartment and extract the
roof light A fig. 149 working in the point shown
by the arrow;
❒open the protection B and replace the bulb;❒re-close the protection B on the lens;
❒refit the roof light A by inserting it in its correct
position firstly on one side and then pressing on
the other until it clicks into place.
A
fig. 147L0F0184
fig. 148L0F0185
fig. 149L0F0100
203
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GLOVE COMPARTMENT LIGHT
To change the bulbs, proceed as follows:
❒open the glove compartment and extract the
roof light A fig. 150;
❒open the protection B and replace the bulb;
❒re-close the protection B on the lens;
❒refit the roof light A by inserting it in its correct
position firstly on one side and then pressing on
the other until it clicks into place.REPLACING FUSES
GENERAL INFORMATION
Fuses protect the electrical system: they intervene
(blow) in the event of a fault or improper
intervention on the system.
When a device does not work, check the condition
of its protective fuse: the conductor element A
fig. 151 must be intact. If it is not, replace the
blown fuse with another with the same amperage
(same colour).
B = intact fuse;
C = fuse with damaged filament.
To replace a fuse, use the tweeters D hooked to the
fuse box lid on the left-hand side of the
dashboard.
Refer to the tables on the following pages to
identify the protective fuse.
fig. 150L0F0065fig. 151L0F0005
