2015 JEEP CHEROKEE User Guide

TOWING A DISABLED VEHICLE
4X4 MODELS
Towing Condition
Wheels OFF the
Ground
FWD MODELS
1–SPEED
POWER TRANSFER UNIT
2–SPEED
POWER TRANSFER UNIT
Flat Tow
NONE
NOT ALLOWED
NOT ALLOWED
See instructions under“Recreational Towing” in“Starting And Operating”
•
Transmission in
PARK
• Power Transfer Unit in
NEUTRAL
• Tow in
forward
direction
Wheel Lift or Dolly Tow
Rear
NOT ALLOWED
NOT ALLOWED
NOT ALLOWED
Front
OK
NOT ALLOWED
NOT ALLOWED
Flatbed
ALL
BEST METHOD
OK
BEST METHOD
WHAT TO DO IN EMERGENCIES
199

EVENT DATA RECORDER (EDR)
This vehicle is equipped with an Event Data Recorder (EDR). The main purpose of an
EDR is to record, in certain crash or near crash-like situations, such as an air bag
deployment or hitting a road obstacle, data that will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data related to vehicle
dynamics and safety systems for a short period of time, typically 30 seconds or less.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating.
• Whether or not the driver and passenger safety belts were buckled/fastened.
• How far (if at all) the driver was depressing the accelerator and/or brake pedal.
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE:
EDR data is recorded by your vehicle only if a non-trivial crash situation occurs; no
data is recorded by the EDR under normal driving conditions and no personal data
(e.g. name, gender, age, and crash location) is recorded. However, other parties, such
as law enforcement, could combine the EDR data with the type of personally
identifying data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties
such as law enforcement, that have the special equipment, can read the information
if they have access to the vehicle or the EDR.
WHAT TO DO IN EMERGENCIES
200

OPENING THE HOOD
• Pull the hood release lever located under the left side of the instrument panel.
• Move to the outside of the vehicle, raise the hood and locate the safety latch
behind the center front edge of the hood.
• Pull the safety latch (toward you) while lifting the hood at the same time.
WARNING!
Be sure the hood is fully latched before driving your vehicle. If the hood is not fully
latched, it could open when the vehicle is in motion and block your vision. Failure
to follow this warning could result in serious injury or death.
MAINTAINING YOUR VEHICLE
201

ENGINE COMPARTMENT
2.4L Engine
1. Engine Coolant Reservoir
2. Engine Oil Fill
3. Brake Fluid Reservoir
4. Battery Terminals (Jump Starting)
5. Battery
MAINTAINING YOUR VEHICLE
202

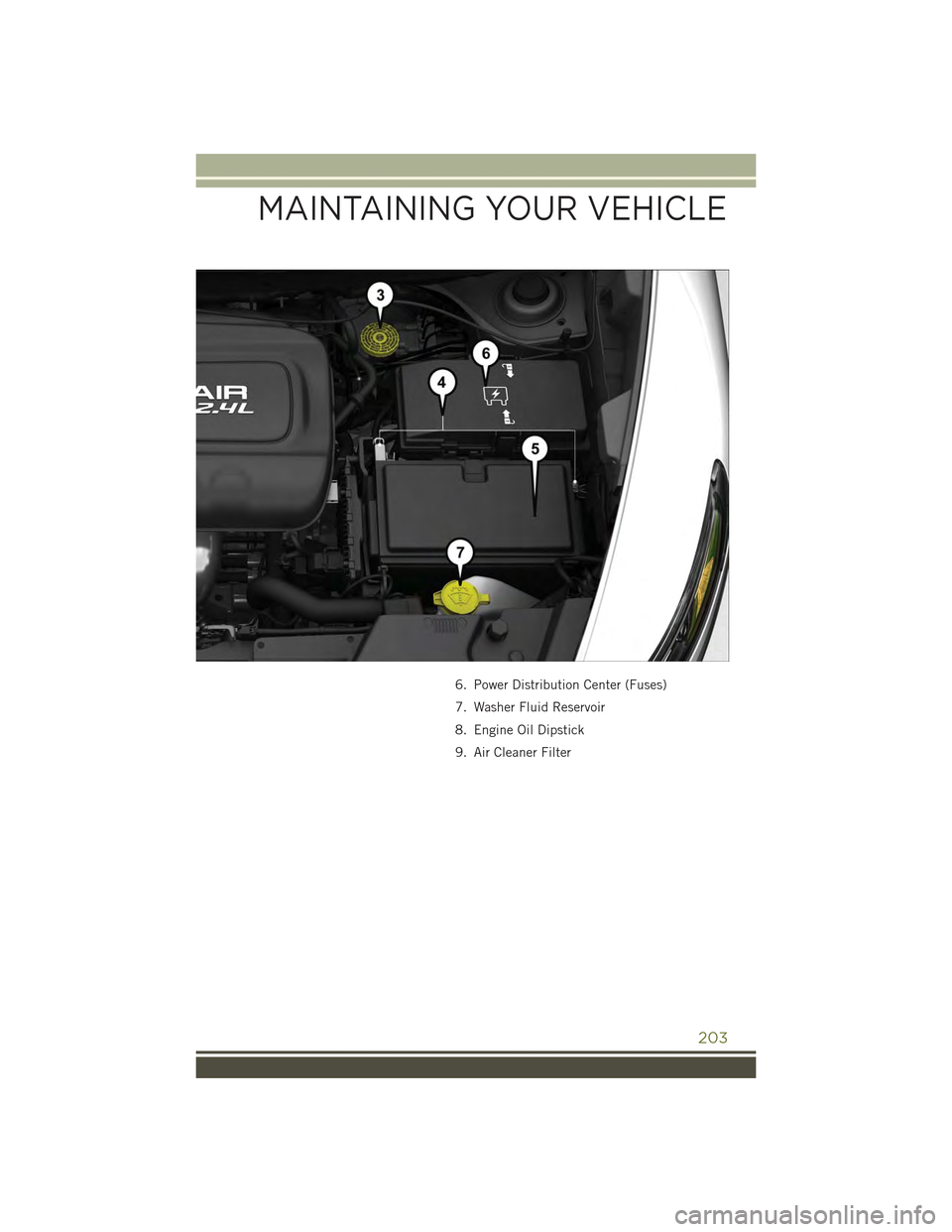

6. Power Distribution Center (Fuses)
7. Washer Fluid Reservoir
8. Engine Oil Dipstick
9. Air Cleaner Filter
MAINTAINING YOUR VEHICLE
203

3.2L Engine
1. Engine Coolant Reservoir
2. Engine Oil Fill
3. Brake Fluid Reservoir
4. Battery Terminals (Jump Starting)
5. Battery
MAINTAINING YOUR VEHICLE
204

6. Power Distribution Center (Fuses)
7. Washer Fluid Reservoir
8. Engine Oil Dipstick
9. Air Filter Cleaner
MAINTAINING YOUR VEHICLE
205

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
2.4L and 3.2L Engines15.8 Gallons60 Liters
Engine Oil With Filter
2.4 Liter Engine(SAE 0W-20, API Certified)5.5 Quarts5.2 Liters
3.2 Liter Engine(SAE 5W-20, API Certified)6 Quarts5.6 Liters
Cooling System*
2.4 Liter Engine (MOPAR®
Antifreeze/Engine Coolant10 Year/150,000 MileFormula)
7.2 Quarts 6.8 Liters
3.2 Liter Engine (MOPAR®
Antifreeze/Engine Coolant10 Year/150,000 MileFormula)
10 Quarts 9.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR®Antifreeze/Coolant10 Year/150,000 Mile Formula OAT (Organic AdditiveTechnology) or equivalent meeting the requirements ofChrysler Material Standard MS-12106.
Engine Oil – 2.4L Engine We recommend you use SAE 0W-20 API Certified EngineOil, meeting the requirements of Chrysler Material Stan-dard MS-6395 such as MOPAR®,Pennzoil®,andShellHelix®. Refer to your engine oil filler cap for correct SAEgrade.
Engine Oil – 3.2L Engine We recommend you use API Certified SAE 5W-20 EngineOil, meeting the requirements of Chrysler Material Stan-dard MS-6395 such as MOPAR®,Pennzoil®,andShellHelix®. Refer to your engine oil filler cap for correct SAEgrade.
Engine Oil FilterWe recommend you use a MOPAR®Engine Oil Filter.
Spark Plugs – 2.4L Engine We recommend you use MOPAR®Spark Plugs.
Spark Plugs – 3.2L Engine We recommend you use MOPAR®Spark Plugs.
Fuel Selection – 2.4L/3.2LEngines87 Octane
MAINTAINING YOUR VEHICLE
206
