2015 INFINITI QX60 Owner's Manual

3. Cruise system warning light:Comes on if there is a malfunction in the
cruise control system.
Operating conventional (fixed speed)
cruise control mode
To turn on the conventional (fixed speed)
cruise control mode, push and hold the
CRUISE ON/OFF switch
Afor longer than
about 1.5 seconds.
When pushing the CRUISE ON/OFF switch on,
the ICC system display and the CRUISE indica-
tor are displayed in the vehicle information dis-
play. After you hold the CRUISE ON/OFF switch
on for longer than about 1.5 seconds, the ICC
system display goes out. The CRUISE indicator
stays lit. You can now set your desired cruising speed. Pushing the CRUISE ON/OFF switch
again will turn the system completely off.
When the ignition switch is pushed to the OFF
position, the system is also automatically turned
off. To use the ICC again, quickly push and re-
lease the CRUISE ON/OFF switch (vehicle-to-
vehicle distance control mode) or push and hold
it (conventional cruise control mode) again to turn
it on.
When the Distance Control Assist (DCA) system
is on, the conventional (fixed speed) cruise con-
trol mode cannot be turned on even though the
CRUISE ON/OFF switch is pushed and held.
To turn on the conventional (fixed speed) cruise
control mode, turn off the DCA system. For addi-
tional information, refer to “Distance Control As-
sist (DCA) system” in this section.CAUTION
To avoid accidentally engaging cruise con-
trol, make sure to turn the ON/OFF switch
off when not using the Intelligent Cruise
Control.
LSD2076
5-70Starting and driving

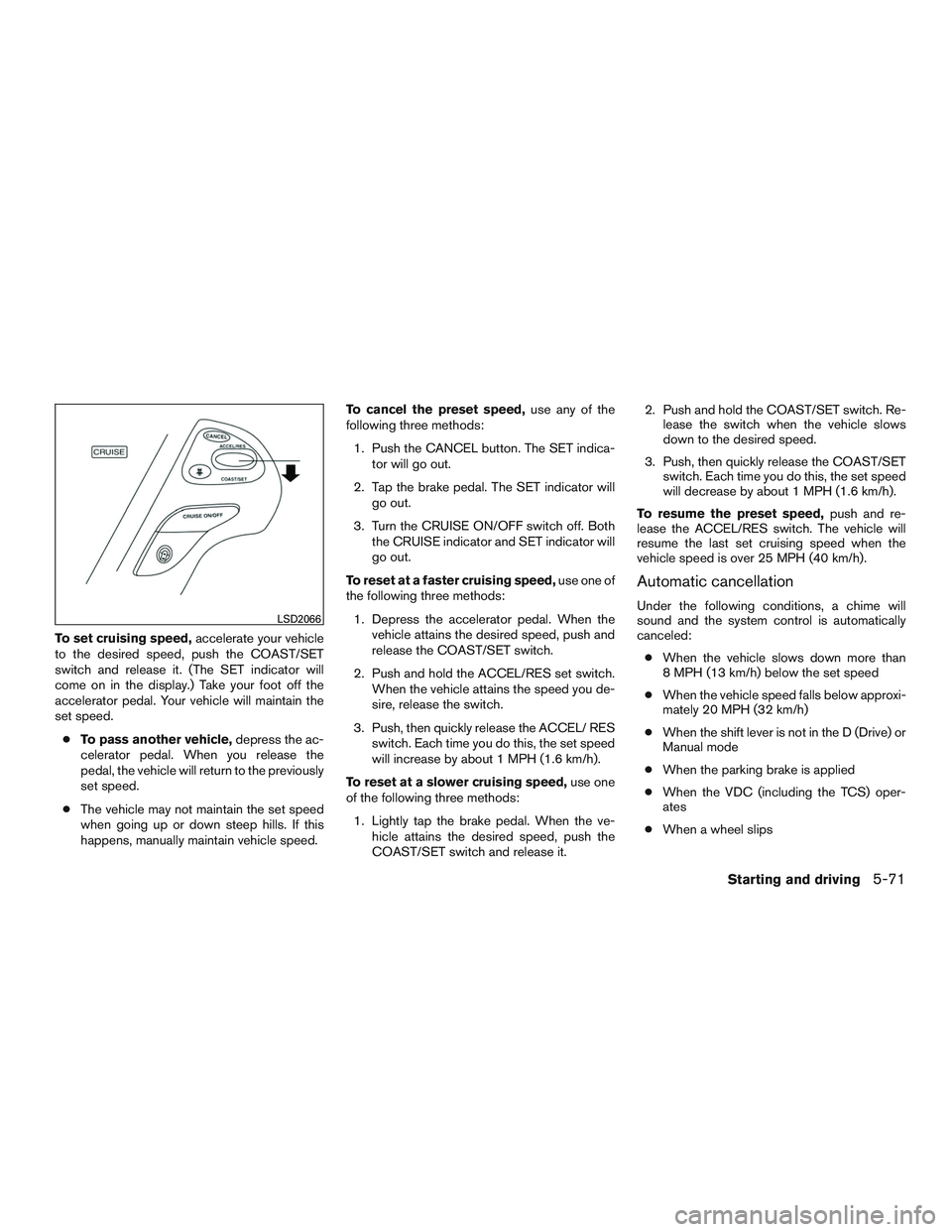

To set cruising speed,accelerate your vehicle
to the desired speed, push the COAST/SET
switch and release it. (The SET indicator will
come on in the display.) Take your foot off the
accelerator pedal. Your vehicle will maintain the
set speed.
● To pass another vehicle, depress the ac-
celerator pedal. When you release the
pedal, the vehicle will return to the previously
set speed.
● The vehicle may not maintain the set speed
when going up or down steep hills. If this
happens, manually maintain vehicle speed. To cancel the preset speed,
use any of the
following three methods:
1. Push the CANCEL button. The SET indica- tor will go out.
2. Tap the brake pedal. The SET indicator will go out.
3. Turn the CRUISE ON/OFF switch off. Both the CRUISE indicator and SET indicator will
go out.
To reset at a faster cruising speed, use one of
the following three methods:
1. Depress the accelerator pedal. When the vehicle attains the desired speed, push and
release the COAST/SET switch.
2. Push and hold the ACCEL/RES set switch. When the vehicle attains the speed you de-
sire, release the switch.
3. Push, then quickly release the ACCEL/ RES switch. Each time you do this, the set speed
will increase by about 1 MPH (1.6 km/h).
To reset at a slower cruising speed, use one
of the following three methods:
1. Lightly tap the brake pedal. When the ve- hicle attains the desired speed, push the
COAST/SET switch and release it. 2. Push and hold the COAST/SET switch. Re-
lease the switch when the vehicle slows
down to the desired speed.
3. Push, then quickly release the COAST/SET switch. Each time you do this, the set speed
will decrease by about 1 MPH (1.6 km/h).
To resume the preset speed, push and re-
lease the ACCEL/RES switch. The vehicle will
resume the last set cruising speed when the
vehicle speed is over 25 MPH (40 km/h).
Automatic cancellation
Under the following conditions, a chime will
sound and the system control is automatically
canceled:
● When the vehicle slows down more than
8 MPH (13 km/h) below the set speed
● When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
● When the shift lever is not in the D (Drive) or
Manual mode
● When the parking brake is applied
● When the VDC (including the TCS) oper-
ates
● When a wheel slipsLSD2066
Starting and driving5-71

Warning light
When the system is not operating properly, the
chime sounds and the system warning light (or-
ange) will come on.
Action to take:
If the warning light comes on, park the vehicle in a
safe place. Turn the engine off, restart the engine,
resume driving and then perform the setting
again.If it is not possible to set or the indicator
stays on, it may indicate that the system is
malfunctioning. Although the vehicle is still
driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.
PREVIEW FUNCTION (for ICC
system equipped models)
The ICC system with the Preview Function iden-
tifies the need to apply emergency braking by
sensing the vehicle ahead in the same lane and
the distance to the vehicle ahead and relative
speed from it. It applies the brake pre-pressure
before the driver depresses the brake pedal and
helps improve brake response by reducing pedal
free play.
For additional information, refer to “Brake assist”
in this section.
The (DCA) system brakes and moves the accel-
erator pedal upward according to the distance
from and the relative speed of the vehicle ahead
to help assist the driver to maintain a following
distance.
WARNING
●
DCA helps maintain a distance to the
vehicle in front under certain condi-
tions. It is not a collision avoidance sys-
tem. Failure to apply the brakes could
result in an accident.
● Always drive carefully and attentively
when using the DCA system. Read and
understand the Owner’s Manual thor-
oughly before using the DCA system.
Do not use the DCA system except in
appropriate road and traffic conditions.
● If the vehicle ahead comes to a stop, the
vehicle decelerates to a standstill
within the limitations of the system. The
system will cancel once it judges that
the vehicle has come to a standstill with
a warning chime. To prevent the vehicle
from moving, the driver must depress
the brake pedal.
● The DCA system will not apply brake
control while the driver’s foot is on the
accelerator pedal.
LSD2067
DISTANCE CONTROL ASSIST (DCA)
SYSTEM (if so equipped)
5-72Starting and driving

PRECAUTIONS ON DCA SYSTEM
The system is intended to assist the driver to
maintain an appropriate following distance from
the vehicle ahead traveling in the same lane and
direction.
The distance sensor is located behind the front
bumper
A. If the distance sensorAdetects a
slower moving vehicle ahead, the system will
reduce the vehicle speed to help assist the driver
to maintain an appropriate following distance.
The system automatically controls the throttle
and applies the brakes (up to 40% of vehicle
braking power) if necessary. The detection range of the sensor is approxi-
mately 490 ft (150 m) ahead.
WARNING
●
This system is only an aid to assist the
driver and is not a collision warning or
avoidance device. It is the driver’s re-
sponsibility to stay alert, drive safely
and be in control of the vehicle at all
times.
● This system will not adapt automatically
to road conditions.
The distance sensor will not detect the following
objects: ● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane
● Motorcycles traveling offset in the travel lane
WARNING
●As there is a performance limit to the
distance control function, never rely
solely on the DCA system. This system
does not correct careless, inattentive or
absent-minded driving, or overcome
poor visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed
by depressing the brake pedal, depend-
ing on the distance to the vehicle ahead
and the surrounding circumstances in
order to maintain a safe distance be-
tween vehicles.
● The system may not detect the vehicle
in front of you in certain road or weather
conditions. To avoid accidents, never
use the DCA system under the following
conditions:
– On roads with sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.)
– When rain, snow or dirt adhere to the sensor area of the front bumper
LSD2098
Starting and driving5-73

– On steep downhill roads (frequentbraking may result in overheating the
brakes)
– On repeated uphill and downhill roads
● Do not use the DCA system if you are
towing a trailer. The system may not
detect a vehicle ahead.
● In some road or traffic conditions, a
vehicle or object can unexpectedly
come into the sensor detection zone
and cause automatic braking. You may
need to control the distance from other
vehicles using the accelerator pedal. Al-
ways stay alert and avoid using the DCA
system where not recommended in this
warning section.
DCA OPERATION
Always pay attention to the operation of the ve-
hicle and be ready to manually decelerate to
maintain the proper following distance. The DCA
system may not be able to decelerate the vehicle
under some circumstances.
The DCA system uses a sensor
Alocated be-
hind the front bumper of the vehicle to detect
vehicles traveling ahead. The sensor generally
detects the signals returned from the vehicle
ahead. Therefore, if the sensor cannot detect the
reflection from the vehicle ahead, the DCA sys-
tem may not operate. The following are some conditions in which the
sensor cannot detect the signals:
● When the reflector of the vehicle ahead is
covered with dirt, snow and road spray
● When dense exhaust or other smoke (black
smoke) from vehicles reduces the sensor’s
detection
● When excessively heavy baggage is loaded
in the rear seat or the luggage room of your
vehicle
The DCA system is designed to automatically
check the sensor’s operation. When the front
bumper area around the distance sensor is cov-
ered with dirt or is obstructed, the system will
automatically cancel. If the front bumper area of
the distance sensor is covered with ice, a trans-
parent or translucent vinyl bag, etc., the DCA
system may not detect them. In these instances,
the vehicle-to-vehicle distance control mode may
not cancel and may not be able to maintain the
selected following distance from the vehicle
ahead. Be sure to check and clean the front
bumper area around the distance sensor regu-
larly.
The DCA system is designed to help assist the
driver to maintain a following distance from the
vehicle ahead. The system will decelerate as nec-
essary and if the vehicle ahead comes to a stop,
LSD2098
5-74Starting and driving

the vehicle decelerates to a standstill. However,
the DCA system can only apply up to 40% of the
vehicle’s total braking power. If a vehicle moves
into the traveling lane ahead or if a vehicle travel-
ing ahead rapidly decelerates, the distance be-
tween vehicles may become closer because the
DCA system cannot decelerate the vehicle
quickly enough. If this occurs, the DCA system
will sound a warning chime and blink the system
display to notify the driver to take necessary
action.
For additional information, refer to “Approach
warning” in this section.
This system only brakes and moves the accelera-
tor pedal upward to help assist the driver to
maintain a following distance from the vehicle
ahead. Acceleration should be operated by the
driver.
The DCA system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead.The detection zone of the sensor is limited. A
vehicle ahead must be in the detection zone for
the system to operate.
A vehicle ahead may move outside of the detec-
tion zone due to its position within the same lane
of travel. Motorcycles may not be detected in the
same lane ahead if they are traveling offset from
the centerline of the lane. A vehicle that is enter-
ing the lane ahead may not be detected until the
vehicle has completely moved into the lane.
If
this occurs, the system may warn you by
blinking the system indicator and sounding
the chime. The driver may have to manually control the proper distance away from ve-
hicle traveling ahead.
DCA Detection Zone
SSD0252
Starting and driving5-75

When driving on some roads, such as winding,
hilly, curved, narrow roads, or roads which are
under construction, the sensor may detect ve-
hicles in a different lane, or may temporarily not
detect a vehicle traveling ahead. This may cause
the system to work inappropriately.
The detection of vehicles may also be affected by
vehicle operation (steering maneuver or traveling
position in the lane, etc.) or vehicle condition.If
this occurs, the system may warn you by
blinking the system indicator and sounding
the chime unexpectedly. You will have to
manually control the proper distance away
from the vehicle traveling ahead.DCA system display and indicators
The display is located between the speedometer
and tachometer.
1. DCA system switch indicator: Indicates that the dynamic driver assistance
switch is on. 2. Vehicle ahead detection indicator:
Indicates whether it detects a vehicle in front
of you.
DCA Detection Zones On Winding Roads
SSD0253
DCA Indicators
LSD2068
5-76Starting and driving

To turn on the DCA system, push the dynamic
driver assistance switch
1on the steering wheel
after starting the engine. The DCA system switch
indicator light
2in the vehicle information dis-
play will illuminate. Push the dynamic driver as-
sistance switch again to turn off the DCA system.
The DCA system switch indicator light will turn
off.
The system will start to operate after the vehicle
speed becomes above approximately 3 MPH
(5 km/h).
The dynamic driver assistance switch is used for
the LDP, DCA and BCI systems. When the dy-
namic driver assistance switch is pushed, the LDP system will also turn on or off simultaneously.
The DCA system can be individually set to on or
off on the display. If the system is set to off, the
system will not turn on even if the dynamic driver
assistance switch is pushed to on. To set the
system to on or off on the display, refer to “Setting
DCA system to ON/OFF” in this section.
Setting DCA system to ON/OFF:
The DCA can be turned on/off in the vehicle
information display using the buttons on the
steering wheel.
1. Press the
button, and select the “Set-
tings” using the
button. Then press
the ENTER button. 2. Select the “Driver Aids”, and press the EN-
TER button.
3. Select “Forward”, and press the ENTER but- ton.
4. To turn on the “Assistance (DCA)” check the box using the ENTER button.
If the LDP, BSI and DCA systems are set to off on
the information display and the dynamic driver
assistance switch is pushed, the LDP ON indica-
tor light, BSI ON indicator light, and the DCA
system switch indicator light will blink for approxi-
mately 2 seconds.
For additional information on LDP and BSI, refer
to “Lane Departure Warning (LDW) system/Lane
Departure Prevention (LDP) system (if so
equipped)” and “Blind Spot Warning
(BSW)/Blind Spot Intervention® (BSI) systems”
in this section.
Under the following conditions, the DCA system
will not operate and the DCA cancellation mes-
sage will pop up: ● When the SNOW mode switch is ON (To
use the DCA system, turn off the SNOW
mode switch, then turn on the dynamic driver
assistance switch.)
LIC2889LSD2069
Starting and driving5-77
